The 10-20% Slip Ratio: How Anti-lock Braking Systems Maximize Deceleration While Maintaining Steering Control

The Electronic Control Unit (ECU) of an anti-lock braking system acts as the ultimate arbiter of deceleration, possessing the sole authority to override a driver's physical pedal input. Operating in milliseconds, the ECU continuously evaluates wheel speed data and commands hydraulic valves to reduce, hold, or increase brake fluid pressure to individual calipers. Its primary objective is not simply to stop the vehicle, but to trap the tire in a narrow physical state known as the 10-20% slip ratio.[1][6]

Prior to the widespread adoption of ABS in the late 1980s, panic braking fundamentally decoupled a vehicle from driver intent. A fully locked wheel—operating at 100% slip—slides across the pavement, generating immense heat but drastically reducing the coefficient of friction. More critically, a locked tire generates zero lateral force, meaning turning the steering wheel has no effect on the vehicle's trajectory.[5]

The mechanics of rubber on asphalt dictate that maximum grip occurs neither when a wheel rolls freely nor when it drags completely. Slip ratio quantifies the difference between the vehicle's forward velocity and the tire's rotational speed. At 0% slip, the tire rolls perfectly with the road; at 100% slip, the tire is locked and skidding.[2][3]

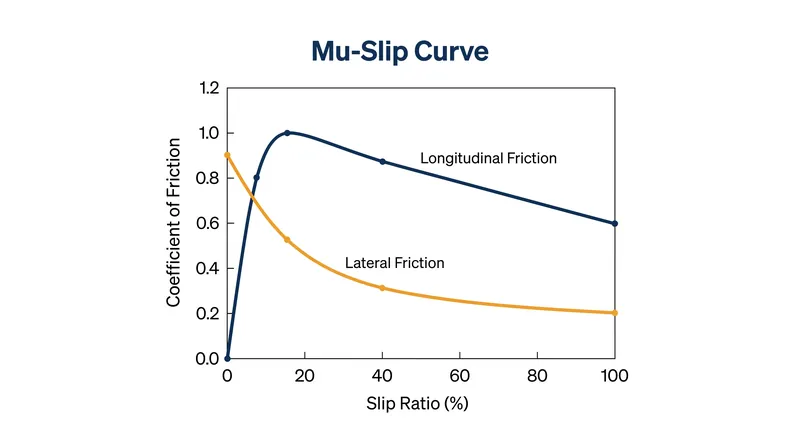

The relationship between this slip and the resulting grip is mapped on a "mu-slip curve," where the Greek letter mu represents the coefficient of friction. According to tire dynamics research published in Racecar Engineering, longitudinal friction rises steeply as the tire begins to slip, peaking precisely in the 10% to 20% range. Within this window, the rubber tread blocks deform and grip the micro-texture of the road surface most effectively.[5]

However, longitudinal friction is only half the equation. The vehicle must also maintain lateral friction to allow the driver to steer around an obstacle. Researchers in a 2021 Mechanics & Industry paper note that "wheel slip ratio regulation" is critical for "investigating the vehicle's dynamic behavior during braking and steering input." Lateral grip is highest at 0% slip and degrades rapidly as slip increases. By the time a tire reaches 20% slip, it retains enough lateral capacity for emergency lane changes, but beyond 30%, steering authority plummets.[2]

Therefore, the 10-20% slip ratio represents a critical physical compromise. It is the exact mathematical intersection where longitudinal deceleration is maximized while sufficient lateral grip is preserved. The ABS algorithm is entirely dedicated to hunting and holding this specific intersection, regardless of the road surface.[4][6]

To achieve this, the system relies on a network of magnetic wheel speed sensors. These sensors generate a pulsed electrical signal that the ECU translates into rotational velocity. If the ECU detects that one wheel is decelerating at a rate that exceeds the vehicle's overall deceleration—a physical impossibility unless the wheel is beginning to lock—it intervenes.[1]

The intervention occurs via a hydraulic control unit. As detailed in the Journal of Dynamic Systems, Measurement, and Control, the ECU commands a solenoid valve to isolate the locking wheel's brake caliper from the master cylinder, holding the pressure constant. If the wheel continues to lock, a second valve opens to release fluid into an accumulator, dropping the brake pressure and allowing the wheel to spin back up.[6]

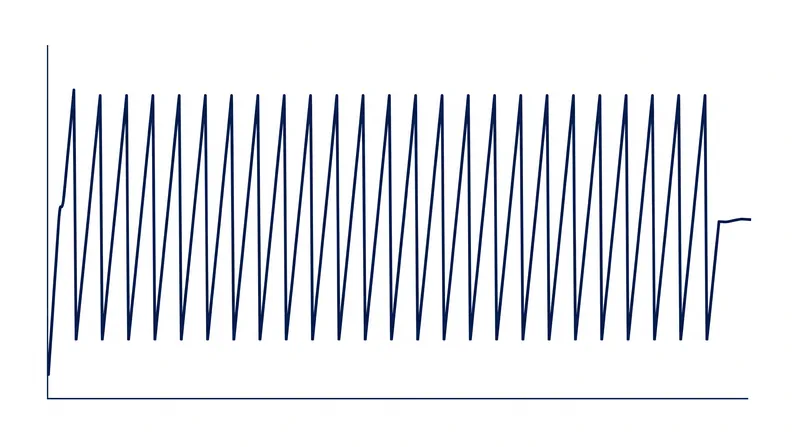

Once the wheel speed recovers and the slip ratio falls back below the 10% threshold, a pump forces the fluid back into the circuit, reapplying the brake pressure. This cycle of release, hold, and reapply happens up to 15 to 20 times per second, creating the characteristic pulsation felt through the brake pedal during an emergency stop.[3][6]

Modern ABS algorithms utilize a strategy known as "extremum seeking control." As outlined by engineers at MathWorks, the controller does not need to know the exact friction coefficient of the road surface in advance. Instead, it continuously perturbs the brake pressure and measures the resulting wheel acceleration, dynamically searching for the peak of the mu-slip curve in real-time.[1]

This dynamic searching is vital because the optimal slip ratio shifts depending on the environment. On dry asphalt, peak friction might occur at 18% slip. On wet roads, the peak shifts lower, closer to 12%. The extremum seeking algorithm adjusts its pressure modulation frequency to find the specific peak for the exact patch of pavement the tire is currently crossing.[1][3]

There is one notable exception to the 10-20% rule: loose surfaces. On gravel, sand, or deep snow, the physics of deceleration change entirely. A locked wheel operating at 100% slip plows into the loose material, building a physical wedge in front of the tire that stops the vehicle significantly faster than a rolling wheel.[5]

Because standard ABS prevents this wedge from forming, stopping distances on gravel can actually increase when the system is active. To counter this, off-road vehicles and modern SUVs employ specialized algorithms that detect loose surfaces via wheel speed oscillation patterns, intentionally allowing slip ratios to climb to 50% or higher to utilize the wedge effect while still preventing total lockup.[4][5]

As the automotive industry transitions to electric vehicles, the mechanics of slip control are evolving. Regenerative braking systems, which use the electric motor to decelerate the vehicle, can modulate torque with millisecond precision that hydraulic valves cannot match. This allows for even tighter control of the slip ratio, keeping the tire closer to the absolute peak of the mu-slip curve.[6]

The fundamental physics, however, remain unchanged. Whether modulated by hydraulic fluid or electromagnetic resistance, the objective of the braking system is to manage the deformation of rubber against asphalt. By continuously targeting the 10-20% slip ratio, the vehicle ensures that the driver retains the ability to dictate the vehicle's path, transforming a panic stop from a ballistic trajectory into a controlled maneuver.[2][6]
