How Insulin Binding to the Tyrosine Kinase Receptor Activates the PI3K/Akt Pathway to Translocate GLUT4

The pancreas acts as the ultimate metabolic decider. When blood glucose rises above a fasting baseline of 70 to 100 milligrams per deciliter, pancreatic beta cells assess the systemic load and deploy insulin into the bloodstream.

What this hormone is actually able to do is unlock cellular doors, and it gets to do this precisely when the concentration of circulating sugar demands clearance. Insulin does not carry glucose across the cell membrane itself; rather, it serves as a highly specific biochemical key that initiates a cascading relay of signals inside the cell.[10]

Skeletal muscle tissue is responsible for clearing roughly 80 percent of post-meal blood glucose. For this clearance to occur, circulating insulin must first make contact with the surface of a muscle or fat cell. The docking station for this hormone is the insulin receptor, a massive protein structure embedded in the plasma membrane that acts as the primary sensory organ for cellular energy status.[2][6]

The insulin receptor is a receptor tyrosine kinase, a complex weighing approximately 340 kilodaltons. It consists of four distinct parts: two extracellular alpha subunits that bind the insulin molecule, and two transmembrane beta subunits that reach into the cell's interior. When insulin binds to the alpha subunits, it forces a three-dimensional shape change across the entire receptor complex.[1][2]

This structural shift causes the beta subunits to cross-phosphorylate each other, a process known as autophosphorylation. By adding phosphate groups to specific tyrosine amino acids on its own intracellular tail, the receptor essentially turns itself on. The activated receptor then acts as a kinase, seeking out its first major intracellular target: the Insulin Receptor Substrate, primarily IRS-1, a 160-kilodalton scaffold protein.[1][2]

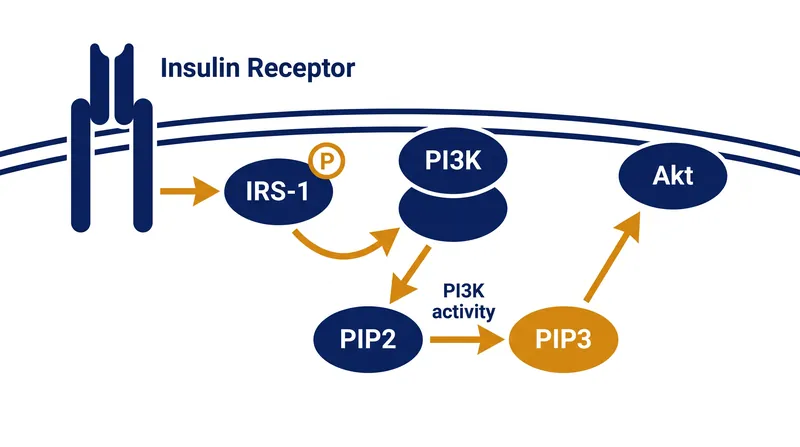

The receptor phosphorylates IRS-1 at multiple tyrosine residues, turning it into a docking beacon for the next enzyme in the chain. This is where Phosphoinositide 3-kinase, or PI3K, enters the sequence. PI3K binds to the phosphorylated sites on IRS-1, pulling the enzyme close to the inner surface of the cell membrane where its substrate resides.[4]

Once positioned at the membrane, PI3K performs a highly specific lipid conversion. It adds a phosphate group to a membrane-bound lipid called PIP2, converting it into PIP3. This newly formed PIP3 acts as a localized chemical magnet on the inner leaflet of the cell membrane, drawing in other critical signaling proteins that float freely in the cytoplasm.[4]

The most critical protein recruited by PIP3 is Akt, also known as Protein Kinase B. As Akt binds to PIP3, it undergoes a conformational change that exposes its own phosphorylation sites. Another enzyme, PDK1, which is also drawn to the PIP3 lipid raft, then phosphorylates Akt at specific amino acid residues, fully activating the kinase.[4][9]

This activation step is the central node of the entire metabolic response. As detailed in a 2018 IntechOpen review, "The PI3K/AKT pathway plays a central role in insulin-mediated glucose uptake by promoting the translocation of GLUT4 to the plasma membrane." Once Akt is active, it detaches from the membrane and moves through the cytoplasm to execute the final stages of the relay.[4]

The primary target for active Akt in this pathway is a protein called AS160, which stands for Akt Substrate of 160 kilodaltons. In a resting, fasted state, AS160 acts as a biological brake. It functions as a GTPase-activating protein, or GAP, which keeps a family of small motor proteins called Rabs in an inactive, GDP-bound state.[3][8]

When Akt phosphorylates AS160, it disables this braking mechanism. With AS160 inhibited, the Rab proteins are free to drop their GDP and bind to GTP, shifting into their active configuration. These active Rab proteins are the mechanical engines that drive the physical movement of glucose transporters through the dense intracellular environment.[8]

Deep inside the cell, specialized storage vesicles hold thousands of copies of GLUT4, the primary glucose transporter protein. Discovered in 1988, GLUT4 is unique because it remains hidden inside the cell until insulin signals its release. The active Rab proteins attach to these GLUT4 storage vesicles and guide them along the cell's cytoskeleton toward the outer membrane.[3]

The movement of these vesicles is highly orchestrated. A 2014 paper examining the "Molecular Mechanisms for the Regulation of Insulin-Stimulated Glucose Uptake by Small Guanosine Triphosphatases" highlights how these Rab proteins ensure the vesicles navigate the cytoplasm without degrading or fusing with the wrong organelles.[8]

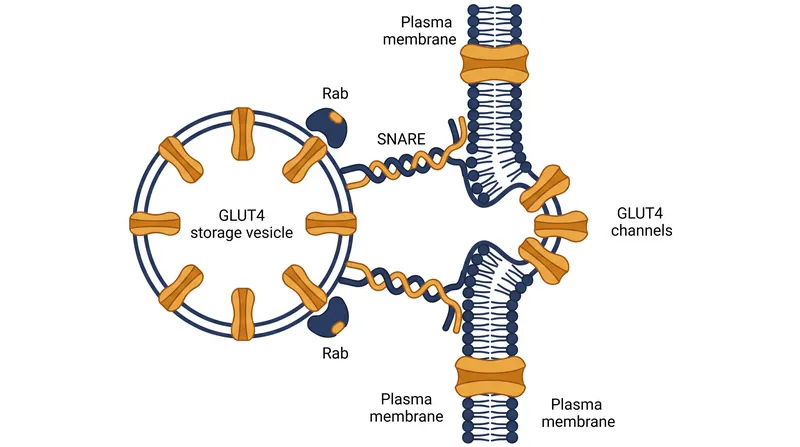

Upon reaching the plasma membrane, the vesicles must physically merge with it. This fusion is mediated by SNARE proteins, which act like a molecular zipper, pulling the vesicle membrane and the cell membrane tightly together until they become one continuous surface.[3]

As the vesicle fuses, the GLUT4 proteins embedded in its membrane are suddenly exposed to the outside environment. This process, known as translocation, can trigger a 10-fold increase in the cell's ability to absorb glucose from the bloodstream. The sugar molecules flow down their concentration gradient, passing through the GLUT4 channels and entering the cell to be used for immediate energy or stored as glycogen.[2][7]

Understanding this exact sequence explains the pathology of insulin resistance, the hallmark of type 2 diabetes. When muscle cells accumulate toxic lipid byproducts like ceramides or diacylglycerols, these fats activate inflammatory kinases that phosphorylate IRS-1 on serine residues instead of tyrosine. This incorrect phosphorylation blocks PI3K from binding, effectively cutting the signal wire right after the receptor.[1][3]

Interestingly, the body possesses a secondary, insulin-independent pathway to trigger GLUT4 translocation. During physical exercise, muscle contractions deplete cellular energy, raising the ratio of AMP to ATP. This energy deficit activates an enzyme called AMPK, which can independently phosphorylate AS160, bypassing a broken PI3K/Akt pathway entirely and forcing GLUT4 to the surface.[6]

The precision of this cellular machinery dictates human metabolic health. The next time a meal is consumed, the pancreas will release its signal, and within roughly 250 milliseconds, this microscopic relay will determine whether that energy is safely absorbed or left circulating to cause systemic damage.[10]
