How SSD Controllers Distribute Writes to Prevent Premature Flash Memory Death

When a solid-state drive finally fails, it rarely dies all at once. Instead, specific microscopic cells of silicon oxide simply refuse to hold an electrical charge after being overwritten too many times. Unlike magnetic hard drives, which can theoretically rewrite the same physical sector infinitely, NAND flash memory has a strict expiration date built into its physics. Every time data is erased and written, the insulating layer trapping the electrons degrades slightly.[3]

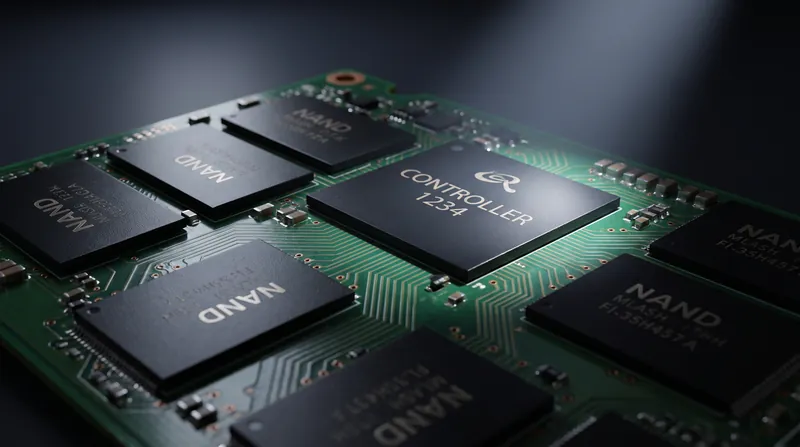

This physical limitation means that if an operating system repeatedly overwrote the exact same physical location on the drive—such as a temporary cache file or a browser history log—that specific cluster of cells would burn out in a matter of months. To prevent this localized death, SSD manufacturers embed a dedicated processor on the drive. This controller runs a complex, invisible logistics operation to ensure that every memory cell degrades at exactly the same rate.[2][6]

The foundation of this logistics operation is the Program/Erase (P/E) cycle. Modern Triple-Level Cell (TLC) NAND flash typically endures between 1,000 and 3,000 P/E cycles before the silicon becomes unreliable. As eInfochips notes in its technical documentation, "Without wear leveling, the flash memory would wear out quickly, leading to premature failure and data loss." The controller's primary job is to stretch those 3,000 cycles across years of daily use.[3]

To understand how the controller achieves this, one must look at how flash memory is physically structured. Data is written in small increments called pages, which are typically 4 to 16 kilobytes in size. However, due to the electrical wiring of the silicon, data cannot be erased at the page level. It can only be erased in much larger chunks called blocks, which contain hundreds of pages and span several megabytes.[4][6]

This architectural quirk creates a significant bottleneck. If a user modifies a single 4-kilobyte text file, the drive cannot simply overwrite that specific page. Instead, the controller must write the new version of the file to a completely different, empty page elsewhere on the drive, and then mark the original page as "stale" or invalid. Over time, the drive fills up with these stale pages, fragmenting the available storage.[1][5]

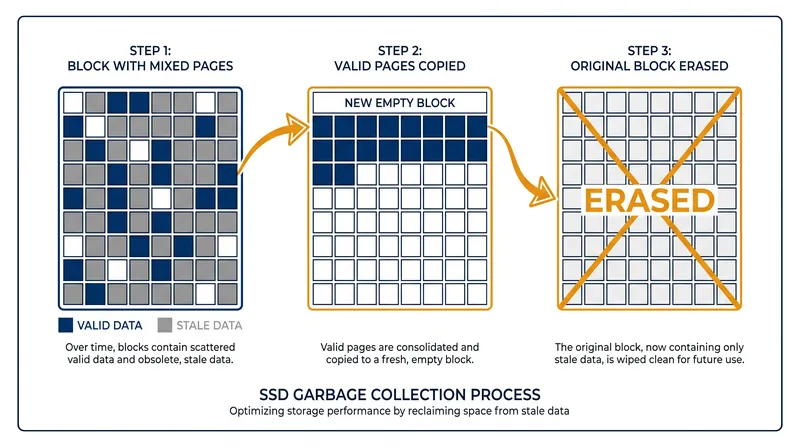

This is where garbage collection enters the picture. As ADATA Industrial's engineering team explains, garbage collection is the background process that consolidates valid data to free up blocks. The controller scans partially filled blocks, copies the remaining valid pages into a fresh, empty block, and then issues an erase command to the old block. This clears out the stale data and returns a pristine block to the pool of available storage.[5]

However, garbage collection introduces its own problem: write amplification. Because the controller is constantly moving data around in the background to free up space, the drive physically writes more data to the flash chips than the host computer actually requested. If a user saves a 10-megabyte file, the background shuffling might result in 30 megabytes of actual wear on the silicon.[1][6]

To mitigate this, modern operating systems use the TRIM command. When a user deletes a file, the OS sends a TRIM signal to the SSD controller, explicitly identifying which pages are no longer needed. According to SSSTC's technical guide, this allows the controller to simply ignore those pages during the next garbage collection cycle, rather than pointlessly copying them to a new block. TRIM drastically reduces write amplification and preserves the drive's limited P/E cycles.[1]

While garbage collection ensures the drive has empty space, wear leveling ensures the P/E cycles are distributed evenly. Dynamic wear leveling is the simpler of the two approaches. When the controller needs to write new data, it actively seeks out the blocks with the lowest erase counts in the free space pool. This ensures that the active, constantly changing data is spread across all available empty blocks.[2][4]

But dynamic wear leveling has a critical blind spot. Most users fill their drives with static data—operating system files, applications, and old photos—that are written once and rarely modified. If a drive is 80 percent full of static data, dynamic wear leveling will only rotate writes across the remaining 20 percent of free space. Those active blocks will burn through their 3,000 P/E cycles rapidly, while the blocks holding the static data remain pristine.[4][6]

To solve this, advanced controllers employ static wear leveling. This process actively intervenes in the dormant areas of the drive. As Microchip's documentation outlines, static wear leveling forces the controller to periodically move cold, unchanging data out of its pristine blocks, relocating it to blocks that have already sustained heavier wear.[4]

By evicting the static data, the controller frees up the drive's healthiest silicon to take on the burden of daily writes. Ontrack's 2016 analysis of controller mechanics highlighted that this technique is what truly allows SSDs to achieve their advertised lifespans. It is a constant, delicate balancing act: moving data just enough to equalize wear, but not so much that the movement itself burns through the drive's endurance.[2]

The marketing materials for consumer SSDs rarely mention these background operations, preferring to highlight peak sequential read and write speeds. Yet, the sophistication of the garbage collection and wear leveling algorithms is what actually separates a reliable drive from one that fails prematurely. The controller is effectively a dedicated computer, running a real-time operating system solely dedicated to preserving its own silicon.[6]

AI

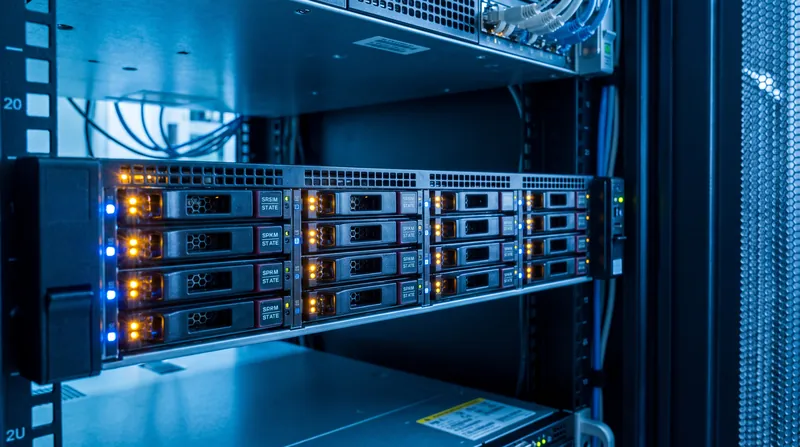

This mechanism also explains why storage engineers universally recommend leaving at least 15 to 20 percent of an SSD empty. This unallocated space, often referred to as over-provisioning, gives the controller the physical room it needs to execute garbage collection and wear leveling efficiently. When a drive is filled to the brim, the controller is forced to shuffle data constantly just to clear a single block, causing write amplification to skyrocket and the silicon to degrade exponentially faster.[5][6]
