The 1950s Vacuum Tube That Makes Modern One-Inch Camera Sensors Measure 16 Millimeters

In May 1950, engineers at the Radio Corporation of America laboratories in Princeton, New Jersey, finalized the dimensions of a new television camera tube they called the Vidicon. The cylindrical glass envelope measured exactly one inch across its outer diameter, a size chosen to fit comfortably inside standard broadcasting equipment.[3]

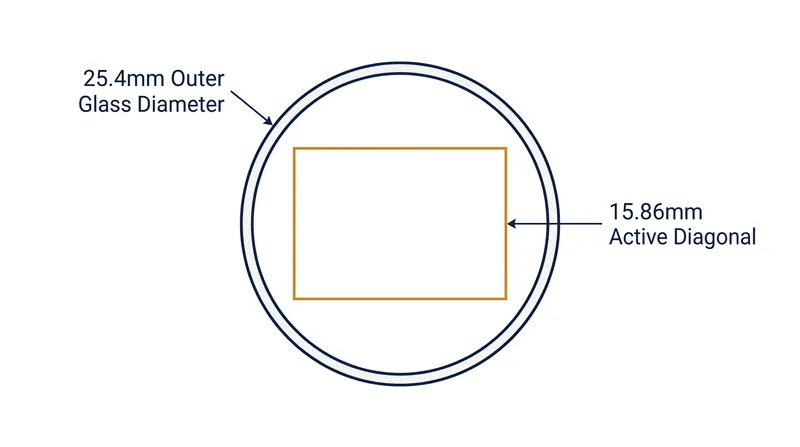

But the electron beam scanning the photosensitive target inside could not reach the edges of the glass without distorting the image. To prevent the picture from warping at the corners, the RCA team restricted the active scanning area to a rectangle measuring roughly 9.6 by 12.8 millimeters.[3]

The diagonal of this usable rectangle was 16 millimeters, leaving nearly a centimeter of thick glass wall and vacuum gap entirely blind to incoming light. Seventy-six years later, that physical limitation in a Princeton laboratory dictates the marketing copy for modern consumer technology.[3][5]

When Apple, Sony, or DJI advertises a flagship device featuring a "one-inch sensor," the silicon chip inside does not measure one inch. Instead, the digital sensor measures exactly 15.86 millimeters diagonally, perfectly matching the active area of that 1950s glass tube.[1][4]

The Geometry of a Vacuum

The discrepancy between the marketed size and the physical silicon is not a modern marketing invention, but a relic of how optical engineers categorized lenses. In the broadcast era, a lens designed for a one-inch Vidicon tube had to project an image circle large enough to cover the 16-millimeter active target inside the glass.[2]

If a television station bought a "one-inch lens," they were not buying a lens that projected a one-inch image. They were buying a lens engineered to interface with a one-inch glass tube, ensuring compatibility across different manufacturers and broadcasting networks.[2]

When solid-state digital sensors began replacing Vidicon tubes in the late 1980s, engineers faced a compatibility problem. Thousands of expensive television and industrial lenses already existed in the field, all calibrated to the old vacuum tube dimensions.[1][2]

To ensure the new silicon sensors could use the existing lenses without altering the field of view, manufacturers sized the digital chips to match the active area of the old tubes. A digital sensor designed to replace a one-inch tube was cut to a 15.86-millimeter diagonal, and the industry simply kept calling it a "one-inch format" sensor.[1][4]

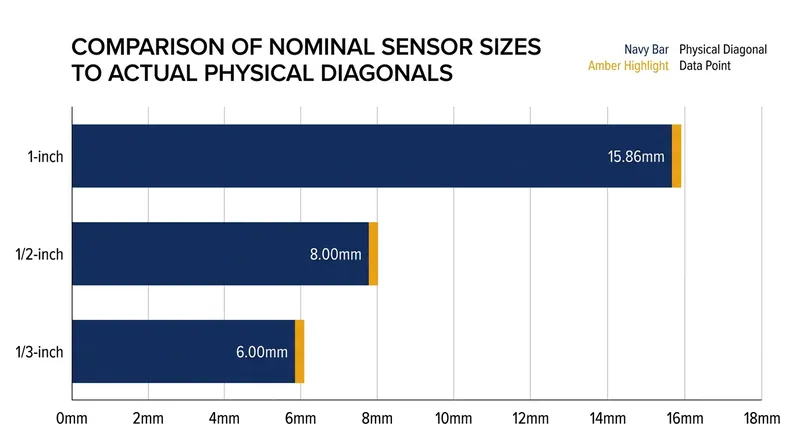

This historical anchor created a mathematically rigid ratio that governs digital imaging today. Across the industry, the actual diagonal of a sensor is consistently about 62.4 percent of its nominal "tube" diameter, a figure derived directly from the wall thickness of mid-century glass envelopes.[1][5]

The Marketing Advantage

While the origins of the naming convention are purely technical, modern consumer electronics brands have embraced the confusion. As smartphone manufacturers hit the physical limits of computational photography, they have increasingly turned to hardware specifications to differentiate their premium models.[5]

A "one-inch sensor" sounds substantially larger and more capable than a 15.86-millimeter sensor, especially to consumers accustomed to measuring television and laptop screens by their true physical diagonals. The terminology allows brands to claim a full inch of imaging power while only dedicating a fraction of that space inside the phone's chassis.[5]

"The average consumer assumes a one-inch sensor is an inch wide, which would be massive in a smartphone," notes a 2022 technical breakdown by Digital Photography Review. "In reality, the surface area is less than a third of what a true one-inch rectangle would provide, but the industry has no incentive to correct the misunderstanding."[1]

This discrepancy becomes particularly stark when comparing different sensor formats. A "1/2-inch" sensor does not measure 12.7 millimeters diagonally; it measures just 8.00 millimeters. The 62.4 percent rule scales down perfectly, preserving the ghost of a half-inch vacuum tube that hasn't been manufactured in decades.[2][5]

Even the high-end digital cinema cameras used in Hollywood are bound by this legacy. The Super 35 format, a standard for feature films, relies on optical circles that trace their lineage back to the physical constraints of early motion picture film and the broadcast tubes that later digitized them.[2]

Why the Standard Survives

Breaking away from the Vidicon naming convention would require a coordinated effort across a highly fragmented supply chain. Sensor foundries like Sony Semiconductor Solutions fabricate the silicon, but they sell those chips to module assemblers, who then supply smartphone brands like Xiaomi, Vivo, and Oppo.[4][5]

If one manufacturer suddenly started marketing its flagship device as having a "16-millimeter sensor" while competitors continued using the "one-inch" label, the honest brand would appear to be offering inferior hardware. The collective action problem effectively locks the entire consumer technology sector into the 1950s nomenclature.[5]

Furthermore, the optical engineering software used to design smartphone lenses still relies on these legacy format definitions. When an optical engineer inputs a "Type 1.0" sensor into design software, the program automatically generates a 15.86-millimeter image circle, bypassing the need for physical measurements.[2][4]

The persistence of the Vidicon standard highlights a broader truth about hardware development: physical infrastructure often outlives the technology it was built for. The dimensions of modern silicon are constrained by the glassblowing tolerances of the Truman administration.[3][5]

Some camera manufacturers have attempted to clarify the situation by using the word "Type" instead of "inch." Sony's official semiconductor documentation now refers to these chips as "Type 1.0" rather than "1-inch," a subtle linguistic shift intended to signal that the number represents a category rather than a physical measurement.[4]

The Physical Limits of Silicon

Despite the misleading name, a Type 1.0 sensor represents a massive engineering achievement in the context of mobile photography. Packing a 15.86-millimeter diagonal chip into a device that is less than nine millimeters thick requires complex optical folding and precision manufacturing.[4][5]

To focus light onto a sensor of that size, smartphone lenses must be significantly thicker than those used for smaller chips. This physical requirement is the primary reason modern flagship phones feature prominent, protruding camera bumps on their rear panels.[1]

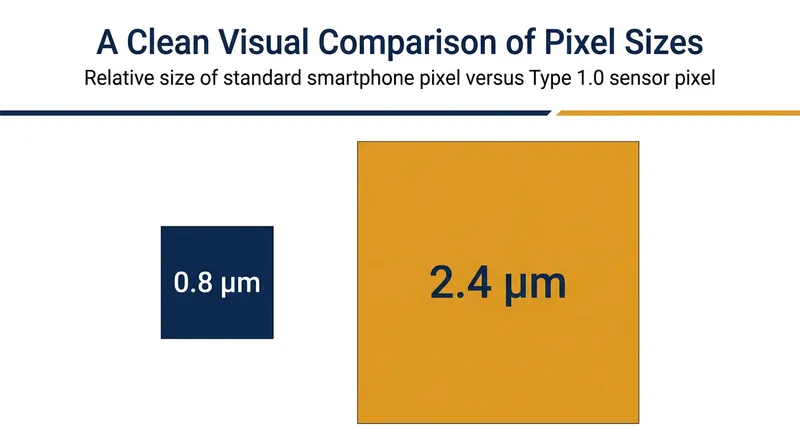

The larger surface area of the 15.86-millimeter chip allows for larger individual pixels, which capture more photons and generate less electrical noise in low-light conditions. A standard Type 1.0 sensor features pixels measuring between 1.6 and 2.4 micrometers, vastly outperforming the 0.8-micrometer pixels found on standard smartphone sensors.[4]

This light-gathering capability is why drone manufacturers like DJI have adopted the format for their premium aerial cameras. When a drone is capturing video at dusk, the larger physical area of the Type 1.0 sensor provides a cleaner, more detailed image than a smaller chip, regardless of what the marketing department calls it.[1][5]

However, the transition to these larger sensors has exposed the limitations of smartphone optics. A larger sensor requires a lens with a wider aperture to maintain the same depth of field, but widening the aperture in a plastic smartphone lens often introduces severe optical aberrations at the edges of the frame.[1][2]

Beyond the Vidicon Era

As the industry pushes toward even larger formats, the Vidicon naming system is beginning to break down. When camera companies discuss "Micro Four Thirds" or "APS-C" sensors, they abandon the tube-diameter convention entirely, relying instead on legacy film dimensions or arbitrary fractional ratios.[1]

A Micro Four Thirds sensor measures 21.6 millimeters diagonally, while an APS-C sensor measures roughly 28 millimeters. Neither of these formats uses the "inch" terminology, creating a confusing landscape where consumers must memorize multiple disconnected measurement systems to compare products.[1]

The ultimate standard in digital photography remains the "full-frame" sensor, which measures 36 by 24 millimeters. This size perfectly matches a single frame of 35-millimeter analog film, proving that even at the highest end of the market, digital silicon is still mimicking the physical media it replaced.[1][5]

For the foreseeable future, the "one-inch" label will remain a fixture of consumer technology marketing. The phrase is too deeply embedded in the supply chain, and too valuable to marketing departments, to be easily discarded in favor of accurate metric measurements.[5]

The next time a smartphone manufacturer boasts about the massive one-inch sensor inside their new device, the claim should be understood not as a physical measurement, but as a historical homage. The silicon is a marvel of modern engineering, but its dimensions were settled by glassblowers seventy-six years ago.[3][5]
