How USB Type-C CC Pin Resistive Ladders Negotiate Cable Orientation and Bus Power Without Data Packets

Start with the 5.1 kΩ resistor. It is the physical component that makes USB-C work. When a device fails to charge from a modern port, it is usually because a manufacturer omitted this specific part.

Marketing materials frequently describe USB-C as an "intelligent" or "smart" standard capable of complex digital handshakes. But the foundation of its reversibility and power delivery is not a microprocessor. It is a pair of cheap resistors.

The USB Implementers Forum released the USB Type-C specification in 2014. It promised to resolve historical power bottlenecks through a 24-pin reversible connector. To manage this new physical complexity, the design introduced dedicated Configuration Channel pins.

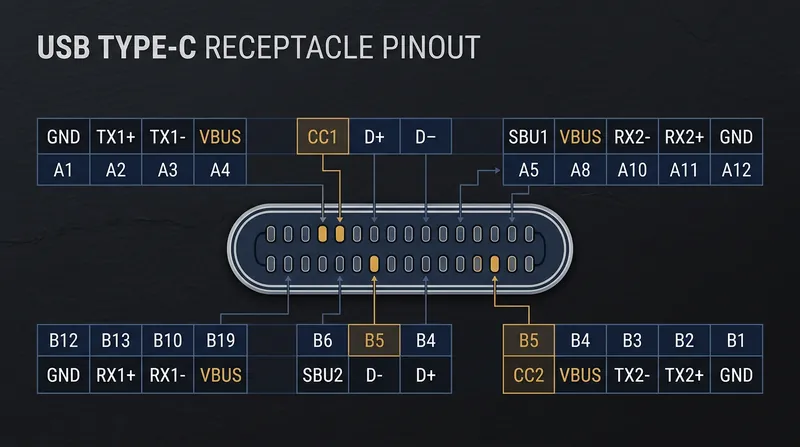

To make a symmetrical connector function regardless of how it is plugged in, engineers introduced the CC1 and CC2 pins. These critical contacts are located at positions A5 and B5 on every compliant USB-C receptacle.

While the receptacle has two CC pins, a standard USB-C cable contains only one CC wire. This deliberate asymmetry is the mechanical key to the entire orientation system, allowing the hardware to detect physical flips.

Solving the Reversibility Problem

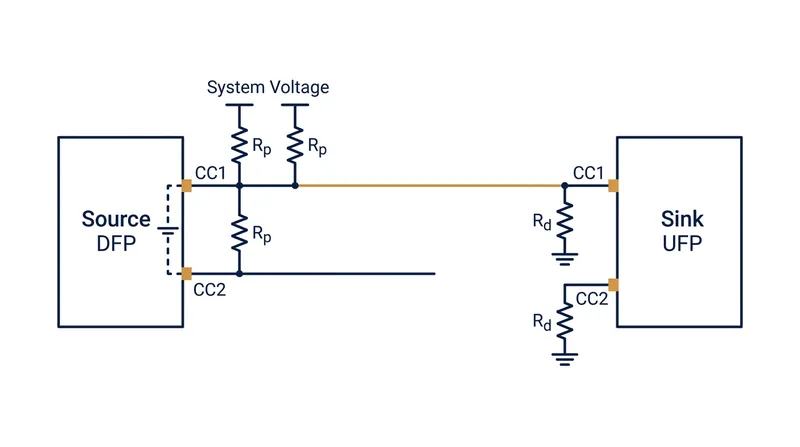

How does a symmetrical port know which way a cable is inserted without relying on software? The source device, such as a laptop or a wall charger, applies a pull-up resistor to both of its CC pins.

This pull-up resistor is designated in the specification as Rp. Meanwhile, the sink device—whether a smartphone or a peripheral receiving power—applies a fixed pull-down resistor, designated as Rd, to both of its corresponding CC pins.

Because the cable only has one CC wire, inserting the plug connects exactly one of the source's CC pins to the sink's Rd. The other CC pin is left floating, completely disconnected from the circuit.

This connection forms a voltage divider on exactly one pin, causing its voltage to drop significantly. The source constantly monitors the voltage on both CC1 and CC2 to detect this sudden change in electrical state.

If the voltage drops on CC1, the source knows the cable is right-side up. If the voltage drops on CC2, the cable is upside down. The hardware instantly registers the physical orientation without any digital communication.

"Determining the orientation of the USB Type-C controller is done by measuring the common mode of the CC pins," notes Texas Instruments in its engineering design guide for Configuration Channel controllers, highlighting the analog simplicity.[1]

Once the orientation is detected, the host physically routes the SuperSpeed differential data lanes to match. The TX and RX pairs are switched in hardware, requiring no software handshake to align the high-speed data streams.

Advertising Power Through Analog Voltage

Before the digital USB Power Delivery protocol sends a single packet, the CC pins establish a baseline power contract. They accomplish this entirely through analog voltage levels, bypassing the need for a microprocessor to negotiate the initial connection.

The source changes the value of its Rp resistor to advertise how much current it can safely supply at 5 volts. The sink's Rd resistor remains fixed at exactly 5.1 kΩ regardless of its power needs.

The USB-IF specification defines three specific Rp values for a standard 5-volt pull-up. A 56 kΩ Rp advertises default USB power, which equates to 500 milliamps for USB 2.0 or 900 milliamps for USB 3.0 connections.

To advertise more power, the source lowers its electrical resistance. A 22 kΩ Rp advertises 1.5 amps, delivering 7.5 watts. A 10 kΩ Rp advertises 3.0 amps, delivering a full 15 watts of charging power.

Because the sink's Rd is always exactly 5.1 kΩ, these different Rp values create distinct voltage dividers. The sink measures the voltage at the center tap of this divider to determine its exact current allowance.

The Voltage Divider Math

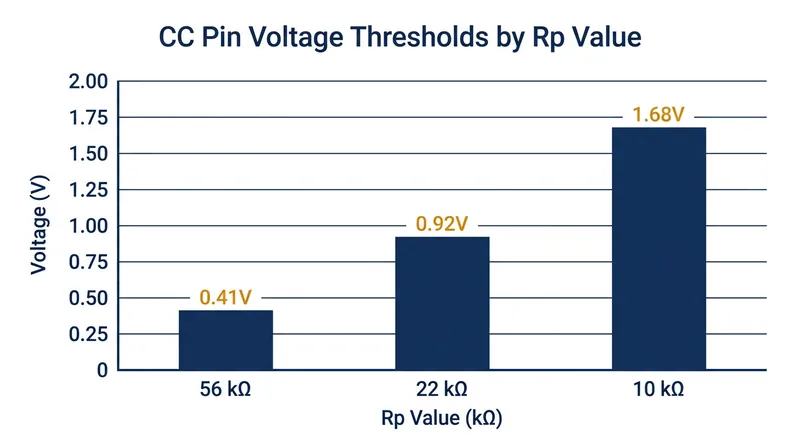

With a 56 kΩ Rp and a 5.1 kΩ Rd, the CC pin voltage drops to roughly 0.41 volts. This low threshold tells the sink to draw no more than the default USB power specification allows.

With a 22 kΩ Rp, the voltage divider yields about 0.92 volts. With a 10 kΩ Rp, the voltage rises to approximately 1.68 volts, authorizing the sink to pull a full 3-amp draw from the source.

A simple hardware comparator in the sink reads this voltage and instantly knows its current limit. This allows basic devices to safely draw up to 15 watts without a complex controller chip parsing digital packets.

"As stated in the USB Type-C specification, it is mandatory to determine the orientation of an attachment; i.e., when one of the two CC pins detects a valid Rp or Rd connection," explains STMicroelectronics documentation.[2]

If a device lacks the 5.1 kΩ Rd pull-down, the source never sees the voltage drop and refuses to output 5 volts. The port remains entirely dead, protecting the source from pushing power into an unknown load.

"If you plug a device that doesn't make a pulldown accessible through the CC wire in the cable, your device will never get power from a USB-C port," notes hardware analysis site Hackaday, explaining common accessory failures.

The Smart Cable Marketing Myth

Accessory manufacturers frequently market their legacy cables as featuring "smart charging chips" to protect connected devices. For basic charging up to 3 amps, there is no intelligent chip involved in the power negotiation process at all.

A legacy Type-A to Type-C cable relies entirely on a physical 56 kΩ resistor soldered between the VBUS and CC pins inside the connector housing. It is a purely passive component that hardcodes the power limit.

If a manufacturer uses a 10 kΩ resistor in a legacy cable, it tricks the sink into drawing 3 amps. If the Type-A port is only rated for 1 amp, this risks severe overheating and potential fire.

This is why the USB specification strictly mandates the 56 kΩ Rp for all legacy cables. The resistor must indicate the capability of the weakest link in the chain, not the theoretical maximum of the copper wire.

Only when a device needs to move beyond 3 amps or 5 volts does the digital USB PD protocol take over. It uses the CC line to transmit biphase mark coded packets to negotiate higher voltages.

Active Cables and VCONN

When a cable is inserted, one CC pin handles orientation and power advertisement. What happens to the second, unused CC pin on the receptacle once the primary analog connection is successfully established by the hardware?

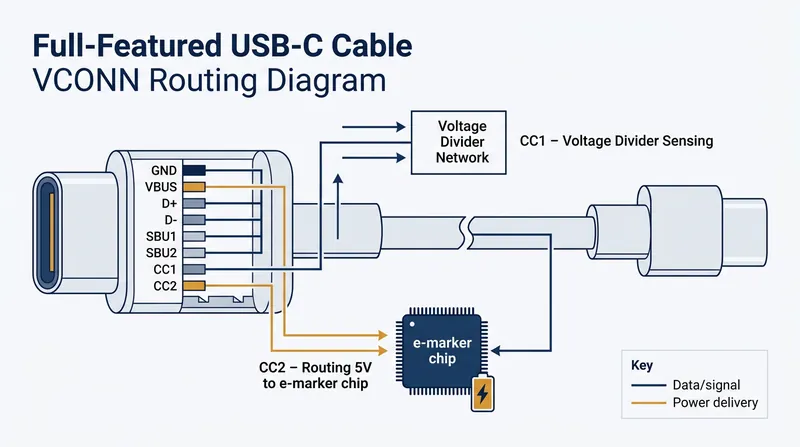

In a full-featured cable, the unused CC pin is repurposed as VCONN. This pin provides a steady 5-volt supply to power an electronic marker, or e-marker, chip embedded directly inside the physical USB-C cable plug.

The e-marker chip tells the source if the cable is rated to handle 5 amps for 100-watt or 240-watt charging. It also advertises whether the cable supports high-speed SuperSpeed data transfer for external displays and docks.

But even with an e-marker present, the initial attach and orientation are handled purely by the analog resistive ladder. The digital communication only begins after the resistors establish the baseline connection and verify the physical link.

The elegance of the CC pin design is its density. It solves attach detection, orientation, and initial power negotiation with a single wire and two resistors, effectively bridging legacy analog power with modern digital communication standards.

Engineering Trade-Offs and Edge Cases

The analog negotiation mechanism is robust, but it introduces specific engineering constraints. Because the voltage thresholds are relatively close together, electrical noise can occasionally cause misclassification if the signal is not properly filtered by the controller.

If moisture or debris bridges the CC pins, it can alter the effective resistance of the voltage divider. A source might misread a 56 kΩ connection as a 10 kΩ connection, authorizing too much current.

To prevent this, modern USB-C controllers incorporate debounce timers. The controller waits for the CC voltage to remain stable for a specified duration before applying power to the VBUS pins, ensuring the connection is secure.

Another edge case involves devices without batteries, such as USB-C powered routers or single-board computers. These devices rely entirely on the continuous 5-volt supply negotiated by the initial CC pin analog handshake to remain operational.

If a multi-port charger recalculates its power budget when a second device is plugged in, it often performs a hard reset. It cuts power to all ports, re-reads the analog resistor values, and starts the negotiation over.

"Devices without batteries... suffer a hard power cut and reboot," notes digital forensics firm Elcomsoft, describing the severe operational consequence of multi-port chargers lacking dynamic power management when they abruptly reset the Configuration Channel state.

Despite these edge cases, the resistive ladder remains a masterclass in mixed-signal design. It bridges the gap between legacy analog power supplies and modern digital negotiation, all without requiring a single data packet to establish the link.
