The Physical and Cryptographic Thresholds of Flash Memory Sanitization

The threshold between deleted data and irrecoverable data is decided entirely within the Flash Translation Layer (FTL). This embedded controller sits between the operating system and the physical memory chips, acting as a mandatory abstraction layer. When a user empties a recycle bin, the operating system does not actually overwrite the physical silicon; it merely tells the FTL that the logical address is no longer needed. Because the FTL constantly shuffles data in the background to distribute wear evenly across the drive, the actual voltage states holding the data remain completely intact until the controller independently decides to clear them.[2]

This abstraction renders traditional magnetic hard drive wiping techniques obsolete. On a spinning disk, software can systematically write zeroes over every physical sector. On a solid-state drive (SSD), the FTL actively intercepts those overwrite commands and redirects them to fresh blocks, leaving the original data untouched in hidden over-provisioned sectors. To actually sanitize flash memory, the command must bypass the operating system's logical view and instruct the drive's firmware to execute a hardware-level purge.[2][3]

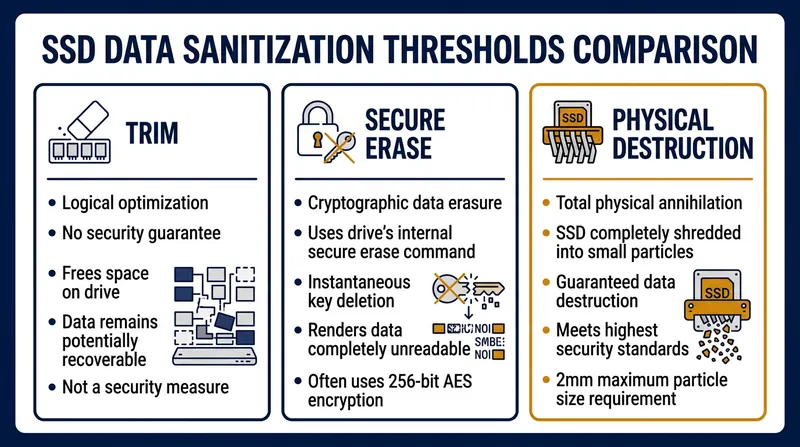

The most basic mechanism for this is the TRIM command. Introduced to maintain SSD performance, TRIM is an operating system instruction that informs the FTL which data blocks are no longer in use. However, TRIM is a performance optimization, not a security protocol. While it flags blocks for eventual garbage collection, the timing of the actual voltage reset—transitioning the NAND cells from a programmed state back to an empty state—is left entirely to the firmware's discretion.[2]

For guaranteed data destruction without destroying the hardware, the industry relies on Secure Erase. Rather than attempting to overwrite data from the outside, Secure Erase is a standardized command sent directly to the SSD controller, instructing it to apply a voltage spike to every memory block simultaneously. On modern self-encrypting drives, this process is nearly instantaneous. The drive simply deletes the 128-bit or 256-bit AES encryption key stored in a secure enclave. Without that key, the terabytes of data remaining on the flash chips instantly become mathematically indistinguishable from random noise.[3][4]

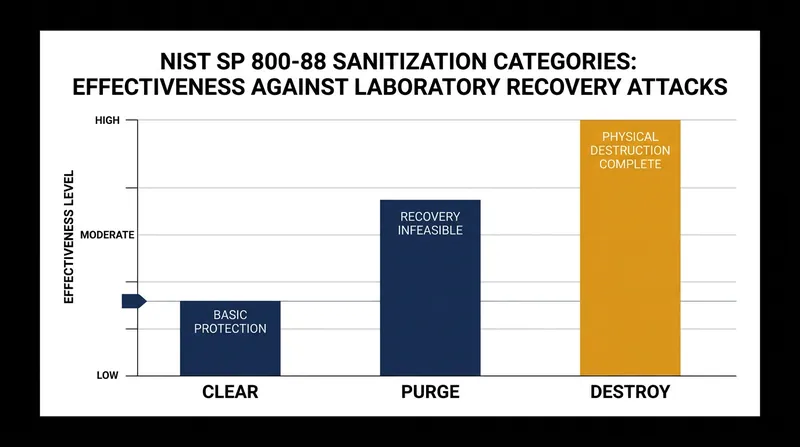

The National Institute of Standards and Technology (NIST) classifies this cryptographic erasure under its "Purge" standard. According to NIST Special Publication 800-88, sanitization is defined as "a process to render access to target data on the media infeasible for a given level of effort." A properly executed cryptographic erase renders data irrecoverable even against state-level laboratory attacks, making the drive safe for resale. The caveat, which marketing materials rarely highlight, is that this relies entirely on the assumption that the manufacturer implemented the encryption and the erase command flawlessly in the firmware.[1][2][4]

When firmware trust is impossible, or when dealing with highly classified information, the only remaining mechanism is physical destruction. NIST classifies this as "Destroy," the highest level of sanitization. However, destroying an SSD requires significantly more precision than destroying a magnetic platter. Because flash memory dies are microscopic, simply drilling a hole through the drive or bending the casing often leaves dozens of memory chips perfectly intact and readable by a dedicated forensic laboratory.[1][5][6]

To achieve true physical irrecoverability, the flash memory chips must be pulverized. Enterprise data destruction standards mandate that an SSD must be shredded into fragments no larger than 2 millimeters. As noted in industry destruction guidelines, this specific particle size is required to guarantee that the silicon die itself is fractured, physically severing the microscopic transistor gates that hold the electrical charges. Anything larger risks leaving a complete, readable NAND chip intact within the debris.[5][6]

The choice between these mechanisms dictates the lifecycle of the hardware. Cryptographic erasure preserves the physical drive, allowing organizations to recoup costs through the secondary market while meeting compliance requirements. Physical shredding eliminates firmware risk entirely but guarantees the hardware becomes electronic waste. The decision rests on whether the threat model targets the mathematics of the encryption or the physical silicon itself.[1][6]
