The 0.13 m²K/W Internal Surface Resistance: How the ISO 6946 Standard Defines the Baseline for a Wall's Thermal Performance

The binding constraint for calculating a building's energy efficiency is that heat flow must be measured across the entire boundary, not just the solid materials. If the microscopic layers of air clinging to the walls are ignored, the mathematical model fails to match real-world physics. Currently, international building codes enforce this constraint through a specific baseline metric.[4][6]

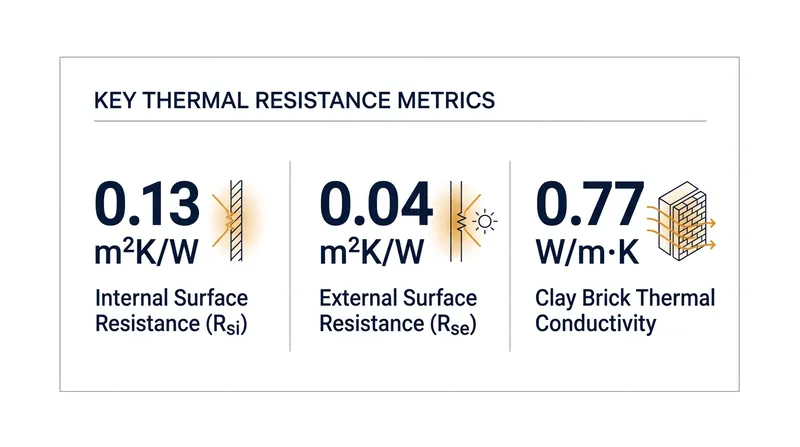

That metric is the internal surface resistance, defined by the ISO 6946 standard as exactly 0.13 square meters Kelvin per Watt (m²K/W) for vertical walls. It represents the insulating power of the stagnant air film that naturally forms against the interior face of a room. First published in 1996, the standard ensures that every energy model accounts for this invisible boundary.[4]

To understand why this matters to a homeowner or builder, one must look at how thermal transmittance—commonly known as the U-value—is calculated. The U-value measures how much heat escapes through one square meter of a wall for every degree of temperature difference between the inside and outside. As the Wikipedia entry on the subject notes, "Well-insulated parts of a building have a low thermal transmittance whereas poorly insulated parts of a building have a high thermal transmittance."[5]

Lower U-values mean better insulation. But a wall is rarely a single material; it is a composite of brick, insulation, plasterboard, and air gaps. To find the total U-value, engineers first calculate the thermal resistance (R-value) of each individual layer.[1][5]

The R-value is found by dividing a material's thickness in meters by its thermal conductivity. For example, a standard 10-centimeter layer of clay brick, which has a thermal conductivity of 0.77 Watts per meter-Kelvin, yields an R-value of roughly 0.13 m²K/W.[5][6]

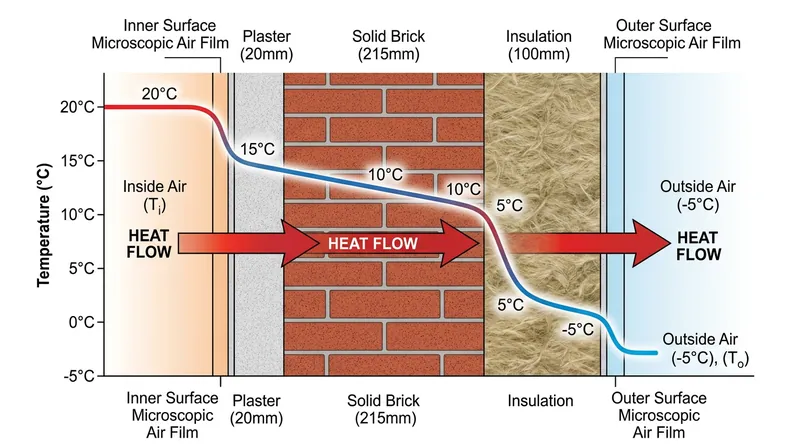

If an architect simply added up the solid materials, the resulting U-value would be legally invalid under modern building regulations. The calculation must include the invisible shields: the internal surface resistance (Rsi) and the external surface resistance (Rse).[1][4]

The external surface resistance is typically set at 0.04 m²K/W. It is much lower than the internal value because outdoor wind constantly strips the warm air film away from the facade. Inside, where the air is mostly still, the 0.13 m²K/W resistance remains intact.[1][4]

Once all the R-values—including the surface resistances—are summed up, the total is inverted (divided into 1) to produce the final U-value. Because the surface resistances are added to the denominator of this equation, they mathematically reduce the total heat loss.[5]

The significance of the 0.13 m²K/W baseline becomes clear when compared to physical building materials. The invisible layer of still indoor air provides the exact same thermal resistance as 10 centimeters of solid clay brick.[5][6]

For poorly insulated, older buildings, this air film represents a substantial portion of the wall's total thermal defense. In a single-skin masonry wall, the surface resistances can account for over 15 percent of the total R-value, making the stagnant air a critical component of the home's energy profile.[2][6]

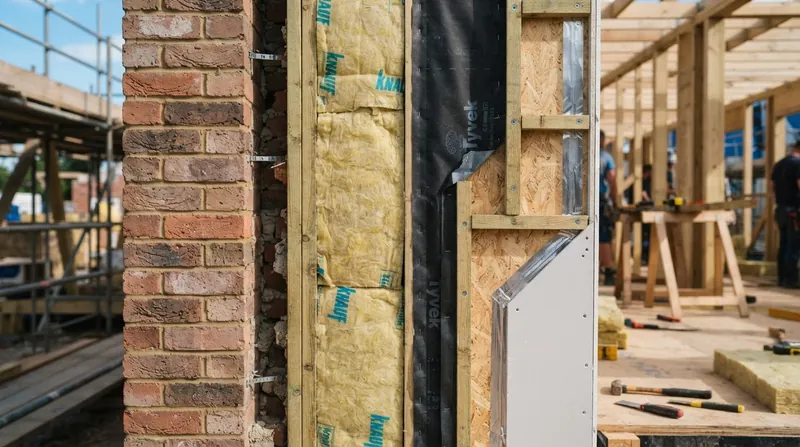

However, as building codes push for ultra-efficient envelopes, the relative impact of the surface resistance shrinks. In a modern wall packed with 15 centimeters of high-performance glasswool insulation—which alone provides an R-value of 3.75 m²K/W—the 0.13 m²K/W air film becomes a marginal fraction of the total.[3][5]

Yet, the ISO 6946 standard remains the mandatory baseline for compliance. Whether a project is aiming for basic code approval or rigorous Passive House certification, the calculation engine must start with the assumption that the indoor air film is present and functioning.[4]

This standardized approach allows for fair comparisons across different construction methods, climates, and materials. It ensures that a timber-framed house in Scotland is evaluated on the same mathematical foundation as a concrete-block apartment in Italy.[1][4]

The standard also dictates how to handle thermal bridging—the phenomenon where highly conductive materials, like steel brackets or wooden studs, bypass the insulation and leak heat. The CIBSE guidelines note that "the method defined in BS EN ISO 6946 is often applicable for calculations of U-values for walls, roofs and suspended floors," utilizing a combined method to calculate an upper and lower limit of resistance to account for these bridges.[1]

The 0.13 m²K/W internal surface resistance is a reminder that a building's thermal envelope extends beyond the physical materials purchased at a supply yard. The air itself is the first line of defense against heat loss, and the international standards ensure it is counted.[6]
