Why Compressed Nitrogen Bleeding Past Degraded Piston Lip Seals Causes Office Chairs to Sink

An office chair sinks when the high-pressure nitrogen gas inside its pneumatic cylinder bleeds past a worn rubber lip seal, eliminating the upward force required to support your weight. This pressure loss is permanent, meaning the cylinder cannot be repaired and must be replaced to restore the chair's function.[5]

For a home office worker, this means that sinking feeling is not a loose screw or a broken lever, but a fundamental failure of the chair's core mechanism. As remote work continues through 2026, millions of desk chairs are reaching the end of their pneumatic lifespans, leaving users resting on empty columns of compressed gas.[7]

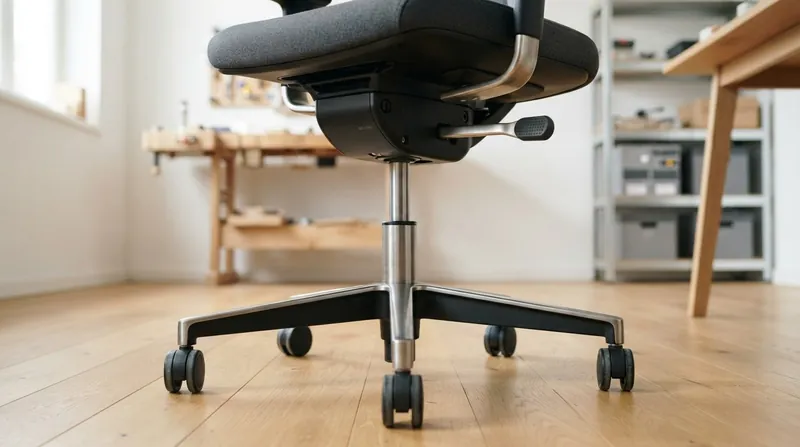

The height of a modern desk chair is governed by a gas spring, a sealed metal chamber containing nitrogen. This gas is compressed to a high pressure, pushing against an internal piston rod to create the extending force that lifts the seat.[5]

Manufacturers use nitrogen rather than standard compressed air because it is an inert gas that does not react chemically with the internal components. Standard air contains moisture and oxygen, which would cause the steel cylinder to rust from the inside out over time.[6]

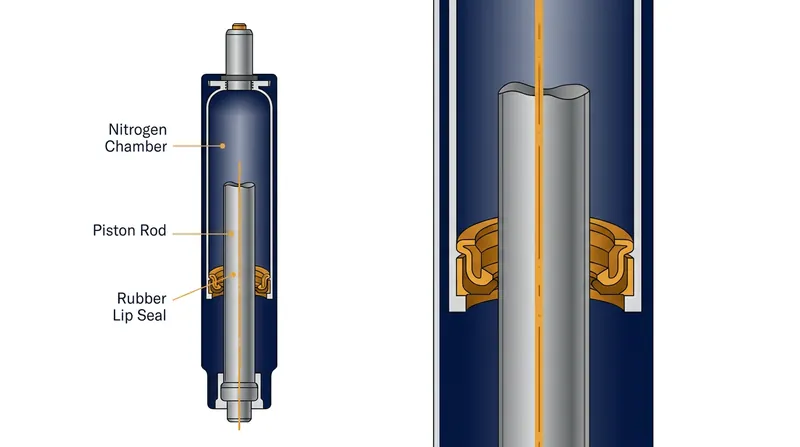

The only barrier keeping that immense pressure contained is a specialised rubber lip seal and a set of guide bushings. As long as this seal remains perfectly flush against the piston rod, the nitrogen remains trapped, and the chair holds its set height indefinitely.[1]

The mechanics of seal degradation

Every time you sit down, adjust the height, or perform a 360-degree swivel, the piston rod slides up and down through the rubber lip seal. This constant friction gradually wears away the elastomeric material, creating microscopic gaps between the seal and the smooth metal shaft.[1]

Product engineers at Eureka Ergonomic explain that "the interaction between high pressure and the microscopic gap between the piston and the cylinder wall can lead to 'seal nibbling'—where the seal material is slowly forced into the gap and worn away." As the material degrades, the nitrogen gas begins to slip through the compromised barrier.[2]

Over a typical lifespan of three to five years, dust, pet hair, and floor debris accelerate this destruction significantly. When grime clings to the lightly oiled piston rod, it acts like a fine sandpaper, scoring the rubber seal each time the chair compresses under your weight.[2]

According to Newton EGS, the nitrogen inside a healthy cylinder is often compressed to more than 100 bars of pressure. This intense internal force means that even a 0.1-millimetre scratch on the seal is enough to cause a slow, continuous bleed.[1]

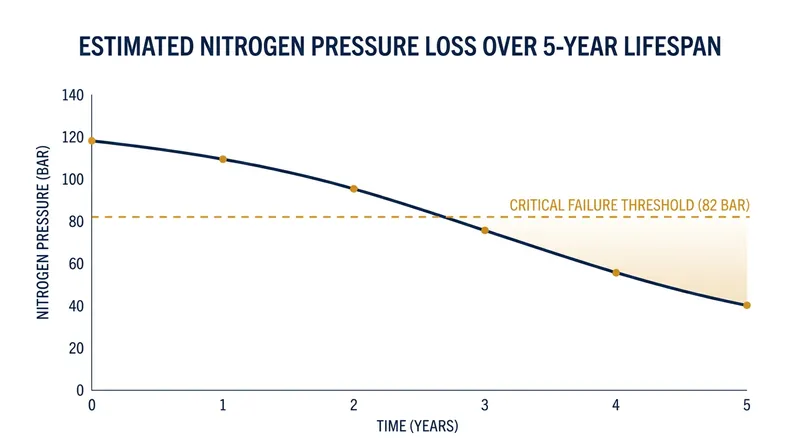

Once enough nitrogen escapes, the internal pressure drops below the critical threshold needed to counteract the downward force of a human body. At this point, the pneumatic resistance fails, and the chair slowly sinks 2 to 4 inches to its lowest position the moment you sit.[5]

Environmental and usage factors

Every gas cylinder is manufactured with a specific load capacity, typically aligned with the current ANSI/BIFMA X5.1 standard for general-purpose office chairs. Exceeding a standard 250-pound weight limit places excessive strain on the internal seals, forcing the nitrogen gas to find an escape route.[2]

The way a person sits also impacts the lifespan of the pneumatic mechanism. Dropping heavily into the seat creates a sudden shock load, which spikes the internal pressure dramatically and can cause an aging lip seal to rupture prematurely.[4]

A controlled descent, where the user lowers themselves gently into the chair, allows the gas spring to absorb the impact as designed. This smooth compression preserves the integrity of the lip seal and maintains the precise nitrogen charge required for stability.[4]

While standard cylinders are engineered to operate between -20°C and +80°C, prolonged exposure to direct sunlight or a nearby radiator can accelerate the chemical aging of the rubber. This thermal stress causes the lip seal to harden and lose its flexibility, leading to cold leaks.[1]

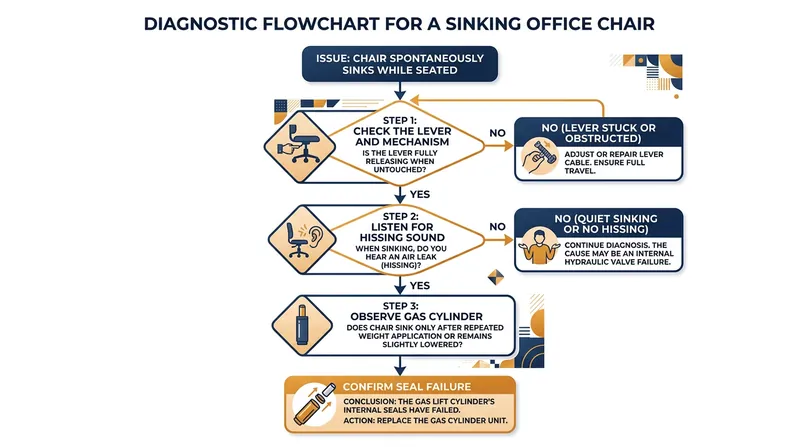

Diagnosing the failure

Before purchasing replacement parts, a quick diagnostic check can confirm whether the gas lift is actually the culprit. If the chair sits fine when empty but slowly drops under your weight, the lip seal has failed and the nitrogen is leaking.[3]

Sometimes the issue lies with the height adjustment lever rather than the cylinder itself. If the lever feels loose or fails to depress the valve pin at the top of the gas spring, the chair will not adjust, but it will not sink on its own.[3]

A faint hissing noise when adjusting the chair is a definitive sign of a breached seal. This sound is the compressed nitrogen actively escaping the chamber, confirming that the pneumatic cylinder has reached the end of its operational life.[3]

The replacement process

Because a gas spring is a highly pressurised vessel, it cannot be safely opened, refilled, or repaired at home. Once the nitrogen bleeds out, the only viable solution is to extract the entire cylinder from the chair base and install a new one.[3]

Fortunately, the furniture industry relies on standard dimensions for these components. Most replacement cylinders feature a 28-millimetre diameter where they insert into the star base, making it easy for consumers to source a compatible part without contacting the original manufacturer.[3]

Cylinders are also categorised by class, which denotes their wall thickness and overall durability. A Class 4 gas lift is the highest standard available for office furniture, offering thicker steel walls that resist deformation and better protect the internal seals under heavy daily use.[4]

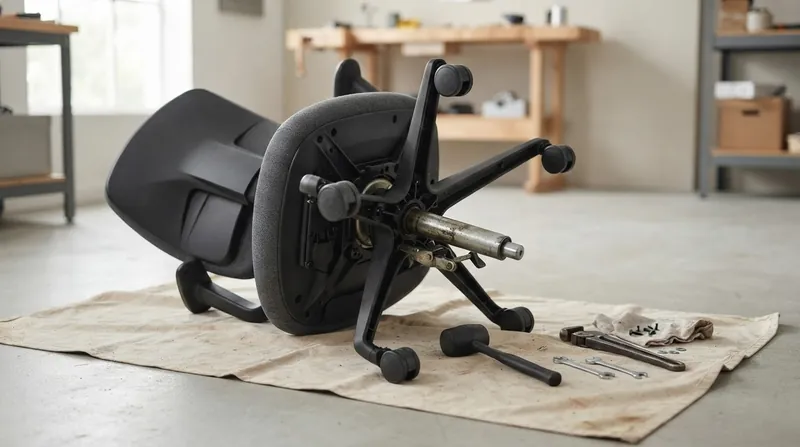

Removing the old cylinder requires separating it from both the seat pan and the wheeled base. Because years of sitting wedge the tapered metal tightly into place, dislodging it usually involves tapping the base with a rubber mallet or twisting the cylinder with a pipe wrench.[3]

Installing the new unit is a five-minute process that requires no specialised tools. The replacement cylinder simply drops into the centre of the star base, and the seat pan rests on top; the user's body weight during the first sit firmly locks the tapered friction joints together.[3]

Prolonging cylinder lifespan

To extend the life of a new gas spring, regular maintenance of the exposed piston rod is essential. Wiping the silver shaft monthly with a dry, lint-free cloth removes the abrasive dust that causes premature seal nibbling.[2]

Applying a light silicone lubricant to the moving parts can also reduce friction, but heavy oils should be avoided as they attract and trap dirt. Keeping the rod clean ensures the rubber lip seal glides smoothly without sustaining micro-abrasions.[2]

Replacing a degraded gas lift costs a fraction of a new ergonomic chair. By recognising the signs of seal failure early, remote workers can restore their seating posture without sending a structurally sound frame to the landfill.[7]
