The Science of Concealed Cabinet Hinges: How Four-Bar Linkages Prevent Door Binding

An interior bedroom door swings on a traditional butt hinge, rotating around a single, stationary metal pin. The geometry is entirely fixed, meaning the door's edge traces a perfect circle as it opens and closes.[3]

Modern frameless kitchen cabinets cannot rely on that simple fixed rotation. Because cabinet doors sit flush against one another with millimeter-thin gaps, a fixed pivot would cause the back corner of the opening door to instantly bind against its neighbor.[3]

To solve this collision problem, European hardware manufacturers abandoned the single pin entirely. They replaced it with a concealed mechanism that relies on a four-bar linkage, fundamentally altering how the door travels through space.[1]

This hidden hardware does not just swing the wood; it actively pulls the door outward and away from the cabinet box before turning it. This complex motion is the foundation of modern modular cabinetry and seamless kitchen design.[4]

The geometry of a collision

When a homeowner pulls a standard 19-millimeter thick cabinet door, the physical mass of the wood has to go somewhere. On a fixed pivot, the door's heel swings backward into the adjacent space as the front swings out.[3]

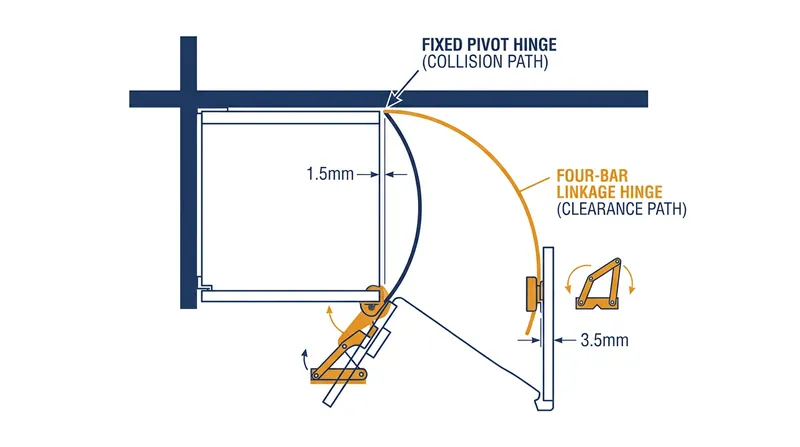

If two doors share a single vertical frame, that backward swing creates an immediate physical conflict. The opening door requires at least a 3.5-millimeter gap to clear the adjacent panel, which ruins the seamless look of European-style cabinetry.[4]

Moving the pivot point outside the cabinet entirely would solve the binding, but it would leave ugly hardware exposed on the kitchen's exterior. Designers needed a hinge that lived completely inside the box but acted as if it pivoted outside.[3]

The engineering solution was to discard the concept of a fixed rotational axis. Instead of a single pin, concealed hinges utilize a kinematic chain of multiple pivoting arms working in concert to manipulate the door's path.[1]

The four-bar linkage mechanism

A four-bar linkage is one of the oldest and most versatile mechanisms in mechanical engineering. It consists of four rigid bodies, or bars, connected by four rotating joints in a closed loop to generate specialized movements.[1]

In a concealed cabinet hinge, the cabinet wall acts as the stationary first bar, while the door itself serves as the moving opposite bar. Two small metal arms connect them, creating the third and fourth links in the chain.[1]

As the door opens, these two connecting arms rotate at different rates. Because they are different lengths and mounted at specific angles, they force the door to follow a complex, non-circular path through the air.[1]

This specific arrangement is known in mechanical engineering as a double-rocker linkage. It allows the door to articulate outward, clearing the cabinet frame entirely before it begins its primary rotational swing, protecting the adjacent woodwork from damage.[1]

The instantaneous center of rotation

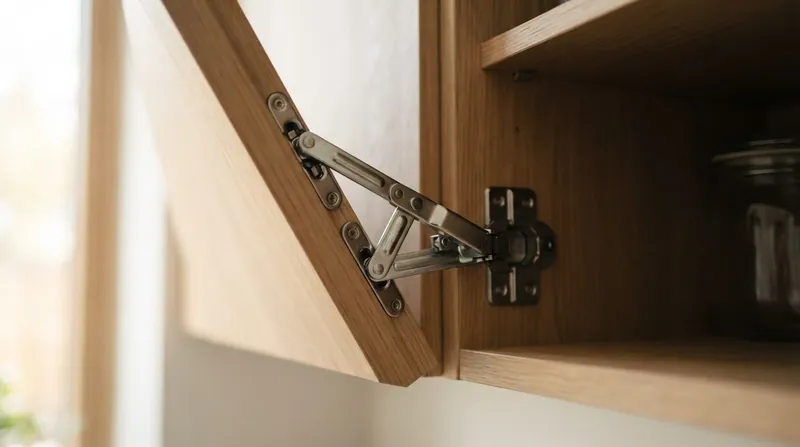

The secret to this movement lies in a concept called the instantaneous center of rotation. Unlike a butt hinge with a permanent physical pin, a four-bar linkage has a virtual pivot point that constantly moves as the mechanism operates.[2]

At the exact moment the cabinet door begins to open, its instantaneous center of rotation is located far outside the physical cabinet box. This virtual pivot pulls the door straight out, preventing the heel from crushing into the adjacent door.[2]

As the door continues its travel toward a 110-degree open position, the virtual pivot point shifts rapidly backward. This shifting axis allows the door to swing wide without requiring massive clearance gaps between the panels.[2]

The engineering reference text on kinematics defines this phenomenon precisely. "The instantaneous centre of rotation is the point fixed to a body undergoing planar movement that has zero velocity at a particular instant of time," the entry states.[2]

By manipulating the lengths of the two internal arms, engineers can program exactly where this virtual pivot point travels. This allows manufacturers to design specific hinges for thick doors, inset doors, or specialized corner cabinets.[4]

Engineering for the modern kitchen

This kinematic trick is what makes modern kitchen design possible. Without the four-bar linkage, homeowners would be forced to choose between wide, unsightly gaps between doors or exposed exterior hardware that disrupts the visual flow.[4]

The standard concealed hinge requires a 35-millimeter cup drilled directly into the back of the cabinet door. This recessed cup houses the moving arms, keeping the entire mechanism hidden when the door is fully closed.[3]

Because the linkage dictates a precise path, these hinges also integrate seamlessly with soft-close dampers. The damper catches the door at a specific point in its kinematic arc, using hydraulic resistance to slow the final closing motion.[4]

The mechanism also allows for three-dimensional micro-adjustments during installation. By turning small screws on the mounting plate, an installer can shift the entire linkage up, down, left, or right to perfectly align the door gaps.[4]

The concealed hinge represents a triumph of applied kinematics in everyday life. A complex mathematical principle is hidden inside millions of kitchen cabinets, quietly preventing wood from binding every time a homeowner reaches for a glass.[4]

The shift to frameless construction

The adoption of these hinges transformed the cabinetry industry in the late twentieth century. Cabinetmakers no longer needed to build structural face frames to mount hardware, allowing for the rapid rise of frameless, modular box construction.[4]

This shift drastically reduced manufacturing costs and assembly time across the industry. A frameless cabinet box can be cut from standard sheet goods on a computer numerical control machine, with the 35-millimeter hinge cup holes drilled automatically.[4]

When a renter or buyer evaluates a modern kitchen, the tight tolerances between doors are a direct indicator of quality. Those 1.5-millimeter gaps are only physically possible because the four-bar linkage manages the door's geometry so precisely.[4]

If a door begins to bind or rub against its neighbor over time, it is rarely a failure of the linkage itself. Instead, the cabinet box may have settled out of plumb, requiring a quick turn of the hinge's adjustment screws to reset the geometric baseline.[4]
