How Water-Based Stains Swell Wood Fibers, and Why Pre-Wetting Prevents Rough Finishes

A homeowner standing in the finishing aisle faces a clear choice between traditional oil stains and low-VOC water-based alternatives. When they select the water-based can for their weekend dining table project, they commit to a chemical process that fundamentally alters how the wood surface behaves.[1]

The decision to use water-based products requires an immediate change in sanding protocol. If a woodworker sands a tabletop to 220-grit perfection and applies a water-based stain directly, the glass-smooth surface will instantly transform into something resembling coarse sandpaper.

This sudden roughness is not a defect in the stain, but a mechanical reaction within the timber itself. Understanding why this happens requires looking at the microscopic structure of the wood, specifically the severed fibers left behind by the abrasive paper.[2]

Wood is primarily composed of cellulose, hemicellulose, and lignin. These polymers act like a bundle of microscopic drinking straws, designed by nature to transport water from the roots to the canopy of the living tree.[2]

The Chemistry of Swelling Fibers

When abrasive paper shears across these cellular bundles during the sanding process, it crushes and tears the uppermost layer. Thousands of microscopic fiber ends are left partially attached, pressed flat against the surface by the friction and pressure of the sanding block.

Oil-based stains simply coat these flattened fibers, enveloping them in a slow-drying resin that locks them in their compressed state. The oil molecules are too large and chemically incompatible to penetrate the cell walls, leaving the physical structure of the wood unchanged.[1][2]

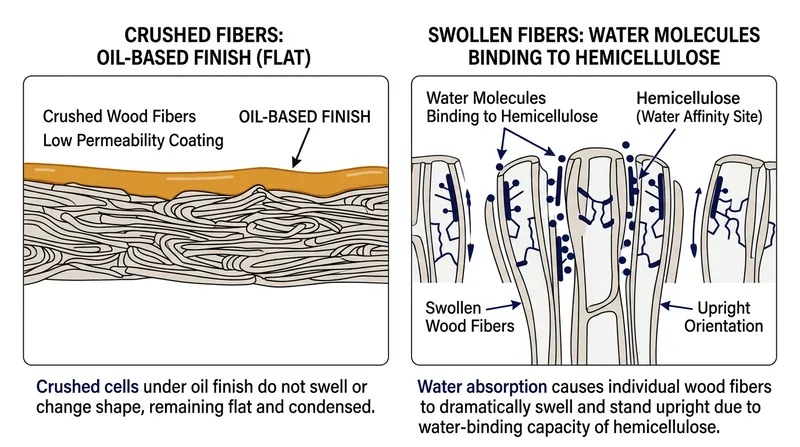

Water-based finishes behave entirely differently when they make contact with the crushed surface layer. The water molecules rapidly penetrate the exposed cell walls, binding directly to the hydroxyl groups present in the cellulose and hemicellulose polymers.[3]

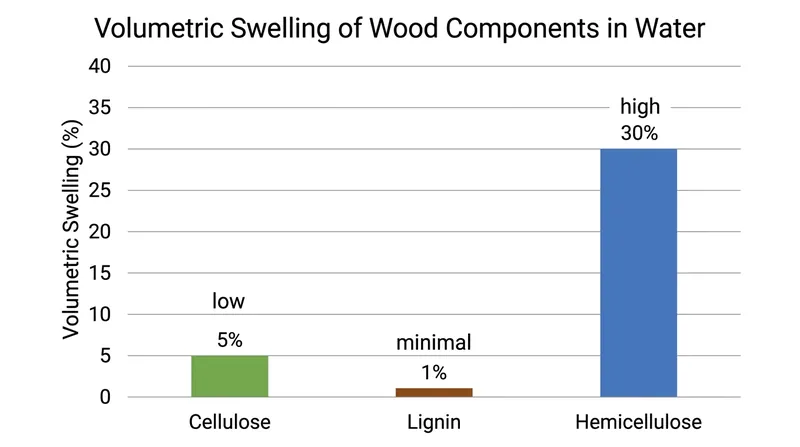

Hemicellulose is particularly hygroscopic, capable of absorbing up to 30 percent of its weight in moisture almost instantly. As it absorbs the water from the stain, the polymer chains push apart, causing the crushed cell walls to swell dramatically.[2][3]

This rapid volumetric expansion acts like a microscopic spring mechanism. The flattened, partially severed fibers swell, untangle, and stand straight up, locking into a rigid vertical position as the fast-drying water-based finish begins to cure around them.[3]

The Pre-Wetting Mechanism

The resulting texture is known as raised grain, and sanding it flat after the stain has dried will inevitably cut through the color, leaving a blotchy, ruined finish. The only reliable intervention must happen before the stain can is even opened.

Woodworkers prevent this by intentionally triggering the swelling mechanism using clean water, a process known as popping the grain. By wiping the fully sanded surface with a damp cloth, the builder forces the crushed fibers to stand up before any pigment is introduced.

The water application must be light and even, using just enough moisture to darken the wood without leaving standing puddles. Within 60 seconds, the surface will feel noticeably rougher as the hemicellulose expands and the microscopic fiber ends curl upward.[3]

Once the wood has completely dried—typically taking two to four hours depending on ambient humidity—the raised fibers become brittle. They are now locked in their vertical position, completely exposed and vulnerable to mechanical shearing.[2]

Executing the Final Pass

The builder then performs a final, delicate sanding pass using a fine abrasive, usually 320-grit paper. This step requires minimal downward pressure, allowing the abrasive grains to cleanly slice off the standing fibers rather than crushing them back down.

"The goal is decapitation, not compression," notes finishing expert Bob Flexner in his technical breakdown of the process. "If you press too hard during this final pass, you simply create a new layer of crushed fibers that will rise again when the stain hits them."

After this final, light sanding, the surface is vacuumed and wiped clean of dust. The wood is now physically incapable of raising its grain a second time, because the loose fiber ends that would have reacted to the water have been permanently removed.[1]

When the water-based stain is finally applied to this pre-wetted and sheared surface, the moisture still penetrates the cellulose structure. However, because the loose ends are gone, the swelling happens uniformly across the intact cell walls, leaving the surface perfectly smooth.[2][3]

Material Variations and Edge Cases

Not all timber species react to water-based finishes with the same severity. Open-pored hardwoods like red oak and ash contain massive earlywood vessels that are highly prone to grain raising, requiring meticulous pre-wetting protocols.[2]

Conversely, tight-grained species like hard maple or cherry exhibit less dramatic swelling, though skipping the pre-wetting step remains a significant risk. The density of the lignin matrix in these woods restricts how far the hemicellulose can expand, but microscopic roughness will still occur.[2][3]

Temperature and ambient humidity also dictate the severity of the reaction. In a climate-controlled shop at 20°C with 40 percent relative humidity, the water evaporates quickly, minimizing the time the fibers have to absorb moisture and swell.[1][2]

In a humid garage environment, the water-based solvent lingers on the surface, driving deeper into the cellular structure and causing more profound expansion. This prolonged exposure can sometimes raise the grain so severely that it mimics the texture of weathered barn wood.[2]

The Shift in Finishing Standards

The necessity of this technique has grown exponentially as environmental regulations phase out traditional oil-based solvents. With volatile organic compound limits tightening globally through 2026, water-based finishes have become the mandatory standard for both commercial manufacturers and DIY builders.[1]

This regulatory shift means that understanding cellulose mechanics is no longer strictly the domain of industrial chemists. Anyone attempting to refinish a kitchen cabinet or build a bookshelf must now account for the hygroscopic nature of wood fibers.[1]

Modern water-based formulations have improved their leveling agents and reduced their water content by incorporating advanced acrylic resins. However, the fundamental physics of wood anatomy remain unchanged, and water will always interact aggressively with exposed hemicellulose.[1][3]

By anticipating this chemical reaction and intentionally triggering it early, a builder takes control of the material's natural behavior. The extra hour spent pre-wetting and re-sanding guarantees that the final finish remains as smooth as the moment the abrasive left the wood.[1]
