Why White Table Rings Are Optical Illusions and Black Stains Are Chemical Reactions

Ask a restorer how to fix a water ring, and half will tell you to gently heat the finish to release trapped moisture, while the other half insists you must strip the wood and bleach it with oxalic acid. Both sides are absolutely certain they are right, and both are entirely wrong if applied to the other's problem.

The disagreement stems from treating two entirely different phenomena as the same issue. A white ring and a black ring are not varying degrees of the same stain. They represent a fundamental boundary crossing between optical physics and structural chemistry, and understanding that mechanism dictates the cure.

To a chemist, a wood finish is a clear dielectric film designed to match the refractive index of the wood's cellulose. When applied correctly, it eliminates surface scattering and allows light to penetrate the grain. A stain occurs when that optical harmony is disrupted by an invader.[4]

The Optical Illusion of White Rings

A white ring is not actually a stain on the wood. It is a moisture mark trapped entirely within the clear film finish, such as polyurethane, lacquer, or varnish applied at a thickness of 2 to 4 mils. When a cold, wet glass sits on a table, moisture permeates the microscopic pores of the finish but cannot evaporate.[4]

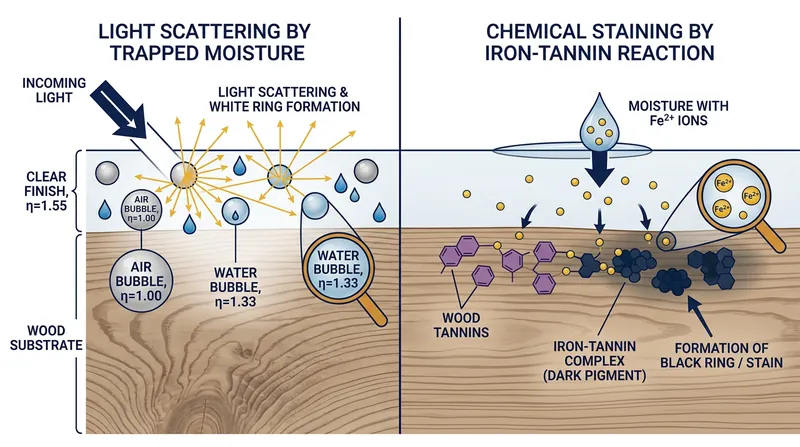

This trapped moisture creates micro-bubbles or voids within the finish layer. Because the refractive index of these air and water pockets—1.00 and 1.33, respectively—differs significantly from the 1.55 refractive index of the clear finish, they scatter incoming light in multiple directions.[3]

This refractive scattering is what your eye perceives as a cloudy, white haze. The phenomenon is identical to how crushed glass appears white despite being made of transparent material. The light is bouncing off the internal boundaries of the micro-voids rather than passing through them.[3]

Crucially, the wood underneath remains completely untouched. The finish has simply lost its optical clarity. Because the damage is purely physical and confined to the surface layer, it can often be reversed without stripping the furniture or altering the wood fibers.

The Chemistry of Black Rings

A black or dark brown ring represents a much deeper failure. It occurs when water breaches the finish entirely and carries iron ions directly into the wood fibers. These ions often come from a wet cast iron pan, a corroding nail, or even trace minerals in tap water.[1][5]

Once inside the cellular structure, the iron reacts with naturally occurring tannins in the wood. Tannins are polyphenolic compounds that act as a plant's natural defense mechanism against pests and decay. High-tannin species like oak, walnut, and cherry are particularly packed with these organic molecules.[1]

The iron and tannins bind to form ferric tannate, a dark, incredibly stable coordination compound. This is the exact same chemical reaction used since the 5th century to produce iron gall ink, the indelible pigment used in historical manuscripts. The wood has literally manufactured ink inside its own pores.[2]

As the historical documentation for iron gall ink notes, "The ink was traditionally prepared by adding some iron(II) sulfate to a solution of tannic acid, but any iron ion donor can be used." The wet cast iron pan simply replaces the iron sulfate.[2]

The black mark is not a surface deposit that can be scrubbed away. The wood fibers themselves have been dyed from the inside out. Because the reaction creates a new, chemically bonded compound, the discoloration is permanent until a specific chemical intervention breaks that bond.[2]

Reversing the Optical Damage

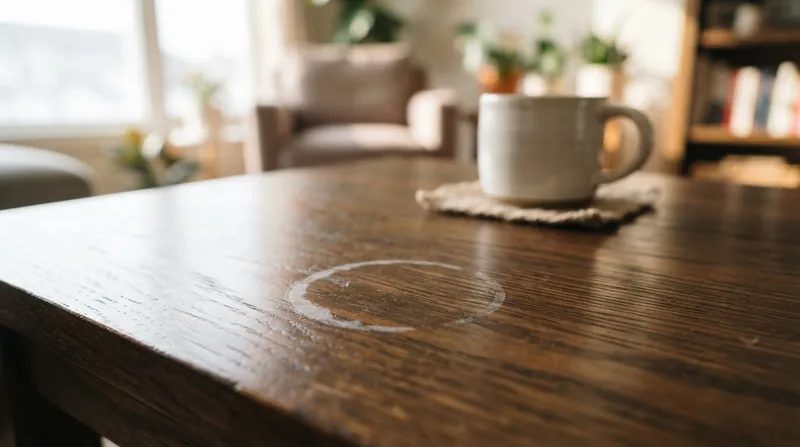

Because a white ring is just trapped moisture, the solution requires gentle heat or oil to displace the water. Applying a dry household iron set to 90°C over a cotton cloth gently warms the finish. This raises the vapor pressure of the trapped water, allowing it to evaporate through the film.[5]

As the moisture leaves, the micro-voids collapse, restoring the finish's uniform refractive index and instantly clearing the haze. Alternatively, applying mayonnaise or petroleum jelly allows the heavy lipids to slowly seep into the finish over 12 to 24 hours, displacing the water in the voids.[5]

The oil fills the microscopic gaps, matching the refractive index of the surrounding finish and eliminating the light scattering. While effective for superficial moisture, these lipid-based treatments only work on finishes that remain somewhat permeable, like traditional shellac or older varnishes.[4]

Breaking the Chemical Bond

Black rings, however, require a completely different approach. Because ferric tannate is a stable compound, no amount of heat or oil will remove it. The protective finish must be mechanically or chemically stripped to expose the bare wood, allowing a reducing agent to reach the affected fibers.[5]

Oxalic acid is the standard treatment for iron-tannate stains. Applied as a saturated solution of roughly 60 grams per litre, it acts as a powerful reducing agent. It donates electrons to the dark ferric tannate, converting it into a colorless iron oxalate complex.[5]

Once the stain is bleached out, the wood must be thoroughly neutralized with a mild alkaline solution, such as diluted baking soda, to halt the acid's action. The surface is then sanded smooth and refinished, sealing the fibers against future moisture and iron intrusion.[5]

Attempting to treat a black ring with household bleach or vinegar will fail. Vinegar has a pH of 2.5 but lacks the reducing properties needed to break the stable ferric tannate bond, while chlorine bleach targets organic dyes rather than metallic coordination compounds.[2][5]

The Role of Wood Species

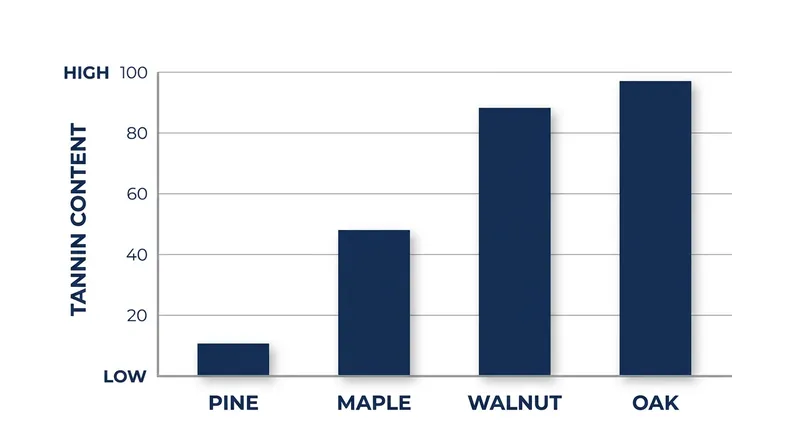

The severity of a black ring is entirely dependent on the wood species. The tannin content determines how intense the stain becomes from the exact same iron exposure. High-tannin species produce dramatically darker and more extensive stains than low-tannin species.[1]

A wet cast iron pan left on an oak butcher block for 5 minutes will produce an intense, deep black ring. The same pan left on a maple or pine surface for the same duration will produce almost no visible staining, as there are insufficient tannins to fuel the reaction.[1][5]

Understanding this underlying chemistry allows woodworkers to anticipate how different materials will behave. A white ring is a warning that the finish is failing, while a black ring is a confirmation that the wood's natural defenses have been weaponized against its own appearance.
