DC-Balanced Reset Waveforms Clear Pigment Hysteresis: Why E-Reader Screens Flash Black When Turning Pages

Every few page turns, an e-reader screen suddenly inverts, flashing entirely black for a fraction of a second before the new text appears. This visual interruption is not a processor struggling to render the next page or a battery-saving measure. It is a mandatory physical reset of the display's microscopic ink capsules.[1][3]

Unlike liquid crystal displays (LCDs) or organic light-emitting diodes (OLEDs), which constantly emit light to maintain an image, electrophoretic displays—commonly known by the brand name E Ink—are physical. They rely on millions of tiny microcapsules suspended in a fluid layer.[1]

The Mechanics of Electrophoretic Ink

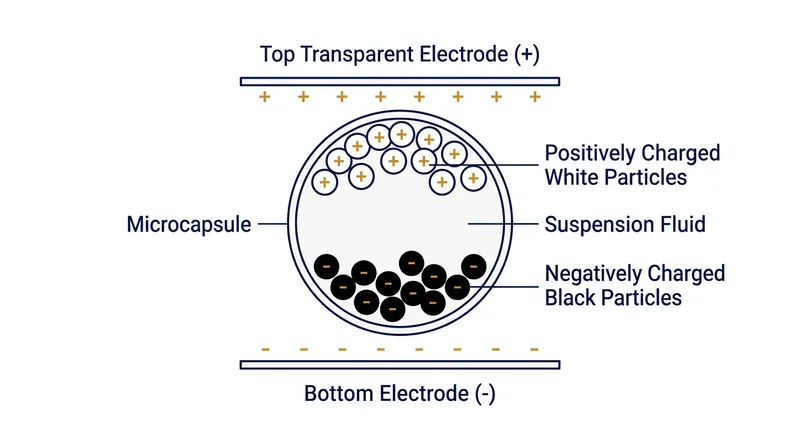

Each microcapsule, roughly the diameter of a human hair, contains positively charged white particles and negatively charged black particles. When a positive electric field is applied to the bottom of the capsule, the negatively charged black particles are pulled down, and the positively charged white particles are pushed to the top, making that pixel appear white.[1]

Reversing the field pushes the black particles to the surface, creating a black pixel. Because these particles are physically suspended in a viscous fluid, they stay in place once the electric field is removed. This bistable nature is why e-readers consume power only when turning a page, allowing a 1,500 mAh battery to last for weeks.[1][2]

The Problem of Pigment Hysteresis

However, moving physical particles through a fluid is not perfectly precise. When a pixel transitions from black to white, a few black particles often remain stuck near the top of the capsule, trapped by static friction or weak electrostatic forces. This phenomenon is known as pigment hysteresis.[2]

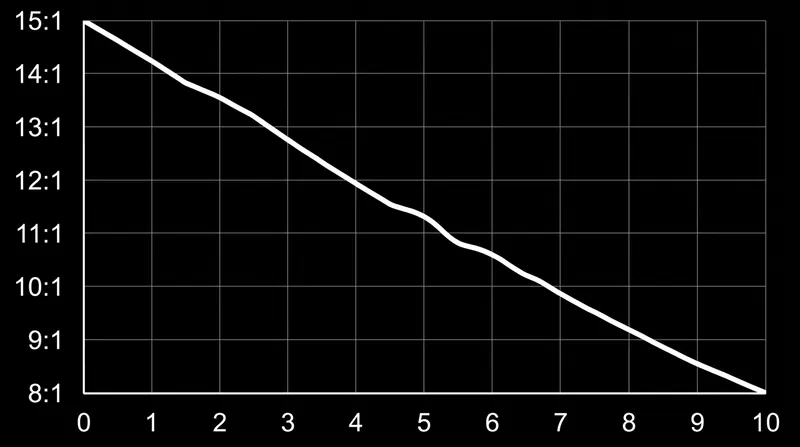

If left unaddressed, pigment hysteresis causes "ghosting"—a faint, lingering shadow of the previous page's text visible beneath the new text. Over several page turns, these trapped particles accumulate, degrading the contrast ratio from a crisp 15:1 down to a muddy 8:1, making the screen appear washed out and difficult to read.[2][3]

The DC-Balanced Reset Waveform

To clear this ghosting, the display controller must forcefully dislodge the trapped particles. It does this by applying a "DC-balanced reset waveform." This is a specific sequence of voltage pulses designed to drive all particles to one extreme of the capsule, then the other, before settling into their new positions.[2]

The full-screen black flash is the visible result of this reset. The controller applies a strong negative voltage across the entire screen, pulling all white particles down and pushing all black particles to the surface. This uniform movement breaks the static friction holding the trapped particles, effectively wiping the slate clean.[1][2]

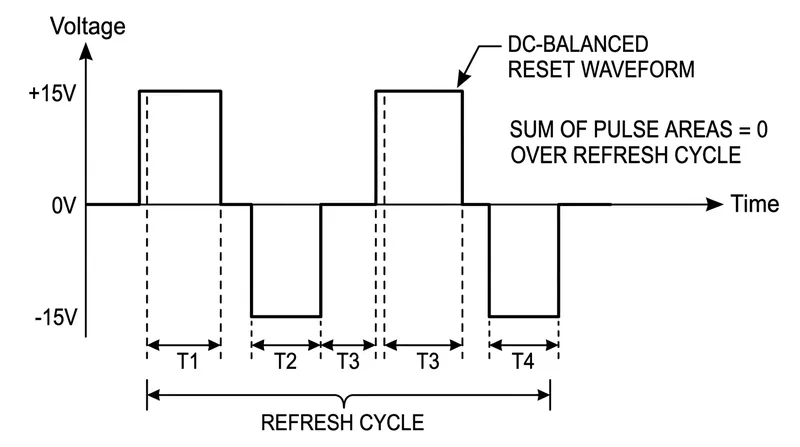

Crucially, this reset waveform must be DC-balanced. This means the total positive voltage applied over time must exactly equal the total negative voltage. If a net direct current (DC) charge builds up in the microcapsules, it can cause the fluid to degrade or the electrodes to corrode, permanently damaging the display.[2]

Balancing Speed and Clarity

Modern e-readers use complex algorithms to minimize the frequency of these full-screen flashes. They employ "partial refreshes," where only the pixels that need to change are updated, using carefully tuned waveforms that minimize ghosting without a full reset. This allows for faster page turns and a smoother reading experience.[1][3]

However, partial refreshes are not perfect. After 5 to 10 page turns, the accumulated hysteresis becomes noticeable, and the controller must trigger a full DC-balanced reset to restore the screen's contrast. Users can often adjust this frequency in the device settings, trading a cleaner screen for more frequent flashes.[2][3]

The development of faster, more precise waveforms is a major area of research in electrophoretic displays. Newer generations of E Ink panels, such as Carta 1200 and Carta 1300, feature faster response times and improved contrast, allowing them to perform more partial refreshes before requiring a full reset.[1]
