How the Lie Factor Mathematically Measures Graphical Distortion

Designers and marketers often claim that scaling a chart's visual elements to fit aesthetic constraints—such as truncating a y-axis or using two-dimensional areas to represent one-dimensional data—merely enhances readability without altering the underlying truth [5]. But the mathematical evidence contradicts this defense. When visual proportions diverge from numerical proportions, the graphic actively distorts reality. To quantify this deception, statistician Edward Tufte introduced the "Lie Factor," a strict mathematical ratio that measures exactly how much a chart exaggerates or understates the data it claims to represent [1]. As Tufte established in his foundational rule, "The representation of numbers, as physically measured on the surface of the graphic itself, should be directly proportional to the quantities represented" [1].[1][4]

The mechanism behind the Lie Factor is a straightforward comparison of percentage changes. It is calculated by dividing the size of the effect shown in the graphic by the size of the effect in the actual data [1]. If a chart's visual element, such as the height of a bar or the length of a line, increases by 50%, but the underlying data only increases by 10%, the Lie Factor is 5.0. According to Tufte's standard, a perfectly accurate graphic has a Lie Factor of exactly 1.0, while any value outside the narrow band of 0.95 to 1.05 indicates a substantial and often intentional distortion [1]. Values greater than 1.0 indicate an overstatement, while values below 1.0 indicate an understatement.[1]

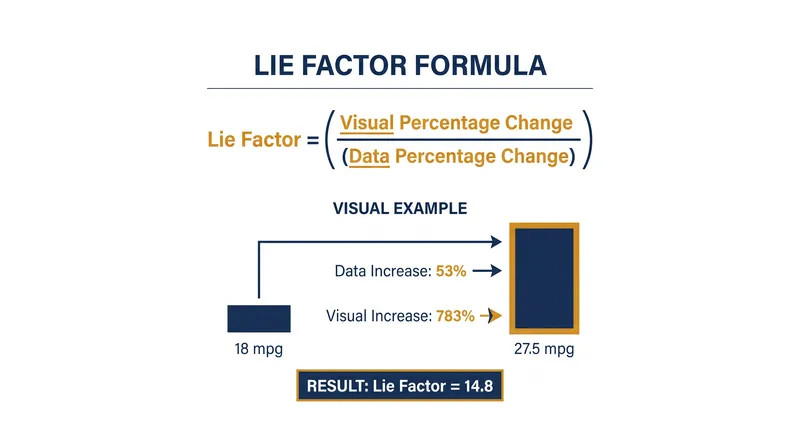

The most famous application of this metric exposes a 1978 graphic published by the New York Times regarding mandated fuel economy standards. The data required an increase in mileage from 18 to 27.5 miles per gallon—a mathematical increase of 53% [1]. However, the physical length of the line representing this change on the printed page grew from 0.6 inches to 5.3 inches, a visual explosion of 783% [1]. Dividing the visual change (783%) by the data change (53%) yields a Lie Factor of 14.8, meaning the chart exaggerated the policy's impact by nearly fifteen times its actual magnitude [1].[1]

However, the mathematical formulation of the Lie Factor carries its own structural biases. Because it relies on the ratio of percentages rather than direct magnitudes, the formula can compound the distortion penalty. If we recompute the 1978 fuel economy chart using direct ratios—comparing the visual growth multiplier (5.3 divided by 0.6 equals 8.83) to the data growth multiplier (27.5 divided by 18 equals 1.53)—the resulting Lie Factor is 5.78 [6]. This proves that while the chart is undeniably distorted, Tufte's percentage-based formula mathematically amplifies the measured severity of that distortion, pushing the penalty higher than a direct geometric comparison would dictate [6].[5]

Beyond line lengths, the Lie Factor is highly sensitive to the "baseline paradox" in bar charts. When a y-axis is truncated—starting at a number greater than zero—the visual percentage change between two bars becomes artificially inflated [3]. A data increase from 90 to 100 is an 11% bump, but if the chart's baseline starts at 80, the visual bar height doubles from 10 units to 20 units. That creates a 100% visual increase, resulting in a Lie Factor of 9.0 [3]. Empirical investigations into computer-generated graphics confirm that viewers consistently misjudge data magnitudes when exposed to these baseline shifts, anchoring their perception to the visual area rather than the printed axis labels [2].[2]

The distortion scales quadratically when designers use two-dimensional areas, like circles or custom icons, to represent one-dimensional data. If a data value doubles and the designer doubles the radius of a circle to represent it, the physical area of that circle actually quadruples [1]. This geometric reality inherently produces a Lie Factor of 2.0 or higher, depending on the baseline [1]. Studies in science communication demonstrate that debunking these misleading area charts requires explicit visual corrections, as the human visual system intuitively processes the total inked area rather than the intended one-dimensional radius [4].[1][3]

Despite its mathematical rigor, the Lie Factor is rarely applied as a constraint in modern automated charting tools. While software can easily map data to pixels, it cannot automatically detect when a user has selected an inappropriate visual encoding or truncated an axis to force a narrative [2]. The trade-off between visual aesthetics and strict proportional accuracy remains a manual editorial judgment [5]. As long as the Lie Factor remains a post-publication critique rather than a pre-publication software constraint, the gap between what the data says and what the graphic shows will persist [6].[2][4][5]

The Lie Factor serves as a mathematical defense against visual manipulation. By forcing a direct comparison between the ink on the page and the numbers in the dataset, it strips away the subjective defense of "aesthetic choice." The next frontier in data visualization is not just creating more beautiful charts, but integrating real-time Lie Factor calculations into the design software itself, preventing the publication of distorted graphics before they ever reach an audience [6].[5]
