How Batch Normalization Accelerates Deep Network Convergence

In May 2018, a team of researchers from the Massachusetts Institute of Technology published a paper that fundamentally dismantled the foundational theory behind one of the most important algorithms in artificial intelligence. Since 2015, a technique known as "Batch Normalization" had been the standard tool allowing engineers to train deep neural networks with hundreds of layers without the system collapsing. The original creators, Sergey Ioffe and Christian Szegedy, claimed their technique worked by reducing "internal covariate shift"—a phenomenon where the statistical distribution of data changes as it passes through the network. But the 2018 findings proved that this was not the mechanism at all.[1][3]

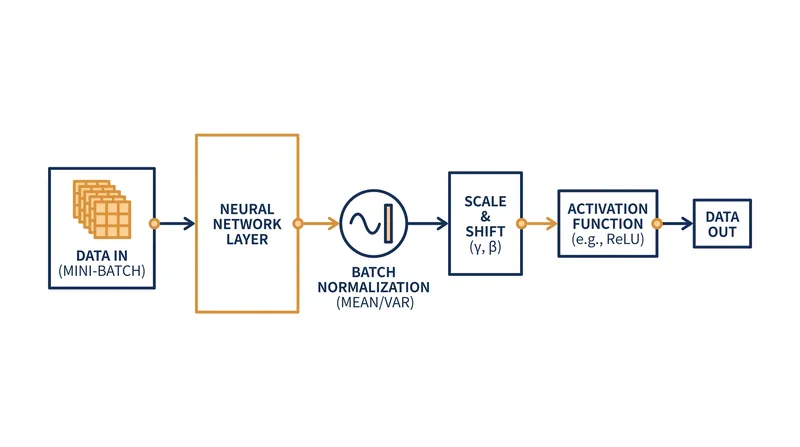

Despite this theoretical upheaval, the technique itself remained indispensable. Today, Batch Normalization is baked into nearly every major computer vision model and is a standard layer in frameworks like TensorFlow and PyTorch. It operates by standardizing the inputs to a layer across a "mini-batch" of data, re-centering the values around a mean of zero and scaling them to a standard deviation of one.[5][6]

To understand why this mathematical operation is so critical, one must look at the mechanics of deep learning. Neural networks learn by adjusting millions of parameters—weights and biases—using an optimization algorithm called gradient descent. During training, data is not fed into the network all at once, but rather in small chunks, or mini-batches, typically containing 32 to 256 examples.[6]

Before the introduction of Batch Normalization, training deep networks was notoriously unstable. If the inputs to a specific layer grew too large or too small, the gradients used to update the weights would either vanish to near zero or explode to infinity. This forced researchers to use agonizingly small learning rates, making the training process prohibitively slow and computationally expensive.[1]

The 2015 paper introduced a seemingly simple fix. By calculating the mean and variance of the activations for each mini-batch, the algorithm normalizes the data before passing it to the next layer. Crucially, it then applies two learnable parameters—often denoted as gamma for scaling and beta for shifting—which allow the network to restore the original representation power if the normalization step discarded useful information.[1][5]

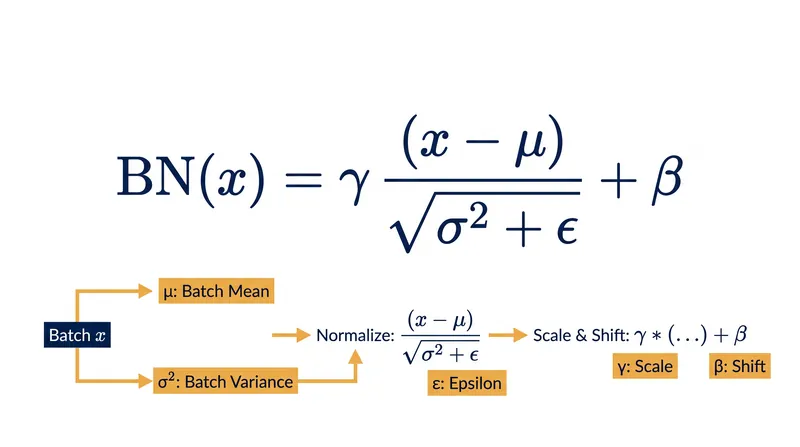

As the official TensorFlow documentation explains the operation, the layer returns "gamma * (batch - mean(batch)) / sqrt(var(batch) + epsilon) + beta", where epsilon is a tiny constant added to prevent division by zero. This ensures that the network is not rigidly forced into a standard normal distribution if a different distribution would yield better predictions.[5]

Ioffe and Szegedy theorized that this process solved internal covariate shift. As the parameters of earlier layers updated during training, the distribution of the inputs to later layers would wildly fluctuate. By forcing these distributions to remain stable, they argued, the later layers would not have to constantly adapt to a moving target, thereby accelerating convergence.[1][6]

This explanation was accepted as gospel for three years, accumulating tens of thousands of academic citations. But the 2018 research, led by Shibani Santurkar, Dimitris Tsipras, Andrew Ilyas, and Aleksander Madry, demonstrated that Batch Normalization actually does not reduce internal covariate shift in any meaningful way.[3]

In a series of experiments, the MIT team showed that even if you artificially inject severe covariate shift into a network equipped with Batch Normalization—by adding random noise to the distributions after the normalization step—the network still trains rapidly and stably. The success of the algorithm had nothing to do with stabilizing the input distributions.[3]

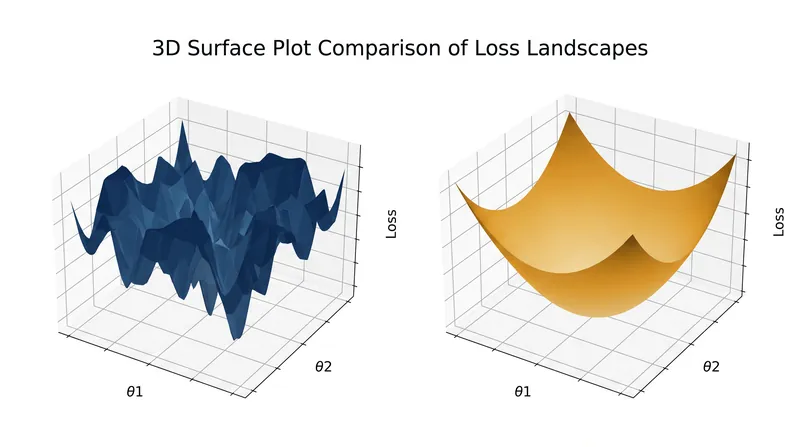

Instead, the 2018 paper revealed that Batch Normalization works by smoothing the "loss landscape." In optimization, the loss landscape is a mathematical terrain that the algorithm navigates to find the lowest possible error. Without normalization, this terrain is highly rugged, filled with steep cliffs and flat plateaus that cause the training process to stall or diverge.[2][3]

By normalizing the activations, the technique fundamentally restructures this landscape. It improves the Lipschitz continuity of the gradients, meaning the gradients change at a much more predictable, bounded rate. This smoother terrain allows researchers to use significantly larger learning rates without the risk of the model stepping off a mathematical cliff.[3][4]

The practical implications of this smoothing effect are massive. According to the Dive into Deep Learning reference text, Batch Normalization is the primary reason practitioners can now "routinely train networks with over 100 layers." It also provides a serendipitous regularization effect; because the mean and variance are calculated over a random mini-batch, a small amount of noise is injected into the training process, which helps prevent the model from overfitting to the training data.[6]

However, the technique is not without its flaws. Because it relies on batch statistics, Batch Normalization performs poorly when the mini-batch size is very small. If a batch contains only one or two examples, the calculated mean and variance are highly inaccurate representations of the overall dataset, leading to unstable training dynamics.[4][6]

Furthermore, Batch Normalization behaves differently during training and inference. During training, it uses the statistics of the current mini-batch. But when the model is deployed for inference to make predictions on new data, it must use a running average of the mean and variance calculated during training. Failing to properly manage this state transition remains a common source of bugs in machine learning pipelines.[5]

These limitations have led to the development of alternative techniques, such as Layer Normalization, which is preferred in sequence models like Transformers. Yet, for Convolutional Neural Networks and many other architectures, Batch Normalization remains the undisputed standard, proving that in artificial intelligence, empirical success often outpaces theoretical understanding.[4][7]
