The Np/Ns Ratio: How the Ratio of Primary to Secondary Windings Dictates Voltage Transformation

Consumer electronics marketing often implies that a power brick "converts" 120-volt wall power into the 5 volts a smartphone needs through complex digital processing. The evidence from electrical engineering standards shows a much simpler physical reality: the voltage drops because the power brick contains a transformer where the input wire is wrapped around a magnetic core exactly 24 times for every one time the output wire is wrapped.[4]

This relationship is known as the turns ratio, expressed mathematically as Np/Ns, where Np represents the number of turns on the primary winding and Ns represents the secondary winding. "The turns ratio of a transformer is the ratio of the number of turns in the primary winding to the number of turns in the secondary winding," notes Rex Power Magnetics in its 2026 engineering guidelines.[4]

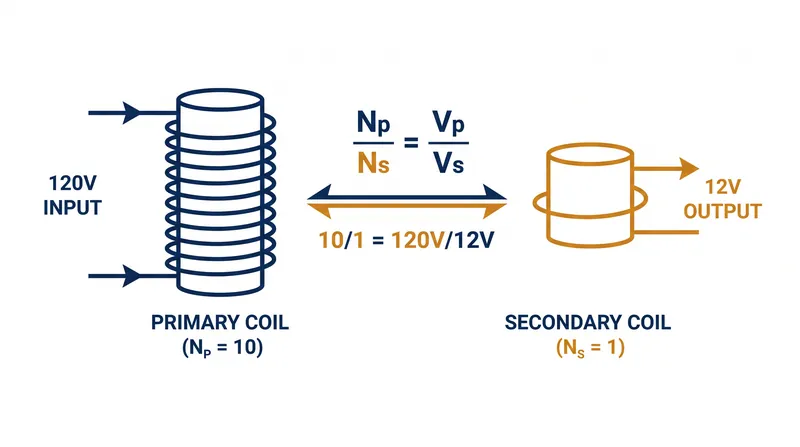

The turns ratio dictates the exact voltage transformation across the device. If a transformer has 1,000 turns on its primary coil and 100 turns on its secondary coil, it possesses a 10:1 ratio. When 120 volts of alternating current enter the primary coil, the secondary coil outputs exactly 12 volts.[2][5]

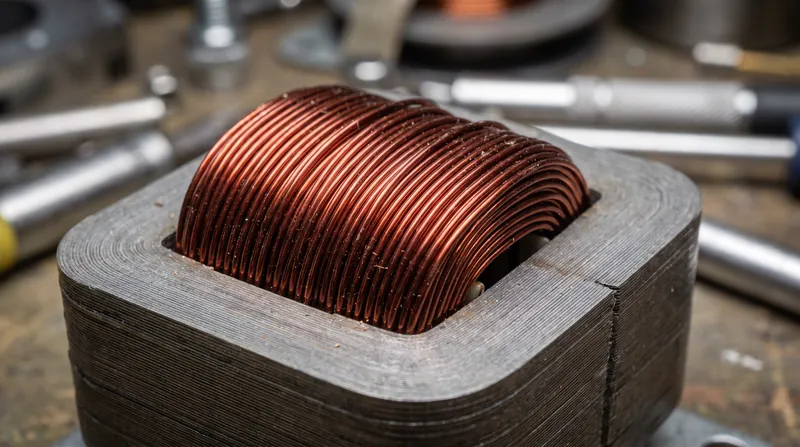

This mechanism relies on electromagnetic induction, a principle first harnessed for practical power distribution in 1885. When alternating current flows through the primary winding, it generates a fluctuating magnetic field within the iron core. This magnetic field then induces a voltage in the secondary winding. Because the secondary wire passes through the magnetic field fewer times, it picks up less voltage.[2][3]

The global power grid depends entirely on this physical ratio to function. Power plants typically generate electricity at roughly 10,000 volts. To minimize energy loss over long distances, step-up transformers with a 1:40 ratio increase this to 400,000 volts for transmission lines.[3]

Once the electricity reaches a residential neighborhood, a series of step-down transformers reverses the process. A neighborhood substation might use a 55:1 ratio to drop the voltage down to 7,200 volts, and the cylindrical transformer on a utility pole uses a 30:1 ratio to reduce it to the 240 volts that enter a home's electrical panel.[5]

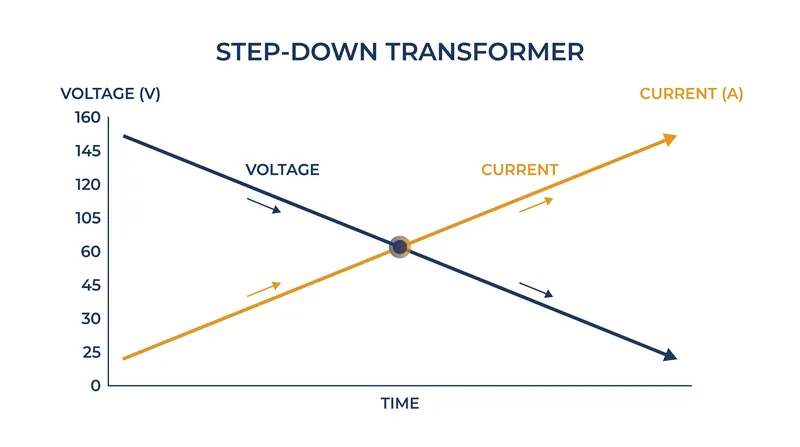

While the voltage changes dramatically, the total power remains largely constant, minus minor heat losses. This introduces an inverse relationship with electrical current. As voltage steps down, current steps up. A transformer reducing 120 volts at 1 amp down to 12 volts will output roughly 10 amps of current, ensuring the total wattage is preserved.[2][4]

In practice, physical transformers are not perfectly efficient. Turn2engineering documentation highlights that real-world devices experience "copper losses" from wire resistance and "core losses" from magnetic inefficiencies. Because a standard industrial transformer operates at roughly 98 percent efficiency, engineers must compensate by adding slightly more turns to the secondary coil than the strict Np/Ns formula dictates to ensure the final output voltage meets specifications under load.[4][5]

Verifying these ratios requires specialized equipment. Voltech, a manufacturer of testing hardware, emphasizes that turns ratio testing is a mandatory quality control step. If a manufacturing error results in even a single missing turn on a high-voltage transformer, the resulting voltage imbalance can overheat the core, degrade the insulation, and ultimately cause a catastrophic failure.[1]

Today, while solid-state electronics handle many power conversion tasks, the physical Np/Ns ratio remains the most reliable, efficient, and cost-effective method for isolating circuits and stepping alternating current up or down at scale.[3][6]
