The Control Pilot Pin: How a 1 kHz Square Wave Governs EV Charging and Why DC Fast Chargers Require Digital Overlays

Hardware manufacturers frequently market Level 2 wall boxes as "smart chargers" that intelligently manage a vehicle's battery replenishment. The electrical standards document a different reality: the wall box is essentially a glorified relay switch, and the vehicle's onboard computer controls the entire process based on a single, primitive 1 kHz analog signal.[1][5]

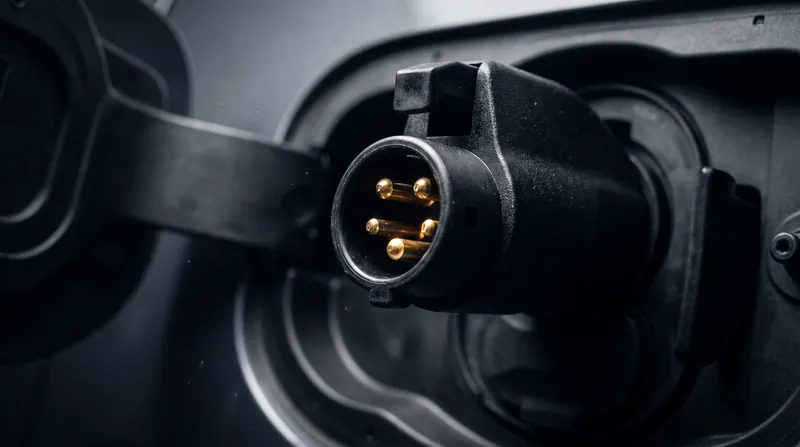

The architecture governing this interaction is the SAE J1772 standard, first adopted in 2001 and heavily revised in 2010. Within the five-pin connector, two massive pins carry alternating current, one provides an earth ground, and one detects proximity. The fifth pin—the Control Pilot—acts as the sole communication link between the grid and the vehicle.[2][4]

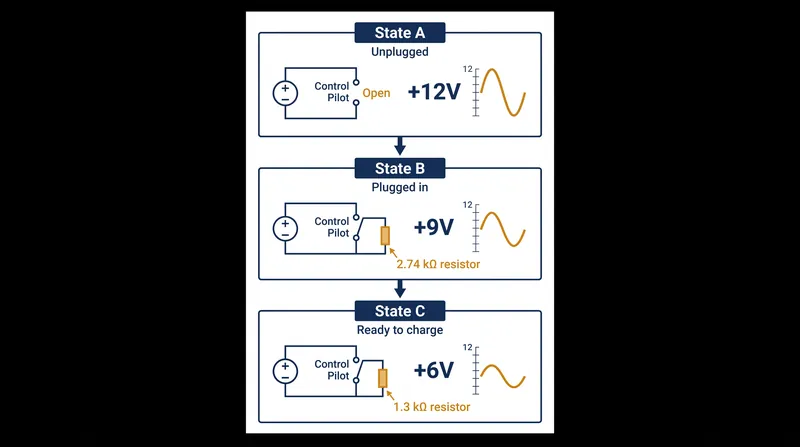

Before a cable is even plugged in, the charging station applies a constant +12-volt direct current to the Control Pilot pin. When a driver inserts the plug, a 2.74 kΩ resistor inside the vehicle bridges the Control Pilot to the ground pin. This specific resistance pulls the voltage down to exactly +9 volts, signaling to the station that a physical connection exists.[4][6]

Once the +9-volt State B is detected, the charging station's internal oscillator wakes up. It converts the steady direct current into a 1 kHz square wave, oscillating rapidly between +12 volts and -12 volts. This frequency serves as the heartbeat of the charging session, confirming that the station is ready to deliver power.[1][6]

To actually initiate the flow of electricity, the vehicle must respond to this heartbeat. The car's onboard charge controller closes an internal switch, introducing a second, parallel 1.3 kΩ resistor into the circuit. According to the engineering documentation from Beyondlogic, this action forces the vehicle to "pull down the positive peak of the 1kHz square wave to 6V," entering State C.[6]

Detecting this +6-volt peak, the charging station physically closes its heavy-duty mechanical contactors with an audible clunk, allowing high-voltage alternating current to flow into the vehicle's onboard inverter. If the voltage ever strays from these precise analog thresholds, the contactors snap open in less than 100 milliseconds, severing the power.[2][6]

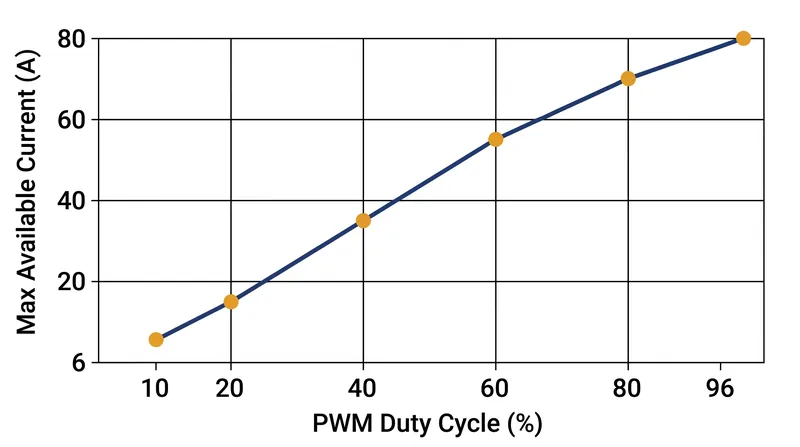

The actual charging speed is dictated by the width of the square wave's pulses. The station broadcasts its maximum available current by altering the duty cycle—the percentage of time the wave remains at its positive peak before dropping negative.[4][5]

The mathematical relationship is strictly defined by the standard. A 10 percent duty cycle informs the vehicle it can draw a maximum of 6 amps. A 50 percent duty cycle permits 30 amps. For higher capacities, the formula shifts slightly, but the principle remains: the vehicle reads the pulse width and instructs its own internal charger never to exceed that limit.[4][6]

This analog Pulse Width Modulation (PWM) approach is mathematically simple, immune to software crashes, and highly resistant to electromagnetic interference. However, it suffers from a fatal flaw for modern applications: it is a unidirectional broadcast. The vehicle cannot tell the station its battery percentage, its cell temperature, or its cryptographic billing identity.[2][3]

The transition to direct current (DC) fast charging required a massive increase in data exchange. When bypassing the vehicle's onboard inverter to pump up to 800 volts directly into the battery pack, the external station effectively becomes the battery management system. It must know exactly what the chemistry can handle at any given second.[3]

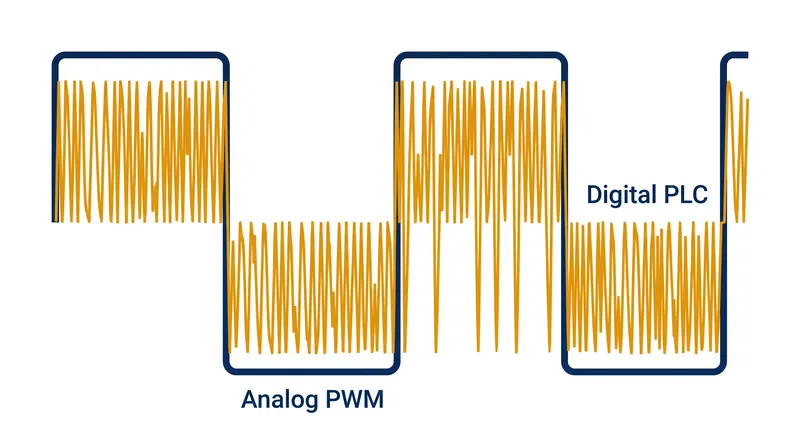

Rather than adding a dedicated data cable, the Combined Charging System (CCS) standard, introduced in 2012, opted to reuse the existing hardware. Engineers implemented a system that superimposes high-speed digital data directly over the 1 kHz analog wave on the Control Pilot pin.[2][3]

This digital overlay utilizes HomePlug Green PHY, a Power Line Communication (PLC) protocol originally designed for smart home appliances. It injects a high-frequency digital signal operating between 2 MHz and 30 MHz onto the pin, transmitting IPv6 network traffic at speeds up to 10 Mbps.[3]

Electronic Design notes that this transition required engineers to implement "high-level communication (HLC) using Power Line Communication (PLC) superimposed on the Control Pilot." This allows the vehicle and station to negotiate complex parameters, enabling features like Plug & Charge cryptographic billing and bidirectional vehicle-to-grid (V2G) power flow.[2][3]

The cost of this bandwidth is reliability. While the analog PWM signal is robust, the high-frequency PLC signal is highly susceptible to attenuation and electromagnetic noise generated by the massive liquid-cooled DC cables running mere millimeters away in the same harness.[2]

Furthermore, the digital handshake introduces severe latency. While analog contactors close in milliseconds, establishing a PLC link requires IP address assignment, a Transport Layer Security (TLS) handshake, and parameter negotiation. This sequence routinely takes 5 to 15 seconds, and if any packet drops due to cable noise, the entire session fails to initiate—a primary driver of public charging unreliability.[3]

The industry remains locked into this dual-layer architecture. Even as automakers transition to the North American Charging Standard (NACS / SAE J3400), the physical connector shrinks, but the underlying communication protocol remains identical. The tension between simple analog safety and complex digital negotiation will continue to define the reliability of global charging infrastructure.[2][4]
