The Conservation of Angular Momentum: How a Gravity Assist Increases a Spacecraft's Velocity

Mission planners designing a probe to the outer solar system face a brutal mathematical reality dictated by the Tsiolkovsky rocket equation. On one side of the engineering divide, propulsion purists advocate for direct, high-thrust trajectories: build a massive launch vehicle, burn chemical propellant to escape Earth's gravity, and coast straight to the target. This approach minimizes transit time and frees the mission from the strict scheduling of planetary alignments. On the other side, orbital dynamicists argue that carrying enough fuel to reach Jupiter or Saturn directly leaves almost no mass budget for the actual scientific instruments. Their solution is to steal the velocity instead, routing the spacecraft past intermediate planets to siphon off their orbital energy. The debate is a strict trade-off between time and mass, forcing every deep-space mission to choose between arriving quickly with a lightweight probe or arriving years later with a fully equipped observatory.[1][2]

The mechanism that makes the heavier payloads possible is the gravity assist, a maneuver that exploits the conservation of angular momentum. When a spacecraft approaches a planet like Jupiter, it falls into the gravitational well, accelerating as it gets closer. If the planet were stationary, the probe would lose exactly the same amount of speed as it climbed back out, resulting in no net gain. However, because the planet is moving along its own orbit around the Sun at 13 kilometers per second, the spacecraft is dragged along with it. In the frame of reference of the Sun, the spacecraft exits the encounter with a massive velocity boost, while the planet loses an equivalent amount of kinetic energy. The exchange is perfectly elastic, adhering strictly to Newton's Third Law.[1][3]

The sheer scale of the energy transfer makes deep-space exploration financially viable. As The Planetary Society notes, 'Lifting extra fuel into orbit, just so it can be used later, is exponentially expensive.' During the Voyager 1 and 2 encounters with Jupiter in 1979, each spacecraft gained approximately 10 kilometers per second in velocity. To achieve that same acceleration using onboard chemical propulsion, the spacecraft would have needed a launch vehicle exponentially larger than the Titan IIIE rockets that carried them. The cost of lifting that much extra fuel into low Earth orbit would have canceled the missions entirely. Instead, the probes extracted the energy passively, allowing them to carry heavy cameras, spectrometers, and the Golden Record.[4]

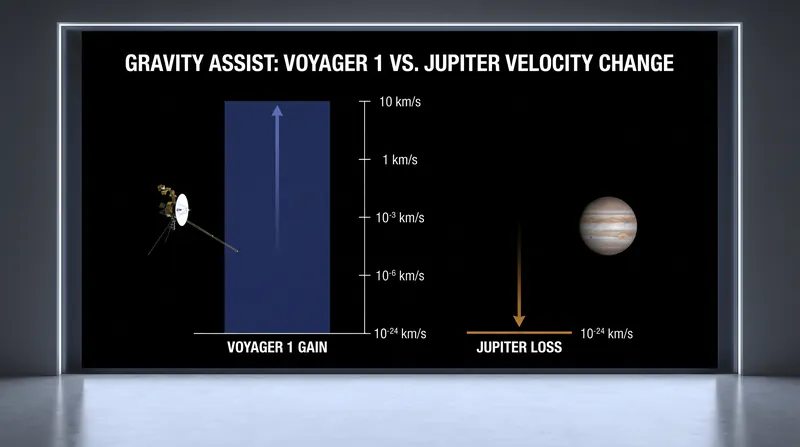

While the spacecraft gains a massive boost, the conservation of energy dictates that the assisting planet must pay the price. Because the mass difference between a one-ton probe and a gas giant is so vast, the planetary deceleration is functionally zero. Calculations from the 1979 Voyager flybys show that Jupiter slowed down by roughly 10^-24 kilometers per second. At that rate, humanity could launch billions of probes using Jupiter as a gravitational slingshot without measurably degrading the planet's orbit or shortening its year. The angular momentum of the solar system's planets serves as an effectively infinite battery for human spaceflight.[4]

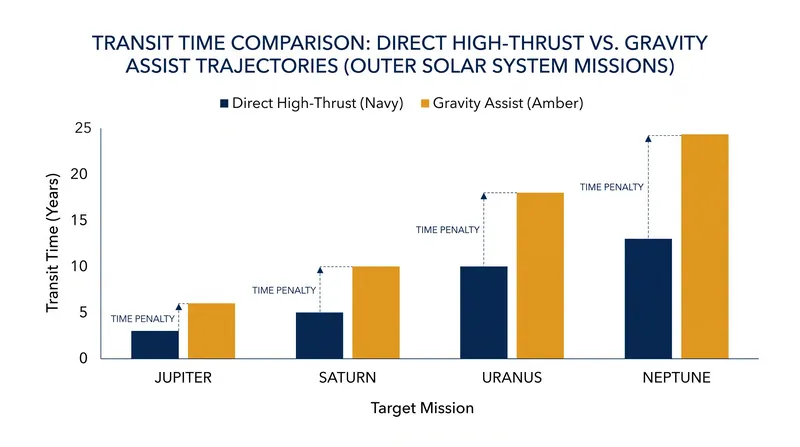

The penalty for using this planetary battery is time. A direct flight to Saturn would take roughly three to four years, assuming a rocket powerful enough existed. When the Cassini-Huygens mission launched in 1997, it weighed 5,712 kilograms—far too heavy for a direct trajectory. Instead, mission planners routed the spacecraft inward toward the Sun first. Cassini executed two gravity assists at Venus, one at Earth, and a final boost at Jupiter, spending seven years in transit before finally arriving at Saturn in 2004. The circuitous route required precise navigation and subjected the spacecraft to the intense thermal radiation of the inner solar system, but it provided the necessary velocity without requiring thousands of kilograms of extra propellant.

Gravity assists are not limited to accelerating spacecraft outward; they are equally critical for slowing probes down. When the Messenger spacecraft was dispatched to orbit Mercury, it faced the opposite problem: falling inward toward the Sun generates so much velocity that a probe will simply fly past the inner planets unless it applies massive braking thrust. Messenger used one flyby of Earth, two of Venus, and three of Mercury itself to bleed off orbital energy. By approaching the planets from the leading edge of their orbits, the spacecraft transferred its kinetic energy back to the planets, slowing down enough to eventually achieve orbit around Mercury in 2011 without carrying a massive braking stage.[4]

The technique also allows for radical changes in orbital inclination, a maneuver that is notoriously fuel-intensive. During its 13-year tour of the Saturnian system, Cassini used the massive moon Titan for repeated gravitational adjustments. As NASA records, 'Titan gravity assists were used to achieve significant changes in the inclination of Cassini's orbit as well so that instead of staying nearly in the equatorial plane, the spacecraft's flight path was inclined well out of the plane of the rings.' The maneuver cost almost no fuel, relying entirely on the precise geometry of the encounter.

A typical close flyby of Titan changed Cassini's speed by approximately 800 meters per second relative to Saturn. Mission planners used these encounters to target subsequent flybys of smaller moons like Enceladus. Titan's orbit, meanwhile, was altered by roughly 7 centimeters per million years, a negligible cost for the navigational control it provided the mission.

The reliance on planetary alignments means that mission windows are strictly dictated by orbital mechanics, not funding or readiness. The Voyager missions were only possible because of a rare alignment of Jupiter, Saturn, Uranus, and Neptune that occurs once every 176 years. If the 1977 launch window had been missed, the trajectory would have been impossible for another two centuries. This constraint forces space agencies to prioritize missions based on when the planets will be in the correct position, rather than when the technology is mature.[4]

The trade-off between mass and time remains the fundamental constraint of interplanetary exploration. Until engineers develop propulsion systems with exponentially higher specific impulse, chemical rockets will remain too inefficient for direct deep-space flights with heavy payloads. The gravity assist maneuver bypasses the limitations of chemical propulsion, trading the strict scheduling of orbital mechanics and years of transit time for the ability to send capable, heavily instrumented observatories to the edge of the solar system. The choice is not whether to use the planets for acceleration, but how long a mission can afford to wait.[2][3]
