Bypass Ratios and the Supersonic Penalty: Why Tripling Jet Speed Triples Fuel Consumption

In a 1977 assessment of variable-cycle engines for Mach 2.7 supersonic transports, NASA engineers documented a specific fuel consumption (SFC) of roughly 1.5 to 1.8 pounds of fuel per pound of thrust per hour. Nearly fifty years later, despite billions in venture capital flowing into aerospace startups promising a 'green' return to supersonic passenger travel, that thermodynamic floor has barely moved. The physics of moving air through a turbine dictate a strict penalty for speed, one that modern marketing language often attempts to obscure.[1]

The core metric governing this reality is the bypass ratio—the amount of air that flows around the engine's combustion chamber compared to the air that flows directly through it. According to the Encyclopedia Britannica, a high bypass ratio engine accelerates a large mass of air to a relatively low velocity, which is vastly more efficient for subsonic flight than accelerating a small mass of air to a high velocity.[2]

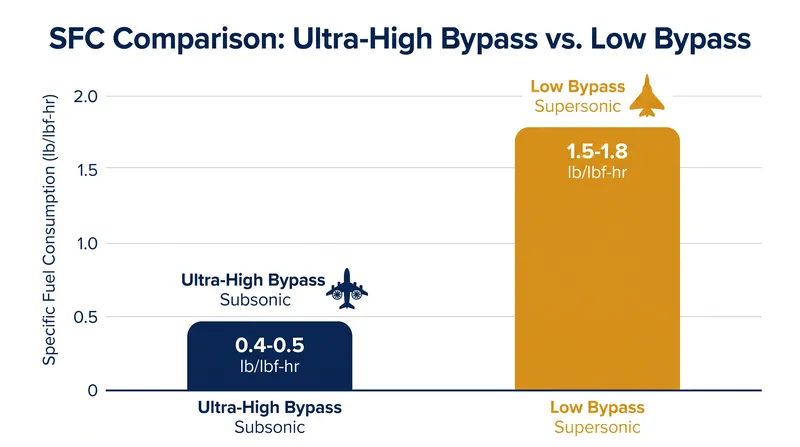

Modern commercial airliners utilize ultra-high bypass turbofans with ratios often exceeding 10:1 or 12:1. An analysis by the International Symposium on Transport Phenomena and Dynamics of Rotating Machinery (ISROMAC) notes that these conventional and ultra-high bypass engines achieve an SFC of 0.4 to 0.5 lb/lbf-hr during subsonic cruise. They are the mechanical reason a transatlantic flight on a Boeing 787 or Airbus A350 is economically viable for the middle class.[4]

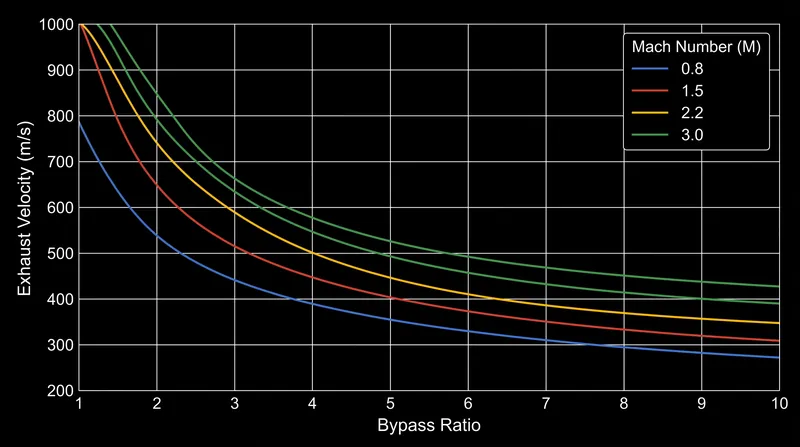

However, high bypass engines present a massive frontal area, creating prohibitive aerodynamic drag as an aircraft approaches Mach 1. To fly supersonically, an aircraft requires a low bypass ratio (often below 1:1) or a pure turbojet, which presents a slender profile but relies on blasting a small amount of air at extreme velocities. A Washington University in St. Louis repository paper on turbofan engine bypass ratios confirms that as thrust requirements for supersonic speeds increase, the bypass ratio must drop, inherently driving up fuel flow.[3]

"The fundamental thermodynamic cycle of a gas turbine engine dictates that propulsive efficiency peaks when the exhaust velocity closely matches the aircraft's flight velocity," notes the ASME Digital Collection's review of variable cycle engine concepts. For a subsonic airliner flying at 550 mph, a wide, slow exhaust plume is ideal. For a jet flying at Mach 2 (roughly 1,500 mph), the exhaust must be violently fast, which requires burning significantly more jet fuel.[6]

This creates a severe noise problem alongside the fuel penalty. A historical SAE Technical Paper investigating noise from full-scale high bypass engines demonstrates that the sheer velocity of low-bypass exhaust shearing against ambient air generates deafening acoustic signatures. This is the primary reason the Concorde was banned from flying overland routes, a regulatory hurdle that remains firmly in place today.[5]

To bridge this gap, engineers have spent decades developing the variable-cycle engine (VCE), which attempts to alter its internal geometry in flight. An MDPI conceptual design method for assessing VCE benefits in supersonic civil aircraft outlines how these engines act like a low-bypass turbojet during supersonic cruise and shift to a higher bypass mode for subsonic flight and landing.[7]

Yet, while VCEs offer a compromise, they do not eliminate the supersonic fuel penalty. They merely make the aircraft less inefficient when it is forced to fly slowly over land. The MDPI data indicates that while a VCE improves subsonic loiter efficiency, the moment the aircraft accelerates past Mach 1, it must revert to the fuel-thirsty low-bypass mode, immediately tripling its specific fuel consumption compared to a standard subsonic airliner.[7]

This thermodynamic reality directly challenges the press releases of modern supersonic startups. Claims of 'net-zero' supersonic flight rely entirely on the future availability of massive quantities of Sustainable Aviation Fuel (SAF), not on a fundamental breakthrough in engine architecture. If a supersonic jet requires three times the fuel per passenger mile, it will require three times the SAF, a resource that is currently scarce and expensive.[8]

The aviation industry faces a hard physical boundary. You can move a large amount of air slowly and efficiently, or you can move a small amount of air violently and expensively. Until a fundamentally new method of propulsion is invented, the trade-off between the bypass ratio and the sound barrier remains absolute, dictating the ceiling of commercial aerospace capability.[8]
