The > 0.1 to < 0.7 Range: How the Eddy Dissipation Rate (EDR) Actually Quantifies the Severity of Flight Turbulence

The severity of a turbulent flight is not determined when your coffee spills or the aircraft suddenly drops, but the moment the atmospheric kinetic energy outside the window breaks down into chaotic, swirling micro-currents known as eddies. This breakdown process—measured as the Eddy Dissipation Rate (EDR)—is the exact step where the physical outcome of your flight is actually determined.

It is the only metric that describes the turbulence of the atmosphere itself, rather than a specific aircraft's reaction to it. For decades, the aviation industry relied on subjective pilot reports of "light chop" or "severe bumps," which varied wildly depending on the size of the plane, the phase of flight, and the experience of the crew. By measuring the exact rate at which turbulent energy dissipates into heat, EDR strips away human perception and provides a universal, objective scale.[4]

"Eddy dissipation rate, or EDR, is a measure from atmospheric physics that describes how quickly turbulent energy is being dissipated in the atmosphere," according to Aireon's 2026 turbulence data framework. "In simple terms, EDR helps quantify the intensity of turbulent air." The metric is expressed in units of meters squared per second cubed (m²/s³), reflecting the kinetic energy per unit mass per second.

A higher EDR value means that turbulent energy is dissipating more rapidly, which corresponds to stronger, more violent atmospheric disturbances that you feel in the cabin. A lower EDR indicates smooth, stable air where eddies persist or do not form at all, allowing for a perfectly calm ride.[4]

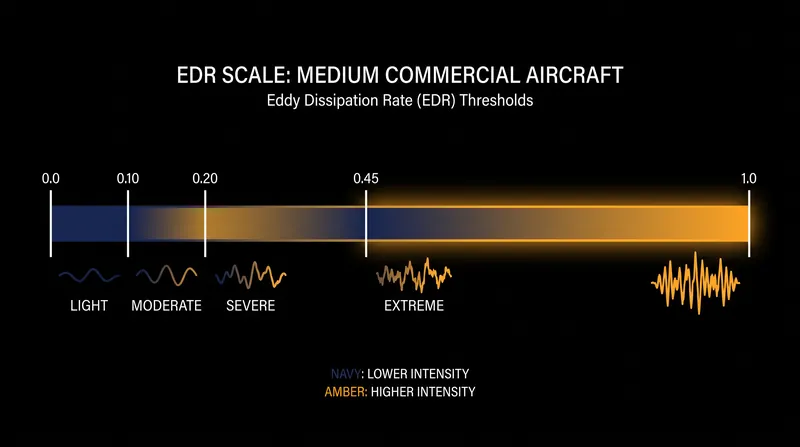

The EDR scale is the official turbulence intensity metric of the International Civil Aviation Organization (ICAO) and the World Meteorological Organization (WMO). To translate atmospheric physics into operational aviation, ICAO established specific EDR thresholds for a standard medium-sized commercial transport aircraft, such as a Boeing 737 or an Airbus A320. On this scale, an EDR below 0.10 is considered "nil" or smooth air. The 0.10 to 0.20 range constitutes light turbulence, where you might feel a slight strain against your seatbelt and watch the liquid in your cup ripple.[1]

The danger zone for commercial aviation begins as the EDR climbs higher. Moderate turbulence, which makes walking down the aisle difficult and forces flight attendants to suspend food service, spans from 0.20 to 0.45.

Anything at or above 0.45 is classified as severe turbulence, characterized by abrupt changes in altitude and attitude, momentarily rendering the aircraft out of control and posing a severe injury risk to unbuckled passengers. An EDR of 0.70 or higher is considered extreme, representing a level of atmospheric chaos that can cause structural damage to the airframe, though such encounters are exceedingly rare.[1]

The critical advantage of EDR is its strict aircraft-independence. The same air mass possesses the exact same EDR value regardless of whether a 1,600-pound Cessna 152 or a 660,000-pound Boeing 777 flies through it. However, the physical effect of that EDR value—the actual "ride quality" you experience in your seat—is highly dependent on the aircraft's mass, wing surface area, and cruising speed.

A light turboprop flying through an air mass with an EDR of 0.35 will experience significant, violent movement, while a heavy wide-body jet passing through the exact same air mass might only register light chop.[4]

Because of this mass dependency, the EDR thresholds for turbulence severity must be scaled to the aircraft's weight class. For a light aircraft, moderate turbulence begins at an EDR of just 0.16, and severe turbulence begins at 0.36. In contrast, a heavy aircraft requires a much higher atmospheric energy state to experience the same physical displacement. This means that an EDR value of 0.25 might trigger a severe turbulence warning for a small general aviation plane, while a commercial airliner would safely navigate it as a routine, moderate bump.

Modern commercial aircraft are equipped with software that automatically calculates the EDR using the plane's own accelerometers, airspeed indicators, and flight control data. These calculations are performed continuously, and the resulting EDR values are automatically downlinked to ground servers without any pilot input. This creates a massive, real-time web of objective atmospheric data. By 2026, platforms like the International Air Transport Association's (IATA) Turbulence Aware program aggregate these automated reports, de-identify them, and share them across participating airlines globally.

This automated data exchange fundamentally changes how flight crews and dispatchers manage turbulence to keep your flight smooth. Instead of relying on a 20-minute-old radio report from a pilot who subjectively described a "rough ride," modern dispatchers look at a live map of precise EDR values.

If a Boeing 737 reports an EDR of 0.30 at 35,000 feet, the dispatcher knows exactly how much kinetic energy is in that air mass. They can then cross-reference that EDR against the specific tolerances of the next aircraft scheduled to fly that route, allowing them to make precise, data-driven decisions about altitude changes or route deviations.

The transition to EDR also enables highly accurate predictive modeling. Organizations like the Federal Aviation Administration (FAA) and the National Center for Atmospheric Research (NCAR) use historical EDR data to train machine-learning algorithms. These models ingest hundreds of meteorological parameters—including wind shear, jet stream curvature, and temperature gradients—to forecast the Eddy Dissipation Rate across a three-dimensional global grid.

By predicting the exact EDR value hours in advance, airlines can route flights around the most turbulent air masses before you ever board the aircraft, saving fuel, reducing emissions, and ensuring a safer, more comfortable journey.[2][3]
