The Mechanics of the 3D Image: How the TSA's CT Scanner Rollout Reshapes Carry-On Security and the 3-1-1 Rule

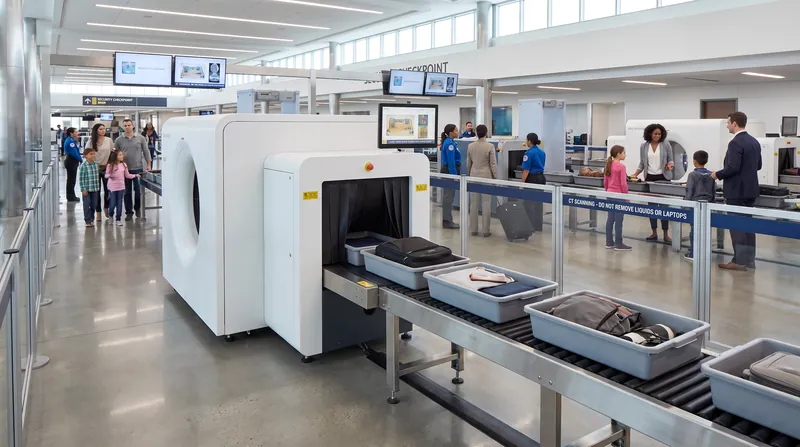

The common misconception at the modern airport checkpoint happens hundreds of times a day. A traveler approaches the security lane, sees the new, massive white Computed Tomography (CT) machine, assumes the rules have fundamentally changed, and confidently leaves a full-sized bottle of sunscreen or shampoo nestled deep inside their carry-on bag. They have read the headlines about advanced 3D imaging and assume the days of the quart-sized plastic bag are over. The inevitable result is a diverted bag, a slowed-down line, and a TSA officer tossing the oversized liquid into the disposal bin. While the screening hardware has taken a massive evolutionary leap forward, the regulatory framework governing American airspace remains firmly anchored to the policies of 2006. The machines can see everything, but the rules have not yet caught up to the physics.[1][2]

To understand why the infamous 3-1-1 rule persists in the face of such advanced technology, you have to understand the leap in physics that Computed Tomography brings to the checkpoint. For decades, the global standard for aviation security was the traditional 2D X-ray machine. These legacy scanners operated by projecting a single, fixed beam of radiation through a suitcase, casting a flat shadow onto a sensor below. This created a profound visual traffic jam for the officers monitoring the screens. If a dense laptop was stacked directly over a bag of toiletries and a tangled cluster of charging cables, the overlapping densities created an opaque, cluttered mass. To see through that clutter, security officers had to force passengers to deconstruct their bags, pulling out large electronics and liquids into separate gray bins so they could be scanned individually without obstruction.[4]

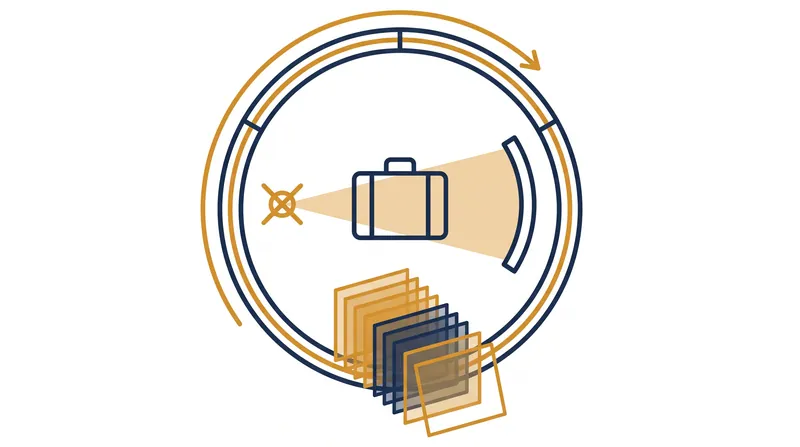

Computed Tomography technology, adapted directly from the medical imaging field, solves this occlusion problem entirely. Instead of relying on a single fixed beam, the CT scanner features a heavy, rapidly spinning gantry. An X-ray source rotates continuously in a full 360-degree circle around the luggage as it glides down the conveyor belt. This high-speed rotation captures hundreds of individual cross-sectional slices of the bag from every conceivable angle in a matter of seconds. The machine's onboard computers then synthesize these hundreds of flat slices into a complete, volumetric 3D model of the bag and its contents. For the security officer watching the monitor, the interface is an absolute revelation. They can digitally rotate the bag on their screen, slice away layers of clothing, and isolate a single item without ever unzipping the suitcase.[3]

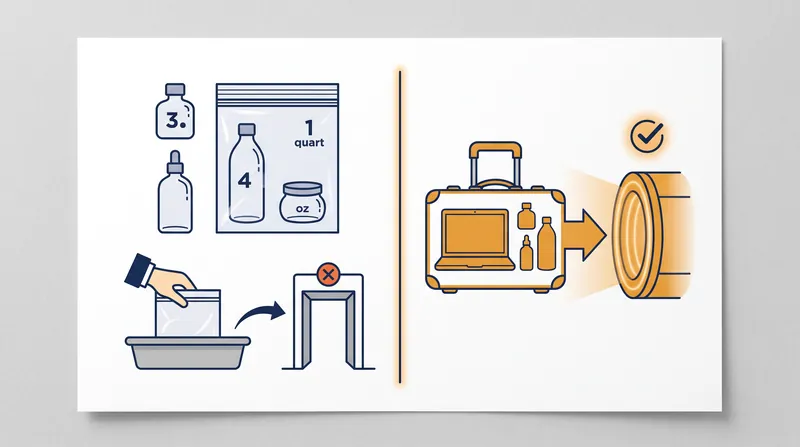

But the modern CT scanner does far more than just render accurate three-dimensional shapes; it actively measures the physical properties of the materials passing through it. As the X-rays penetrate the items in the bag, the machine calculates their specific density and atomic number. By analyzing these precise atomic signatures, the system's sophisticated algorithms can automatically distinguish between a harmless bottle of contact lens solution and a highly dangerous liquid explosive precursor. This precise material discrimination is the exact reason why you no longer have to unpack your quart-sized bag or your laptop when you encounter a CT-equipped lane. The machine can verify the safety of the electronics and the liquids exactly where they sit, eliminating the need for the frantic unpacking dance that has defined air travel for nearly two decades.[1][2]

Which brings us to the central paradox of modern air travel: if the machine's algorithms know exactly what is inside the bottle, why are travelers still strictly restricted to 3.4 ounces? The 3-1-1 rule was born out of a foiled 2006 transatlantic terror plot in which operatives planned to use liquid explosives disguised as everyday beverages. The restriction acts as a critical fail-safe: even if a threat somehow slips past the detection algorithms, the volume of liquid is simply too small to bring down a commercial aircraft. While the new scanners are more than capable of detecting those threats in larger volumes, the United States aviation network is simply too vast and decentralized to change the rules overnight.[1][2][4]

The Transportation Security Administration is currently in the process of rolling out these billion-dollar machines across the country, but thousands of legacy 2D scanners remain in active operation, particularly at smaller regional airports. Lifting the liquid limit at only a handful of major hubs would create massive logistical chaos and passenger frustration. A traveler might successfully fly out of Atlanta's Hartsfield-Jackson with a full bottle of expensive shampoo, only to have it confiscated on their return flight from a smaller regional hub that still relies on the older technology. To prevent this friction, the TSA has opted to maintain a universal standard across the entire network.[2]

Other nations with smaller, more centralized airport networks have already begun to move past the 2006 restrictions. The United Kingdom, for example, mandated the installation of CT scanners across its major airports and simultaneously began phasing out the 100-milliliter liquid limit, allowing passengers to carry up to two liters of liquid in their cabin baggage at select facilities. For the American traveler, however, industry experts project that the 3-1-1 rule will remain a non-negotiable reality until the CT rollout is universally complete—a massive infrastructural milestone that could take several more years to achieve.[2]

Until that nationwide upgrade is finished, the new machines offer a different, highly practical kind of upgrade for the frequent flyer. They provide a significantly smoother, faster checkpoint experience where your bag stays packed and your electronics remain secure, even if your toiletries must stay small. Understanding the mechanics of the 3D image allows travelers to pack smarter, utilizing the convenience of the CT lanes without falling victim to the assumption that the liquid rules have vanished. The hardware has arrived in the future, but for now, the packing strategy must remain firmly in the present.[1][2]
