The Mechanics of the $7 Billion: How the FAA's 5G Altimeter Mandate Reshapes Commercial Flight Safety

The next time your flight descends through a thick layer of fog and touches down smoothly on an invisible runway, you will be relying on a piece of technology that just survived a four-year regulatory turf war. The Federal Aviation Administration (FAA) has finalized a sweeping mandate requiring the U.S. aviation fleet to overhaul its radio altimeters—the critical instruments that tell a plane exactly how far it is from the ground [1][2]. For the traveling public, this invisible multi-billion-dollar retrofit guarantees that the cellular networks powering your smartphone will not blind the safety systems landing your plane. It marks the definitive end to a conflict that once threatened to paralyze the national airspace.[1][2]

To understand the stakes of the mandate, one must understand how modern aircraft see the ground. Most passengers are familiar with the standard barometric altimeter, which calculates a plane's altitude by measuring changes in outside air pressure relative to sea level [3]. However, air pressure fluctuates with weather, making it insufficiently precise for the final seconds of a flight. A radio altimeter, by contrast, bounces a radio signal straight down to the earth and times the echo to calculate the aircraft's exact distance to the terrain directly below it [3].[3]

This hyper-precise measurement is the absolute foundation of low-visibility operations. It feeds directly into the aircraft's most critical automated systems, including the autoland functions that guide jets to the tarmac when pilots cannot see through heavy rain or snow [1]. The altimeter's data also triggers ground proximity warning systems (GPWS), wind shear detection, and the automatic deployment of spoilers upon touchdown [1]. If this instrument is blinded or fed false data, multiple safety systems can behave unpredictably during the most dangerous phase of flight.[1]

The conflict over this technology began when telecommunications companies sought to expand their 5G networks into the C-band spectrum. The C-band is a highly coveted range of mid-band radio frequencies that offers the perfect balance for cellular providers: it can carry massive amounts of data at high speeds while still penetrating buildings and covering wide geographic areas [2]. However, this specific spectrum neighborhood sits uncomfortably close to the 4.2 to 4.4 GHz band that aviation radio altimeters have used for decades [2].[2]

The core issue was never about passengers using 5G phones inside the cabin. The threat stemmed from powerful 5G ground transmitters—the cell towers themselves—bleeding signals into the adjacent aviation frequencies [1]. Technology does not have perfect cut-offs; radio transmissions operate on a curve, and strong signals can spill over their designated boundaries. If an older radio altimeter lacks the proper shielding, it can pick up the "loud" 5G signal from a nearby tower and mistake it for its own echo, causing the aircraft's computers to conclude the ground is hundreds of feet further away—or closer—than it actually is [1][4].[1][4]

This vulnerability triggered a crisis in early 2022. As wireless carriers prepared to activate their new C-band networks near major U.S. airports, aerospace manufacturers warned that unmitigated interference could cause catastrophic system failures on approach [1]. In response, the FAA issued emergency airworthiness directives and restricted low-visibility landings at dozens of airports where 5G was active [1][2]. International carriers, unsure if their fleets could safely navigate the new spectrum environment, abruptly canceled or rerouted flights bound for the United States, causing widespread travel chaos [1].[1][2]

To stop the bleeding, the telecom and aviation industries brokered a temporary truce. Wireless carriers agreed to establish voluntary buffer zones around key airports, operating their towers at reduced power to give airlines time to understand the threat [2]. Meanwhile, airlines scrambled to install temporary radio frequency filters on their most vulnerable aircraft [1]. While these workarounds kept the airspace moving, they were inherently fragile, relying on gentlemen's agreements and operational restrictions rather than a permanent engineering solution.[1][2]

The FAA's newly finalized rule permanently severs this overlapping risk by attacking the hardware itself. The mandate requires the replacement or modification of approximately 58,500 radio altimeters across roughly 40,700 aircraft operating in U.S. airspace [1]. Instead of asking telecom companies to turn down their towers, the FAA is forcing aviation operators to install next-generation, interference-tolerant altimeters that are physically incapable of being confused by C-band emissions [1][2].[1][2]

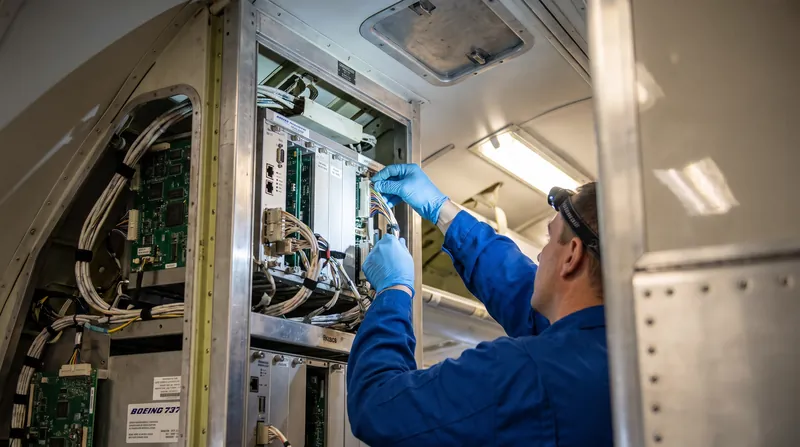

The scale and cost of this retrofit are staggering. The FAA estimates the fleet-wide compliance cost will reach between $4.49 billion and $7.1 billion, depending on the complexity of the installations and the final number of general aviation aircraft upgraded [1]. For a major commercial airliner, replacing the redundant altimeter systems can cost between $80,000 and $120,000 per plane [1]. Because altimeters are safety-critical avionics, they cannot simply be swapped out like consumer electronics; each installation requires certified mechanics, rigorous testing, and significant aircraft downtime [4].[1][4]

To accelerate the transition and soften the financial blow, the federal government has engineered a unique funding mechanism. Major U.S. airlines will be eligible for up to $2.2 billion in rebates to cover the cost of the retrofits [1]. Crucially, this money is not drawn from general taxpayer funds, but rather from the proceeds of the Federal Communications Commission's (FCC) highly lucrative auctions of the C-band spectrum to wireless carriers [1][2]. In essence, the telecom industry's purchase of the airwaves is subsidizing the aviation industry's defense against them.[1][2]

The FAA has established a tiered timeline to ensure the most critical aircraft are upgraded first. Scheduled commercial airlines—which perform the vast majority of automated low-visibility landings and carry the highest public expectation of safety—must complete their retrofits by the end of 2030 [1]. This deadline aligns with the FCC's schedule to release even more upper C-band spectrum in major urban markets [1]. General aviation, business jets, and smaller charter operators have been granted a longer runway, with compliance required by roughly 2034 [1].[1]

The mandate also sends a powerful ripple effect across the global aviation market. The FAA's rule applies to any aircraft operating within U.S. airspace, meaning large foreign carriers must also upgrade their fleets to the new interference-tolerant standard by the 2030 deadline [1]. However, unlike domestic U.S. airlines, foreign operators are not eligible for the FCC-funded rebate program, forcing them to absorb the full cost of the retrofits in order to maintain access to American airports [1][4].[1][4]

While the transition period will require intense coordination between airlines, avionics manufacturers, and maintenance crews, the final rule represents a triumph of inter-agency cooperation. By working together, the FAA and the FCC have engineered a regulatory framework that allows two vital sectors of the modern economy to coexist [2]. The telecommunications industry secures the spectrum it needs to build the high-speed infrastructure of the future, while the aviation industry secures the pristine radio environment it needs to fly safely.[2]

Ultimately, the $7 billion altimeter mandate transforms a temporary crisis into a permanent, invisible shield. It is a testament to the uncompromising nature of aviation safety, where even a theoretical risk of interference is met with a fleet-wide hardware overhaul [4]. For the everyday traveler, the result is a return to the dull, predictable safety of modern flight—ensuring that the technology connecting us on the ground never interferes with the technology bringing us safely back to it.[4]
