Why 55 Kilopascals of Cabin Pressure Wedge Airplane Doors Shut Under 10 Metric Tons of Force

A submarine hatch seals against the crushing weight of the ocean pushing inward. An airliner door does the exact opposite: it seals against the near-vacuum of the stratosphere by using the aircraft's internal atmosphere to wedge itself outward into a tapered frame.[1]

This mechanical reality is why panicked passengers can never successfully open a commercial aircraft door mid-flight. The door is not merely locked by a deadbolt; it is pinned in place by the laws of physics.[1]

Modern commercial aviation relies on a design known as the plug door. Because the door must be pulled inward against a massive pressure differential before it can open, no human can physically breach an airliner door at cruising altitude.[4]

The Federal Aviation Administration mandates strict environmental controls for passenger flights. Under Title 14 of the Code of Federal Regulations, Section 25.841, which took its current form in 1996, commercial transports must maintain a cabin altitude of "not more than 8,000 feet at the maximum operating altitude of the airplane under normal operating conditions."[2]

To achieve this, the aircraft's environmental control system bleeds compressed air from the engines and pumps it into the sealed fuselage. While the aircraft cruises at 35,000 feet, the interior atmosphere remains dense and breathable.[2]

The Geometry of the Plug Seal

The fundamental principle of a plug door is that it is physically larger than the opening it seals. The door and its frame are wedge-shaped, making the outward-facing side narrower than the inward-facing side.[4]

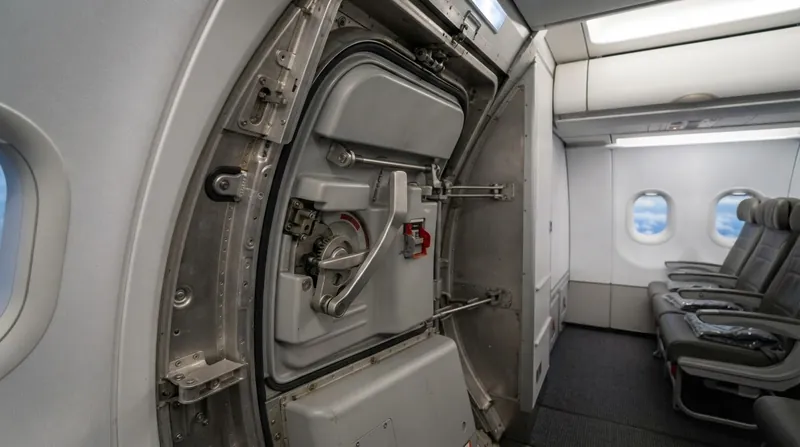

To open the exit, a flight attendant must rotate a handle that collapses the door's internal hinges, pulling the entire heavy assembly inward into the cabin. Only after it clears the frame can it be rotated and pushed outward through the narrower gap.[4]

At sea level, this inward pull requires only the mechanical leverage of the handle. But once the aircraft climbs and the fuselage pressurizes, the internal atmosphere pushes outward against every square inch of the cabin interior, including the door.[1]

At a cruising altitude of 35,000 feet, the outside atmospheric pressure drops to roughly 20 kilopascals. Inside the cabin, the pressurized air sits at approximately 75 to 80 kilopascals to simulate an elevation of 6,000 to 8,000 feet.

This creates a pressure differential of about 55 kilopascals, or roughly 8 pounds per square inch. That differential forces the wedge-shaped door outward into its socket, creating an airtight seal that tightens as the aircraft climbs higher.

Calculating the Ten-Ton Wedge

The sheer magnitude of this force becomes clear when applied to the surface area of a standard commercial aircraft exit. A typical Boeing 737 main cabin door measures 1.83 meters tall by 0.86 meters wide.

That geometry gives the door a surface area of approximately 1.6 square meters. When 55 kilopascals of differential pressure push against that area, the resulting outward force is roughly 88,000 Newtons.[1]

In gravitational terms, 88,000 Newtons translates to roughly 9,000 kilograms of force. At cruising altitude, the cabin atmosphere is effectively parking a 10-metric-ton weight against the inside of the door.[1]

To open the door mid-flight, a passenger would have to pull the handle inward with enough strength to overcome those 10 metric tons of outward pressure. No human, or even a group of humans, possesses the physical capacity to break that seal.[1]

"The calculations can make us appreciate how much force every 1.6 square meters of fuselage must withstand," notes data scientist Eric Novik, who modeled the physics of the Boeing 737 fuselage following recent aviation incidents.

Why Mechanical Locks Become Redundant

Because the plug design relies on pressure rather than hardware to stay closed, the mechanical latches serve a secondary role. Flight locks are primarily engaged to secure the door at low altitudes or during ground operations before the cabin fully pressurizes.[1]

Once the aircraft reaches altitude, the latches become entirely redundant for holding the door shut. Even if the locking pins were somehow retracted mid-flight, the 10 tons of atmospheric pressure would keep the door immovably wedged in its frame.[1]

This reliance on pressure sealing was learned through tragedy during the early days of the space program. In 1967, a fire broke out inside the Apollo 1 command module during a ground test.[4]

The Apollo cabin was pressurized to 14 kilopascals above sea level, sealing the inward-opening plug hatch. As the fire rapidly heated the air, the internal pressure spiked to 200 kilopascals, making it impossible for the crew to pull the hatch inward to escape.[4]

Following the Apollo 1 disaster, NASA redesigned the spacecraft to feature a quick-release, outward-opening hatch. Commercial aviation, however, retained the inward-opening plug door precisely because it prevents accidental openings in the vacuum of high altitude.[4]

The Danger of Residual Ground Pressure

The immense power of cabin pressure becomes a distinct hazard when an aircraft returns to the ground. If the outflow valves fail to completely equalize the pressure after landing, the cabin retains what is known as residual pressure.[3]

Even a tiny differential of 0.1 pounds per square inch—less than one kilopascal—exerts hundreds of pounds of force on the door. If a flight attendant unlatches a non-plug door or a semi-plug door under residual pressure, it can violently swing open.[3]

To prevent this, manufacturers like Airbus and Boeing install warning lights on the doors that flash if the cabin remains pressurized on the ground. Flight crews are trained to never force a handle that resists opening.[3]

Door Plugs Versus Plug Doors

The physics of the plug door also explain why the January 2024 Alaska Airlines Flight 1282 incident involved a different mechanism entirely. That Boeing 737-9 MAX lost a "door plug," not a functional plug door.

A door plug is a panel installed to permanently seal off an optional emergency exit opening. Unlike a true plug door, it is not wedge-shaped and does not rely on the cabin's internal pressure to hold it inside a tapered frame.

Instead, the National Transportation Safety Board found that the door plug was slotted into place and relied on four retaining bolts to restrict its vertical movement. When those bolts were missing, the panel slid upward and the pressure blew it outward.

A true plug door cannot suffer the same fate. Because it is physically larger than the hole it covers, no missing bolt or mechanical failure can cause it to blow outward. The pressure that destroyed the door plug is the exact force that keeps a plug door perfectly safe.[1]
