The 15-Minute Limit: How Sodium Chlorate Candles Sustain Passengers During Emergency Aircraft Descents

When the yellow cups drop from the ceiling of a commercial airliner, passengers have exactly 15 minutes of breathable air. Measured against a two-hour flight, a quarter of an hour sounds dangerously brief. But that duration is a precisely engineered margin, built to outlast the three to five minutes it takes a flight crew to dive the aircraft to a safe altitude.[1]

The masks are not connected to heavy, high-pressure oxygen tanks in the cargo hold. Instead, the air flowing through the clear plastic tubes is manufactured in real time directly above the seats. Each overhead compartment houses a chemical oxygen generator, a stainless steel cylinder roughly the size of a thermos that holds a solid chemical core.[1][4]

The Exothermic Reaction

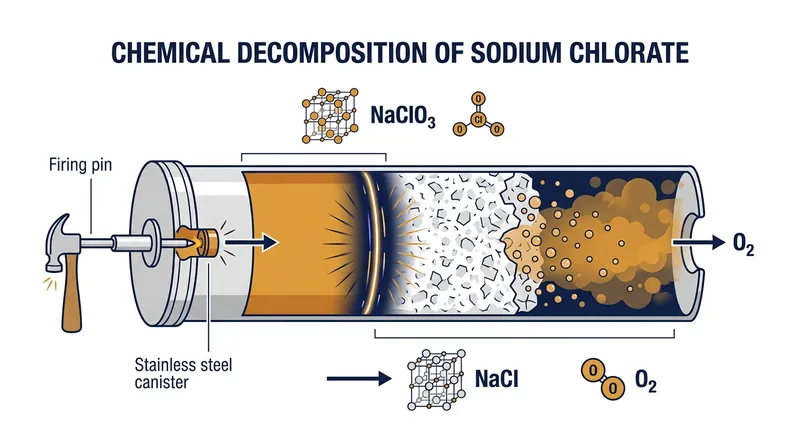

Pulling the mask toward the face does more than adjust the fit. The tug releases a spring-loaded firing pin into a percussion cap, creating a small spark that ignites the chemical core. Once triggered, the sodium chlorate decomposes into ordinary sodium chloride—table salt—and pure oxygen gas, which flows immediately into the masks.[1][4]

The core is typically a mixture of sodium chlorate, less than five percent barium peroxide, and a small amount of potassium perchlorate. To keep the decomposition front moving steadily through the solid block, manufacturers mix in fine iron powder, which acts as the fuel for the reaction.[4]

Because the reaction is highly exothermic, it liberates a massive amount of heat as a byproduct. The exterior of the steel canister quickly reaches temperatures between 450 and 500 degrees Fahrenheit (232 to 260 degrees Celsius). This intense heat produces a distinct scorched or hot-metal smell in the cabin, which often alarms passengers.[1][3]

That burning smell simply indicates the system is functioning exactly as designed. Aviation safety regulators have frequently recommended that flight crews warn passengers about the odor as soon as the masks deploy, precisely to prevent panic that the aircraft is on fire.[3]

An Unstoppable Process

Once the firing pin strikes, the chemical fire cannot be paused, turned down, or switched off. The candle will burn continuously until the entire sodium chlorate core is exhausted. This ensures a steady, uninterrupted flow of oxygen regardless of the aircraft's electrical power or engine status.[4]

The irreversible nature of the reaction means that even if a passenger pulls a mask by accident, the generator will run its full course. The oxygen flows into a continuous-flow, phase-dilution mask, gathering in a small reservoir bag that may not appear fully inflated depending on how heavily the passenger is breathing.[2]

The 10,000-Foot Threshold

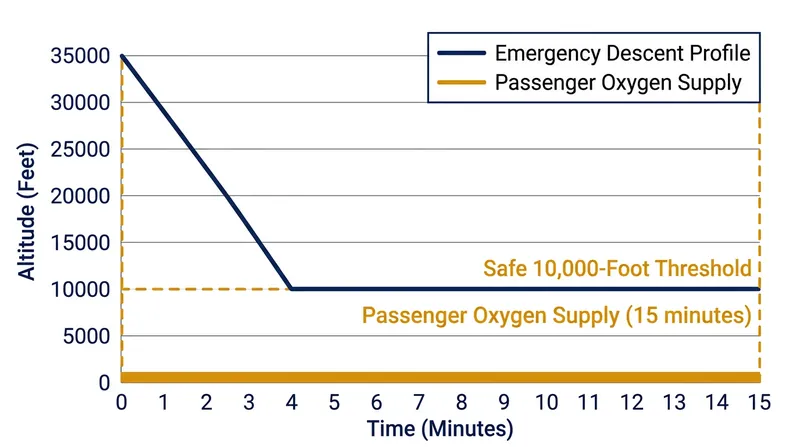

The 15-minute supply is calculated to support the single most important defense against hypoxia: the emergency descent. At cruising altitudes of 35,000 to 40,000 feet, the ambient air is too thin to sustain consciousness. In a rapid decompression event, passengers have only 15 to 30 seconds of useful consciousness before passing out.[1]

The flight crew's immediate protocol is to pitch the aircraft down to 10,000 feet. At this altitude, the atmospheric pressure is roughly 700 millibars, which is dense enough for healthy humans to breathe normally without any supplemental assistance. The descent itself typically takes less than five minutes.[4]

Pilots, who must remain alert to execute this steep maneuver, do not rely on the passenger candles. The flight deck is equipped with a completely separate, heavy gaseous oxygen system. This pressurized supply provides several hours of breathable air, ensuring the crew can navigate safely even if the descent is delayed by weather or terrain.[2]

Weight and Reliability

Aviation engineers favor solid oxygen candles over compressed gas for the passenger cabin because of their immense weight savings and stability. A chemical generator is roughly one-third the weight of a gaseous tank capable of storing the exact same volume of breathable oxygen.[4]

Beyond the weight savings, solid oxygen eliminates the need for complex, high-pressure plumbing running throughout the aircraft cabin. Pressurized gas lines require heavy reinforced tubing and regular valve maintenance, and they present a severe explosion risk if ruptured during a structural failure or decompression event.[4]

The solid sodium chlorate core also boasts a nearly indefinite shelf life when stored correctly. The chemicals remain entirely inert below 400 degrees Fahrenheit, requiring virtually no maintenance until the moment a passenger pulls the lanyard and starts the reaction.[4]

Hazardous Materials Handling

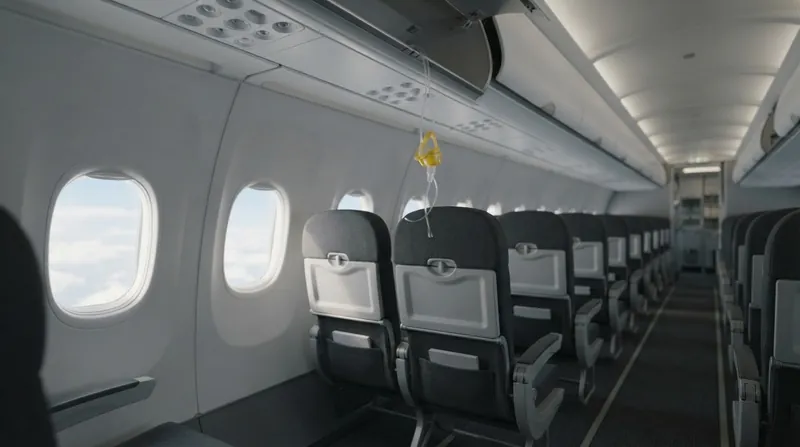

Despite their stability in the air, unspent chemical oxygen generators require extreme caution on the ground. Because they produce both intense heat and pure oxygen when activated, they are classified as hazardous materials and must be handled carefully during aircraft maintenance.[3]

Regulators require that expired but fully functioning chemical oxygen generators be deliberately expended before they are transported to waste facilities. Mishandling these devices has led to severe consequences in the past, as the heat from an accidental activation can easily ignite surrounding materials in a cargo hold or storage bay.[3]

Today, the sodium chlorate candle remains the undisputed standard for commercial passenger life support. It is a masterclass in chemical engineering: a device that sits silently for years, weighs almost nothing, and reliably manufactures exactly enough air to save a cabin full of people when the pressure drops.[1]

Alternative Oxygen Systems

While commercial airliners rely on sodium chlorate, other aviation sectors use different technologies. General aviation pilots flying unpressurized aircraft often use portable gaseous aviator's breathing oxygen stored in high-pressure cylinders, which provides a continuous flow for hours but carries a significant weight penalty.[2]

Military and high-performance aircraft frequently utilize liquid oxygen systems. Liquid oxygen offers a massive space-saving advantage, as a very small volume of liquid expands into an enormous amount of breathable gas. However, the extreme cold and complex handling requirements make it impractical for civilian passenger fleets.[2][4]

A newer technology, the molecular sieve oxygen generator, is also gaining traction. These high-tech systems take in ambient air and remove nitrogen using zeolite filters, providing concentrated oxygen on demand. While common in military jets and medical units, they have not yet replaced the simple, reliable chemical candle in commercial cabins.[2]

The beauty of the sodium chlorate system lies in its absolute independence. It requires no electricity from the aircraft's alternators, no compressed air from the engines, and no complex mechanical pumps. The moment the pin is pulled, chemistry takes over, delivering life-saving oxygen exactly when it is needed most.[5]
