The 5-Nautical-Mile, 1,000-Foot Rule: How Air Traffic Control Actually Maintains Aircraft Separation

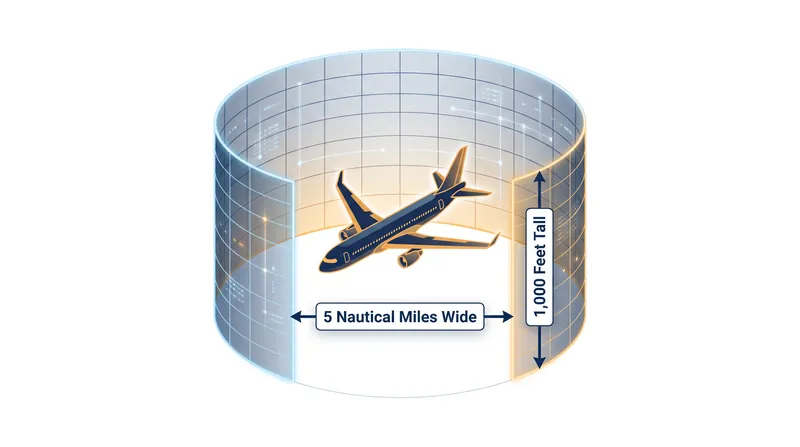

At 35,000 feet, the protective bubble around a commercial airliner is exactly 1,000 feet tall and five nautical miles wide—a cylinder of empty space roughly the volume of a small city. When you look out a window seat and see another aircraft seemingly too close, you are actually observing this precise mathematical buffer in action. Air traffic controllers do not just eyeball the distance between flights; they enforce a rigid three-dimensional grid that dictates exactly how close two planes can safely pass.[7]

The vertical component of this grid is governed by Reduced Vertical Separation Minimum (RVSM) standards. Historically, aircraft flying above 29,000 feet required 2,000 feet of vertical separation because older altimeters lost accuracy at high altitudes. Today, thanks to advanced digital air data computers, authorities allow aircraft to fly much closer. As Sigma Aviation notes, RVSM reduces this vertical minimum to just 1,000 feet between Flight Level 290 and Flight Level 410. This change effectively doubled the capacity of the upper airspace, allowing more flights to reach their destinations on time while burning less fuel at optimal cruising altitudes.[2][6]

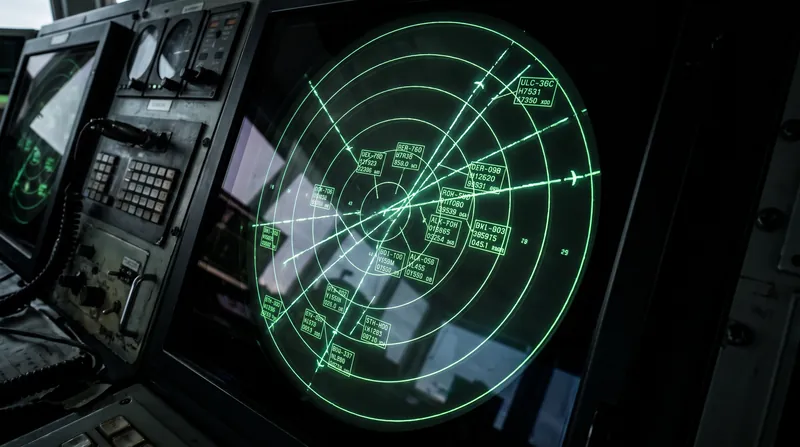

Horizontally, the standard is equally strict. In airspace monitored by radar, controllers maintain a strict baseline. "Separate aircraft by a minimum of 5 miles," the Federal Aviation Administration mandates in its Section 5 radar separation guidelines. This five-mile rule applies to the en-route phase of a flight, ensuring that even if two planes are converging on a similar waypoint, their protective bubbles never intersect. As aircraft approach an airport and slow down, this lateral requirement can sometimes be reduced to three nautical miles, provided the radar systems in use offer sufficient precision.[1][5]

Distance is not just about preventing collisions; it is also about managing the invisible wake left behind by heavy jets. Large aircraft generate powerful wake turbulence—spinning vortices of air that trail from the wingtips. As outlined in a 2025 analysis by FLYING Magazine, these wake vortices can pose a severe hazard to smaller trailing aircraft. To prevent a trailing plane from experiencing severe rolling motions, controllers apply specific wake turbulence separation standards, which can extend the required distance up to eight nautical miles depending on the weight class of the leading and trailing aircraft.[4][5]

In recent years, the focus has shifted from purely distance-based separation to time-based separation (TBS), particularly during the final approach to busy airports. Strong headwinds slow an aircraft's ground speed, meaning a five-mile gap takes longer to cross, which reduces the number of planes that can land per hour. EUROCONTROL's 2021 guidelines support TBS, which dynamically adjusts the distance between arriving aircraft to maintain a consistent time interval, recovering lost runway capacity during high winds without compromising safety.[3]

The technology enabling these tight tolerances is constantly evolving. Modern commercial jets are equipped with Traffic Collision Avoidance Systems (TCAS), which independently monitor the airspace around the aircraft. If another plane breaches the separation minimums, TCAS issues direct resolution advisories to the pilots, such as instructing one to climb and the other to descend. This serves as a final, automated safety net beneath the controller's radar screen, ensuring that human error does not result in a mid-air collision.[4][7]

For the traveler, these invisible rules dictate the rhythm of the journey. When a pilot announces a holding pattern or a slight course deviation due to "traffic," they are actively managing this 1,000-foot by five-mile bubble. The sky may look vast and empty, but it is actually a highly structured highway system where every vehicle is tracked, separated, and guided with mathematical precision. Understanding this grid transforms the anxiety of turbulence or nearby traffic into an appreciation of a highly choreographed system.[1][7]

The safety of modern aviation rests entirely on this invisible geometry. As passenger volumes grow and new entrants like commercial drones and electric air taxis join the airspace, these legacy separation standards are facing unprecedented pressure. The next major shift in air traffic control will not be about shrinking the 1,000-foot vertical or five-mile lateral limits, but rather developing automated systems capable of managing those exact same margins for thousands of autonomous vehicles simultaneously.[7]
