The (Offset, Length, Next Character) Triple: How the LZ77 Sliding Window Achieves Lossless Data Compression

The exact moment a file shrinks during lossless compression happens at the boundary between what the algorithm has already seen and what it is about to read. In the LZ77 algorithm, this step is the longest prefix match. If you want to understand how ZIP files or PNG images actually save space, this is the mechanism to learn. As the encoder scans a file, it constantly looks at the upcoming data in its look-ahead buffer and searches backward through its search buffer—a sliding window of recently processed text. When it finds an identical sequence of characters in that past window, the outcome is determined: instead of writing the raw data again, the algorithm emits a short mathematical reference pointing backward. That single matching decision collapses megabytes of redundant data into a fraction of their original size.[1]

Before Abraham Lempel and Jacob Ziv published their seminal paper in 1977, data compression often relied on assigning shorter codes to frequent individual symbols, a method known as Huffman coding. LZ77 attacked redundancy from a completely different angle. It recognized that human language, computer code, and structured data are full of repeated phrases. By treating the recently processed data as a dynamic dictionary, LZ77 eliminated the need to store a separate codebook. The algorithm simply slides a window forward, continuously asking whether the upcoming bytes have appeared recently.[1]

When a match is found, LZ77 encodes it using a specific three-part data structure known as the (Offset, Length, Next Character) triple. As the Wikipedia reference notes, this pair is equivalent to the instruction that "each of the next length characters is equal to the characters exactly distance characters behind it" in the uncompressed stream. The "offset" (or distance) dictates exactly how many bytes backward the decoder must look. The "length" specifies how many consecutive bytes to copy. Finally, the "next character" provides the first literal byte that breaks the pattern, ensuring the algorithm can continue processing new data.[1]

Consider a simple string like "abcabcabcabc". A naive storage method requires 12 bytes to hold the text. However, an LZ77 encoder processes the first "abc" as literal characters, outputting triples with an offset and length of zero. When it reaches the second "abc", the longest prefix match step recognizes that this exact sequence exists three bytes back. It emits a triple instructing the decoder to go back 3 bytes and copy 3 bytes forward. This mechanism allows the algorithm to reconstruct the entire 12-byte sequence using only a handful of back-references, drastically reducing the storage footprint.[3]

The elegance of the LZ77 triple lies in its asymmetry: encoding is computationally heavy, but decoding is nearly instantaneous. The encoder must perform exhaustive searches or maintain complex hash chains to find the longest possible match within the sliding window. The decoder, however, performs no searching at all. As outlined in the DEFLATE specification, the decompression algorithm simply reads the offset and length, walks backward in its own output buffer, and copies the bytes forward. This is why software installations and web page loads can decompress data faster than a hard drive or network connection can deliver it.[2]

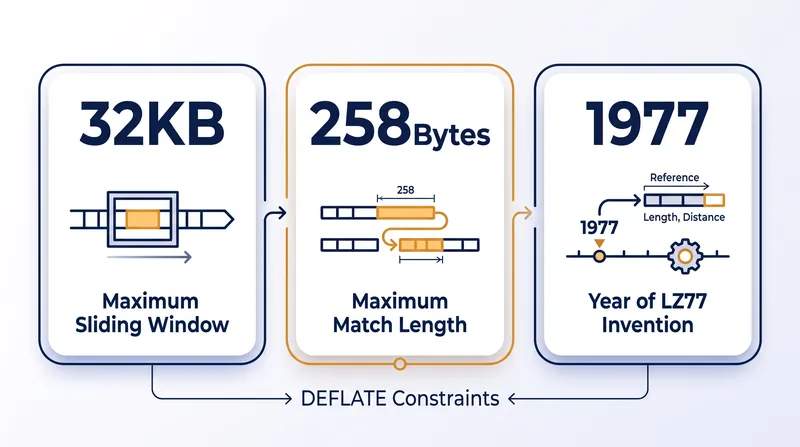

The size of the sliding window strictly dictates the algorithm's memory footprint and its compression ratio. A larger window allows the encoder to look further back in time to find matches, increasing the likelihood of replacing long strings with short triples. However, searching a massive window requires more RAM and CPU cycles. The DEFLATE algorithm, which pairs LZ77 with Huffman coding to power formats like gzip and PNG, standardized a 32-kilobyte sliding window and a maximum match length of 258 bytes. This specific constraint was chosen to balance compression efficiency with the limited memory available on 1990s hardware.[2][4]

While the original 1977 specification output a strict stream of triples, modern implementations optimize the format to save even more space. Algorithms like LZSS introduced a 1-bit flag to distinguish between literal characters and length-distance pairs, dropping the mandatory "next character" from the triple when it isn't needed. When combined with a secondary pass of Huffman coding—which assigns shorter bit sequences to the most common offsets and lengths—the resulting DEFLATE stream achieves the dense compression ratios that make the modern internet viable.[1][2]

Nearly fifty years after its invention, the sliding window mechanism remains the undisputed foundation of general-purpose lossless compression. While newer algorithms like Google's Brotli and Facebook's Zstandard have introduced larger windows, advanced context modeling, and asymmetric dictionaries, they still rely on the core LZ77 principle. The next major leap in compression ratio will not come from abandoning the sliding window, but from hardware accelerators built directly into CPUs that can search gigabyte-sized buffers without stalling the processor pipeline.[1]
