A Guide to 120V Heat Pump Water Heaters: The Science of the Compressor, First Hour Ratings, and Avoiding Panel Upgrades

Everyone gets the math wrong on heat pump water heaters. They look at the $1,800 upfront price tag and assume it is a luxury upgrade reserved for eco-enthusiasts, or they assume their older home's electrical panel cannot handle the load. But the evidence shows that the new generation of 120V plug-in models is actually the highest-yield financial upgrade a homeowner can make, often achieving a day-one return on investment when infrastructure savings are factored in.[2]

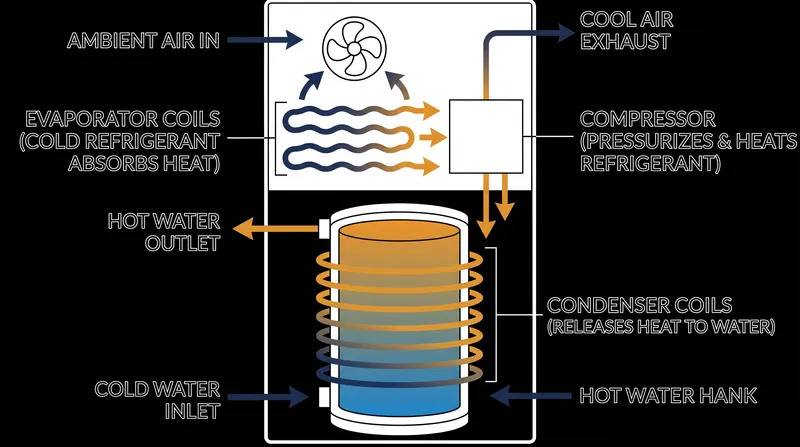

To understand why, you have to understand the mechanism. Unlike traditional electric resistance heaters that create heat by running current through a metal element, a heat pump water heater moves heat. It operates exactly like a refrigerator in reverse. A fan mounted on the top of the unit pulls ambient room air across evaporator coils filled with liquid refrigerant.

As the refrigerant absorbs heat from the air, it turns into a gas. A compressor then pressurizes this gas, significantly raising its temperature. This hot, compressed gas is pumped through condenser coils wrapped around the water tank, transferring its heat into the water before cooling, returning to a liquid state, and repeating the cycle.

Because moving heat requires far less energy than generating it, these systems are incredibly efficient. The Department of Energy notes that heat pump water heaters can be up to four times more efficient than conventional electric resistance models. They operate with a Uniform Energy Factor (UEF) of 2.80 or higher, slashing the electricity required to keep a tank hot.

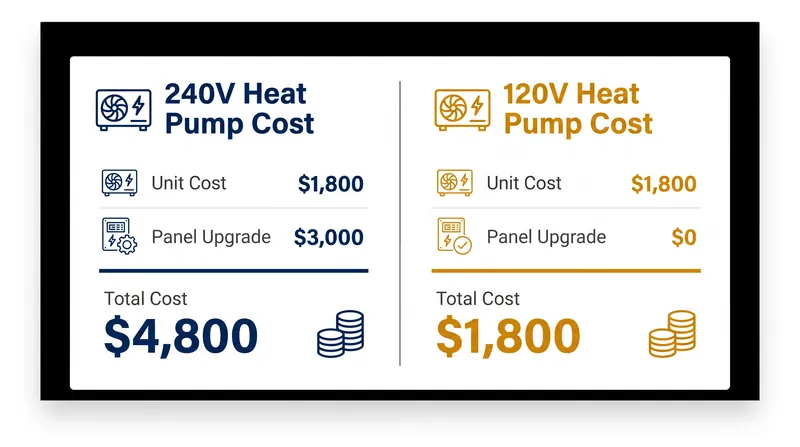

Until recently, however, there was a major catch: these systems required a dedicated 240-volt circuit. For older homes with 100-amp or 125-amp electrical panels, adding a 240V appliance usually triggers a mandatory service upgrade. That electrical work alone can cost between $2,500 and $5,000, destroying the financial case for the upgrade.

The breakthrough came with the development of 120V models, engineered in part through research at Oak Ridge National Laboratory. These units are designed to plug directly into a standard 15-amp household wall outlet. By bypassing the 240V requirement, homeowners can drop the unit into an existing space without hiring an electrician to overhaul their home's power supply.

The financial reality of this bypass is stark. The average US residential electricity rate hit 18.44 cents per kilowatt-hour in August 2026. At that rate, heating water with standard resistance electricity is punishing. By eliminating the panel upgrade fee, the 120V heat pump pays for its own premium immediately, and the ongoing efficiency savings go straight to the homeowner's bottom line.[1]

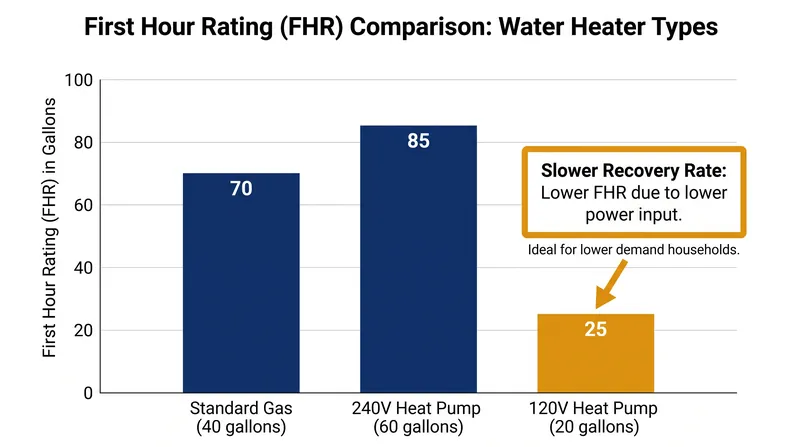

But there is a strict physical trade-off to the 120V design. Because a plug-in unit relies almost entirely on its compressor and lacks the high-wattage backup resistance elements of a 240V model, its recovery rate is significantly slower. While a standard gas heater might recover 40 gallons of hot water in an hour, a 120V heat pump might only manage 15 to 20 gallons.

This makes the First Hour Rating (FHR)—the metric defining how much hot water the tank can deliver in an hour of peak demand—the most critical number for buyers. For a household of one to three people, a standard 50-gallon 120V unit is generally sufficient. For larger families, contractors strongly recommend upsizing to a 65-gallon or 80-gallon tank.

Upsizing the tank allows the water heater to act as a thermal battery. By storing a massive volume of hot water, the system can survive the morning shower rush without needing a rapid recovery. The compressor can then slowly and efficiently reheat the water over the course of the day.

Location also dictates performance. Because these units pull heat from the surrounding air, they perform best in interior spaces that remain between 40 and 90 degrees Fahrenheit year-round. Installing one in a freezing, unconditioned garage will tank its efficiency, as the compressor struggles to extract heat from cold air.

Conversely, placing the unit in a basement near a furnace can yield secondary benefits. As the heat pump extracts ambient heat, it also dehumidifies the air and expels cool exhaust. In a damp basement, this acts as a free dehumidifier, improving the air quality of the space while heating the home's water.[2]

For homeowners facing a failing gas or electric resistance water heater, the 120V heat pump is no longer a niche technology. By avoiding thousands of dollars in electrical contractor fees while permanently slashing monthly energy consumption, it represents a rare intersection of environmental benefit and immediate financial pragmatism.[2]
