Electromagnetic Induction vs. Electrostatic Capacitance: How Dynamic and Condenser Microphones Convert Sound to Signal

Audio engineers and home-studio creators choosing a microphone face a fundamental physics decision before they ever hit record: whether to capture sound using magnets or using electricity. The choice between a dynamic and a condenser microphone dictates what frequencies the recording will capture, how much background noise bleeds into the track, and whether the microphone requires external power to function. Understanding the mechanical difference between electromagnetic induction and electrostatic capacitance allows creators to match the tool to the environment, saving hours of post-production EQ and noise removal.

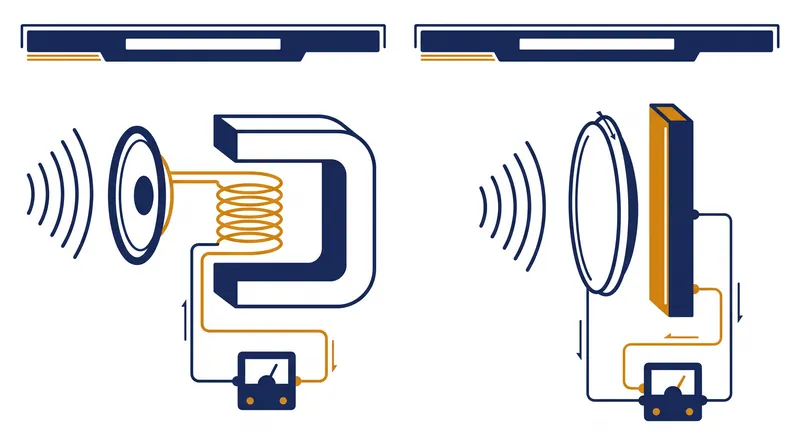

At the core of every microphone is a transducer—a component that converts acoustic energy into an audio signal. How that conversion happens separates the two dominant architectures. Dynamic microphones rely on electromagnetic induction, a principle where a moving conductor within a magnetic field generates an electrical current. Condenser microphones, conversely, rely on electrostatic capacitance. As Sweetwater's technical guide explains, the condenser design "is a straightforward mechanical system with almost no moving parts compared to other microphone designs," dating back to the early 1900s.[2]

The dynamic microphone operates as a loudspeaker running in reverse. Inside the capsule, a thin diaphragm is attached to a coil of fine copper wire, which sits suspended within the magnetic field of a permanent magnet. When sound waves strike the diaphragm, the attached coil moves back and forth through the magnetic field. This physical movement induces a small electrical voltage in the wire, creating the audio signal.[1]

Because the sound wave must physically move the combined mass of the diaphragm and the copper coil—often weighing over 100 milligrams—dynamic microphones are inherently less sensitive. They require significant acoustic energy to generate a signal, which naturally filters out quiet background noises, room reflections, and high-frequency details. This mechanical inefficiency makes them the standard for untreated podcasting rooms and loud sound sources capable of producing 130 to 150 decibels of sound pressure, like snare drums and guitar cabinets.[1][5]

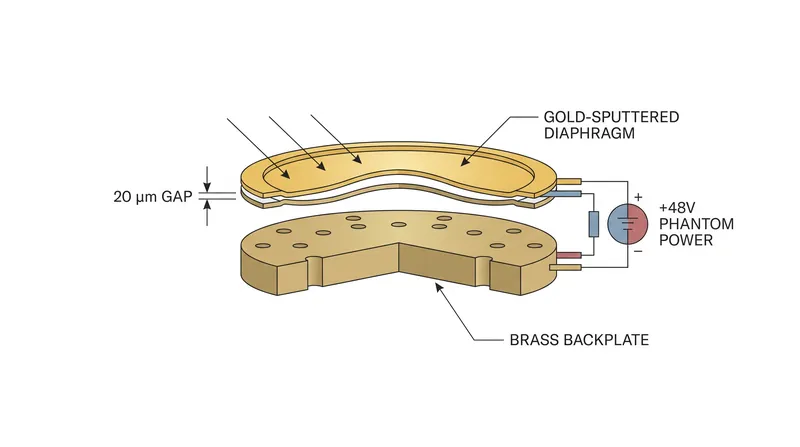

Condenser microphones discard the heavy copper coil entirely in favor of an electrostatic capacitor. The capsule contains a microscopic, electrically conductive diaphragm—often gold-sputtered mylar measuring just 3 to 6 microns thick—placed roughly 20 to 30 microns away from a solid metal backplate. When an external power source, typically 48-volt phantom power from an audio interface, applies a charge to these components, they form an active capacitor.[2][4]

As sound waves hit the condenser's diaphragm, it vibrates, rapidly changing the microscopic distance between the flexible membrane and the fixed backplate. Research published by the Acoustical Society of America on the "measured capacitance of a condenser microphone as a function of diaphragm displacement" demonstrates that this changing distance alters the capacitance of the circuit in direct proportion to the acoustic pressure. An internal impedance converter then translates this variance into a robust electrical audio signal.[3]

This near-instantaneous reaction time—known as transient response—allows condenser microphones to capture the sharp, fast peaks of acoustic guitars, the delicate breathiness of a vocal performance, and the complex high frequencies of cymbals. However, this extreme sensitivity also means the microphone will faithfully record the hum of an air conditioner, the whine of a computer fan, and the reverberation of an untreated room.[4]

The power requirements dictate how these microphones deploy in the real world. Dynamic microphones are passive devices; the acoustic energy of the sound wave itself generates the electrical current, meaning they plug directly into a mixer or interface and work immediately. Condenser microphones are active devices. The capacitor requires a polarizing voltage to function, and the internal impedance converter requires power to amplify the fragile signal before it leaves the microphone body.[2]

Audio engineering curriculums have long separated the two technologies by application. As Thomas K. Tobias of Lewitt Audio noted in a 2025 technical breakdown, "both types of microphones turn sound waves into an electric signal and can be used for recording, streaming, podcasts, and live applications," but they differ fundamentally in their transducer principles. In 2026, the lines have blurred as purpose-built dynamic microphones dominate high-end broadcasting and USB condenser microphones flood home offices. Yet the underlying physics remains unchanged.

The mass of the transducer dictates the frequency response curve. Dynamic microphones typically roll off sharply above 15 kHz, as the physical weight of the coil prevents it from vibrating fast enough to track ultra-high frequencies. This natural high-frequency attenuation acts as a built-in filter, smoothing out harsh sibilance in vocals and reducing the harshness of brass instruments.[1][5]

Condenser microphones, unburdened by a coil, easily capture frequencies well beyond the 20 kHz limit of human hearing. This extended frequency response provides the "air" and "sparkle" associated with professional studio vocals. However, it also demands rigorous acoustic treatment, as high-frequency reflections bouncing off computer monitors and bare walls will create a comb-filtering effect that ruins the recording.[4]

Durability presents another stark contrast rooted in the transducer design. The moving-coil mechanism of a dynamic microphone is robust, capable of surviving drops, moisture, and extreme sound pressure levels without distorting or breaking. This resilience makes them the default choice for touring musicians and field reporters.[1][5]

The condenser capsule is comparatively fragile. The microscopic gap between the diaphragm and the backplate can be compromised by physical shock, extreme humidity, or sudden blasts of air. While modern manufacturing has improved their durability, condenser microphones still require shock mounts, pop filters, and careful handling to protect the electrostatic components from damage.[2][4]

Gain staging represents the final operational difference. Because dynamic microphones generate a very weak electrical signal, they require significant amplification—often 50 to 60 decibels of clean gain—from the audio interface or a dedicated inline preamp. Condenser microphones output a much hotter signal thanks to their internal active circuitry, placing less demand on the recording equipment's preamps and resulting in a lower noise floor in the final track.[6]

The final decision rests on the acoustic environment rather than the price tag. A premium condenser microphone placed in an echoing, noisy bedroom will yield a worse recording than a budget dynamic microphone in the same space. By understanding whether a situation calls for the heavy lifting of electromagnetic induction or the delicate precision of electrostatic capacitance, creators can capture cleaner audio at the source.[6]
