How Matched 48-Volt DC on Balanced XLR Lines Protects Dynamic Microphones From Phantom Power

The safety of a dynamic microphone plugged into an active phantom power supply is determined entirely at the mixing console's output resistors, where exactly 48 volts of direct current is applied simultaneously to both signal pins of the XLR cable. Because the voltage is matched identically on both lines, it creates a zero-voltage differential across the microphone's internal components. This electrical symmetry is the only reason a passive voice coil does not instantly burn out when exposed to studio power.[1][7]

Phantom power, formally defined by the IEC 61938 standard, was designed to solve a specific problem for condenser microphones. Condenser capsules act as capacitors and require an external electrical charge to function. Rather than running a separate power cable to every microphone on a stage, engineers developed a method to send power down the exact same wires that carry the audio signal back to the mixer.[6]

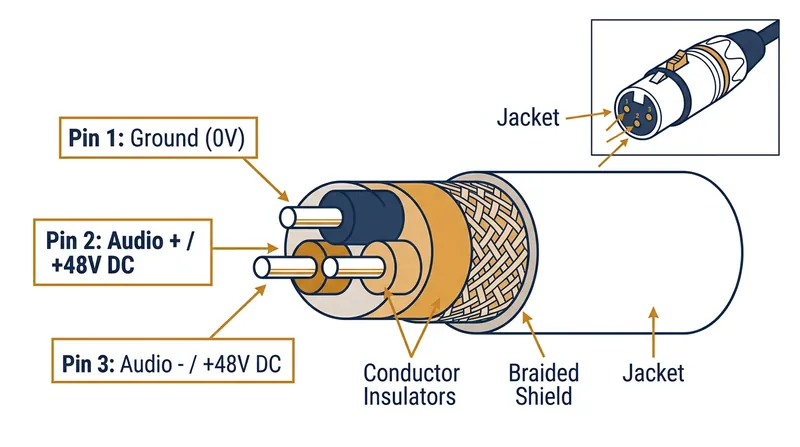

The system relies on the three-pin architecture of a standard balanced XLR cable. Pin 1 serves as the ground and the shield, while Pin 2 and Pin 3 carry the positive and negative phases of the alternating current audio signal. When a sound engineer presses the 48V button on a console, the board sends a +48V direct current down both Pin 2 and Pin 3 simultaneously.[1][3]

This simultaneous delivery is the core mechanism of phantom power. The direct current travels up the cable to the microphone, where active condenser models tap into the voltage to charge their internal plates and power their onboard preamplifiers. The direct current provides the necessary energy without interfering with the alternating current audio signal traveling in the opposite direction.[3][5]

The Zero-Voltage Differential

When a dynamic microphone is connected to that same active 48-volt line, the physics of the circuit change. Dynamic microphones, such as the industry-standard Shure SM58, generate their own electrical signals using a moving voice coil suspended in a magnetic field. They contain no active electronics and require no external power to operate.[2]

If 48 volts were applied to just one end of that delicate voice coil, the resulting current would rapidly heat the thin wire, potentially melting it and destroying the microphone. However, because the phantom power system applies the exact same +48V potential to both Pin 2 and Pin 3, the voltage at both ends of the voice coil is identical.[4]

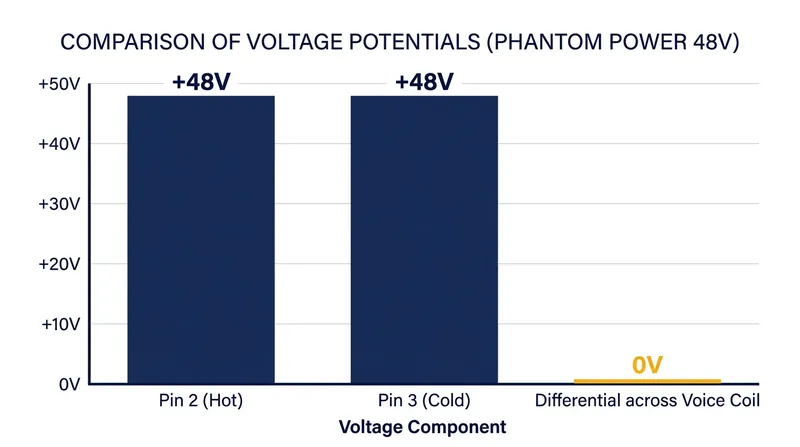

In electrical engineering, current only flows when there is a difference in potential between two points. With +48V at one end of the coil and +48V at the other, the net voltage difference across the component is exactly zero volts. Without a voltage differential, no direct current flows through the coil, leaving the dynamic microphone completely unaffected by the massive power supply surrounding it.[4][7]

"Any dynamic microphone with a low impedance balanced output, like the SM58, is not affected by phantom power."[2]

That official technical guidance from Shure highlights the durability of the design. The power remains invisible to the passive device, which is precisely why the system was named "phantom" power when it was first introduced to the recording industry.[1][2]

The Role of Matched Resistors

The precision of this zero-voltage differential depends entirely on the matched resistors inside the mixing console or audio interface. Under the IEC 61938 specification, the 48-volt supply is fed to Pin 2 and Pin 3 through two identical 6.81 kΩ resistors. These resistors act as control valves, limiting the total current while ensuring the voltage remains perfectly balanced.[6]

To maintain the zero-voltage differential, those two 6.81 kΩ resistors must be matched to within a 0.1 percent tolerance. If one resistor allows slightly more voltage through than the other, the symmetry is broken. A voltage difference of even a few millivolts across the pins can cause a small direct current to flow through the dynamic microphone's voice coil.[6][7]

While a tiny current will not melt the coil, it can push the diaphragm slightly out of its resting position. This physical displacement restricts the diaphragm's ability to move freely in response to sound waves, severely degrading the microphone's frequency response and reducing its maximum sound pressure level handling. It also introduces a loud pop if the microphone is switched on or off.[3][7]

The 6.81 kΩ resistors also serve a critical safety function by limiting the maximum current the console can deliver. If a cable shorts out or is wired incorrectly, the resistors restrict the flow to a maximum of 14 milliamperes per pin. This prevents the console's power supply from overloading and protects the internal circuitry from catastrophic thermal failure.[2][6]

Modern condenser microphones manufactured after the mid-1970s often require a significant portion of that available current. The IEC standard allows a microphone to draw up to 10 milliamperes of current from the 48-volt supply. If a cheap or portable audio interface cannot supply the full current, the condenser microphone will suffer from increased distortion and a lower signal-to-noise ratio.[5][6]

Risks to Ribbon and Unbalanced Microphones

The phantom power standard was first formalized in 1966 when the Norwegian Broadcasting Corporation ordered new microphones from Neumann. The studio already had a 48-volt direct current supply installed for its emergency lighting systems, so Neumann designed a microphone that could utilize that existing infrastructure. The resulting DIN 45596 standard established the 48-volt baseline that the entire audio industry uses today.[1][6]

While modern dynamic microphones are immune to properly wired phantom power, older ribbon microphones represent a notable exception. A ribbon microphone generates its signal using an incredibly thin strip of corrugated aluminum suspended between two magnets. Like a standard dynamic microphone, a ribbon microphone is passive and requires no external power.[4]

If a ribbon microphone is connected to a properly balanced XLR cable, the zero-voltage differential holds true, and the ribbon remains safe. However, if the cable is miswired, or if the microphone is plugged into a patch bay where the pins make contact sequentially rather than simultaneously, a brief voltage spike can occur across the pins.[4][5]

That momentary voltage differential forces a surge of direct current through the aluminum ribbon. The current causes the ribbon to act like a motor, violently throwing it out of the magnetic gap. Because the aluminum is often less than two microns thick, this physical excursion stretches or tears the ribbon, instantly destroying the microphone.[7]

Unbalanced dynamic microphones face a similar risk. In an unbalanced circuit, the audio signal relies on only two conductors: a single hot wire and a ground shield. If an unbalanced microphone is connected to a phantom-powered XLR input using an adapter, the 48-volt supply on Pin 2 travels down the hot wire, through the voice coil, and returns via the ground.[2]

Best Practices for Studio Safety

Because the ground pin sits at zero volts, the voice coil experiences the full 48-volt differential. The resulting direct current will lock the diaphragm in place, heavily distorting the audio signal. While the current-limiting resistors in the mixer usually prevent the coil from burning out entirely, the microphone will be rendered completely unusable until the phantom power is disengaged.[2][7]

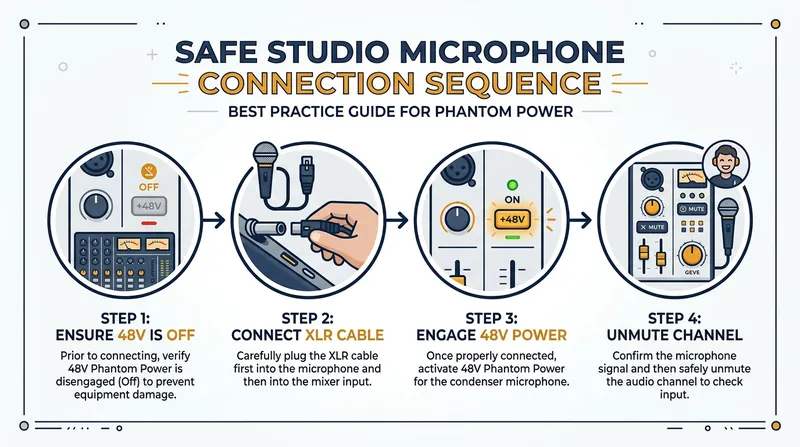

To prevent accidental damage, audio engineers follow a strict sequence when connecting microphones to a console. The phantom power supply must always be turned off before any cables are plugged in or disconnected. This ensures that the pins make solid contact before the 48-volt supply is introduced, preventing the momentary voltage imbalances that cause loud pops and equipment damage.[2][3]

Once the XLR cable is securely seated in both the microphone and the console, the engineer engages the 48-volt switch. The voltage ramps up evenly across Pin 2 and Pin 3, maintaining the zero-voltage differential as the system powers on. The channel is kept muted during this process to protect the studio monitors from any residual switching noise.[3]

When tearing down a setup, the process is reversed. The phantom power is disengaged, and the engineer waits at least ten seconds for the voltage to drain from the console's internal capacitors before unplugging the XLR cable. This waiting period guarantees that the line is completely dead, eliminating the risk of a spark or a voltage spike.[7]

Some modern audio interfaces apply phantom power globally, sending 48 volts to every XLR input simultaneously with a single button press. While this is convenient for setups using only condenser microphones, it forces the engineer to rely entirely on the zero-voltage differential to protect any dynamic microphones sharing the board.[3]

Measuring the Phantom Circuit

In these mixed setups, verifying the integrity of the XLR cables becomes the most important safety measure. A cable with a broken ground wire or a short between Pin 1 and Pin 2 will destroy the electrical symmetry required to keep the dynamic microphones safe. Routine cable testing ensures that the phantom power remains truly invisible to the passive equipment on the line.[5][7]

Engineers can verify the health of a phantom power circuit using a standard digital multimeter. By placing the negative probe on Pin 1 and the positive probe on Pin 2, the meter should read exactly 48 volts of direct current. Moving the positive probe to Pin 3 should yield the exact same 48-volt reading, confirming the supply is active.[1]

The critical measurement, however, is taken across the two signal lines. When the probes are placed on Pin 2 and Pin 3 simultaneously, the multimeter must read exactly zero volts. Any deviation from zero indicates a mismatched resistor inside the console or a short in the wiring, warning the engineer that the port is unsafe for passive microphones.[1][7]

This simple diagnostic test highlights the elegance of the IEC 61938 standard. By leveraging the existing balanced architecture of the XLR cable, the audio industry created a universal power delivery system that requires no proprietary connectors. A single cable type can safely connect a delicate passive dynamic microphone or a power-hungry active condenser to the exact same input.[6]

Ultimately, the survival of a dynamic microphone on an active line is not a matter of ruggedness, but of basic circuit topology. The matched 48-volt direct current ensures that the power has nowhere to go. As long as the cables are wired correctly, the zero-voltage differential guarantees that the phantom power remains nothing more than a harmless ghost.[7]
