The 450°C and 200 Bar Trade-Off: How the Haber-Bosch Process Converts Atmospheric Nitrogen to Ammonia

On October 17, 2025, the International Energy Agency's Energy Technology Systems Analysis Program (IEA-ETSAP) published a technical brief detailing the energy intensity of modern ammonia synthesis, establishing a baseline for the industry's transition. The report quantified the massive power draw required to sustain the Haber-Bosch process, the chemical engine that feeds roughly half the global population. To convert atmospheric nitrogen into usable fertilizer, chemical plants must maintain environments of 450 degrees Celsius and 200 bar of pressure.[2]

Those extreme metrics are not arbitrary. They represent a precise, unavoidable compromise between thermodynamics and kinetics—the fundamental rules governing how chemical reactions behave. Nitrogen gas makes up 78 percent of the Earth's atmosphere, but it exists as a diatomic molecule bound by a triple covalent bond. Breaking that bond requires an immense input of activation energy.[4]

The Haber-Bosch process combines one molecule of nitrogen gas with three molecules of hydrogen gas to produce two molecules of ammonia. Because the reaction is exothermic, it releases heat as it proceeds. According to Le Chatelier's principle, an exothermic reaction favors product formation at lower temperatures. If the system is too hot, the equilibrium shifts backward, breaking the ammonia apart into raw gases.[4]

This creates the central chemical engineering conflict. From a purely thermodynamic standpoint, the highest yield of ammonia occurs at room temperature. However, at room temperature, the reaction kinetics are virtually nonexistent. The nitrogen triple bond is so stable that without added heat, the molecules simply bounce off one another without reacting.[4]

To make the reaction fast enough for industrial scale, engineers must inject heat. Raising the temperature to 450 degrees Celsius accelerates the molecular collisions, allowing the bonds to break and reform at a commercially viable rate. The Britannica encyclopedia entry on the process outlines how this thermal injection overcomes the activation energy barrier, though it immediately introduces a secondary problem.[1]

That speed comes at a severe cost to the yield. At 450 degrees Celsius, the thermodynamic equilibrium shifts drastically away from ammonia. Only about 15 percent of the nitrogen and hydrogen convert into the final product during a single pass through the reactor. To compensate for this thermal penalty, the system relies on the second half of the trade-off: extreme pressure.[4]

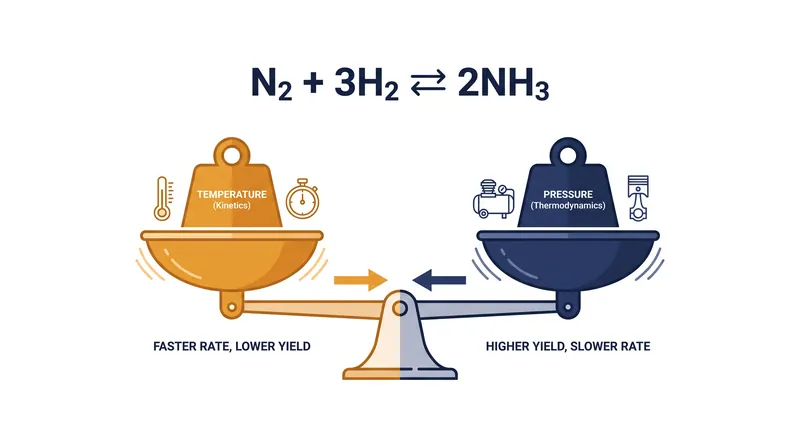

The chemical equation for ammonia synthesis takes four moles of reactant gas and compresses them into two moles of product gas. Le Chatelier's principle dictates that increasing the pressure on such a system will force the equilibrium toward the side with fewer molecules, relieving the stress. By compressing the reactor vessel to 200 bar—roughly 200 times the atmospheric pressure at sea level—the process forces the nitrogen and hydrogen together.[4]

Even with 200 bar of pressure, the single-pass yield remains low. Industrial plants solve this by continuously cycling the gases. The 15 percent of gas that successfully converts to ammonia is cooled and condensed into a liquid, removing it from the system. The remaining 85 percent of unreacted nitrogen and hydrogen is piped back into the reactor for another pass, ensuring that no feedstock is wasted.[4]

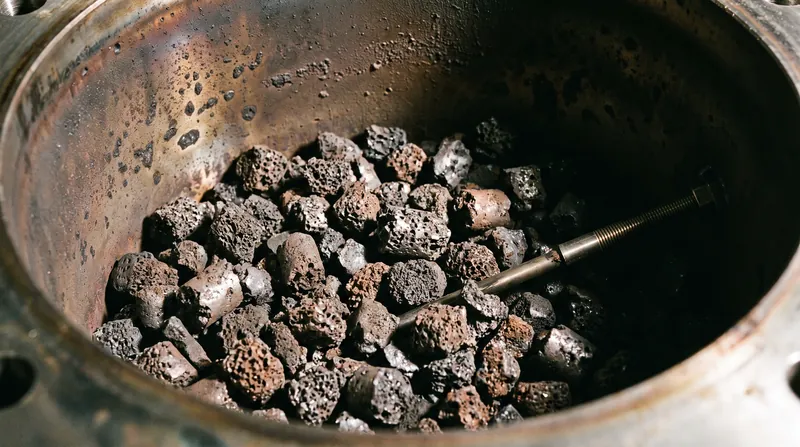

To lower the activation energy and make the 450-degree compromise work, the process requires a catalyst. Historically, this has been an iron-based catalyst promoted with potassium hydroxide and alumina. The catalyst provides a surface for the nitrogen molecules to bind, weakening the triple bond just enough to allow hydrogen atoms to attach without requiring temperatures of 1,000 degrees Celsius.[4]

Maintaining these conditions requires vast amounts of fossil fuels, both as a heat source and as the feedstock for the hydrogen gas, which is typically derived from methane steam reforming. The IEA-ETSAP documentation highlights that ammonia production accounts for roughly two percent of total global energy consumption and generates a proportional share of industrial carbon emissions.[2]

This energy burden has driven a surge in research targeting milder conditions. A recent paper published in the National Center for Biotechnology Information's PMC repository outlines a pathway for achieving industrial synthesis rates at near-ambient conditions. By modifying the scaling relations on a confined dual-site catalyst, researchers are attempting to bypass the traditional iron catalyst's limitations.[3]

The technical perspective published by UreaKnowHow identifies this intensification of the process as the critical hurdle for decentralized, green fertilizer production. If the pressure requirement can be dropped to 50 bar and the temperature to 300 degrees Celsius, the process could be powered entirely by intermittent renewable energy sources rather than continuous fossil fuel combustion.

While the technical documentation from the IEA-ETSAP and the PMC repository provides extensive numerical data on the reaction kinetics, the engineering briefs do not contain direct spoken quotations from the researchers involved. Until advanced catalysts scale to industrial volumes, the 450-degree and 200-bar parameters remain the immutable standard. Every metric ton of synthetic fertilizer spread on agricultural fields today is the direct result of this precise thermodynamic balancing act.[2][3][4]
