The Four-to-One Ladder Rule Establishes a 75.5-Degree Pitch to Balance Friction Against Tipping

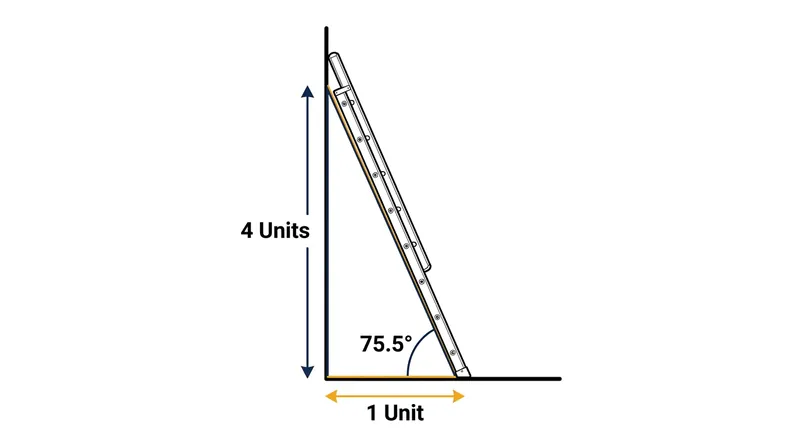

The four-to-one ladder rule requires placing the base one foot away from the wall for every four feet of vertical height to establish an exact 75.5-degree pitch. This specific angle is the mathematical sweet spot that generates enough downward force to prevent the base from sliding out, while keeping the center of gravity far enough forward to stop the ladder from tipping backward.

Occupational safety regulators worldwide mandate this exact geometry for extension ladders. The American Ladder Institute and the Occupational Safety and Health Administration enforce the 4-to-1 ratio as a strict compliance standard for workplace fall protection.[1][5]

"Non-self-supporting ladders shall be used at an angle such that the horizontal distance from the top support to the foot of the ladder is approximately one-quarter of the working length of the ladder," states OSHA standard 1926.1053.[1]

When a worker climbs a ladder, their body weight creates a dynamic load that pushes down and out against the base. If the ladder is pitched too shallow, the outward horizontal force overcomes the friction between the feet and the ground.

At a 75.5-degree angle, the geometry directs the majority of the combined weight of the worker and the ladder straight down into the floor. This maximizes the normal force, which directly increases the friction holding the base firmly in place.[2]

The Physics of Base Slide-Outs

Friction is the only force preventing the bottom of an extension ladder from kicking out away from the wall. The coefficient of friction depends on the ladder's feet and the ground surface, but the downward force depends entirely on the pitch.

If a 16-foot ladder is placed with its base six feet away from the wall instead of the mandated four feet, the angle drops to roughly 68 degrees. This shallow pitch drastically increases the horizontal vector of the worker's weight.

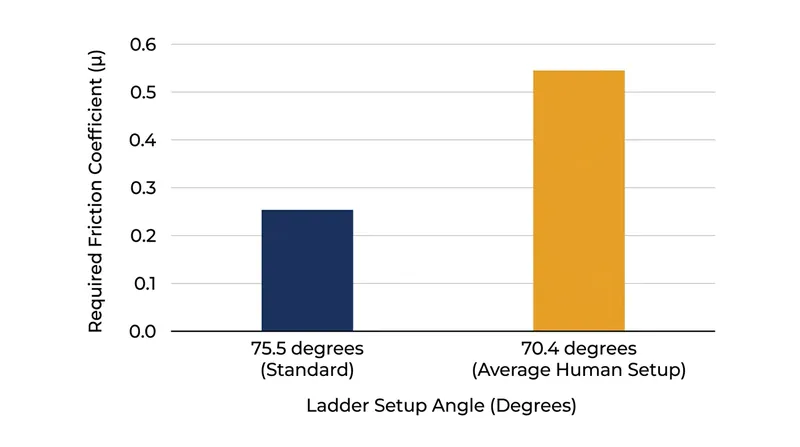

A study published in the journal Ergonomics found that decreasing the setup angle by just five degrees below the standard doubles the required friction coefficient to prevent a slide-out. Most standard industrial flooring cannot provide that level of grip.[6]

Researchers at the Centers for Disease Control and Prevention note that base slide-outs account for the majority of severe extension ladder injuries. Their biomechanical models confirm that 75.5 degrees provides the optimal safety margin across the widest variety of common surfaces.[2]

The Backward Tipping Threshold

While a shallow angle causes slide-outs, a steep angle introduces the opposite hazard: backward tipping. If the base is placed too close to the wall, the ladder's center of gravity shifts dangerously close to the climber's vertical axis.

At an 80-degree pitch, a worker leaning back slightly to reach a tool can easily shift the combined center of mass past the pivot point at the base. Once the center of gravity crosses that vertical line, gravity pulls the ladder away from the wall.

The Canadian Centre for Occupational Health and Safety explicitly warns against setting ladders at angles steeper than 75 degrees. A steep pitch also reduces the horizontal distance available for the worker's feet on the rungs, forcing an awkward, unbalanced climbing posture.[4]

The 4-to-1 rule perfectly balances these two competing physical hazards. It is steep enough to prevent the base from kicking out, yet shallow enough to keep the climber's weight safely anchored against the supporting structure.

Why Human Intuition Fails

Despite the mathematical perfection of the 75.5-degree pitch, human intuition consistently fails to replicate it in the field. Workers setting up ladders without measurement tools almost always pitch them too shallow.

A comprehensive field study published in Human Factors evaluated how experienced construction workers positioned extension ladders. The researchers found that the average unassisted setup angle was 70.4 degrees, significantly below the 75.5-degree target.[7]

The visual perspective from the ground creates an optical illusion that makes a correctly pitched ladder appear dangerously steep. Climbers naturally pull the base further out to create a false sense of stability, inadvertently increasing their slide-out risk.

"Workers rely on a visual heuristic that prioritizes avoiding a backward fall, which feels more immediate, over preventing a base slide-out, which they cannot easily visualize," the Ergonomics researchers concluded.[6]

International Consensus and Standards

Because human judgment is unreliable, safety organizations globally have codified the 4-to-1 rule into law. The UK's Health and Safety Executive mandates the exact same 1-in-4 ratio for all leaning ladders used in commercial environments.[3]

The American Ladder Institute reinforces this standard through its safety training programs. They require the 4-to-1 ratio for all fiberglass, aluminum, and wood extension ladders regardless of their maximum load rating.[5]

These regulations apply to the working length of the ladder, not its total physical length. The working length is measured from the base to the point where the ladder contacts the wall or support structure.

If a ladder extends three feet above a roofline, as OSHA requires for safe access, those top three feet are not included in the 4-to-1 calculation. The ratio applies strictly to the distance between the ground and the upper support point.[1]

Practical Verification Methods

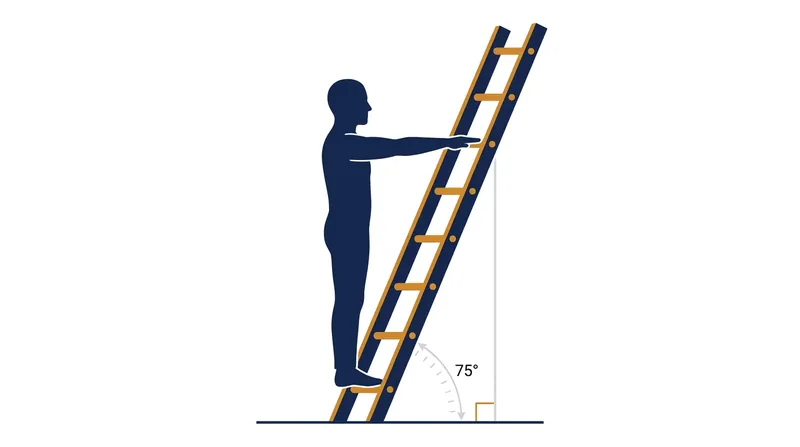

To eliminate the guesswork, safety engineers developed the fireman's method for checking ladder pitch. A worker stands with their toes touching the base of the ladder and extends their arms straight forward.

If the ladder is pitched correctly at 75.5 degrees, the worker's fingertips will perfectly touch the rung at shoulder height. If the rung is too far away, the angle is too shallow; if the rung hits their forearms, it is too steep.[4]

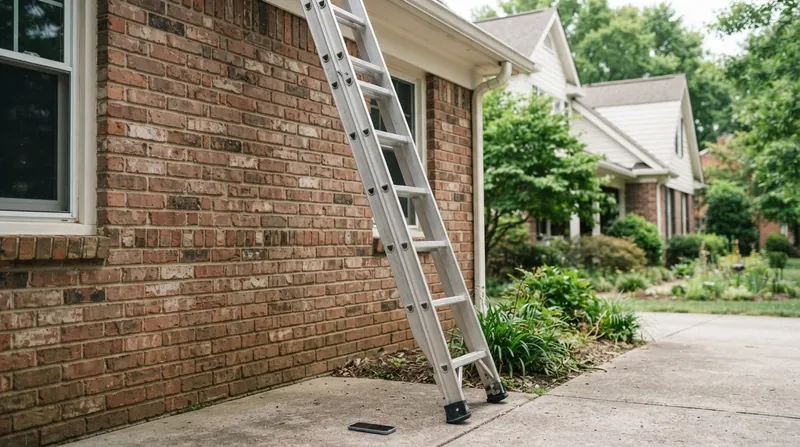

Modern technology offers more precise alternatives. The CDC developed a free smartphone application called the NIOSH Ladder Safety App, which uses the device's internal accelerometers to provide real-time visual and auditory feedback when the ladder reaches exactly 75.5 degrees.[2]

By relying on standardized ratios and measurement tools rather than visual intuition, workers can ensure the physics of friction and gravity work to keep them pinned safely against the wall. The math prevents the ladder from pulling them down.
