Cross-Check Valve Configurations Prevent Back-Siphonage Contamination in Potable Water Mains

Municipal water purveyors argue that maintaining continuous positive system pressure above 20 psi is the only reliable way to keep contaminants out of the potable supply. They design distribution networks on the principle that outward force prevents ingress, treating mechanical barriers at individual service connections as secondary redundancies that restrict flow and require expensive annual testing.

Facility engineers counter that transient pressure drops—caused by main breaks, pump failures, or heavy fire hydrant use—inevitably pull stagnant, non-potable water backward into the clean supply before central pumps can compensate. They maintain that physical isolation at the meter is the primary defense, regardless of what the main pressure gauge reads.[2]

This tension between system-wide pressure management and point-of-use mechanical isolation defines modern cross-connection control. When a water main loses pressure, the resulting vacuum creates back-siphonage, drawing liquid from industrial vats, irrigation systems, and boiler feeds back into the public drinking water.[1]

The Mechanics of Back-Siphonage

Back-siphonage occurs when the pressure in a potable water system drops below atmospheric pressure, creating a vacuum that pulls water in the reverse direction. Normal municipal water mains operate between 40 psi and 80 psi. When a massive draw occurs, such as a fire pumper truck extracting 1,000 gallons per minute, local pressure collapses.[3]

This localized collapse creates a negative pressure gradient. If a hose is submerged in a chemical tank at a nearby facility, the vacuum pulls that chemical solution up through the hose and into the building’s plumbing. From there, it travels directly into the public water main.[1]

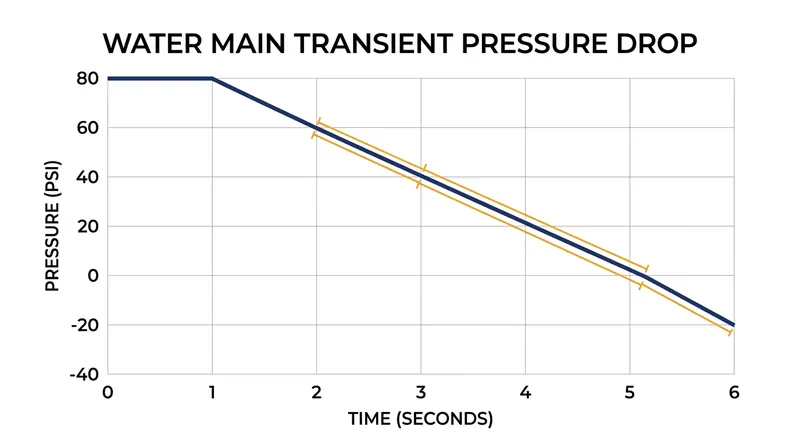

The speed of this reversal is severe. Transient pressure drops can propagate through a water distribution system at speeds exceeding 3,000 feet per second. The pressure can plummet by as much as 15 psi per second, giving mechanical systems mere fractions of a second to react before contamination occurs.[3]

"The basic mechanism for preventing backflow is a mechanical backflow preventer, which provides a physical barrier to backflow," notes the standard reference on the subject. Without this barrier, any cross-connection between potable and non-potable water becomes a direct conduit for hazardous materials during a pressure loss event.[2]

Public health regulators recognized this vulnerability decades ago. Following a series of contamination events in the 1980s, the 1989 publication of updated cross-connection control manuals established strict requirements for isolating high-hazard facilities from the municipal supply using specialized valve configurations.

Why Single Check Valves Fail

A standard check valve allows fluid to flow in only one direction. It relies on the forward pressure of the water to hold a disc or flapper open against a spring. When flow stops or reverses, the spring and the reverse fluid pressure push the disc against its seat, sealing the pipe.[2]

"Check valves work automatically and most are not controlled by a person or any external control," which makes them ideal for simple residential plumbing. However, they are insufficient for protecting public health at commercial cross-connections because they lack redundancy and are prone to fouling.[2]

A single check valve requires a minimum pressure differential of 1.0 to 1.5 psi to seat firmly against its seal. During a rapid transient pressure drop, the pressure differential can hover near zero for a critical moment before reversing, leaving the valve partially open as contaminated water slips past.[3]

Furthermore, municipal water carries sediment, scale, and mineral deposits. If a single piece of debris lodges between the valve disc and the seat, the valve cannot close completely. A gap of just one millimeter allows gallons of contaminated water to siphon backward during a sustained vacuum event.[1]

Because a single check valve is entirely enclosed, facility operators cannot easily verify if it is leaking. A fouled valve will silently fail during a back-siphonage event, providing a false sense of security while allowing industrial chemicals or biological contaminants to enter the drinking water supply.[2]

The Double Check Valve Configuration

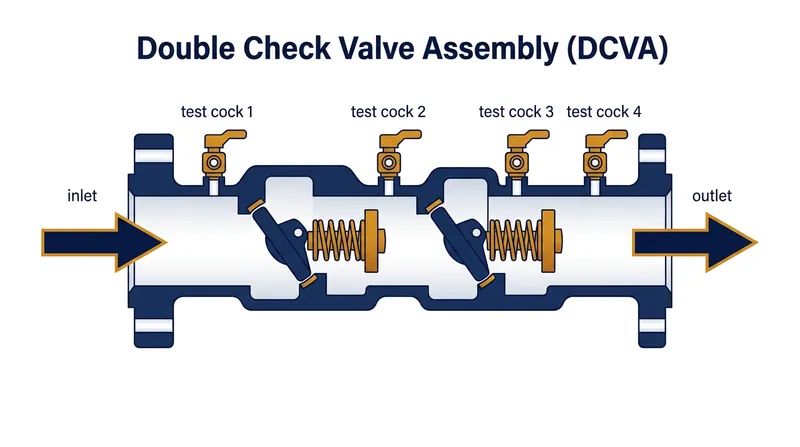

To address the vulnerabilities of a single valve, engineers developed the Double Check Valve Assembly. This configuration places two independent check valves in series within a single housing. If the first valve fouls with debris and fails to close, the second valve provides a backup barrier.[1]

The assembly includes four test cocks and two tightly closing shut-off valves. These test cocks allow certified technicians to attach differential pressure gauges and verify that each check valve is holding pressure independently. This turns a blind mechanical component into a verifiable safety device.[1]

Each check valve in this configuration is internally loaded, meaning it is spring-biased to the closed position. The springs require at least 1.0 psi of forward pressure to open. This ensures that if system pressure drops to zero, the valves snap shut before reverse flow can even begin.[3]

While highly effective against back-pressure and back-siphonage, the double check assembly is typically restricted to low-hazard applications. It is used to isolate fire sprinkler systems or residential irrigation lines, where the potential contaminants—such as stagnant water or mild fertilizers—do not pose an immediate lethal threat to public health.

The limitation of this design lies in its failure mode. If both valves foul simultaneously—a rare but possible event if a large slug of debris enters the line—the assembly will leak. Because the device does not vent to the atmosphere, this dual failure remains hidden until the next annual test.[1]

Reduced Pressure Zone Assemblies

For high-hazard cross-connections, such as chemical plants, hospitals, and mortuaries, plumbing codes require a Reduced Pressure Zone assembly. This device builds upon the double check configuration by adding a hydraulically operated differential relief valve between the two check valves.[1]

The assembly operates on the principle that water will not flow from a lower pressure zone to a higher pressure zone. It maintains the pressure in the center chamber at least 2.0 psi lower than the incoming supply pressure.[3]

If the first check valve leaks, supply pressure bleeds into the center zone. The relief valve senses this pressure equalization and immediately opens, dumping the trapped water out of a discharge port into a floor drain. This physical air gap prevents the contaminated water from reaching the potable supply.[1]

This venting mechanism makes the reduced pressure zone the only mechanical backflow preventer that provides a visual indication of failure. If the device is spitting water, facility managers know immediately that a check valve has fouled or that the system is experiencing severe pressure fluctuations.[3]

However, this safety comes at a cost. The heavy springs required to maintain the pressure differential cause a significant pressure drop across the assembly. Water pressure can drop by 10 to 15 psi as it passes through the device, requiring facilities to install booster pumps to maintain adequate flow.

Testing and Compliance Standards

Because these assemblies are mechanical devices subject to wear, they require rigorous maintenance. The American Water Works Association and local health departments mandate that all commercial backflow preventers undergo testing by a certified technician at least once every 12 months.

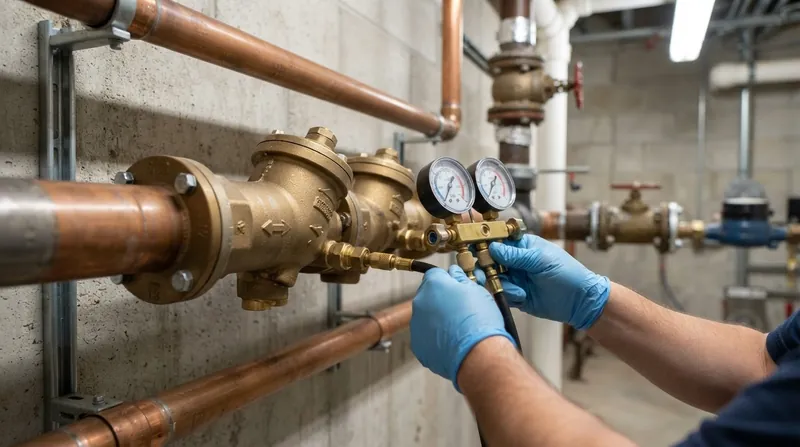

During an annual test, the technician connects a differential pressure gauge to the test cocks. They verify that the first check valve holds at least 5.0 psi of differential pressure, the second holds at least 1.0 psi, and the relief valve opens before the differential drops below 2.0 psi.[3]

If any component fails these thresholds, the assembly must be repaired or replaced immediately. In 2024, municipal compliance audits revealed that approximately 5 percent of tested assemblies required new rubber elastomers or spring replacements to restore their sealing capabilities.[3]

The installation geometry also matters. Reduced pressure assemblies must be installed horizontally and at least 12 inches above the floor to ensure the relief valve can discharge freely. If the assembly is submerged in a flooded basement, the relief port itself becomes a cross-connection, drawing floodwater into the pipe.[1]

Cross-check valve configurations represent a critical intersection of fluid dynamics and public health policy. By forcing water to navigate multiple spring-loaded barriers and pressure-monitored zones, these devices ensure that the inevitable transient pressure drops in municipal mains do not result in catastrophic contamination events.[3]
