Every Centimeter of Vertical Offset From the Heart Distorts Blood Pressure Readings by 0.77 mmHg

Millions of patients diagnosed with stage 2 hypertension are taking daily medication for a physical artifact rather than a physiological condition. When a blood pressure cuff sits below the level of the right atrium, gravity pulls on the column of blood inside the arm, artificially inflating the reading.

The distortion is a strict mathematical constant governed by fluid dynamics, not a biological response to stress. Every centimeter of vertical drop below the heart adds approximately 0.77 millimeters of mercury (mmHg) to the monitor's display.

This hydrostatic pressure effect means that a patient whose true systolic blood pressure is a healthy 118 mmHg will register an elevated 125 mmHg if their arm rests just nine centimeters too low. The monitor is not malfunctioning; it is accurately measuring the weight of the blood.

The physics of a fluid column

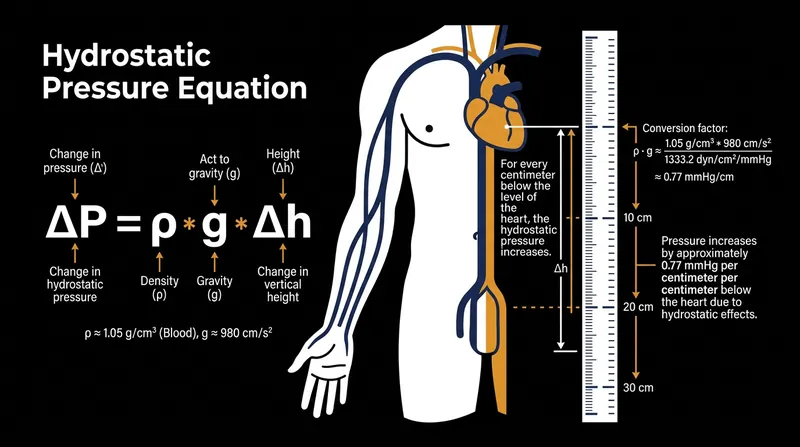

The 0.77 mmHg constant derives directly from the hydrostatic pressure equation, which calculates the force exerted by a fluid at rest. The formula multiplies the density of the fluid by the acceleration of gravity and the height of the column.[6]

Human blood has a density of approximately 1.06 grams per milliliter, making it slightly heavier than water. When subjected to Earth's gravitational acceleration of 980 centimeters per second squared, a one-centimeter column of blood exerts exactly 103.88 Pascals of pressure.

Because medical pressure is measured in millimeters of mercury, that Pascal value converts directly to 0.779 mmHg. This physical law applies equally to every vessel in the human body, meaning the pressure at the foot of a standing adult is routinely 80 mmHg higher than at their heart.[6]

When a cuff inflates around the brachial artery, the sensor cannot distinguish between the pressure generated by the heart's contraction and the passive weight of the blood pooling above it. It simply records the total outward force against the arterial wall.

Clinical trials confirm the artifact

The clinical consequences of this gravitational effect were quantified in a randomized crossover trial published in JAMA Internal Medicine in October 2024. Researchers at Johns Hopkins University tested 133 adults using three different arm positions.[1][3]

When patients sat with their arms supported on a desk at mid-heart level—the standard reference position—their average blood pressure reading was 126/74 mmHg. Moving the arm altered the results immediately and predictably.[1][4]

"We were surprised by how much of a difference there was," said Dr. Tammy Brady, the medical director of the pediatric hypertension program at Johns Hopkins Children's Center and the study's senior author.[3]

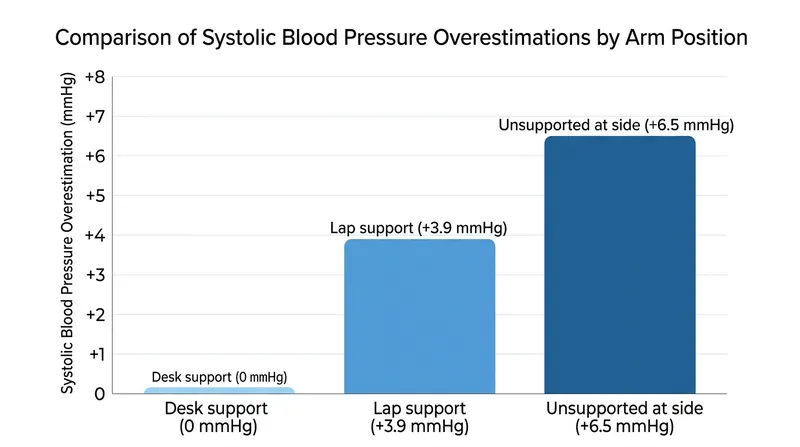

Resting the arm on the lap, a common posture in crowded clinics, overestimated systolic pressure by 3.9 mmHg and diastolic pressure by 4.0 mmHg. Leaving the arm entirely unsupported at the patient's side produced an even larger distortion.[1][5]

An arm hanging vertically dropped the cuff furthest from the heart, resulting in a 6.5 mmHg overestimation in systolic pressure and a 4.4 mmHg overestimation in diastolic pressure. This 6.5-point penalty corresponds almost perfectly to an 8.4-centimeter hydrostatic drop.[1][6]

"If you are consistently measuring blood pressure with an unsupported arm, and that gives you an overestimated BP of 6.5 mmHg, that's a potential difference between a systolic BP of 123 and 130," noted Sherry Liu, an epidemiology research coordinator at the Welch Center.[3]

The phlebostatic axis and zeroing

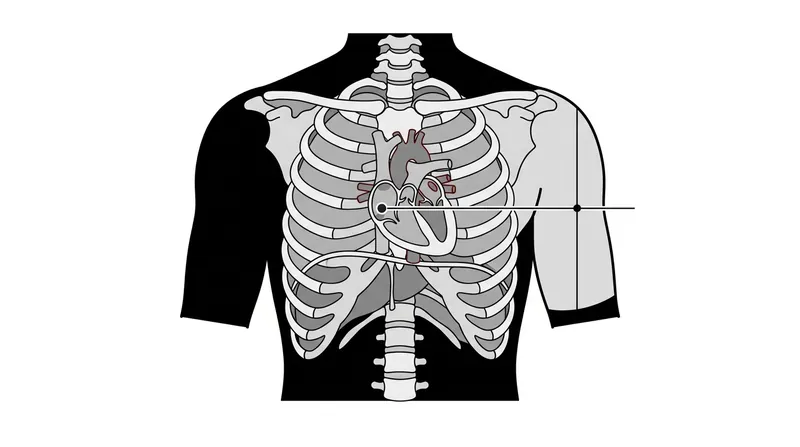

To eliminate this gravitational variable, cardiovascular medicine relies on a standardized anatomical reference point known as the phlebostatic axis. This point represents the exact level of the right atrium, where blood returns to the heart.[6]

Clinicians locate the phlebostatic axis by finding the intersection of the fourth intercostal space and the midaxillary line, roughly halfway between the front and back of the chest. Accurate non-invasive measurement requires the middle of the blood pressure cuff to align precisely with this horizontal plane.

In intensive care units, where arterial lines measure pressure invasively beat-by-beat, nurses must physically level the electronic pressure transducer to this axis. If the patient's bed is raised or lowered, the transducer must be repositioned to prevent hydrostatic errors from triggering false alarms.

While gravity accounts for the vast majority of the positional error, muscular effort contributes a secondary artifact. When an arm hangs unsupported, the patient must unconsciously engage their shoulder and arm muscles to stabilize the limb.[3]

This isometric muscle contraction increases local vascular resistance and drives up the pressure required to push blood through the tissue. Supporting the arm on a desk eliminates both the hydrostatic penalty and the muscular tension simultaneously.[3][6]

Surgical implications of the gradient

The 0.77 mmHg constant becomes a critical safety factor in operating rooms, particularly during neurosurgery or orthopedic procedures where the patient is seated upright in a beach chair position.[2]

In this posture, the patient's brain sits substantially higher than their heart and their arm. If the anesthesiologist measures blood pressure at the brachial artery, the reading will be significantly higher than the actual pressure perfusing the cerebral cortex.[2]

According to the Anesthesia Patient Safety Foundation, the vertical distance between the blood pressure cuff and the base of the brain in a seated adult is typically 10 to 30 centimeters. That height difference creates a hydrostatic gradient that starves the brain if left uncorrected.[2]

A 20-centimeter elevation means the mean arterial pressure at the brain is 15.4 mmHg lower than the pressure displayed on the arm monitor. If the surgical team targets a standard arm pressure of 120/80 without calculating the offset, the patient risks severe cerebral hypoperfusion.[2][6]

Why the error changes diagnoses

In outpatient settings, the hydrostatic artifact frequently pushes healthy patients across rigid diagnostic thresholds. The American Heart Association defines stage 1 hypertension as a systolic reading of 130 mmHg or higher, and stage 2 as 140 mmHg or higher.[3][4]

A patient with a true resting systolic pressure of 134 mmHg requires lifestyle modifications under current guidelines. If their arm rests in their lap during the exam, the 4-point hydrostatic penalty elevates their reading to 138 mmHg.[1][6]

If that same patient's arm hangs at their side, the 6.5-point gravitational artifact pushes their reading to 140.5 mmHg. A physical positioning error instantly reclassifies them into stage 2 hypertension, triggering immediate pharmaceutical intervention.[1][6]

Despite clear guidelines requiring back support, flat feet, and a desk-supported arm, observational studies show that clinical adherence remains poor. Patients are frequently assessed while perched on the edge of an examination table with their legs dangling and arms resting in their laps.[3][4]

The 2024 Johns Hopkins study estimated that 54 million adults in the United States could be misclassified as having high blood pressure if their arms are not positioned properly. This represents a massive public health burden driven entirely by a failure to account for gravity.[4]

Correcting this systemic error requires no new technology, only geometric discipline. By ensuring the cuff sits perfectly level with the right atrium, providers can remove the weight of the blood from the equation and measure only the force of the heart.[6]
