The 3 Percent Head Drop Rule: Why Centrifugal Pumps Cavitate Well Above Their Rated Suction Limits

On the factory test stand, a technician watches the discharge pressure gauge while the centrifugal pump emits a deafening crackle, sounding as though it is pumping gravel. The technician is waiting for the total head to drop by exactly 3 percent. Only then will they record the pump's Net Positive Suction Head required (NPSHr).

For engineers sizing industrial pumps, the actionable takeaway is simple but frequently misunderstood. The manufacturer's published NPSHr curve is not a safe operating baseline. Operating a pump exactly at that line guarantees it is already experiencing active, destructive cavitation.

The gap between the moment vapor bubbles first form and the point where the pump officially fails the 3 percent test is a hidden zone of extreme mechanical stress. Inside this operating zone, impellers erode, vibrations spike, and mechanical seals fail prematurely.

To protect equipment and maintain continuous operation, system designers must provide an available suction pressure that significantly exceeds the manufacturer's required value. Understanding exactly how that requirement is defined fundamentally changes how industrial fluid systems are built.

The 3 Percent Head Drop Rule

The Hydraulic Institute and the American Petroleum Institute (API 610) govern how pump manufacturers publish their performance data. Under the ANSI/HI 9.6.1-2017 standard, a pump's NPSHr is not the point where cavitation begins. It is a much later stage of failure.[1]

Instead, it is the point where cavitation has become so severe that vapor bubbles physically block the impeller eye. This blockage must reduce the pump's total discharge head by 3 percent before the threshold is officially recorded.[1][2]

Manufacturers use this 3 percent head drop, often written as NPSH3, because it provides a clear, repeatable metric on a commercial test stand. Detecting the very first microscopic bubbles is highly subjective and difficult to standardize.

The metric ensures a level playing field for comparing different pumps. "The 3% head drop is a measurable test endpoint used because cavitation onset is difficult to measure reliably," notes a May 2026 technical bulletin from Industrial Monitor Direct.

The Hidden Zone of Cavitation Inception

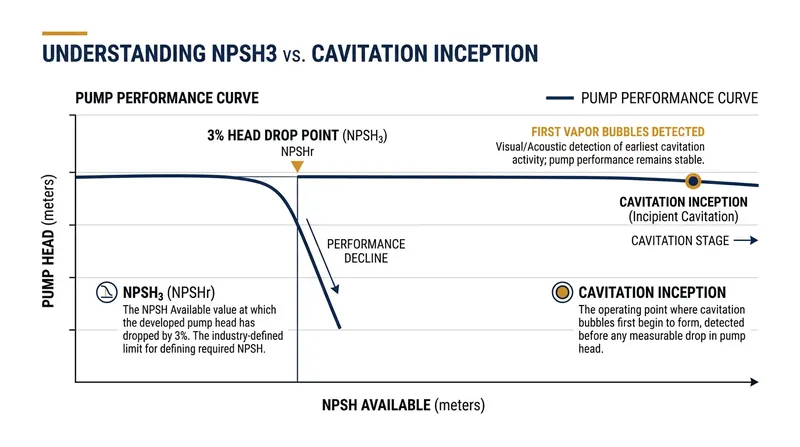

Long before the discharge pressure drops by 3 percent, microscopic vapor bubbles begin forming on the low-pressure side of the impeller vanes. This early phenomenon is known in fluid dynamics as incipient cavitation. It occurs silently at first.

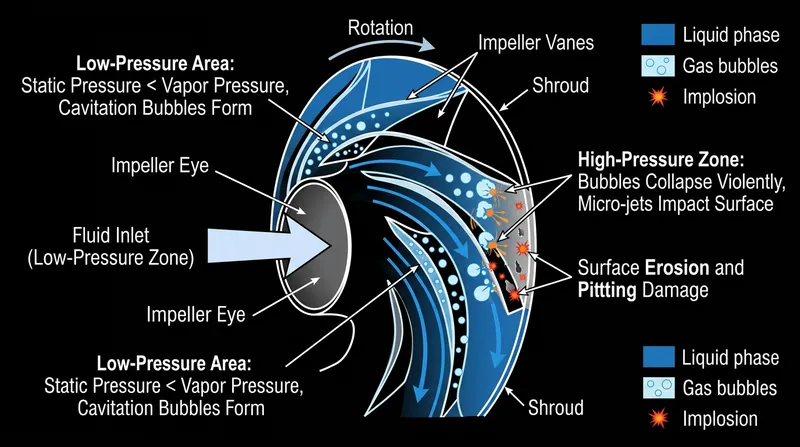

Incipient cavitation occurs when the fluid's local pressure drops below its vapor pressure, causing it to boil instantly at ambient temperatures. As these bubbles travel into higher-pressure zones further down the impeller, they collapse violently.

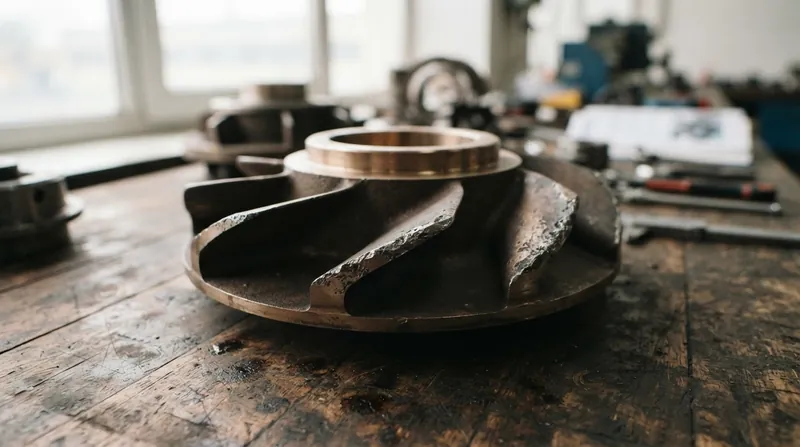

The implosions generate localized shockwaves that can exceed 10,000 pounds per square inch. These microscopic shockwaves pit the metal surface, creating a sponge-like texture and generating the signature crackling noise associated with pump distress.

According to pump reliability expert Allan R. Budris, writing in WaterWorld, "cavitation actually starts in a centrifugal pump from two to 20 times the NPSHR value, depending on the pump design and energy level."[2]

Budris notes that the average onset of cavitation occurs at around four to five times the published NPSHr. This means a pump requiring 10 feet of suction head to pass the 3 percent test may actually begin cavitating at 40 feet of available head.[2]

Why the Suction Margin Matters

Because the published NPSHr represents a pump already in distress, system designers must provide a Net Positive Suction Head available (NPSHa) that exceeds the requirement. This critical difference is known across the industry as the NPSH margin.

A common industry rule of thumb recommends a minimum margin of 3.3 feet, or 1 meter, above the published requirement. Alternatively, designers use a 10 percent margin over the NPSHa, whichever value provides the greater safety buffer.[3]

However, high-suction-energy pumps or those operating outside their Best Efficiency Point (BEP) require much larger margins to prevent damage. Operating at low flow rates increases internal recirculation, which exacerbates early bubble formation. This requires a customized approach.

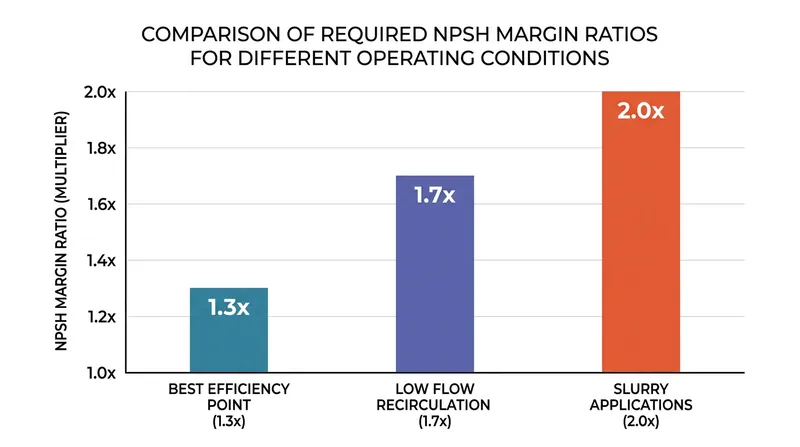

It can take "NPSH margin ratios of up to 1.3 at the best efficiency point and 1.7 at low flow rates just to reach the full published pump head," Budris explains. Without this margin, the pump cannot deliver its rated performance.[2]

The Impact of Fluid Density and Slurry

The 3 percent rule becomes even more deceptive when pumping dense fluids or abrasive slurries. Manufacturer NPSHr curves are almost universally generated using clean water at standard laboratory temperatures, ignoring the realities of heavy industrial fluids.

In slurry applications, local flow disturbances and density effects shift the point of cavitation inception. This causes abrasive wear well before the 3 percent head drop occurs, rapidly destroying high-chrome pump components. The damage compounds quickly.

"The standard 3% criterion misses early-stage cavitation that still causes abrasive wear," explains a September 2026 engineering guide from Liqenpower. "That combination eats metal faster than most design manuals predict." The guide warns that clean-water rules do not apply.

For these heavy-duty applications, engineers routinely mandate margins of 6.5 to 10 feet above the published NPSHr. They must also apply density multipliers to their friction loss calculations to ensure the available suction head remains adequate.

Mechanical Consequences of Operating at NPSHr

When a pump operates continuously near its 3 percent head drop point, the hydraulic performance is only the first casualty. The violent collapse of vapor bubbles induces high-frequency vibration throughout the entire rotating assembly.

This vibration travels down the steel shaft, accelerating the wear on mechanical seals and bearings. With micron-level clearances between mechanical seal faces, the constant vibration disrupts the delicate lubricating fluid film. The faces begin to run dry.

This loss of lubrication leads to excessive heat and premature seal failure. The mechanical seal usually forces the removal of the pump from service, though the root cause was actually insufficient suction margin. The seal is merely the weakest link.

A 2024 analysis by SimScale demonstrated that capturing these pressure pulses in simulation is critical for modern design. The software predicts "noise and vibration due to cavitation by way of capturing the pressure pulses in the pump systems."

Designing for True Reliability

To achieve true reliability, engineers must stop treating the manufacturer's NPSHr curve as a safe operating boundary. It is a failure threshold that indicates when the pump's hydraulics have been fundamentally compromised. Designing to this line is designing for failure.

The ANSI/HI 9.6.1-2017 standard provides specific target margins based on the application, pump design, and operating region. Following these rigorous guidelines ensures the equipment operates smoothly and efficiently under real-world conditions. The standard replaces guesswork with engineered safety factors.[1]

By calculating the system's NPSHa accurately and applying the appropriate margin, designers keep the pump out of the incipient cavitation zone entirely. This proactive approach preserves the impeller and extends the life of the mechanical seals.

A properly sized suction system ensures the pump delivers its full rated head without the destructive crackle of collapsing bubbles. The upfront investment in larger suction piping pays off through decades of reliable, maintenance-free operation.

Many legacy systems were designed before the distinction between incipient cavitation and the 3 percent head drop was widely understood. Upgrading these systems often requires lowering the pump elevation or increasing the diameter of the suction piping.

While these modifications carry a high initial capital cost, they eliminate the recurring expense of replacing eroded impellers and shattered mechanical seals. A healthy suction margin is the foundation of any reliable fluid transfer system.
