Why Differential GPS Uses Fixed Ground Stations to Correct Satellite Ionospheric Delay to Within Centimeters

At an altitude of 20,200 kilometers, a Global Positioning System satellite broadcasts a time-stamped radio signal toward Earth at the speed of light. If that signal traveled through a perfect vacuum, a receiver on the ground could calculate its exact distance from the satellite by simply measuring the arrival time. But the Earth is wrapped in a dense, layered atmosphere.

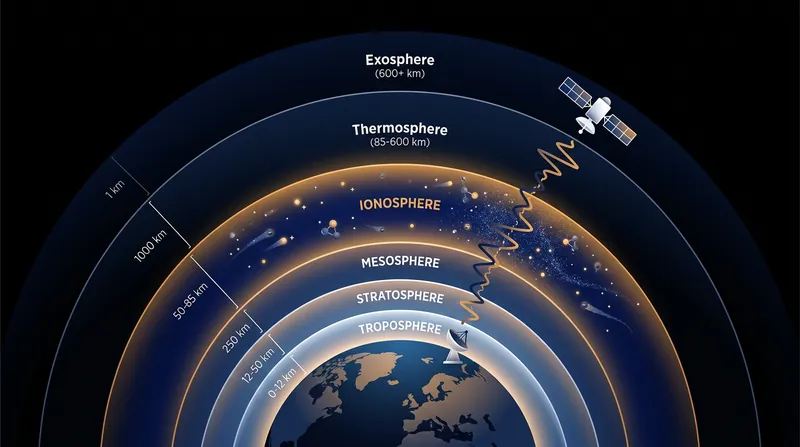

Between 50 and 1,000 kilometers above the surface lies the ionosphere, a massive envelope of gas molecules ionized by intense solar radiation. As the L-band GPS radio signals pass through this field of free electrons, they slow down and refract. This phenomenon, known as ionospheric delay, is the single largest source of error in satellite navigation.[4][5]

For a standard smartphone receiver, this atmospheric delay translates to a positioning error of anywhere from two to 20 meters. While a five-meter drift is perfectly acceptable for highway driving, it is catastrophic for a surveyor laying a foundation or an autonomous tractor planting seeds. To strip away that error, engineers developed Differential GPS (DGPS), a system that relies on fixed ground stations to measure the atmosphere's interference in real time.[4][6]

The mechanics of ionospheric delay

The ionosphere is a highly volatile environment, making its interference impossible to predict with a static mathematical model. The density of free electrons cycles daily, peaking between noon and early afternoon as sunlight intensifies, and dropping to its lowest point just before dawn. It also shifts with the seasons and the broader 11-year solar cycle.[5]

Unpredictable space weather adds another layer of chaos. Solar flares and coronal mass ejections can trigger sudden, massive spikes in electron density, severely distorting radio waves. Because the signal slows down as it pushes through this charged plasma, the receiver calculates that the satellite is further away than it actually is.[5]

This distorted distance measurement is called a pseudorange. According to aerospace manufacturer NovAtel, uncorrected ionospheric delay typically introduces about five meters of error under normal conditions, but severe solar storms can multiply that figure. The lower atmosphere, or troposphere, also bends the signal based on humidity and pressure, adding another 0.5 meters of error.[4]

Standard single-frequency receivers attempt to mitigate this by applying broadcast algorithms, such as the Klobuchar model, which estimates the average ionospheric state. However, these models only correct about 50 to 70 percent of the delay. To achieve absolute precision, the receiver must stop guessing what the atmosphere is doing and start measuring it directly.[7]

Dual-frequency vs. differential correction

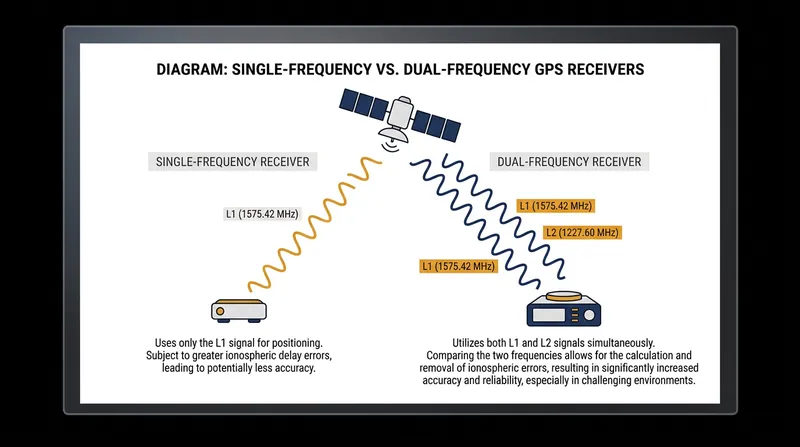

One way to measure the delay without a ground station is to use a dual-frequency receiver. Because the ionosphere is a dispersive medium, it slows down different radio frequencies by different amounts. GPS satellites transmit on multiple frequencies, including the legacy L1 at 1575.42 MHz and the L2 at 1227.60 MHz.[2]

By comparing the arrival times of the L1 and L2 signals, a high-end receiver can calculate the exact electron density it just punched through and mathematically remove the ionospheric delay. However, dual-frequency receivers are expensive, and they still cannot correct for satellite orbit errors or clock drift. They also cannot fix tropospheric delay, which affects all frequencies equally.[2][4]

Differential GPS takes a more comprehensive approach. Rather than trying to calculate the delay from space, DGPS measures the total sum of all errors—atmospheric, orbital, and timing—at the ground level. By comparing the flawed satellite data against a known physical truth, DGPS catches every discrepancy at once, regardless of its source.[6]

Anchoring the reference station

The fundamental premise of Differential GPS is that atmospheric and orbital errors are highly localized. If two receivers are standing a few kilometers apart, their signals are passing through the exact same patch of the ionosphere and experiencing the identical delay. DGPS exploits this physical reality by anchoring one of those receivers to the ground.[6]

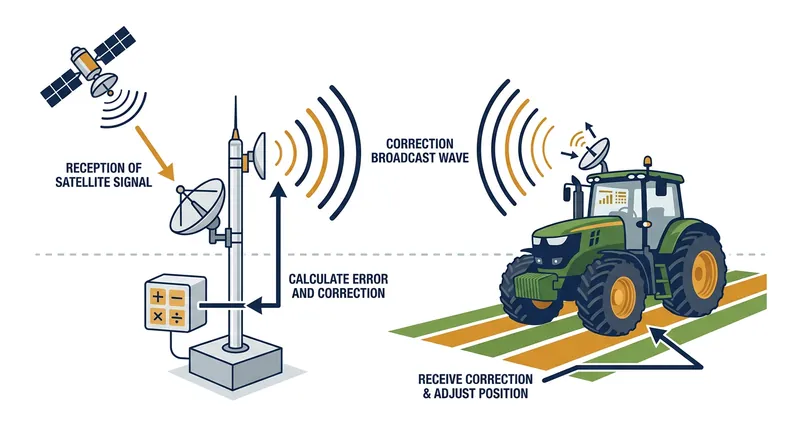

A DGPS network begins with a reference station—a high-grade GPS receiver permanently mounted to a precisely surveyed physical location. Because the station's operators already know its exact latitude, longitude, and elevation down to the millimeter, the station does not need the satellites to find its position. Instead, it uses its known position to audit the satellites.[6]

Every second, the reference station receives the incoming GPS signals and calculates where the satellites think it is. It then subtracts that flawed satellite-derived coordinate from its true physical coordinate. The resulting difference is the exact sum of the current ionospheric delay, tropospheric interference, and satellite clock drift for that specific moment and location.[6]

Broadcasting the correction

Once the reference station isolates the error, it immediately broadcasts a differential correction to any mobile GPS units—known as roving receivers—operating in the vicinity. These broadcasts are transmitted via radio beacons, cellular networks, or dedicated communication satellites, ensuring the rovers receive the data in real time.[6]

When a roving receiver picks up the GPS signal, it applies the reference station's correction factor to its own pseudorange calculation. Because the rover and the base station are looking through the same atmospheric distortion, subtracting the base station's error perfectly cancels out the rover's error. This observation-space correction instantly shrinks the positioning uncertainty from meters to sub-meter levels.[6]

Historically, maritime authorities relied heavily on this architecture. The United States Coast Guard operated a massive Nationwide DGPS network using longwave radio frequencies between 285 kHz and 325 kHz to guide vessels through major waterways. While that specific legacy radio network was decommissioned in 2022 in favor of newer augmentation methods, the underlying differential concept remains the backbone of modern precision navigation.[6]

Carrier-phase tracking for centimeter precision

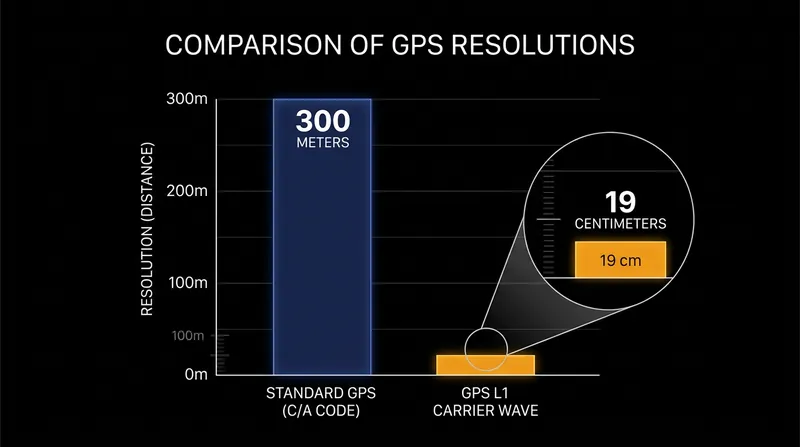

Basic DGPS uses code-based corrections, which align the digital data packets transmitted by the satellites. This method reliably achieves sub-meter accuracy, but it hits a hard physical limit. The standard civilian GPS signal, the C/A code on the L1 frequency, has a chip length of roughly 300 meters, making it difficult to resolve positions down to the centimeter.[1]

To break through that floor, advanced DGPS systems utilize Real-Time Kinematic (RTK) positioning. Instead of just reading the data code, an RTK receiver tracks the actual electromagnetic carrier wave that transports the data. The L1 carrier wave oscillates at a much higher frequency, giving it a wavelength of exactly 19 centimeters.[1][3]

By measuring the phase of this 19-centimeter wave, the reference station and the rover can align their positions with microscopic precision. "RTK receivers go further. They track the carrier wave itself, which oscillates at a much higher frequency," notes CHC Navigation, a manufacturer of precision surveying equipment. "By applying real-time corrections from a known reference point, RTK pushes positioning accuracy from meters down to centimeters."[1]

The limits of the baseline

The magic of differential correction degrades as the distance between the reference station and the roving receiver increases. This distance is known as the baseline. If a rover travels 100 kilometers away from the base station, its satellite signals are passing through a completely different section of the ionosphere.[7]

At that distance, the electron density above the rover no longer matches the electron density above the base station. Applying the base station's correction will actually introduce new errors rather than removing them. For standard code-based DGPS, the baseline can stretch for dozens of kilometers, but for centimeter-level RTK systems, the rover must typically stay within 10 to 30 kilometers of the reference point.[7]

To overcome this geographic leash, modern surveyors use Network RTK. Instead of relying on a single base station, Network RTK connects dozens of reference stations across a region to a central server. The server models the ionosphere across the entire grid and generates a custom, localized correction for the rover's exact coordinates, ensuring that the atmosphere never breaks the lock.[2][7]

The evolution to precise point positioning

While DGPS and RTK require a dense network of local ground stations, a newer technique called Precise Point Positioning (PPP) is changing the landscape. PPP does not rely on a local base station to measure the exact atmospheric delay. Instead, it uses a global network of reference stations to calculate precise satellite orbit and clock errors.[2]

These global corrections are broadcast to the rover via satellite. The rover then uses a dual-frequency receiver to calculate and remove its own local ionospheric delay. Because PPP handles the satellite errors globally and the atmospheric errors locally, it completely eliminates the baseline restriction that limits traditional DGPS.[2]

However, PPP has its own drawbacks. Because it must mathematically resolve the carrier-phase ambiguities without a local reference point, a PPP receiver can take up to 30 minutes to converge on a centimeter-level position. For applications that require instant precision the moment the device is turned on, the local ground stations of a Differential GPS network remain the undisputed standard.[2]
