Vented Hydrogen Gas Risks Arc Ignition: Why Jumper Cables Ground to Bare Chassis Rather Than the Dead Battery's Negative Post

The moment the final jumper cable clamp bites into metal, the electrical circuit completes. Electrons rush from the assisting power source into the dead system, and that sudden current transfer inevitably throws a visible spark across the tiny air gap.

In most household electrical work, a small arc is entirely harmless. Under the hood of a vehicle with a dead lead-acid battery, that exact same spark acts as a detonator for a highly volatile chemical exhaust.

The standard jump-starting procedure dictates connecting the final negative cable to a bare metal bracket on the engine block, rather than the battery's own negative post. This rule exists entirely to manage the invisible gases venting from the plastic casing.[2]

"Lead acid batteries present fire and explosion hazards primarily through hydrogen gas generation during the charging process, not from the battery acid itself," notes a 2026 safety report from Empower IT Tech.[4]

The Chemistry of Electrolysis

A traditional automotive battery stores energy in a bath of sulfuric acid and water. When the battery discharges, the acid reacts with the internal lead plates to create lead sulfate and water, severely diluting the electrolyte solution.

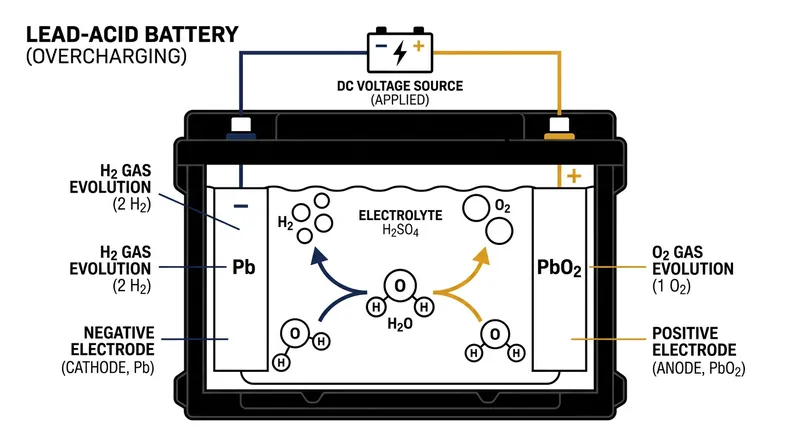

Forcing electrical current back into the depleted battery reverses this chemical process. However, the heavy influx of current also splits the water molecules directly through electrolysis, separating them into their base elements.[4]

This separation produces a specific, highly volatile mixture consisting of two parts hydrogen gas to one part oxygen. The battery must vent this expanding mixture out into the engine bay to prevent internal pressure from rupturing the plastic casing.[4]

The Texas Department of Public Safety warns that recharging or moving a lead-acid battery produces this explosive mixture. "These fumes, if allowed to accumulate in a small area, ignite easily and can cause a fire or explosion," the agency states.[3]

Even modern sealed batteries, known as Valve-Regulated Lead-Acid (VRLA) or Absorbent Glass Mat (AGM) designs, are not immune to this physical reality. They contain pressure relief valves that vent hydrogen during heavy charging or extreme temperature fluctuations.

The Ignition Threshold

Hydrogen is colorless, odorless, and significantly lighter than air, meaning it pools under the hood before dissipating. It requires very little thermal energy to ignite, making it one of the most easily triggered flammable gases in industrial environments.[4]

The lower explosive limit for hydrogen is just 4 percent concentration by volume in the air. Once the gas reaches this specific threshold, the slightest thermal event will trigger a violent, self-sustaining chemical reaction.[4]

The upper explosive limit extends to 75 percent, giving hydrogen an exceptionally wide flammability window. A spark from a standard 12-volt, 600-amp jumper cable easily exceeds the minimum ignition energy required to ignite this concentrated mixture.[4]

"Even static electricity discharge from clothing can provide sufficient ignition energy to trigger an explosion when hydrogen has accumulated to dangerous concentrations," Empower IT Tech reports in its hazard analysis.[4]

When a battery explodes, the plastic casing shatters instantly, sending sharp shrapnel outward. The explosion also vaporizes and scatters the internal sulfuric acid, causing severe chemical burns to anyone leaning over the engine bay.[3]

The Circuit Completion

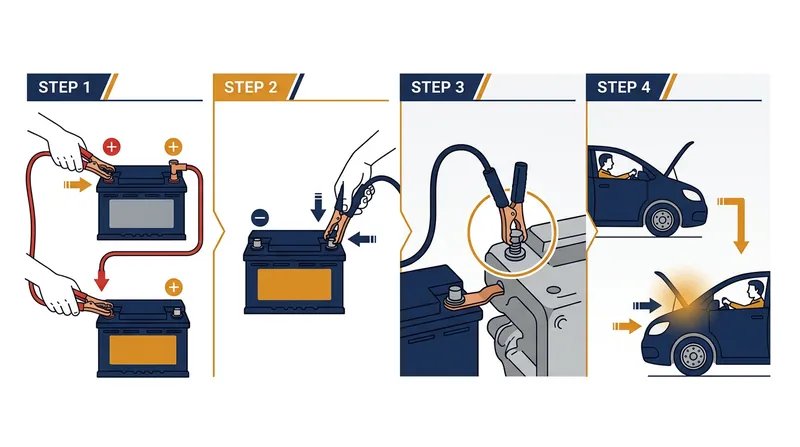

A jump-start requires four distinct connections to bridge the assisting power source to the dead vehicle. The sequence always begins by linking the positive terminals, which carry the voltage between the two systems.[5]

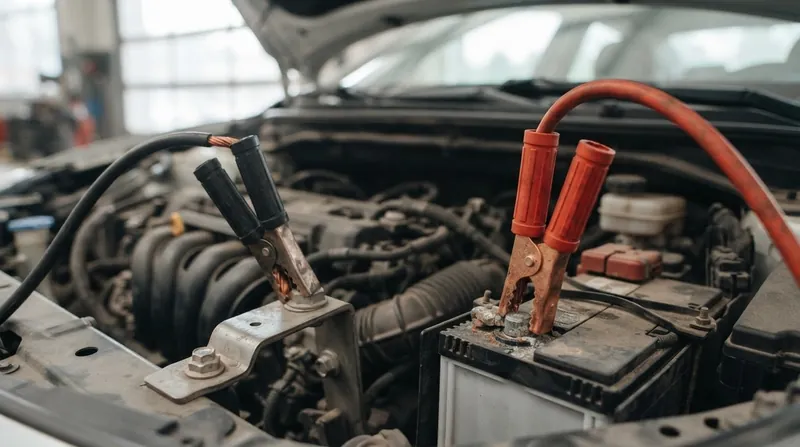

The final connection always involves the negative, or ground, side of the electrical circuit. Because this is the exact moment the electrical loop closes, the voltage differential forces an arc across the air gap just before the metal touches.[5]

If a driver makes this final connection at the dead battery's negative post, the spark occurs directly above the vent caps. This places the ignition source exactly where the hydrogen concentration is at its absolute highest.

The Battery Council International explicitly instructs drivers to make the final connection to the engine block, away from the battery. This physical distance separates the inevitable electrical spark from the invisible gas cloud.[2]

"Always disconnect the ground cable first [usually negative ( – )] to avoid any sparking around battery," advises Discount Battery, citing industry standards. The reverse order applies when removing cables, breaking the circuit safely away from the venting source.[6]

Finding a Safe Ground

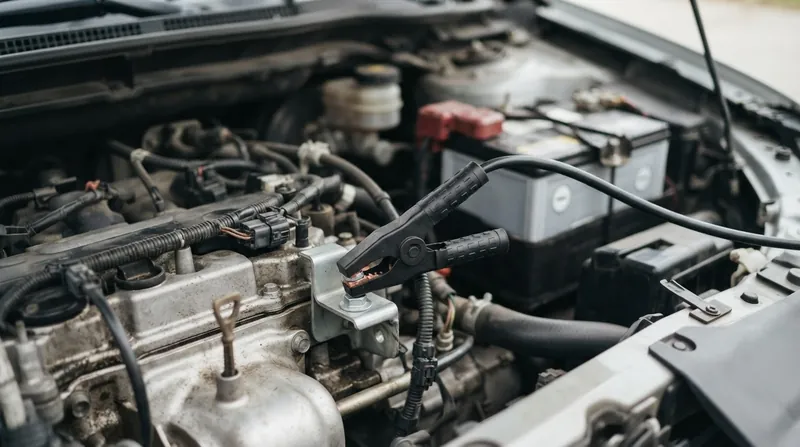

The vehicle's chassis and engine block serve as the common ground for the entire electrical system. Connecting the negative cable to a heavy metal bracket provides the exact same electrical path back to the battery without the proximity risk.[5]

The ideal ground point is an unpainted, heavy-gauge metal component attached directly to the engine block. Alternator brackets, heavy bolts, or dedicated grounding lugs provide the low-resistance path required to carry hundreds of amps of current, often exceeding 400 amps during a cold start.

Painted surfaces, plastic engine covers, and thin sheet metal fail to provide adequate electrical grounding. Paint acts as a strict insulator, preventing the current from flowing and rendering the jump-start attempt entirely useless.

Moving parts present a secondary physical hazard during the procedure. Grounding points must be selected well away from cooling fans, serpentine belts, and fuel lines to prevent the heavy cables from becoming entangled once the engine fires.[2]

Battery Tender's technical guidance reinforces this critical SAE-backed standard. "The cable connection sequence — positive first, ground to engine block last — exists for safety reasons," the manufacturer explains in its operational manuals.[5]

The Role of Portable Jump Starters

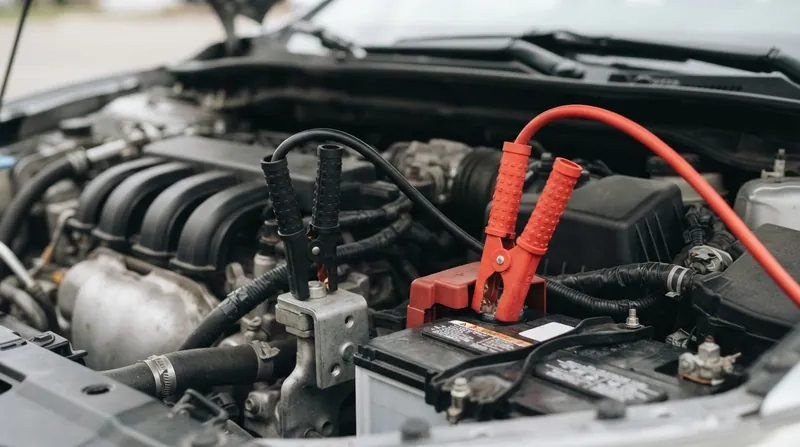

The rapid rise of lithium-ion portable jump starters has slightly altered the physical mechanics of the process, but not the underlying chemistry. These compact units deliver massive peak current without requiring a second donor vehicle.[5]

Many modern jump packs feature internal relays that prevent current flow until they detect a proper connection. This spark-proof technology effectively eliminates the arc when the clamps first touch the bare metal.[5]

However, if the dead battery has dropped to zero volts, the jump starter's safety circuit may fail to detect it entirely. Users must manually override the safety relay, which immediately reintroduces the risk of a spark upon connection.[5]

"If the battery voltage has dropped below 2V or shows physical damage (swelling, leaking), a jump start may not work and the battery needs replacement," Battery Tender notes regarding deeply discharged cells.[5]

Even with smart safety features, the chemical reality of the lead-acid battery remains completely unchanged. Grounding to the chassis remains the definitive method for isolating the electrical arc from the volatile hydrogen exhaust.[7]

Post-Jump Recovery

Once the engine successfully starts, the vehicle's alternator immediately begins forcing current back into the depleted battery. This rapid charging phase generates the highest volume of hydrogen gas of the entire cycle.[5]

Removing the cables breaks the active circuit, which can easily cause another spark. Because the battery is now actively venting under heavy charge, breaking the circuit at the chassis ground point is just as critical as making the initial connection there.[6]

A successfully jumped battery typically sits at roughly 40 to 50 percent of its total capacity. It requires sustained charging to reverse the chemical sulfation on the lead plates and restore reliable starting power for the next trip.[5]

Driving the vehicle for at least 30 minutes at highway speeds allows the alternator to push sufficient charge back into the cells. Short trips at low RPMs often fail to recover the battery, leaving the driver stranded once the engine shuts off.[5]
