Mechanical Precession Rotates Bicycle Pedal Spindles Backward to Loosen Standard Threads on the Left Crank

In the 1930s, the global bicycle industry quietly standardized a mechanical contradiction that still frustrates home mechanics today. Every modern bicycle features a standard right-hand thread on the right pedal, but a reverse left-hand thread on the left crank arm.[1]

The design requires a mechanic to turn the left pedal counter-clockwise to tighten it, defying the universal "righty-tighty" rule of standard fasteners. If a novice rider attempts to force a standard right-hand pedal into the left crank, they will strip the steel threads and permanently destroy the aluminum component.

This asymmetrical engineering was not a mistake, nor was it a manufacturing quirk. It was a deliberate solution to a dangerous problem that plagued early cyclists for over a century: left pedals were constantly unscrewing themselves and falling off during rides.[2]

The phenomenon responsible for dropping those pedals is a counter-intuitive physics principle known as mechanical precession. It dictates that a rotating radial load will force a cylindrical object to roll backward against its enclosure, generating a torque that no standard thread can resist.[1]

The Friction Fallacy

When cyclists discover the reverse thread, they intuitively assume it exists to counteract the friction of the pedal bearings. As the rider pedals forward, the pedal body rotates backward relative to the crank arm, spinning on its internal steel ball bearings.

"Bearing friction would, in fact, tend to unscrew pedals threaded in this manner," notes the late bicycle engineering authority Jobst Brandt in his technical writings. The friction inside the pedal actually fights against the threads the industry chose to use.[2]

Viewed from the left side of the bicycle, the crank arm rotates counter-clockwise during forward motion. Because the rider's foot keeps the pedal platform horizontal, the pedal spindle effectively rotates clockwise inside the pedal body's bearings.

That clockwise bearing friction applies a clockwise torque to the spindle. Because the left pedal utilizes a reverse thread—which loosens when turned clockwise—the internal friction of the bearings is constantly trying to unscrew the pedal from the crank.

If bearing friction were the dominant force, the left pedal would require a standard right-hand thread to stay attached. The fact that manufacturers use a reverse thread proves they are fighting a completely different, vastly more powerful rotational force.

The Physics of Precession

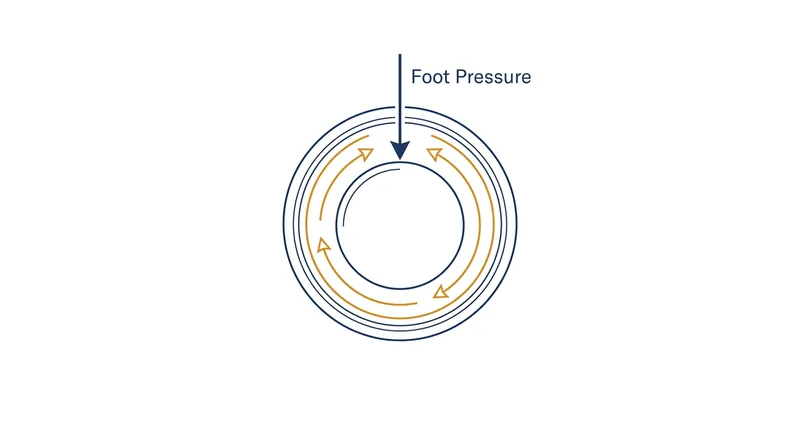

Mechanical precession occurs whenever a round part sits inside a slightly larger round hole and is subjected to a radial force that constantly changes direction. Instead of spinning with the force, the inner cylinder rolls along the outer wall in the opposite direction.[1]

Bicycle mechanics often demonstrate the concept using a simple physical analogy. "Hold a pencil loosely in one fist, and move the end of it in a circle with the other hand," explains the late technical author Sheldon Brown.[2]

"You will see that the pencil, as it contacts the inside of your fist, rotates in the opposite direction," Brown wrote. Because the pencil's circumference is smaller than the opening of the fist, it completes a full backward rotation as it traces the inner edge.[2]

In a bicycle crank, the pedal spindle acts as the pencil, and the threaded eye of the crank arm acts as the fist. Even when tightened to a massive 40 Newton-meters of torque, the steel spindle is microscopically smaller than the threaded hole it occupies.

This size difference is an unavoidable reality of manufacturing tolerances. A 2020 multibody dynamics simulation by the engineering software firm COMSOL modeled the joint with a 10 percent thread tolerance, demonstrating how the gap allows the spindle to roll against the crank threads.

Micro-Deformations and Clearance

Even if a mechanic could machine a pedal spindle to fit the crank arm with zero clearance, the intense physical loads of cycling would still create the necessary gap. Metals are not perfectly rigid structures; they behave like incredibly stiff springs.

Under the weight of a standing rider, the steel pedal spindle and the aluminum crank arm undergo elastic deformation. These micro-deformations temporarily warp the circular threads into slight ovals, creating a microscopic void that allows the spindle to shift.[2]

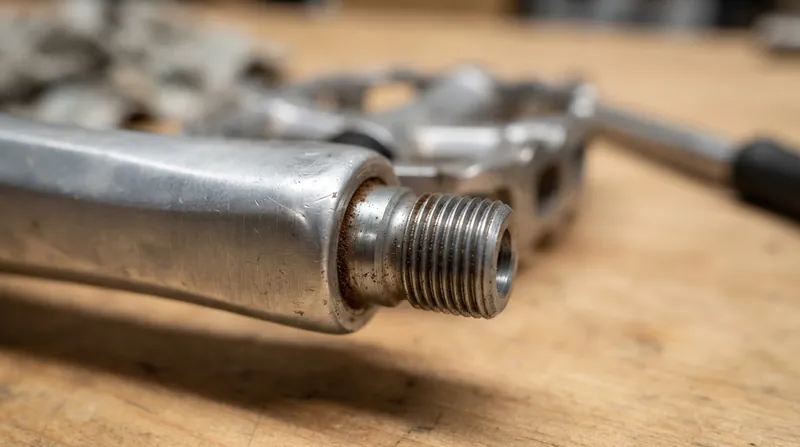

This invisible movement leaves physical evidence behind in the form of fretting rouge. When tightly fitted metal parts rub against each other at a microscopic level, they shear off tiny particles of iron that immediately oxidize into a distinct red powder.[2]

Mechanics frequently find this red iron oxide on the shoulder of a pedal spindle when removing it from a crank. The presence of fretting rouge proves that the spindle is actively moving and rolling inside the crank arm during normal operation.[2]

The Rotating Load

To trigger mechanical precession, the joint requires a radial force that constantly changes its angle of attack. On a bicycle, this force is generated by the rider's foot pressing downward on the pedal platform.

While the downward force of gravity remains constant relative to the ground, its angle changes constantly relative to the rotating crank arm. As the left crank arm sweeps through its 360-degree pedaling circle, the downward pressure pushes against every side of the threaded hole.

From the perspective of the left crank arm, this radial load rotates in a clockwise direction. According to the laws of mechanical precession, this clockwise rotating load forces the slightly smaller pedal spindle to roll in the opposite direction—counter-clockwise.[1]

A counter-clockwise rotation is exactly what unscrews a standard right-hand thread. If the left pedal used standard threading, the massive rolling force of the rider's body weight would easily overpower the threads and back the pedal out of the crank.

By utilizing a left-hand reverse thread, engineers ensure that the counter-clockwise precession actually drives the spindle deeper into the crank. The harder the cyclist pedals, the more aggressively the mechanical precession tightens the left pedal into place.

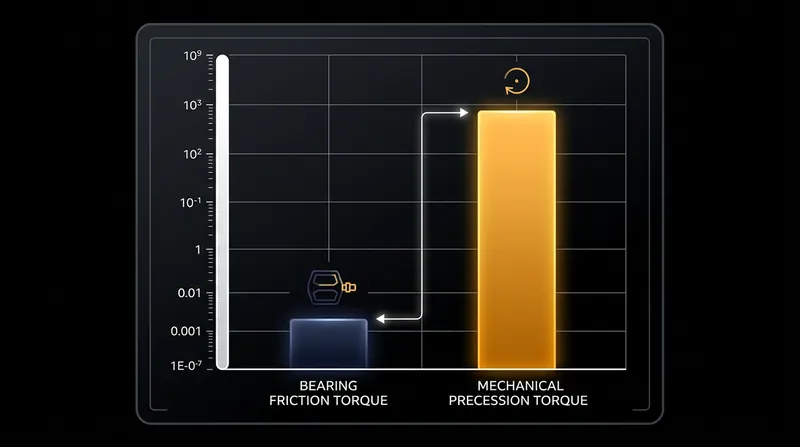

"The torque exerted due to the precession is several orders of magnitude greater than that caused by bearing friction or even a jammed pedal bearing," notes the Wikipedia engineering consensus. The rolling force is so overwhelmingly powerful that standard thread-locking glues cannot arrest it without a physical weld.[1]

Other Precession Zones

The bicycle pedal is not the only mechanical system that relies on reverse threads to combat precession. English-threaded bicycle bottom brackets utilize a left-hand thread on the right-side bearing cup to prevent the pedaling forces from unscrewing the assembly.[1][2]

The right bottom bracket cup experiences what engineers calculate as three-quarters of a fully rotating load, driven primarily by the massive forward tension of the bicycle chain. This partial rotation is enough to precess a standard thread out of the frame.[2]

Early automotive engineers faced the exact same physics problem with wheel fasteners. Before the invention of modern conical lug nuts, which center the wheel and eliminate clearance, many early 20th-century automobiles used left-hand threaded lug nuts on the left side of the vehicle.[1][2]

Without those reverse threads, the weight of the car pushing down on the rotating left wheels caused the lug nuts to precess and unscrew, sending wheels rolling into traffic. The bicycle industry simply solved the problem first, and the left-hand thread remains the definitive mechanical answer today.
