Why Cross-Cut Saws File Alternating Bevels While Rip Saws Use Perpendicular Chisels

A woodworker attempting to size a board faces two fundamentally incompatible tooth geometries. The rip saw advocate insists that a blade must plow straight through the material with a flat, 0-degree chisel edge to clear waste efficiently. Conversely, the cross-cut purist argues that a blade must slice the wood with a 20-to-30-degree alternating fleam angle to prevent the surface from tearing into jagged splinters.

Neither approach is universally correct, because timber is not a uniform, isotropic material. Wood is essentially a bundled collection of longitudinal cellulose fibers, and the direction a saw travels relative to those fibers dictates the physical forces required to sever them. The mechanical action required to separate fibers parallel to their length is entirely different from the force needed to cut across them.

Using a rip saw across the grain acts as a blunt wedge that crushes the wood, leaving a ragged and splintered edge. Conversely, a cross-cut saw pushed along the grain wastes energy slicing fibers that are already separated, resulting in a sluggish, inefficient cut. The distinction comes down to how the steel interacts with the cellular structure of the timber.

"A saw tooth has two functions—paring and scraping," notes the Disstonian Institute's historical guide to saw filing. "A slitting or ripping saw for wood should have its cutting edge at about right angles to the fibre of the wood, severing it in one place, the throat of tooth wedging out the piece."

Understanding these mechanics allows a woodworker to select the correct tool for the specific cut, reducing physical fatigue and improving the final finish. While modern power tools have obscured some of these principles, the underlying physics of wood cutting remain unchanged. The geometry of the tooth must match the orientation of the grain.[2]

The Chisel Mechanics of the Rip Saw

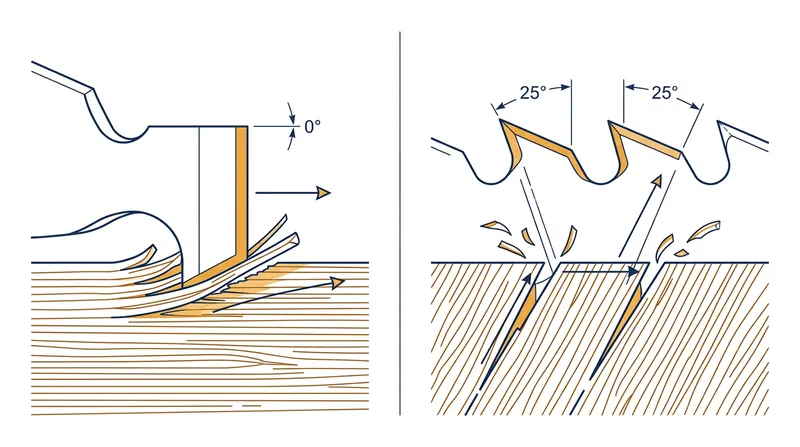

A rip saw is designed exclusively for cutting parallel to the wood grain, a process that requires separating the long fibers from one another. To achieve this, the teeth are filed straight across, creating a flat top with a 0-degree bevel angle. This geometry turns each individual tooth into a miniature woodworking chisel.

As the saw is pushed forward, these chisel-like teeth plow through the wood, gouging out small shavings. Because the cut runs parallel to the fibers, there is no need to sever them laterally; the teeth simply wedge the fibers apart and scoop out the waste material. This action requires significant forward kinetic energy.

To maximize this forward force, rip saws feature a very steep rake angle, typically between 0 and 8 degrees. The rake angle is the degree to which the front edge of the tooth leans away from a perfect perpendicular line. A smaller rake angle means the tooth stands almost vertically, taking an aggressive bite into the wood.

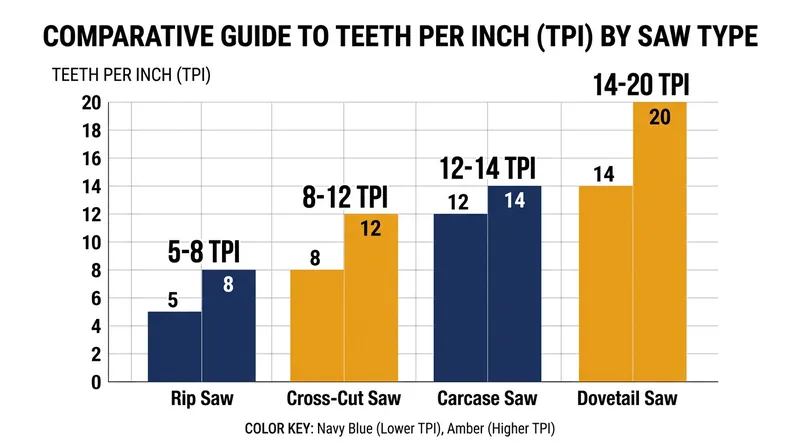

Because ripping is a rough, high-energy operation, these saws generally feature larger teeth spaced further apart. A standard western rip saw typically has 5 to 8 teeth per inch (TPI). This low tooth count creates larger gullets—the empty spaces between the teeth—which are necessary to carry away the long, stringy shavings produced by ripping.

If a woodworker attempts to use this aggressive, 0-degree bevel geometry to cut across the grain, the results are disastrous. The flat chisel teeth cannot slice the tough cellulose fibers; instead, they catch and tear them, causing severe splintering on the exit side of the cut. The saw will bind, jump, and leave a ruined edge.

The Knife Action of the Cross-Cut Saw

Cross-cutting requires severing the wood fibers perpendicular to their length, a task that demands a completely different mechanical approach. Instead of plowing through the material, the teeth must score and slice the fibers cleanly before removing the waste. To achieve this, cross-cut teeth are filed with an alternating bevel known as fleam.

"Fleam (or bevel) on crosscut teeth turns the teeth into little knives that slices the wood fibers as you saw across the grain," explains toolmaker Rob Cosman. "This slicing action is what makes a crosscut saw do its job without splintering and tearing across the grain."

This fleam angle typically ranges from 20 to 30 degrees, creating a sharp point on the outside edge of each tooth. The teeth alternate, with one beveled to the left and the next beveled to the right. As the saw moves, these alternating points act like twin knife blades, scoring two parallel lines across the wood fibers.

Once the outer fibers are severed by the knife points, the flat inner portion of the tooth scrapes away the waste material between the two scored lines. This compound action reduces the bending force exerted on the wood, ensuring that the fibers are cut cleanly rather than torn out by the roots.

Because cross-cutting requires less aggressive forward force and more slicing action, these saws feature a more relaxed rake angle, usually around 15 degrees. They also utilize a higher tooth count, typically 8 to 12 TPI, which produces smaller chips and leaves a smoother surface finish on the end grain.

Why Hybrid Teeth Compromise on Performance

Many modern hand saws are marketed as general-purpose tools, featuring a hybrid tooth geometry designed to handle both ripping and cross-cutting. These blades typically employ a moderate fleam angle and a medium tooth count, attempting to split the difference between a chisel and a knife. However, this versatility comes at a significant cost to efficiency.

When ripping, the hybrid's beveled teeth lack the flat, plowing power of a dedicated 0-degree chisel, making the cut slower and more physically demanding. When cross-cutting, the reduced fleam angle fails to slice the fibers as cleanly as a dedicated cross-cut saw, resulting in a rougher edge that requires more sanding or planing.

In traditional woodworking, specific tasks demand specialized saws. A carcase saw, used for precise cross-cuts across the grain, typically features a 10-to-14-inch blade with 12 to 14 TPI and a pronounced fleam. Conversely, a tenon saw, used for ripping the cheeks of a tenon parallel to the grain, utilizes a flat rip profile.

The physical incompatibility between the two geometries means that a single saw cannot excel at both tasks. A rip saw maximizes forward kinetic energy transfer to plow out continuous fiber bundles, while the alternating bevel of a cross-cut saw sacrifices forward efficiency to create a compound slicing angle.[2]

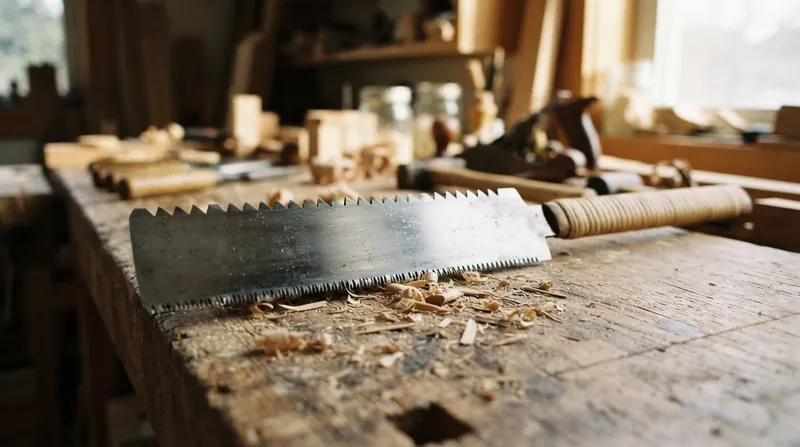

This mechanical reality is why Japanese Ryoba saws feature two distinct cutting edges on a single blade. One side is filed with large, flat rip teeth for cutting along the grain, while the opposite side features finer, beveled teeth for cross-cutting. The woodworker simply flips the tool to match the grain orientation.

Circular Blades and Alternating Top Bevels

The principles of tooth geometry apply equally to modern power tools, particularly table saws and miter saws. A dedicated circular ripping blade features a Flat Top Grind (FTG), where the carbide teeth are brazed straight across at 0 degrees. These blades typically have 24 to 30 teeth and massive gullets to clear long shavings.

In contrast, a circular cross-cut blade utilizes an Alternating Top Bevel (ATB) grind, which replicates the fleam angle of a hand saw. These blades feature 60 to 80 teeth, with the carbide tips angled alternately to the left and right. This geometry scores the wood fibers cleanly before the center of the tooth clears the kerf.

Using an 80-tooth ATB cross-cut blade for a heavy rip cut in solid hardwood is highly dangerous. The high tooth count and slicing geometry require excessive feed force, causing the blade to overheat, burn the wood, and potentially trigger a violent kickback. The small gullets quickly clog with long rip shavings.

Conversely, using a 24-tooth FTG rip blade to cross-cut cabinet-grade plywood will instantly destroy the veneer. The flat chisel teeth will aggressively punch through the cross-grain without any slicing action to protect the surface fibers, leaving jagged, splintered edges on the exit side of the cut.

Historical Context and the Decline of Hand Saws

The golden age of cross-cut saws spanned from 1880 to 1930, a period when massive two-man felling saws ruled the timber industry. These enormous tools required complex tooth patterns, often incorporating specialized "raker" teeth designed specifically to drag out the waste material severed by the alternating knife teeth.[1]

"The machinery to make these vintage saws began to disappear by the 1950s, as crosscuts were replaced by power saws," notes the USDA Forest Service in its 2004 publication, Saws That Sing. "Today, no taper ground crosscut saws are manufactured," making vintage models highly prized by wilderness trail crews.[1]

In designated wilderness areas managed by the Forest Service, motorized equipment is prohibited by law. Here, the traditional cross-cut saw remains the tool of choice for clearing fallen trees. A well-tuned vintage saw, filed with the correct fleam and rake angles, can sever a massive log with surprising speed and silence.[1]

Whether using a two-man felling saw in the wilderness or a fine dovetail saw in a cabinet shop, the physics of cutting wood remain absolute. The cellular structure of the timber dictates the required mechanical action, and the geometry of the saw tooth must be filed to match that reality perfectly.[1][2]
