Simultaneous Thread Engagement: Why Wood Screws Jack Boards Apart Without a Clearance Hole

Modern construction sites echo with the sound of impact drivers sinking fasteners through framing lumber without a second thought. One camp of builders insists that high-torque tools and aggressive screw designs can pull any two boards tightly together, relying on brute force to crush any gaps.

The opposing camp of traditional woodworkers and engineers argues that driving a fully threaded screw without a clearance hole guarantees a weak, permanently gapped joint. They maintain that no amount of rotational force can overcome the fundamental geometry of an inclined plane locked inside two separate pieces of material.[2]

This disagreement stems from a misunderstanding of what a screw actually does when it enters wood. A screw is not a nail with extra grip, nor is it a clamp that inherently pulls things together. It is a continuous helical wedge that dictates a precise rate of linear travel.

When you drive a fastener through a top board and into a bottom board, the threads carve a matching helical path into the wood fibers. If the threads engage both boards simultaneously, the distance between those two boards becomes mathematically fixed.[1]

How Threads Lock Distances

To understand why boards jack apart, you have to look at the thread pitch. A standard #8 wood screw features 15 threads per inch, meaning every full 360-degree rotation advances the screw exactly 0.066 inches into the material.[3]

As the screw tip bites into the top board, it establishes this fixed rate of travel. The threads cut a path, and the wood fibers lock into the valleys between those threads. The screw and the top board are now mechanically linked.

When the screw tip exits the bottom of the first board and enters the second, it begins cutting a new path. However, the upper portion of the screw is still firmly engaged in the first board, advancing at that exact same 0.066-inch rate.[3]

If there is a one-millimeter gap between the two boards when the screw tip bites into the second piece, that gap is now permanent. The threads in the top board push the wood down at the exact same speed the threads in the bottom board pull the wood up.[2]

The Physics of Joint Jacking

This simultaneous engagement turns the screw into a rigid spacer rather than a clamping device. The threads hold the two pieces of wood at a constant distance, perfectly preserving whatever gap existed at the moment of secondary penetration.[1]

Woodworkers call this phenomenon "jacking," because the screw effectively jacks the boards apart if debris or slight warping separates them during the drive. The fastener acts as a threaded rod suspended between two fixed nuts.

Many builders attempt to solve this by simply driving the screw harder. They rely on modern 18-volt impact drivers capable of delivering over 1,500 inch-pounds of torque to force the boards together.

But torque cannot easily defeat geometry. When the head of the screw finally contacts the surface of the top board, the threads are still locked into the wood fibers directly beneath that head.[1]

Torque Against Thread Pitch

For the screw head to pull the top board down and close the gap, it must physically rip the wood fibers out of the thread valleys. The screw must destroy its own tapped path in the top board to act as a clamp.

Standard softwoods like radiata pine possess a compressive yield strength perpendicular to the grain of roughly 610 pounds per square inch. Overcoming this resistance requires immense axial force, far more than a standard screw head can easily generate without causing damage.[2]

In most cases, one of three failures occurs before the gap closes. First, the screw head acts as a wedge and splits the top board along the grain, ruining the workpiece and destroying the joint's structural integrity.[1]

Second, the immense friction and torsional stress placed on the steel fastener exceeds its shear strength. The screw simply snaps in half, leaving a broken steel shank buried inside a permanently gapped joint.[3]

Third, the threads in the bottom board strip out. Because the top board is trapped by the screw head, the spinning fastener acts like a drill bit in the bottom board, destroying the wood fibers and eliminating all holding power.[1]

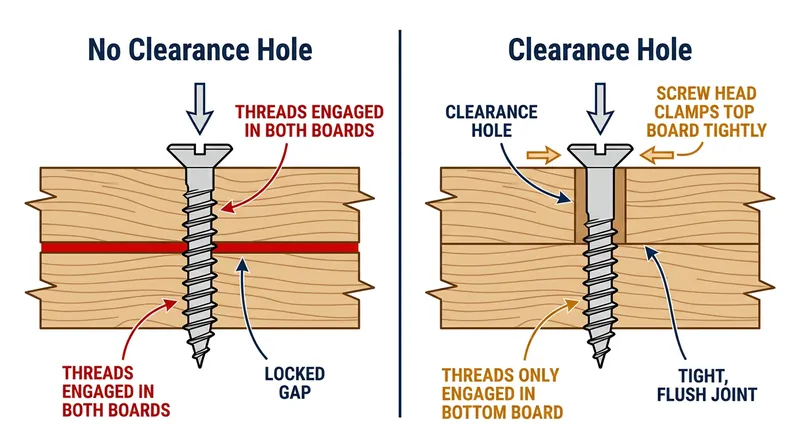

Bypassing the Top Board

The engineering solution to this geometric trap is the clearance hole. "Screws should be inserted in prebored holes to prevent splitting and to increase the holding power," states the 2021 edition of the USDA Forest Products Laboratory's Wood Handbook, noting that the clearance hole must be "equal to the shank diameter of the screw."

By drilling a hole through the top board that is slightly larger than the outside diameter of the screw threads, you eliminate simultaneous engagement. For a standard #8 wood screw, which has a major thread diameter of 0.164 inches, a 3/16-inch clearance hole allows the threaded portion to pass through without biting.[3]

When the screw enters the bottom board, it cuts its helical path and pulls itself downward. Because the threads are not engaged in the top board, the screw slips freely through the clearance hole until the head makes contact.[2]

Once the head hits the top board, the screw acts as a true clamp. Every subsequent rotation pulls the bottom board tighter against the top board, compressing the joint with hundreds of pounds of force.[1]

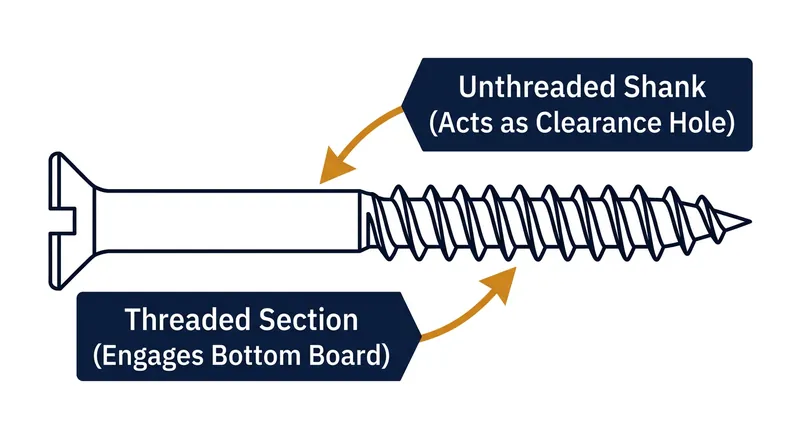

The Role of Unthreaded Shanks

Fastener manufacturers understand this physics problem, which is why many modern wood screws feature an unthreaded shank just below the head. This smooth section is designed to replicate the function of a clearance hole.[3]

When a partially threaded screw is driven into a joint, the threads eventually pass completely through the top board. Once the smooth shank is positioned inside the top board, the simultaneous thread engagement is broken.

The threads, now entirely contained within the bottom board, can pull the two pieces together. The smooth shank spins freely inside the top board, allowing the screw head to clamp the joint tightly without stripping the wood.[1]

However, this design only works if the unthreaded shank is longer than the thickness of the top board. If the threads bridge the gap between the two pieces of wood, the jacking effect will still occur, locking the boards apart.[2][3]

Calculating Lost Clamping Power

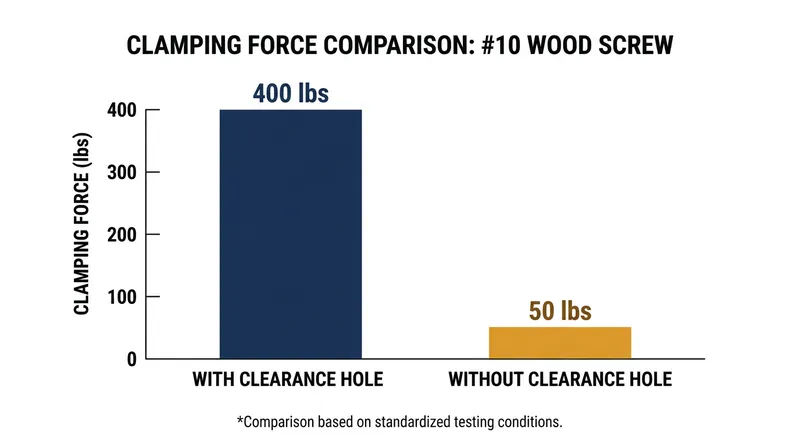

The mechanical penalty for skipping a clearance hole is severe. Engineering tests on structural timber joints show that simultaneous thread engagement can reduce effective clamping force by more than 80 percent.[1]

A properly cleared #10 wood screw driven into dense framing lumber can generate over 400 pounds of clamping pressure. The same screw driven without a clearance hole often generates less than 50 pounds of pressure before the head crushes the surface.[3]

This lack of clamping force leaves joints vulnerable to seasonal wood movement. As humidity changes, the wood expands and contracts, causing loosely clamped joints to rack, squeak, and eventually fail under load.

Modern construction adhesives cannot compensate for this mechanical failure. Wood glue requires tight, consistent pressure across the entire mating surface to form a strong polymer bond. A gapped joint starves the glue line of this necessary compression.[2]

Ultimately, the physics of an inclined plane cannot be ignored. Taking the extra ten seconds to drill a proper clearance hole transforms a screw from a rigid, gap-locking spacer into a powerful mechanical clamp.[2]
