Why Catenary Chains Pull Anchor Flukes Horizontally Instead of Mooring by Deadweight

The moment a ship is actually secured is not when the anchor hits the bottom, but when the heavy steel chain settles into a sagging curve known as a catenary. This suspended arc of metal dictates the entire mooring process.[3]

By pulling the anchor's shank perfectly horizontal along the seabed, the catenary chain forces the anchor's flukes to dig downward into the sand or mud. It converts the ship's drifting momentum into a wedging action that locks the vessel in place.[4]

A common maritime misconception assumes that an anchor holds a vessel by acting as a massive underwater deadweight. In reality, the anchor's physical mass is only a fraction of the equation, and dropping a heavy object on the seafloor provides very little stopping power.[3]

Instead, the anchor functions as a plow, and the chain acts as the mechanism that drives it. Without the horizontal pull generated by the chain's sagging weight, the anchor would simply skip across the bottom or pull straight out.[3][4]

The physics of this system have governed maritime operations since the Royal Navy first standardized iron anchor chains in 1808. Over two centuries later, the catenary curve remains the fundamental principle keeping both recreational sailboats and commercial freighters off the rocks.[3]

The Geometry of the Sag

When a vessel deploys its mooring system, the chain does not form a straight line between the bow and the anchor. Gravity pulls the heavy steel links downward, creating a mathematical curve that naval architects call a catenary.[5]

This curve serves as a massive shock absorber against the elements. As wind and waves push the ship backward, the vessel must lift the suspended weight of the chain before it can transfer any sudden force to the anchor itself.[3][5]

Lifting that heavy steel requires immense energy, which bleeds the momentum out of the drifting ship. By the time the tension travels down the full length of the rode, the upward angle has been completely flattened.[3]

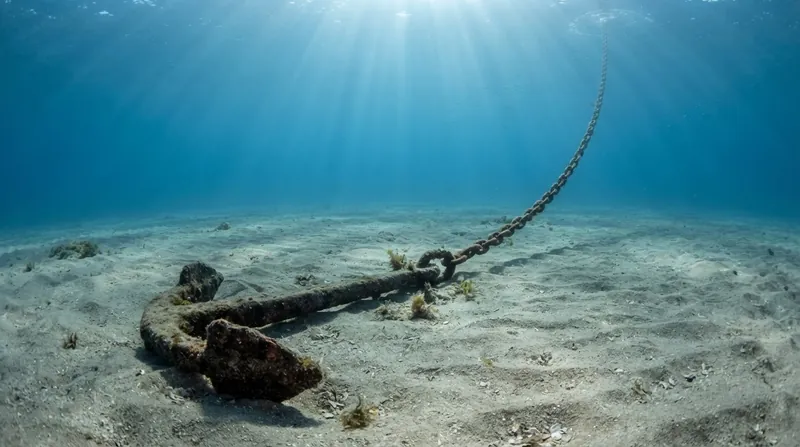

The chain lying on the seabed pulls the anchor's shank horizontally, which is the exact orientation required for the flukes to engage. A horizontal pull drags the anchor along the bottom, forcing the sharpened tips to bite into the sediment.[4]

If the pull becomes vertical, the system fails instantly. An upward force acts like a hand pulling a tent peg straight out of the grass, extracting the flukes from the substrate and leaving the ship adrift.[3]

Fluke Embedment and Holding Power

Because the catenary chain guarantees a horizontal pull, modern anchors are engineered to maximize surface area rather than sheer weight. The primary holding surfaces are the flukes, which are broad, shovel-like arms designed to bury themselves under tension.[4]

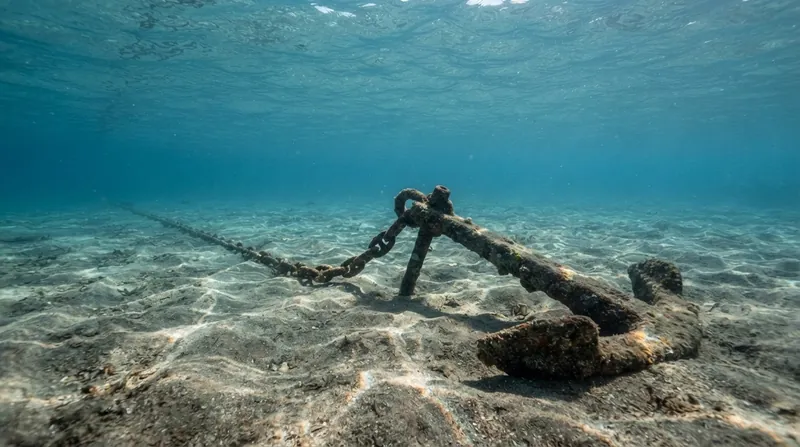

As the chain drags the anchor horizontally, the flukes catch the seabed and pivot downward. The resistance of the soil forces them deeper, mobilizing a massive volume of sand or mud to hold the ship against the current.[1][4]

This mechanical embedment generates holding power that vastly exceeds the anchor's actual weight. As maritime supplier Anchor Marine Houston notes in its engineering guidelines, "The efficiency of an anchor in a given test is expressed in terms of 'Holding power' per pound of its own weight."[1]

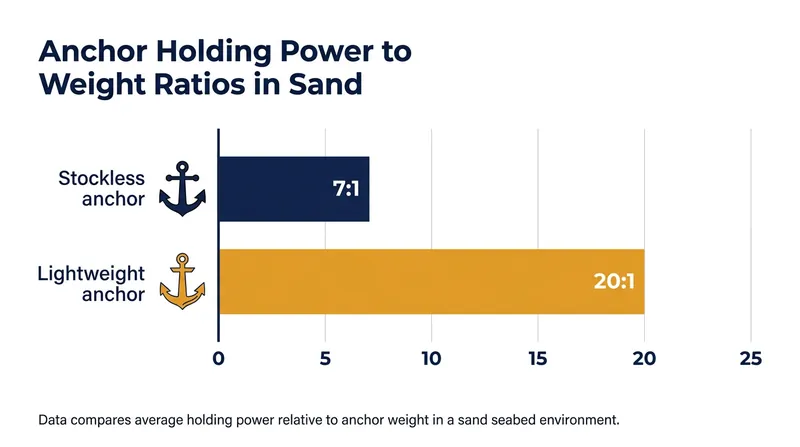

A traditional stockless anchor dropped in sand develops a holding power-to-weight ratio of seven to one, meaning a 1,000-pound anchor can hold 7,000 pounds of force. Lightweight fluke designs, such as the Danforth anchor, push this efficiency even further to a ratio of twenty to one.[1]

In these optimal conditions, the anchor's deadweight contributes as little as 5 percent to the total holding force. The remaining 95 percent is generated dynamically by the seabed resisting the horizontal shear of the buried flukes.[1][6]

The Importance of Scope

To maintain the catenary curve, a vessel must deploy significantly more chain than the vertical depth of the water. This ratio of deployed chain to water depth is known in maritime operations as the scope.[5]

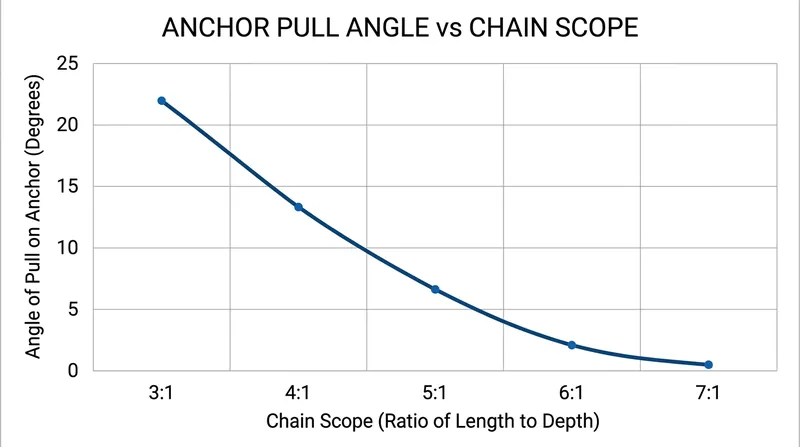

A standard anchoring scope ranges from five-to-one to seven-to-one in moderate weather. If a ship anchors in 30 feet of water, it must let out between 150 and 210 feet of chain to ensure the pull at the seabed remains horizontal.[3]

When the scope is too short, the chain cannot form a sufficient curve to absorb the vessel's movement. The rode pulls taut, lifting the shank off the seabed and levering the flukes out of the mud before they can properly set.[4][5]

High winds can also defeat the catenary effect by stretching the chain to its physical limit. In gale-force conditions, even a heavy steel chain will pull straight, eliminating the shock-absorbing sag and transferring the violent motion directly to the anchor.[3]

Once the catenary disappears, the anchor relies entirely on the sheer length of the chain and the depth of its initial embedment to survive the storm. This is why mariners deploy maximum scope before heavy weather arrives.[2][3]

Seabed Substrates and Angles

The effectiveness of the horizontal pull depends entirely on the composition of the ocean floor. Marine engineers categorize seabeds into three primary groups: sand, mud, and rock, with each requiring a different fluke orientation.[1]

Sand provides the most consistent holding ground, offering excellent shear strength against the buried flukes. To achieve maximum efficiency in sand, the anchor's flukes are designed to penetrate at an angle of approximately 30 degrees.[1]

Mud and silt vary wildly in consistency and offer far less resistance to dragging forces. Because the substrate is softer, the flukes must pivot to a steeper 50-degree angle to dig deep enough to find solid holding ground.[1]

Rock and marl represent the worst possible anchoring conditions, as the flukes cannot penetrate the hard surface. In these environments, the mechanical wedging action fails, and the anchor is reduced to relying solely on its deadweight.[1]

Modern Anchor Engineering

While traditional stockless anchors have secured merchant ships for over a century, new-generation designs assume that the catenary curve will eventually fail in extreme weather. These modern anchors are built to hold even when the chain pulls at a slight upward angle.[3]

Designs like the Rocna and Spade feature concave flukes that resist backing out, along with roll bars that force the anchor into the correct orientation regardless of how it lands. They are engineered to bury themselves immediately upon feeling tension.[3]

Field tests demonstrate the massive gap in performance between these generations. In a 2006 trial, a 15-kilogram new-generation anchor held against more than 4,500 pounds of force, while older plow designs dragged at a fraction of that load.[3]

Despite these advancements, the fundamental physics of the catenary chain remain the baseline for maritime safety. The heavy sagging rode is what allows a relatively small piece of steel to tether a massive vessel to the earth.[2][6]
