The New US Industrial Reality: A Guide to the DOE Medium Electric Motor Rule, NEMA Premium 4 (IE4) Standards, and the 2027 Compliance Deadline

The most common misconception about the Department of Energy’s 2027 electric motor regulations is that facility managers will be forced to rip out and replace their existing equipment. The reality is entirely different: the new mandate applies strictly to what manufacturers can build and sell, not what operators can keep running.

However, assuming this means industrial buyers can ignore the June 1, 2027 deadline is an equally costly mistake. The downstream effects on supply chains, lead times, and facility design will fundamentally alter how North American industry procures its most critical hardware.[2][5]

Starting in June 2027, the DOE’s Medium Electric Motor (MEM) Rule will require specific categories of mid-range motors to meet NEMA Premium 4 efficiency levels, globally recognized as IE4 or Super Premium efficiency. This represents the most significant regulatory shift for industrial motors in more than a decade. The rule targets three-phase induction motors ranging from 100 to 250 horsepower, including open drip-proof (ODP), totally enclosed fan-cooled (TEFC), and explosion-proof designs.[1][2]

To understand the stakes, it helps to look at the sheer scale of motor energy consumption. Electric motors are the backbone of industrial productivity, powering pumps, compressors, conveyors, and HVAC systems. Globally, they account for more than 40% of all power use. In the United States alone, industrial motors draw more than a trillion kilowatt-hours annually, costing businesses roughly $112 billion. Even fractional improvements in efficiency across fleets of this size reshape the economics of entire sectors.[1]

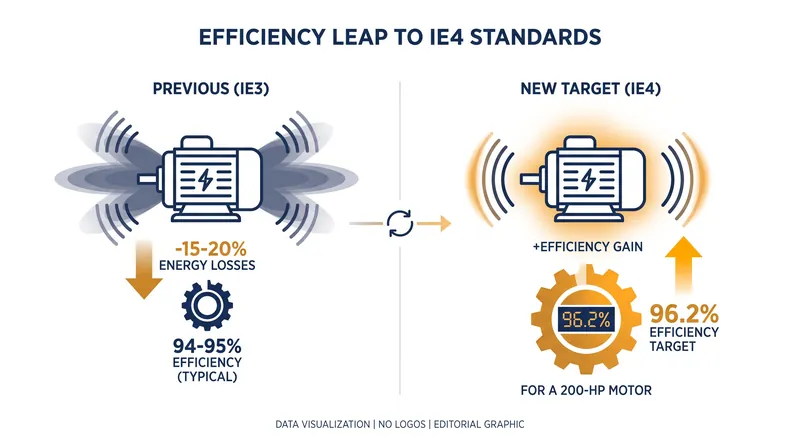

The transition to IE4 is not merely a bureaucratic label; it requires a physical re-engineering of how motors handle power. To qualify as IE4, a 200-horsepower motor must achieve 96.2% efficiency. Compared to the current NEMA Premium (IE3) baseline, the Premium 4 design reduces energy losses by an average of 15% to 20%. For equipment running continuously in chemical processing, mining, or water treatment, that reduction translates directly into thousands of dollars in annual operating savings per motor.[1][4][5][6]

But that increased efficiency introduces a critical engineering trade-off: higher locked-rotor inrush current. Because IE4 motors consume more current during startup, they require larger internal conductors. To address this, the National Electrical Manufacturers Association (NEMA) had to release new design designations—BE and CE—to signify the conductor changes. For facility engineers, this means existing overload protection devices and breakers may need to be resized or adjusted when an older motor is eventually replaced with a new IE4 model.[4]

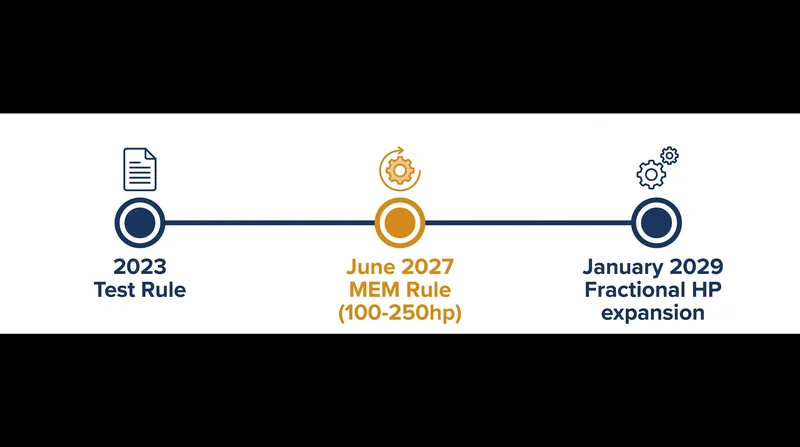

The regulatory rollout is deliberately phased to give the market time to adjust. The foundation was laid in October 2023 with the DOE’s Test Rule, which established the methodology for measuring and certifying motor efficiency across a broader 0.25 to 750 horsepower range. The MEM Rule takes effect on June 1, 2027, enforcing the IE4 standard for the 100-250 horsepower bracket. A subsequent phase will expand coverage to fractional horsepower motors (0.25 to 3 horsepower) on January 1, 2029.[1][2][3]

Notably, the MEM Rule eliminates a major historical loophole. Air-over electric motors, which were previously exempt from efficiency mandates, are now fully subject to the new standards. Under the 2027 rule, air-over motors from 1 to 75 horsepower must meet IE3 efficiency, while those from 100 to 250 horsepower must hit the new IE4 mark. Exemptions remain for highly specialized equipment—such as liquid-cooled, submersible, synchronous, and inverter-only motors—though any efficiency claims made for these units must still be certified under DOE procedures.[1][2][3]

The U.S. mandate is part of a broader global harmonization effort. The European Union has required IE3 efficiency since 2021 and made IE4 mandatory for 75 to 200 kW motors in 2023. By elevating U.S. standards to match the IEC’s Super Premium tier, the DOE is simplifying compliance for export-oriented manufacturers. Organizations like the ISO are actively pushing for this kind of standard harmonization to accelerate the adoption of high-efficiency technologies worldwide.[1][7]

For consulting and specifying engineers, the 2027 deadline requires immediate changes to project planning. Projects designed in 2025 and 2026 may not actually break ground or procure equipment until after the rule takes effect. Specifying IE3 motors for long-lead projects introduces severe redesign risk, as those models will legally vanish from manufacturer production lines by the time the purchase orders are filled.[1][5]

Manufacturers are already moving to bridge the gap. Companies like ABB have begun releasing severe-duty motors, such as the SD200 SP4, that deliver NEMA Premium 4 efficiency while maintaining drop-in frame compatibility with existing IE3 models. This frame-by-frame compatibility is crucial, allowing operators to transition to higher efficiency without undertaking costly equipment and mounting redesigns.[5][6]

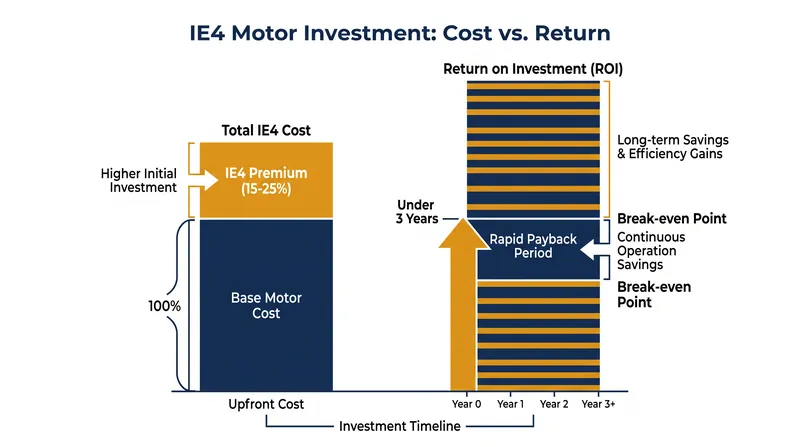

The financial calculus of the MEM Rule heavily favors early adoption. The DOE projects the 2027 standards will save U.S. businesses $8.8 billion and prevent 92 million metric tons of carbon dioxide emissions over 30 years. While IE4 motors typically carry a 15% to 25% price premium over IE3 models, the payback period for continuously operating equipment is often under three years.[1][3]

Ultimately, the 2027 DOE standards represent a turning point in industrial energy consumption. Facilities that delay updating their procurement standards risk facing longer lead times, limited product availability, and last-minute engineering scrambles as market pressure builds. By integrating IE4 specifications into capital budgets today, operators can secure compliance, lower their lifecycle operating expenses, and future-proof their infrastructure against an increasingly stringent regulatory landscape.[1][5]
