Why Microwave Ovens Use 2.45 GHz Instead of Water's Actual Absorption Peak

When you place a bowl of soup in a microwave, the outcome is determined the moment the magnetron generates an electromagnetic wave at exactly 2.45 gigahertz. That specific frequency dictates the wave's penetration depth—the physical distance the energy travels into the food before being absorbed.

If the frequency were tuned any higher, the wave would dump all its energy into the outermost millimeter of the liquid. This would scorch the surface while leaving the center ice-cold. By operating far below water's maximum absorption capacity, the oven ensures the energy reaches the middle of the bowl.

The myth of water resonance

A pervasive myth claims that microwave ovens work by tuning radio waves to the exact resonant frequency of water molecules. The theory suggests that 2.45 GHz is the natural frequency at which water vibrates, causing the molecules to shake violently and generate heat.

This popular explanation is entirely false. Liquid water does not possess a sharp resonant frequency at 2.45 GHz, nor is this frequency anywhere near the point where water absorbs electromagnetic energy most strongly. The actual physics rely on a much broader interaction.

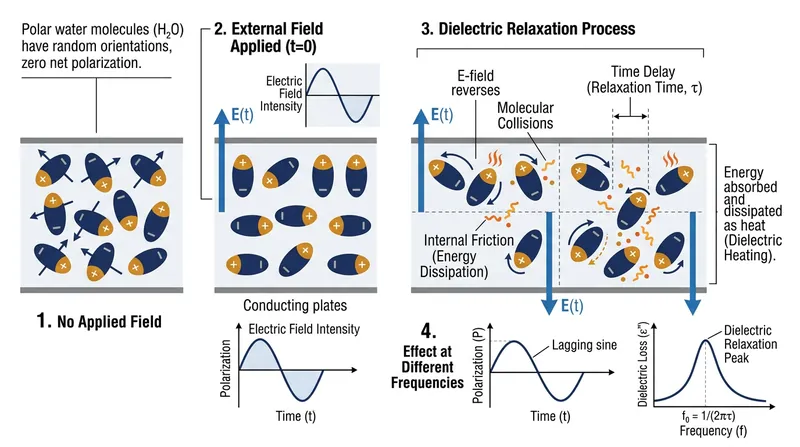

Instead, water absorbs microwave energy through a process called dielectric relaxation. Water molecules are polar, meaning they possess a positive electrical charge at one end and a negative charge at the other. When exposed to an oscillating electric field, these microscopic dipoles attempt to align themselves with the shifting waves.[2][3]

As the field flips back and forth billions of times per second, the water molecules constantly rotate to keep up. They lag slightly behind the changing field, and this physical resistance creates molecular friction. That friction is what dissipates the wave's energy as heat.[2][3]

Finding the actual absorption peak

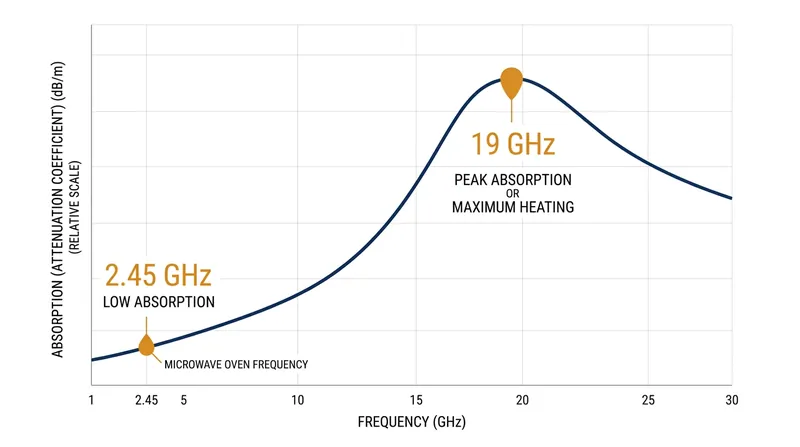

If you map how efficiently liquid water absorbs this energy across different frequencies, you find a broad curve rather than a sharp spike. According to the foundational 1989 Kaatze model for water's dielectric properties, the peak of this loss curve actually sits around 19 gigahertz at room temperature.

At 19 GHz, the water molecules' relaxation time perfectly matches the oscillation of the electric field. The absorption becomes incredibly intense, maximizing the conversion of electromagnetic energy into heat. This is the true point where water captures microwaves most aggressively.

Yet commercial microwave ovens operate at 2.45 GHz, a frequency that sits far down the slope of this curve. At this lower frequency, water's dielectric loss factor is roughly 9.2, which is only about one-quarter of its maximum value of 36.6 at the peak.

This massive mismatch is not a design flaw or an accidental engineering compromise. It is the exact physical mechanism that makes the appliance useful for cooking thick foods. Without this deliberate inefficiency, the oven would be entirely incapable of warming a meal evenly.[4]

Why maximum absorption ruins food

The relationship between electromagnetic absorption and penetration depth is strictly inverse. When a material absorbs energy very efficiently, the wave cannot travel very far into the substance before its power is completely depleted. High absorption guarantees a shallow heating profile.

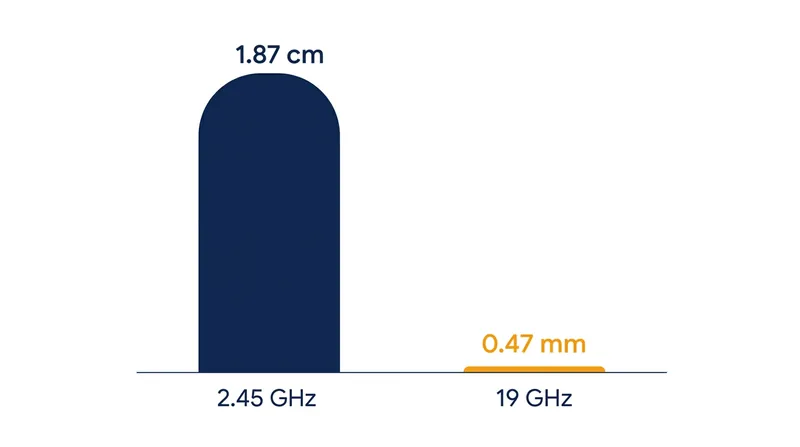

If a microwave oven were actually tuned to water's 19 GHz absorption peak, the penetration depth into liquid water would collapse to roughly 0.47 millimeters. Every watt of power generated by the magnetron would be dumped into the outermost skin of the food.

The result would be disastrous for everyday cooking. A thick piece of meat or a deep bowl of leftovers would instantly boil and scorch on the outside, while the interior remained completely raw or frozen. The appliance would have to rely entirely on slow thermal conduction.[4]

By stepping the frequency down to 2.45 GHz, engineers intentionally utilize water's weak absorption. Because the water molecules do not capture the energy as efficiently, the microwaves can pass through the outer layers and penetrate much deeper into the dish.

At 2.45 GHz, the power penetration depth in liquid water at room temperature expands to about 1.87 centimeters. This allows the electromagnetic energy to reach deep into a typical plate of food, warming it throughout rather than just blasting the exterior.[2]

How heat changes the equation

The physics of dielectric heating become even more complex as the food begins to warm up. Because the absorption rate depends heavily on the relaxation time of the water molecules, changing the temperature physically shifts the entire absorption curve along the frequency spectrum.[2]

As pure water heats up, its molecules gain kinetic energy and can rotate more freely. This faster relaxation time causes the dielectric loss peak to slide toward higher frequencies. Consequently, at the fixed 2.45 GHz frequency of the oven, hot water actually absorbs less microwave energy than cold water.

This counterintuitive behavior helps prevent thermal runaway in pure liquids. As a section of water gets hotter, it absorbs less power, allowing the remaining microwave energy to pass straight through. That bypassed energy then reaches and heats the cooler areas deeper inside the container.

However, this self-regulating effect disappears when salt is introduced. Adding dissolved ions to the water creates a secondary heating mechanism called ionic conduction. In salty foods, the electrical conductivity increases as the temperature rises, causing hot, salty areas to absorb even more energy and heat up faster.[2]

The physics of defrosting

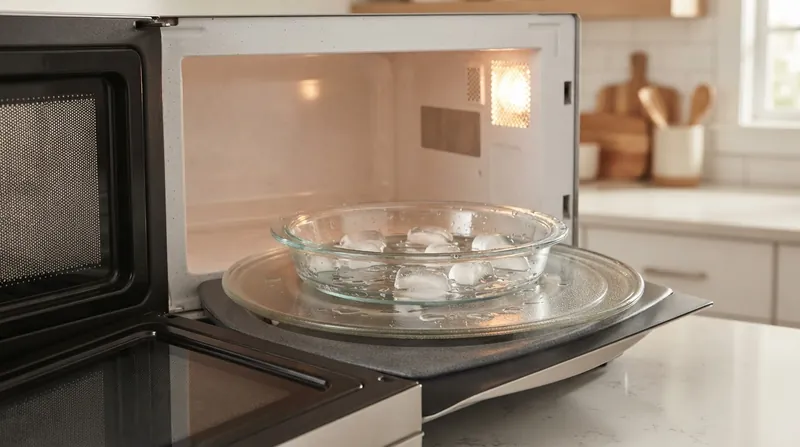

The dielectric relaxation model also explains why microwave ovens struggle to defrost frozen foods evenly. When water freezes into ice, its molecules lock into a rigid crystal lattice, severely restricting their ability to rotate in response to the electric field.

This structural lock-in increases the relaxation time from picoseconds to tens of microseconds. As a result, the dielectric loss peak for ice drops all the way down into the kilohertz range, far away from the gigahertz frequencies used by the oven.

At 2.45 GHz, ice absorbs thousands of times less microwave energy than liquid water. The electromagnetic waves pass almost straight through a frozen block without depositing much heat, making the initial defrosting process incredibly slow and highly inefficient for the consumer.

The moment a tiny pocket of ice melts into liquid water, that specific spot suddenly begins absorbing energy hundreds of times more efficiently than the surrounding ice. This creates localized hot spots that can boil and cook the edges of a frozen chicken breast while the center remains rock solid.

Spectrum rules and cheap hardware

While 2.45 GHz provides an ideal penetration depth for cooking, its selection was heavily influenced by mid-century telecommunications regulations. The frequency sits inside one of the internationally recognized ISM bands, which the Federal Communications Commission reserved for Industrial, Scientific, and Medical equipment.[1]

Operating within an ISM band ensures that the powerful emissions from millions of household appliances do not interfere with critical radar, aviation, or commercial radio traffic. This is the exact same unlicensed spectrum that modern Wi-Fi and Bluetooth networks utilize today.

"The frequency choice is dictated by FCC regulation and application-specific characteristics such as materials permittivity," notes the industrial engineering firm MKS Instruments in their technical documentation on dielectric heating. The hardware had to fit the legal spectrum, not just the physics.[1]

As TelecomHall's engineering breakdown explains, the physical balance is crucial for consumer appliances. "At lower frequencies, penetration is too deep, wasting power and requiring much larger ovens. At higher frequencies, energy gets absorbed in the outer layers, leaving food raw inside."

Furthermore, the 2.45 GHz magnetron was a direct descendant of the cavity magnetrons developed for military radar during World War II. After the war, the manufacturing infrastructure for these specific vacuum tubes already existed, making them relatively cheap to produce at scale.[3]

Industrial microwave heating systems sometimes use an even lower frequency of 915 megahertz. At this frequency, the wavelength is roughly 33 centimeters, compared to the 12.2 centimeters of a standard household oven, providing even greater penetration depth for massive bulk materials.[3]

However, a 915 MHz oven requires a much larger internal cavity to properly support the standing waves. This physical size requirement makes the lower frequency impractical for compact countertop appliances, leaving 2.45 GHz as the perfect compromise for the home kitchen.[4]
