The Nyquist Frequency: How Sampling at Twice the Highest Frequency Prevents Aliasing in Digital Audio and Video

Recording audio at a standard 44.1 kHz sample rate permanently discards any frequency above 22,050 Hz, locking the resulting digital file into a strict mathematical ceiling that no amount of post-production software can later reverse or reconstruct. This hard boundary is not a hardware limitation of the microphone or the computer, but a fundamental law of physics and mathematics known as the Nyquist-Shannon sampling theorem. The theorem governs every digital recording device on the planet, from high-end studio interfaces to the camera sensor inside a smartphone, dictating exactly how much data is required to translate the continuous analog world into discrete digital numbers without corrupting the source material.[4]

The theorem dictates that to accurately capture a continuous analog signal—like a human voice, a guitar chord, or the shifting light of a landscape—and convert it into discrete digital numbers, the system must sample the input at a rate greater than twice its highest frequency. This specific threshold is known in digital signal processing as the Nyquist rate. If an audio engineer wants to record a cymbal crash that contains frequencies up to 20,000 Hz, the analog-to-digital converter must take at least 40,000 individual snapshots of that sound wave every single second to accurately map its shape.[1][3]

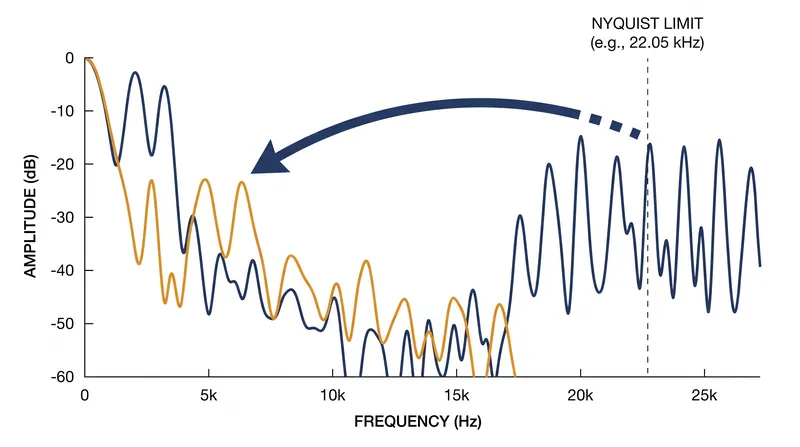

If a recording system fails to meet this strict mathematical threshold, the uncaptured high frequencies do not simply vanish into the ether. Instead, they fold back into the audible spectrum as harsh, metallic artifacts that sound nothing like the original source material. Because the converter is not taking snapshots fast enough to track the rapid peaks and valleys of the high-frequency wave, it connects the dots incorrectly, drawing a false, lower-frequency wave that becomes permanently baked into the digital file. This is a destructive process that overwrites the accurate data.[2]

This phenomenon of high frequencies masquerading as lower frequencies is called aliasing, and it represents one of the most fundamental errors in digital signal processing. It occurs when a digital converter takes too few snapshots of a fast-moving wave, causing the high-frequency waveform to fold back across the Nyquist boundary. Once aliasing occurs during the initial recording phase, the false frequencies are mathematically indistinguishable from the real audio, meaning no plugin or algorithm can isolate and remove the distortion without also damaging the underlying recording.[2]

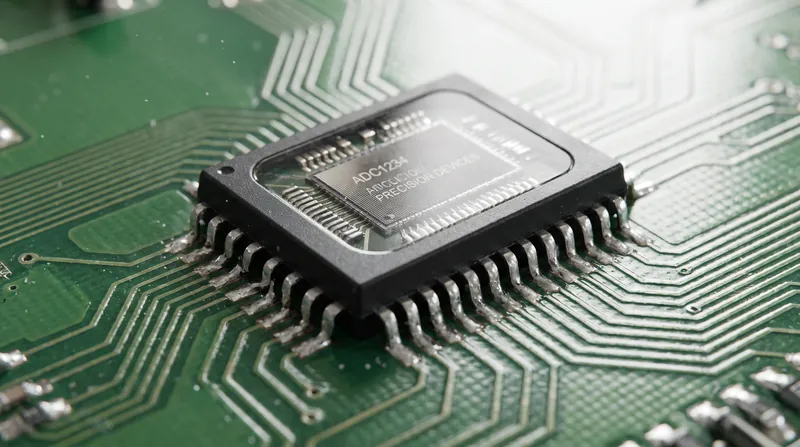

To prevent aliasing from destroying a recording, professional audio and video recorders employ a dedicated anti-aliasing filter before the analog-to-digital conversion even takes place. This low-pass filter acts as a strict, physical gatekeeper in the analog domain, aggressively stripping away any frequencies that sit above the Nyquist limit before the signal reaches the digital converter. By ensuring that no illegal frequencies ever reach the sampling chip, the filter guarantees that the resulting digital file remains clean and mathematically sound, free from the folded artifacts of undersampling.[4]

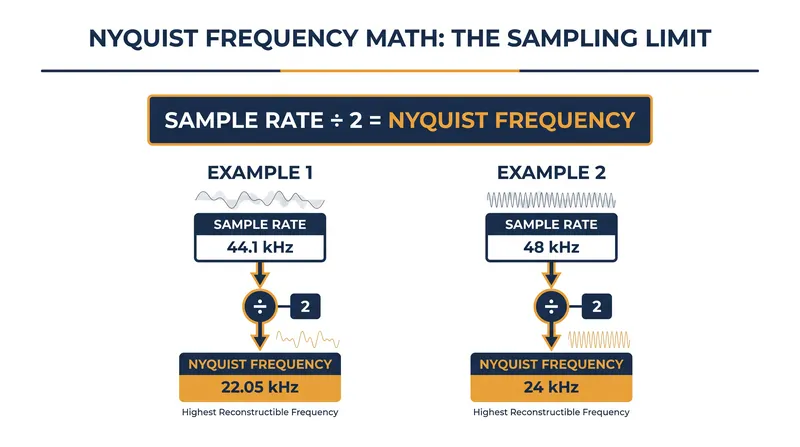

The mathematics of the Nyquist theorem perfectly explain why 44,100 Hz became the global standard for compact disc audio in the early days of digital media. Human hearing extends up to approximately 20,000 Hz for a healthy young adult, meaning any consumer audio format needs to capture frequencies up to that biological ceiling to sound transparent and lifelike. To capture a 20,000 Hz signal without violating the sampling theorem, the absolute minimum sampling rate required is 40,000 Hz, setting the baseline for the format.[2]

However, engineers could not simply set the CD standard to exactly 40,000 Hz. The additional 4,100 Hz built into the 44.1 kHz standard provides a necessary transition band—a crucial buffer zone that allows the analog anti-aliasing filter to roll off smoothly. Because physical filters cannot cut off frequencies instantly like a brick wall, they need a few thousand hertz of runway to attenuate the signal from full volume down to absolute silence without cutting into the audible frequencies that listeners actually want to hear.[4]

The necessity of this mathematical relationship is a foundational concept in electrical engineering. 'The Nyquist theorem holds that a continuous-time signal can be perfectly reconstructed from its samples if it is sampled at a rate greater than twice its highest frequency components,' according to engineering firm Analog Devices. This principle enables the reliable reconstruction, manipulation, and analysis of real-world signals using digital systems, forming the bedrock for technologies ranging from basic audio recording to complex medical imaging and global communications infrastructure.[1]

In the video production and broadcast television world, 48,000 Hz was adopted as the standard audio sampling rate. This slightly higher rate pushes the Nyquist frequency up to 24,000 Hz, providing an even wider 4,000 Hz transition band for the anti-aliasing filter to do its work. This wider buffer is highly valued by hardware designers because it allows them to use gentler, less aggressive analog filters, which in turn reduces the risk of introducing phase distortion or ringing artifacts near the upper limits of human hearing.[4]

This wider transition band is precisely why 48 kHz is universally preferred in film and television post-production workflows. It is significantly more forgiving of filter ringing artifacts during heavy processing, and the math aligns cleanly with the standard frame rates of digital video, preventing audio drift over long recording takes. When audio engineers mistakenly record at 44.1 kHz for a video project, the post-production team must sample-rate-convert the files to 48 kHz, a process that can introduce the very artifacts the standard was designed to avoid.[4]

When a continuous signal is sampled below the Nyquist rate, the resulting digital data is fundamentally corrupted at the source. As a 2011 technical breakdown by DSPRelated.com notes, 'Below this rate, high-frequency content folds back into lower frequencies... and the original signal cannot be recovered.' This irreversible data loss highlights why getting the sample rate right at the moment of recording is the single most critical technical decision an engineer makes, as no amount of downstream processing can restore frequencies that were folded into noise.[2]

The implications of the sampling theorem extend far beyond audio engineering. In digital video and digital photography, spatial aliasing manifests visually as the moiré effect—strange, wavy, rainbow-colored patterns that appear when a camera sensor tries to capture fine, repeating details that exceed its pixel density, such as a tightly striped shirt, a brick wall, or the mesh of a screen door. Just as an audio converter cannot accurately map a wave that moves too fast, a camera sensor cannot accurately map a pattern that is too dense.[3]

To combat this visual distortion, digital camera manufacturers employ the exact same mathematical principles used in audio interfaces. Just as an audio converter needs an analog anti-aliasing filter to remove high frequencies, digital cameras use optical low-pass filters placed directly over the sensor. These physical glass filters slightly blur the incoming light, intentionally destroying the ultra-fine details before they hit the pixels, thereby preventing the high-frequency spatial data from folding back into the image as destructive moiré patterns.[4]

In recent years, the audio industry has seen a push for ultra-high sample rates like 96 kHz or 192 kHz. Contrary to marketing claims, these massive sample rates do not capture more detail or higher resolution within the audible spectrum. Instead, they push the Nyquist frequency so incredibly high—to 48 kHz and 96 kHz, respectively—that the required anti-aliasing filters can be exceptionally gentle and placed far outside the realm of human hearing, completely eliminating any risk of phase distortion affecting the audible music.[4]

The Nyquist-Shannon theorem remains the unbreakable speed limit of the digital world, governing every piece of technology that bridges the analog and digital divide. Whether a system is capturing a symphony orchestra, a smartphone video, or a satellite communication signal, the hardware must measure twice as fast as the fastest frequency it intends to record. Any data that violates this fundamental ratio is permanently lost to aliasing, leaving behind a trail of artifacts that no future algorithm will ever be able to seamlessly remove.[1][2]
