PLA Creep in 3D Printing: Why Structural Parts Deform Under Continuous Load

A functional 3D-printed bracket must keep its polymer chains locked in place to support a continuous load. Standard polylactic acid (PLA) cannot guarantee that stability even in a cool room. For makers printing wall hooks, monitor mounts, or friction-locked hinges, the actionable takeaway is immediate: stop using standard PLA for parts that hold weight continuously, and switch to polyethylene terephthalate glycol (PETG) or acrylonitrile butadiene styrene (ABS). Makers routinely test their printed hardware by hanging heavy weights from them. A standard PLA hook might easily hold two kilograms in a short-term tensile test, leading the designer to put it into service. Six months later, the hook is visibly bent and the load is on the floor, despite never exceeding its tested capacity.[1]

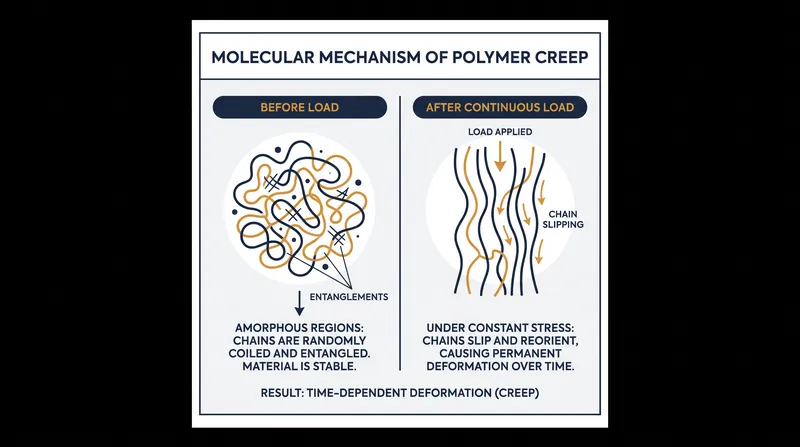

This failure mode is known as material creep. It is the slow, permanent deformation of a solid under continuous mechanical stress, occurring well below the material's breaking point. Unlike a sudden snap from an impact, creep is a gradual flowing of the plastic. As Xometry's 2023 engineering breakdown explains, creep is the 'time-dependent, permanent strain experienced by a material under constant stress and temperature over an extended period.' The mechanism lies at the molecular level. Plastics like PLA consist of long, tangled polymer chains held together by weak intermolecular forces. When a continuous load is applied—such as the clamping force of a bolted joint or the weight of a hanging cable organizer—the stress gradually nudges those chains into new positions.[2][4][5]

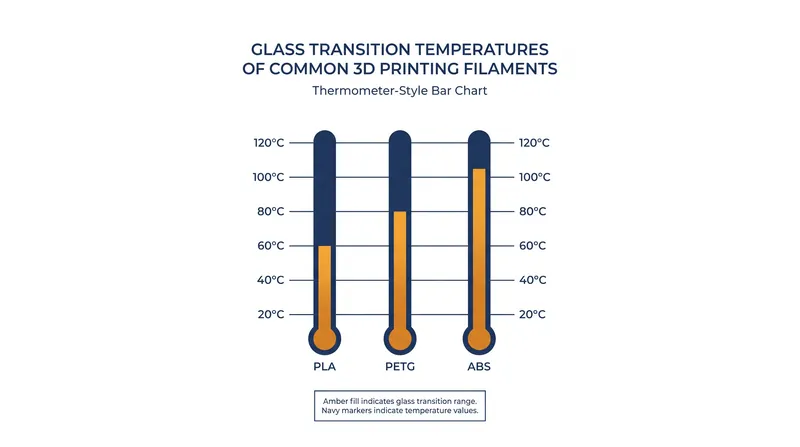

Because PLA is a viscoelastic material, this slippage is continuous and unrecoverable. Once the chains move, the deformation becomes permanent. A bolted PLA joint will slowly compress until the nut loses tension, and a friction-locked hinge will eventually collapse under its own weight. The rate of this deformation is governed heavily by temperature, specifically the material's glass transition temperature. This is the threshold where an amorphous polymer transitions from a hard, glassy state to a soft, rubbery one. Standard PLA has a remarkably low glass transition temperature, typically around 60°C. While its actual melting point sits much higher, around 150°C to 160°C, the material begins to soften long before it liquefies.[2][3][4]

Because room temperature (20°C to 25°C) is relatively close to PLA's glass transition threshold, the material operates with almost no thermal margin. The polymer chains possess enough mobility to slip under load even in a climate-controlled office. Elevating the temperature accelerates the creep timeline drastically. A 10°C increase in ambient heat can double the rate of deformation. If a PLA phone mount is left in a car interior that reaches 50°C, the material approaches its glass transition point and can fail in a matter of days.[1][7]

The timeline for creep under modest load at room temperature is deceptive. A part might show measurable deformation within the first few days, accumulate 1% to 2% deformation after a month, and reach 3% after three months. The failure accelerates as the geometry of the part bends, changing the leverage of the load. This makes short-term tensile testing highly misleading for functional parts. A tensile test measures how much force a material can handle before breaking. However, a part that survives 50 megapascals (MPa) for ten minutes will not survive 10 MPa for ten months.[6][7]

Print orientation also plays a critical role in how creep manifests. Fused deposition modeling (FDM) creates parts layer by layer, leaving microscopic boundaries between each pass. These layer lines act as internal weak points where stress concentrates and polymer chains slip more easily. To mitigate this, functional designers must orient their prints so that the continuous load runs parallel to the layer lines rather than across them. However, while optimal orientation slows the deformation, it does not stop the fundamental viscoelastic flow of the PLA.[1]

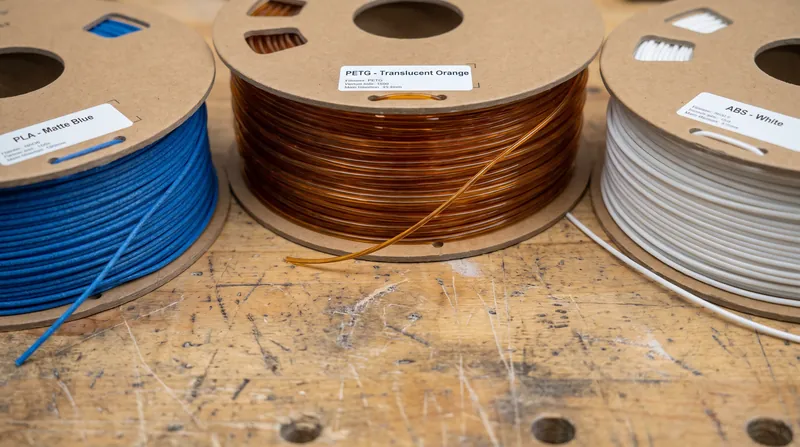

For applications requiring sustained tension, the standard engineering response is to abandon PLA entirely. PETG is the most common substitute, offering a higher glass transition temperature of around 80°C and significantly better resistance to continuous stress. ABS and acrylonitrile styrene acrylate (ASA) provide even greater thermal margins, making them suitable for parts near heat sources. For genuinely load-critical components, carbon-fiber-filled filaments are used to physically restrict the movement of the polymer chains. If PLA must be used for a load-bearing part, the material can be annealed to improve its performance.[6]

Annealing involves baking the printed part in an oven at 80°C to 90°C for up to an hour, which forces the amorphous polymer chains to align into a more rigid, crystalline structure. This crystallization significantly increases the material's stiffness and creep resistance. However, the annealing process also causes the part to shrink and warp unpredictably during baking, making it difficult to maintain tight dimensional tolerances for mechanical assemblies. Understanding creep shifts the design paradigm from asking how strong a part is to asking how long it will hold. Recognizing that plastics flow under pressure forces designers to build in mechanical tolerances, use metal inserts for bolted joints, and select the correct polymer for the timeline.[1][7]
