Wöhler Curve and the Endurance Limit: How Stress Cycles Determine the Fatigue Life of Steel

When structural engineers specify steel for a bridge girder, an aircraft landing gear, or a high-pressure pipeline, they are not just designing for the maximum static load the component will bear on its worst day. They are designing for the millions of smaller, repetitive loads it will experience over its entire operational life. This process, executed during the initial design phase, relies on identifying a specific threshold known as the endurance limit—a stress level below which the steel can theoretically withstand an infinite number of load cycles without fracturing. By keeping operational stresses below this limit, engineers ensure the structure will never fail from metal fatigue.[2]

The foundation of this design philosophy is the S-N curve, historically known as the Wöhler curve. Named after August Wöhler, a German railway engineer who systematically investigated axle failures in the 1850s, the curve plots the magnitude of a cyclic stress (S) against the logarithmic number of cycles to failure (N). For many materials, including aluminum and copper, the curve continuously slopes downward, meaning that any stress, no matter how small, will eventually cause failure if applied enough times.[3][5]

Steel and titanium alloys, however, exhibit a unique behavior. As the applied stress decreases, their S-N curves eventually flatten out into a horizontal line. This horizontal asymptote is the endurance limit. If the cyclic stress remains below this line, the microscopic damage that initiates fatigue never accumulates enough energy to propagate into a macroscopic crack.[2][5]

Understanding how that damage accumulates requires looking at the crystalline structure of the metal. "In materials science, fatigue is the initiation and propagation of cracks in a material due to cyclic loading," according to the standard definitions compiled by Wikipedia researchers. The process almost always begins at a stress riser—a microscopic scratch, a machining mark, or an internal impurity in the steel.[5]

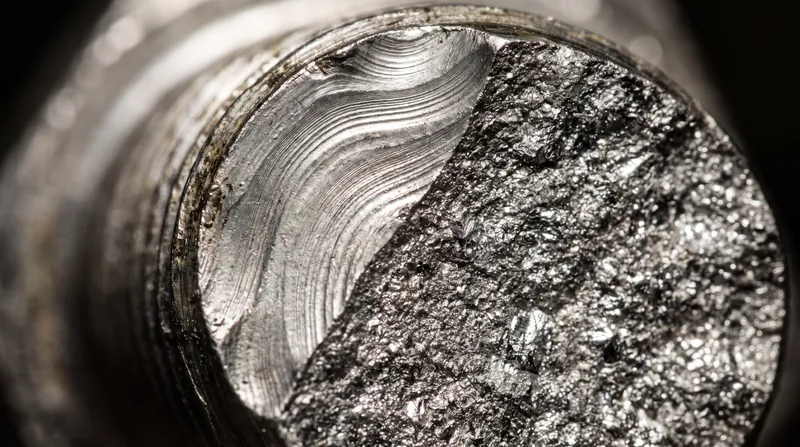

Once initiated, the crack enters the propagation phase. "Once a fatigue crack has initiated, it grows a small amount with each loading cycle, typically producing striations on some parts of the fracture surface," the Wikipedia reference notes. This growth is irreversible; materials do not recover when rested. The crack continues to advance until the remaining solid cross-section of the steel can no longer support the load, resulting in a sudden, catastrophic fast fracture.[5]

To prevent this, engineers rely on standardized testing to map the S-N curve for specific alloys. Historically, this was done using rotating bending machines, which applied a constant load to a spinning specimen, creating alternating tension and compression. While effective, these legacy methods were incredibly time-consuming, often requiring weeks or months to reach the 10 million cycles traditionally used to define the endurance limit for steel.[3]

Today, the industry standard is defined by protocols like ASTM E466. "ASTM E466... provides the procedure for axial force fatigue strength in metallic materials," states the testing equipment manufacturer TestResources. This standard governs force-controlled, constant-amplitude axial fatigue tests, utilizing modern servo-hydraulic machines capable of applying high-frequency cyclic loads.[4]

These modern machines allow engineers to determine how changes in material composition, shape, and surface condition affect fatigue resistance in a fraction of the historical time. The data generated is critical for establishing the performance and longevity of metallic parts in aerospace, automotive, and structural engineering applications.[4]

However, the assumption that the endurance limit is universally reached at 10 million cycles is actively challenged by modern, high-strength alloys. A comparison of the high-cycle fatigue thresholds defined in standard Class B S-N curves for steel forgings against empirical cycle-to-failure data for 1.2709 tool steel reveals a significant discrepancy.[1][2]

While standard Class B S-N curves, often used as a baseline by organizations like TWI, assume the fatigue curve flattens out at or before the 10 million cycle mark for general steel forgings, high-strength variants behave differently. The empirical data for 1.2709 tool steel shows that the material requires testing well beyond this traditional threshold to accurately capture the true flattening of the fatigue curve.[1][2]

This indicates that legacy baseline assumptions can overestimate the infinite-life threshold of modern tool steels. If engineers rely solely on the traditional 10 million cycle cutoff for these advanced alloys, they risk specifying a component that will eventually fail in a high-cycle application.[1][6]

Furthermore, the theoretical endurance limit only exists in a vacuum. Environmental factors, particularly corrosion, fundamentally alter the fatigue behavior of steel. Corrosion fatigue occurs when chemical attack and mechanical cyclic loading act simultaneously. The corrosive environment creates microscopic pits on the steel's surface, which act as new stress risers, effectively eliminating the endurance limit entirely and causing the S-N curve to slope downward continuously, much like aluminum.[5]

As metallurgy advances and new high-strength, additive-manufactured, and specialized tool steels enter the market, the reliance on generalized S-N curves is becoming obsolete. The next phase of structural design requires engineers to mandate alloy-specific, high-cycle fatigue testing under precise environmental conditions, ensuring that the theoretical promise of infinite life holds true in the physical world.[1][4]
