Neuromorphic vs. In-Memory Computing: A Guide to the Trade-Offs in AI Efficiency, Edge Deployment, and the Von Neumann Bottleneck

For engineering teams building the next generation of smart sensors and wearables, the choice of AI hardware dictates whether a product survives on a coin-cell battery for years or dies in hours. The fundamental architecture of modern computing—the von Neumann model—is failing at the edge. Because processing units and memory are physically separated, data must be constantly shuttled back and forth across a bus. For decades, this separation was a minor tax. Today, it is a crippling bottleneck that drains power and kills real-time performance.[5]

Training and running deep neural networks requires billions of matrix-vector multiplications. In traditional graphics processing units (GPUs) and tensor processing units (TPUs), the actual computation takes a fraction of a nanosecond. However, fetching the weights and activations from memory takes significantly longer and consumes up to 90% of the total system energy. This 'memory wall' makes conventional chips highly inefficient for battery-powered edge devices, forcing developers to seek radical new hardware paradigms.[5]

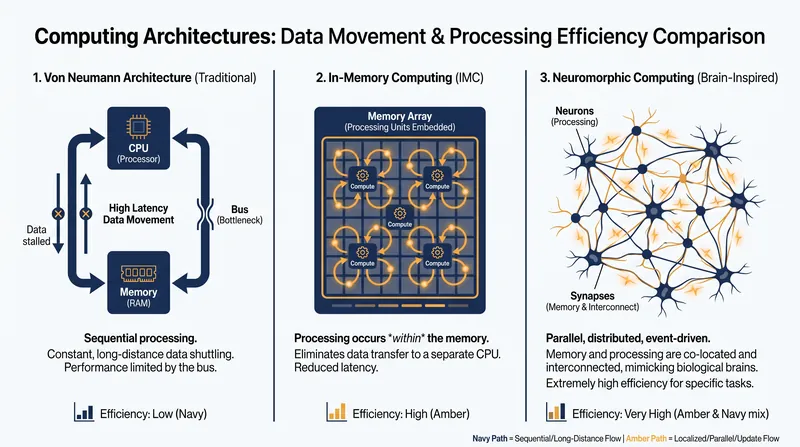

To deploy advanced AI without a constant power supply, the hardware industry is pursuing two distinct solutions: in-memory computing (IMC) and neuromorphic engineering. Both seek to eliminate the von Neumann bottleneck, but they approach the problem from entirely different angles. Understanding the trade-offs between them is essential for matching the right silicon to the right application.[1][2]

In-memory computing tackles the data movement problem directly by performing calculations exactly where the data resides. Instead of moving weights to the processor, the processor is effectively distributed throughout the memory array. This approach can be implemented using conventional digital memory, like SRAM, or emerging analog non-volatile memory, such as resistive RAM (ReRAM) or phase-change memory (PCM).[4]

Analog IMC is particularly compelling for heavy AI workloads. By leveraging the physical properties of memristive devices, an entire memory array can perform a massive matrix-vector multiplication in a single step using Kirchhoff's circuit laws. The input voltages represent activations, the memory cell conductances represent weights, and the resulting output currents represent the computed sums.[1][4]

This physical computation yields extraordinary energy efficiency. While conventional digital accelerators typically deliver 1 to 10 Tera Operations Per Second per Watt (TOPS/W), analog IMC implementations can achieve 10 to 100 TOPS/W. This order-of-magnitude improvement makes IMC highly attractive for running standard convolutional neural networks (CNNs) and transformers directly on edge devices.[1]

However, analog IMC comes with specific caveats. The physical devices are subject to thermal noise, conductance drift, and manufacturing variability. As a result, the computational precision is typically limited to 4 to 8 bits. While this is sufficient for many edge inference tasks, it requires specialized 'hardware-aware' training techniques to ensure the neural network remains accurate despite the analog noise.[1][4]

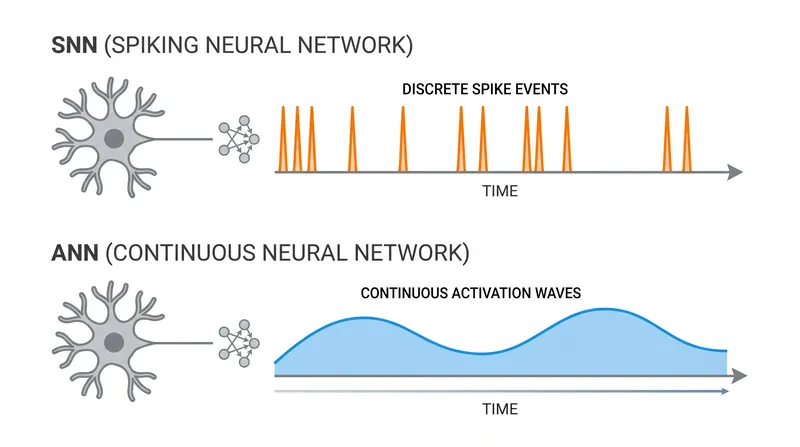

Neuromorphic computing takes a completely different, biology-inspired approach. Rather than accelerating standard dense matrix math, neuromorphic chips emulate the structure and function of the human brain. They utilize artificial neurons and synapses that communicate through discrete electrical spikes, forming what are known as Spiking Neural Networks (SNNs).[2][5]

The defining characteristic of neuromorphic hardware is extreme dynamic sparsity. In a conventional neural network, every neuron in a layer computes an output for every frame of data, regardless of whether the input has changed. In a neuromorphic system, computation is entirely event-driven. A neuron only fires—and consumes energy—when its accumulated input crosses a specific threshold.[3]

This event-driven architecture is exceptionally well-suited for processing temporal data from sensors. If a neuromorphic chip is monitoring a security camera, it expends almost zero energy while the scene is static. It only computes when a pixel changes. Research demonstrates that this adaptive threshold mechanism can reduce energy consumption by up to 67% compared to continuous processing.[2][3]

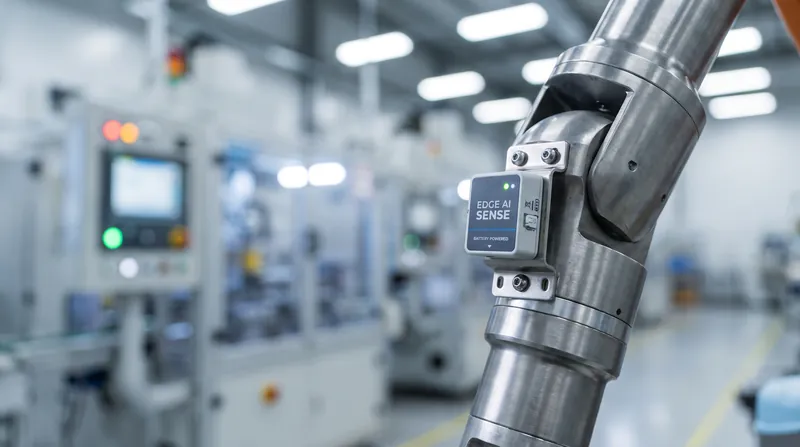

When deployed on edge devices, neuromorphic processors can achieve staggering efficiency gains. Benchmark evaluations of SNNs on specialized hardware have demonstrated up to a 312-fold energy improvement over conventional GPU baselines. This makes neuromorphic computing the premier choice for 'always-on' applications, such as acoustic anomaly detection in factories or keyword spotting in wearable electronics.[2]

Yet, the neuromorphic paradigm faces a steep adoption curve. The software ecosystem is nascent compared to the mature toolchains available for standard deep learning. Converting a traditional neural network into a spiking format is complex, and training SNNs directly remains an active area of algorithmic research because the discrete nature of spikes is incompatible with standard backpropagation techniques.[3]

Furthermore, neuromorphic chips struggle with the dense, continuous workloads where traditional AI excels. If an application requires processing every pixel of a high-resolution image simultaneously, the event-driven advantage disappears. In these scenarios, the overhead of managing spikes can actually make the system less efficient than a standard accelerator.[3][5]

Ultimately, the choice between in-memory computing and neuromorphic hardware dictates the capabilities of the next generation of edge devices. IMC offers a smoother transition for existing AI models, providing massive throughput gains for dense operations by eliminating the memory wall. Neuromorphic computing requires a fundamental rethink of algorithm design but offers unparalleled battery preservation for sparse, continuous monitoring.[1][2]

As the semiconductor industry pushes the physical limits of silicon, the boundaries between these two paradigms are beginning to blur. Researchers are now exploring hybrid architectures that use in-memory crossbar arrays to implement the synaptic weights of spiking neural networks, combining the dense storage of IMC with the event-driven efficiency of neuromorphic design.[4][6]
