Active Noise Cancellation: How Phase Inversion and the Superposition Principle Silence Low-Frequency Sound

For active noise cancellation to work, the headphone's internal processor must detect an incoming soundwave, calculate its exact inverse, and broadcast that anti-wave into the ear canal before the original noise arrives. This timing constraint dictates everything about how the technology performs. If the anti-wave is even a fraction of a millisecond late, the two sounds amplify rather than cancel, creating a louder noise than the environment itself. Currently, digital signal processors execute this loop in under 20 microseconds, allowing consumer headphones to reliably erase predictable, low-frequency drones.[5]

If you buy active noise-cancelling headphones to block crying babies or sharp office chatter, you are buying the wrong tool. The technology is engineered specifically for continuous, low-frequency noise, typically below 1,000 hertz. For high-frequency, unpredictable sounds, the passive isolation—the physical seal of the foam ear pad against your head—does the actual work of keeping the noise out.[1][4]

The core mechanism driving this technology is the superposition principle. When two sound waves meet in the same medium, their amplitudes add together. If a wave with a positive pressure peak meets another wave with a positive pressure peak, the sound gets louder. But if a positive pressure peak meets a negative pressure trough of the exact same magnitude, the resulting pressure is zero.[2][3]

This specific application of the superposition principle is called destructive interference. To achieve it, the headphone's external microphone records the ambient noise in the room. The internal processor then generates a new audio wave with the exact same amplitude but shifts the phase by exactly 180 degrees, creating a mirror image of the incoming sound.[1][3]

The headphone's driver then plays this inverted wave into the ear cup. Because the original wave and the inverted wave reach the eardrum simultaneously, they push and pull the air in perfect opposition. The UPCommons thesis on the subject notes that "the objective of an active noise control system is to produce an anti-noise field that perfectly matches the primary noise field in amplitude and is opposite in phase." When this happens, the eardrum registers no pressure change, and the brain perceives silence.[4]

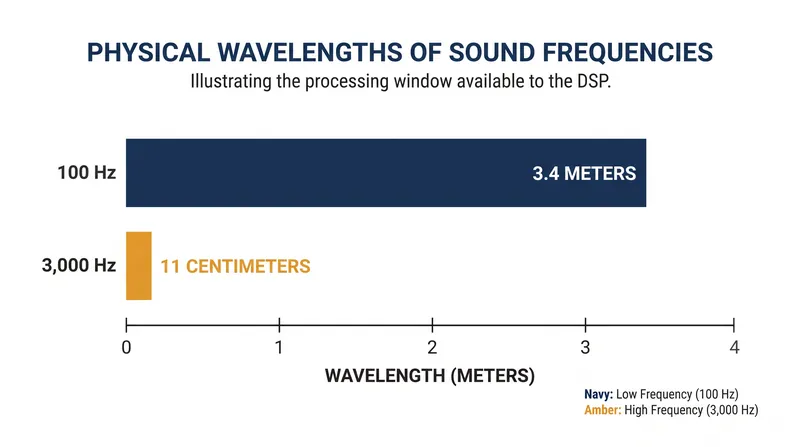

The system's effectiveness is strictly bound by the physical length of sound waves. A 100-hertz sound wave, such as the deep rumble of a jet engine, is roughly 3.4 meters long. This long wavelength gives the digital signal processor a relatively wide time window to sample the wave, invert it, and play it back while the original wave is still passing through the physical space of the ear cup.[2][4]

Conversely, a 3,000-hertz sound—like a sharp voice or a breaking glass—has a wavelength of just 11 centimeters. The wave cycles from peak to trough so quickly that the processor cannot calculate and invert it fast enough. If the anti-wave is misaligned by even 90 degrees, it causes constructive interference, which would actively amplify the sharp noise directly into the user's ear.[3][5]

To manage this timing challenge, manufacturers rely on specific microphone placements. Feedforward systems place the microphone on the outside of the ear cup, detecting the noise before it enters the acoustic chamber. This provides the maximum possible processing time for the chip, but the system cannot measure what the user actually hears inside the cup to verify if the cancellation worked.[1][4]

Feedback systems solve this by placing the microphone inside the ear cup, directly next to the speaker driver. This allows the system to hear exactly what the eardrum hears and correct any errors in the cancellation wave in real time. However, because the microphone is positioned so close to the speaker, it risks creating a high-pitched feedback loop if the amplification is pushed too high.[4][5]

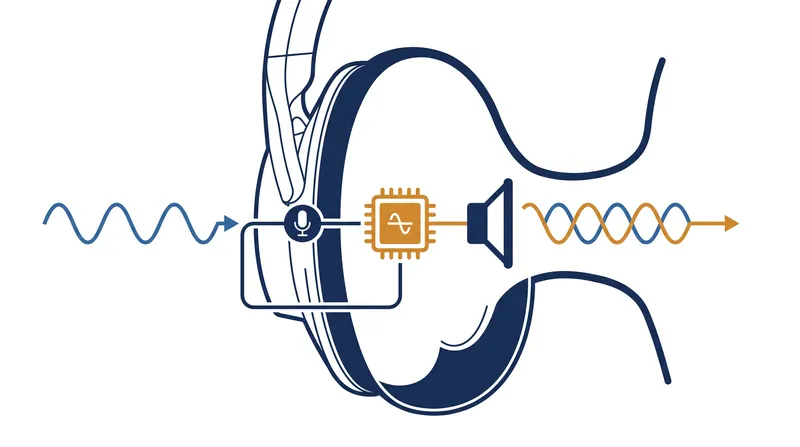

Modern premium headphones use a hybrid approach, combining both feedforward and feedback microphones. The external microphone handles the initial inversion of predictable low frequencies, while the internal microphone acts as an error-correction loop, fine-tuning the anti-wave to account for the specific shape of the user's ear canal and the quality of the ear pad seal.[1][5]

The transition from analog to digital processing over the last 80 years—dating back to early patents in the 1930s—is what made these hybrid systems possible. According to a 2016 IEEE Xplore historical review, early analog circuits were fast but inflexible, hardwired to cancel specific frequencies. Today, "digital systems provide the flexibility to implement complex adaptive algorithms that analog systems cannot match," sampling the audio environment at up to 192,000 times per second.[5]

This aggressive digital processing creates a noticeable side effect: the faint "hiss" often heard when wearing the headphones in a quiet room. The processor and internal amplifiers generate a baseline level of electronic noise. Because the system is constantly outputting sound to cancel the environment, this low-level white noise becomes audible when there is no loud ambient sound to mask it.[4]

Another physical side effect is "eardrum suck," a sensation of pressure in the ears that some users find uncomfortable. Active noise cancellation does not actually change the static air pressure inside the ear cup. Instead, by eliminating low-frequency background noise while leaving high-frequency sounds intact, the system tricks the brain into perceiving a pressure differential, mimicking the feeling of ascending in an airplane.[1]

The next frontier for this technology is adaptive transparency, where the processor not only cancels background noise but selectively passes through specific frequencies, like emergency sirens or a recognized human voice. Until processing speeds cross the threshold required to instantly invert high-frequency transients, the physical seal of the headphone will remain the primary defense against sudden, sharp sounds.[5]
