The Open-Loop vs. Closed-Loop Trade-off: Why Stepper Motors Offer Simplicity but Servo Motors Guarantee Position

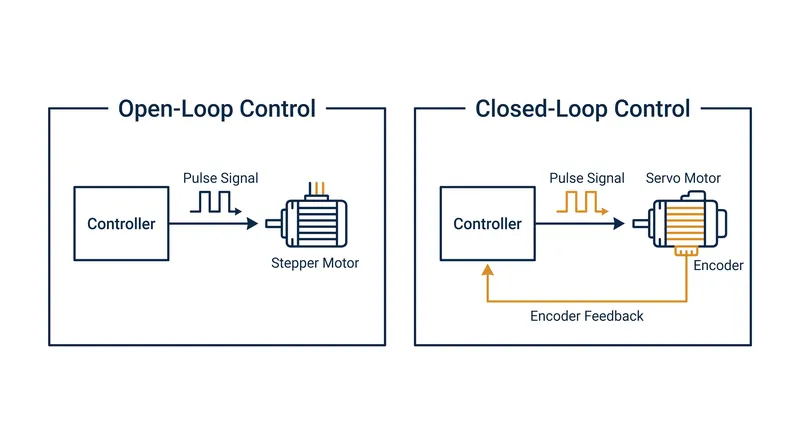

The defining moment in any robotic movement occurs the millisecond after the controller sends a voltage pulse to the motor. In that fraction of a second, the system must either blindly trust that the physical hardware executed the command, or it must read a sensor to verify the new position. This verification step separates open-loop systems from closed-loop systems, and it dictates whether a machine costs $300 or $30,000.[2]

At the hardware level, this trade-off is embodied by the two dominant actuators in modern robotics: the stepper motor and the servo motor. While both convert electrical current into rotational force, their internal architectures and control philosophies are fundamentally opposed. Stepper motors assume the physical world perfectly matches their digital instructions. Servo motors assume the physical world is full of errors that must be constantly corrected.[1][3]

A standard stepper motor operates on an open-loop control scheme. Inside the casing, a central rotor lined with permanent magnets is surrounded by a series of electromagnetic coils. By energizing these coils in a specific sequence, the controller pulls the rotor forward in discrete, predictable increments.[5]

Most industrial steppers divide a full rotation into 200 distinct steps, meaning each electrical pulse turns the shaft exactly 1.8 degrees. Because the controller knows exactly how many pulses it has sent, it calculates the motor's position by simply counting them. There is no sensor confirming the shaft actually moved.[7]

"Stepper motors are excellent for applications that require high holding torque at low speeds," notes Anaheim Automation in a 2024 technical review. When the coils remain energized without a stepping pulse, the magnetic field locks the rotor rigidly in place, providing massive resistance against external forces without requiring complex braking mechanisms.[7]

The vulnerability of this open-loop architecture becomes apparent the moment the motor encounters an unexpected physical obstacle. If a 3D printer nozzle snags on a warped plastic layer, the controller continues firing pulses, assuming the motor is advancing. The motor, physically jammed, misses those steps. Because no feedback loop exists, the controller remains entirely unaware of the discrepancy, resulting in the remainder of a 14-hour print being extruded two inches to the left of its intended target.[1][5]

Servo motors eliminate this blind spot by employing a closed-loop control system. A servo is not defined by a specific type of internal electromagnetism—it can be a brushed DC motor or a brushless AC motor—but rather by the presence of an encoder attached to its rear shaft.[3][6]

This encoder acts as the system's eyes. As the motor turns, the encoder reads thousands of microscopic physical markings per revolution, sending a continuous stream of exact positional data back to the controller. "A closed-loop controller calculates the error between the desired and actual values and minimizes it," explains MathWorks in its control systems documentation.[4]

If a robotic arm powered by a servo encounters unexpected resistance, the encoder immediately detects that the shaft has not reached the target angle. The controller's Proportional-Integral-Derivative (PID) algorithm calculates the exact difference—the error—and instantly spikes the current to force the motor through the obstruction until the encoder confirms the target position is achieved.[2][4]

This absolute certainty comes with a steep computational and financial penalty. A servo system requires a dedicated drive amplifier to process the high-speed encoder feedback, often reading the position 10,000 times per second. Engineers must manually tune the PID loop for every specific mechanical load; if the tuning is too aggressive, the motor will overshoot its target and violently oscillate.[3][5]

Furthermore, servo motors struggle to stand perfectly still. Because the closed-loop system is constantly reading the encoder and correcting microscopic deviations, a stationary servo often exhibits a phenomenon called "hunting" or "dithering"—a high-frequency vibration and audible hum as the motor rapidly twitches back and forth across a single encoder line to maintain its position.[1][6]

The torque delivery curves of the two technologies also dictate their industrial applications. A NEMA 23 stepper motor delivers its maximum torque at zero RPM, making it ideal for holding loads steady, but its torque output plummets by up to 80% as it approaches 1,000 RPM.[7]

Conversely, a standard 400W industrial servo motor maintains a perfectly flat torque curve from zero all the way to its rated speed, which frequently exceeds 3,000 RPM. This makes servos the mandatory choice for high-speed pick-and-place machines, CNC milling centers, and dynamic robotic legs that require explosive acceleration.[3][6]

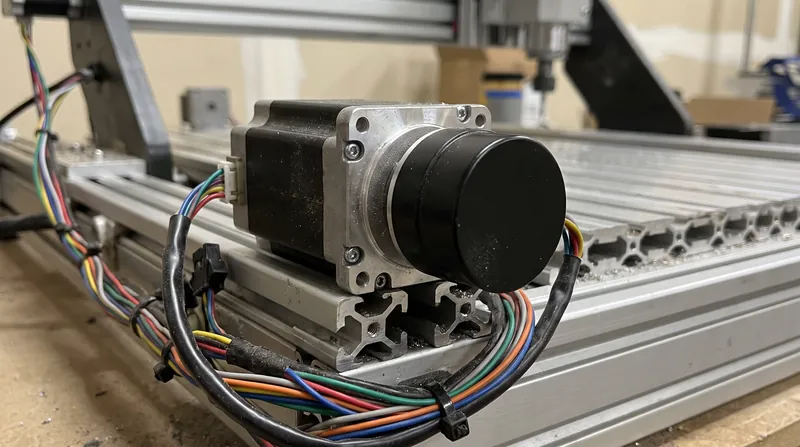

In 2025, the rigid boundary between these two technologies began to blur with the widespread commercialization of closed-loop steppers. By attaching a high-resolution encoder to the back of a traditional 1.8-degree stepper motor, manufacturers created a hybrid actuator.[8]

These hybrid motors operate as standard open-loop steppers during normal movement, but if the encoder detects a missed step due to a collision or overload, the controller instantly switches to closed-loop mode, injecting extra current to recover the lost position. Source Robotics highlights this architecture as a middle ground, offering the low-speed torque and stillness of a stepper with the error-recovery guarantees of a servo.[8]

The engineering decision between these architectures rarely comes down to which motor is objectively superior. The calculation rests entirely on the financial consequence of a mechanical failure. If a missed step ruins a $2 piece of plastic, the open-loop stepper remains the undisputed standard. If a missed step drives a surgical scalpel into the wrong tissue, the closed-loop servo is the only acceptable choice.[1][2][9]
