Reflected Rotor Inertia Scales With the Square of the Gear Ratio: Why Legged Robots Abandon Harmonic Drives

When a robotics engineer drafts the next generation of a dynamic legged machine, the most consequential decision is the joint actuator. They must choose how to turn electrical power into physical movement, balancing raw strength against the ability to survive a fall. For decades, the default answer was a small motor paired with a massive gear reduction.

Today, the designers of agile quadrupeds and humanoids are abandoning that industrial standard. Instead of hiding a weak motor behind a high-ratio gearbox, they are deploying large, torque-dense motors with minimal gearing. This architecture, known as quasi-direct drive, trades holding strength for structural survival.[4][5]

The shift is driven by a brutal law of physics that governs every physical interaction a robot has with its environment. When a robot's foot strikes the ground, the impact force travels up the leg and attempts to turn the motor backward. The gear ratio dictates exactly how much resistance that force meets, scaling not linearly, but quadratically.[1][2]

The Physics of Reflected Inertia

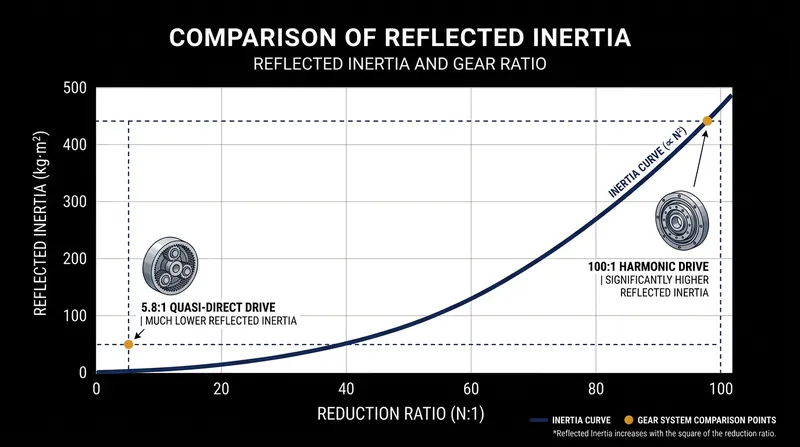

To understand why legged robots break, one must understand reflected rotor inertia. This metric captures the apparent mass of the motor's spinning rotor as felt at the output joint. When a motor drives a load through a gear reduction, the output torque is multiplied by the ratio, but the rotor's inertia is amplified by the square of that ratio.[1][3]

This squared relationship is the fundamental constraint in dynamic actuator design. It is a direct consequence of the conservation of energy. If a gearbox multiplies torque by a factor of ten, it divides speed by ten, and because kinetic energy scales with the square of velocity, the gearbox effectively multiplies the inertial burden by one hundred.[3]

If an engineer selects a ten-to-one gearbox, the rotor feels one hundred times heavier to the outside world than it actually is. If they select a one-hundred-to-one gearbox, that same rotor feels ten thousand times heavier. The mechanical advantage that makes the motor strong also makes it immovably dense to any external force attempting to push back.[1][3]

In an industrial setting, where a robotic arm is bolted to a concrete floor and moves through empty space, this amplification is a feature. The massive reflected inertia helps the controller reject minor disturbances and maintain sub-millimeter precision. The arm is not expected to collide with anything, so its inability to yield is irrelevant.[5]

The Harmonic Drive Problem

For a legged robot, however, collisions are not accidents; they are the primary mode of locomotion. A running quadruped or a walking humanoid takes thousands of steps an hour, sending a shock of two to three times its body weight through the leg actuators with every footfall. The joint must absorb that kinetic energy instantly.[2]

Historically, humanoid designers borrowed from industrial arms, utilizing strain-wave gearboxes, commonly known as harmonic drives. These transmissions use a flexible metal spline to achieve massive reductions in a highly compact, zero-backlash package. They deliver immense torque from tiny, fast-spinning motors, with ratios typically between fifty-to-one and one-hundred-and-sixty-to-one.[5]

But when a foot attached to a high-ratio harmonic drive hits the ground, the squared scaling law turns lethal. Because the rotor's inertia is amplified by a factor of ten thousand, the external impact force simply cannot accelerate it backward fast enough. The joint behaves like a rigid brick rather than a compliant spring.[1]

Unable to back-drive the motor, the kinetic energy of the footfall has nowhere to go. The shock load is transmitted directly into the delicate teeth of the flexspline, causing shear failure and metal fatigue. This relentless duty cycle is why high-ratio actuators routinely shatter in dynamic legged machines.[5]

The Series Elastic Compromise

Before quasi-direct drive became the standard, engineers attempted to solve the impact problem by adding physical springs to the drivetrain. This architecture, known as a series elastic actuator, placed a compliant mechanical element between the high-ratio gearbox and the robot's limb. When the leg struck the ground, the spring compressed, absorbing the high-frequency impact energy.[2]

However, series elastic actuators introduced their own severe limitations. The physical spring added significant bulk to the leg and fundamentally limited the control bandwidth, meaning the robot could only change its force output as fast as the spring could compress. Engineers found themselves trapped in a compromise between impact protection and high-bandwidth control.[2]

The Quasi-Direct Drive Solution

To survive running and jumping without sacrificing bandwidth, a robot's legs must be inherently back-drivable. When the ground pushes up, the joint must yield instantly, allowing the force to travel backward through the transmission and turn the motor. The only way to achieve this mechanical transparency is to drastically lower the gear ratio.[1][4]

A true direct-drive joint, which bolts the limb straight to the motor with no gears at all, offers perfect transparency. However, electric motors are inherently torque-poor relative to their mass. A direct-drive humanoid knee would require a motor so heavy that the robot could not lift its own legs, defeating the design's purpose.[4][5]

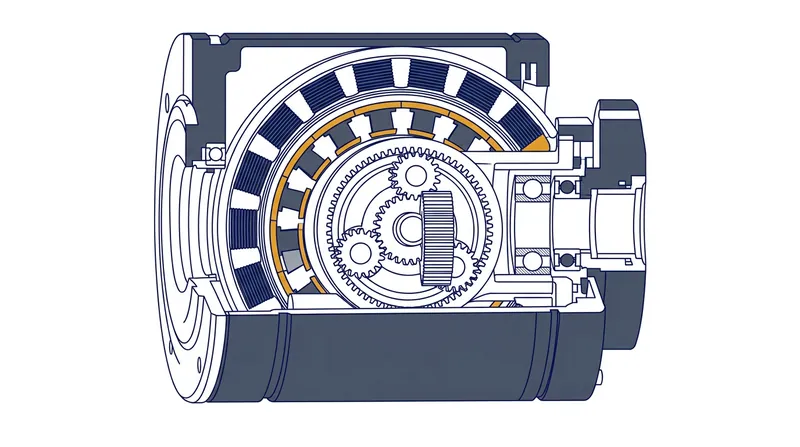

Quasi-direct drive splits the difference, occupying the narrow sweet spot between transparency and torque. A module pairs a large-diameter, high-torque pancake motor with a single-stage planetary gear reduction, typically ranging from five-to-one to ten-to-one. This provides just enough mechanical advantage to carry the robot's weight without destroying back-drivability.[4][5]

Because the gear ratio is kept low, the squared inertia penalty remains manageable. The reflected inertia is amplified by a factor of twenty-five to one hundred, rather than ten thousand. When a leg strikes the ground, the impact easily back-drives the motor, allowing the controller to absorb the shock electromagnetically rather than mechanically.[1][4]

The Control Bandwidth Advantage

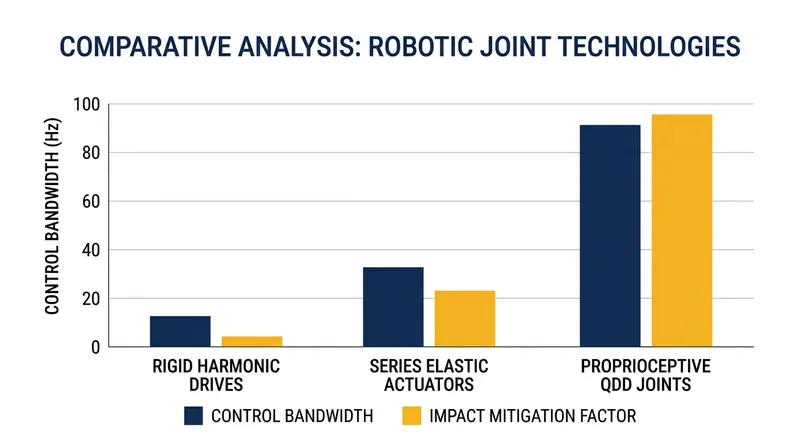

The most profound benefit of abandoning high-ratio gears and physical springs is the massive increase in control bandwidth. Bandwidth refers to how quickly a joint can change its force output in response to a command. It is the difference between a robot that clumsily trips over a rock and one that instantly catches its balance.[2]

When a robot relies on a series elastic actuator, the physical spring acts as a low-pass filter. It absorbs high-frequency impacts, but it also absorbs high-frequency control signals. If the motor tries to inject a rapid burst of torque to stabilize the robot, the spring must compress first, delaying the force.[2]

Quasi-direct drive eliminates this mechanical delay. Because the transmission is rigid but highly back-drivable, the motor's electromagnetic torque is transmitted to the limb almost instantly. The controller can inject high-frequency stabilizing forces directly into the ground, allowing the robot to react to slips and disturbances in milliseconds.[2][4]

This high-bandwidth capability is what allows modern quadrupeds to perform acrobatic feats like backflips and rapid bounding. The software can update the virtual stiffness of the leg hundreds of times per second, tuning the joint's impedance on the fly. The hardware no longer dictates the robot's dynamic limits.[2]

Proprioception Without Sensors

The adoption of quasi-direct drive has fundamentally changed how legged robots sense the world. In a highly geared system, the massive friction and reflected inertia mask external forces. This requires engineers to install fragile, expensive force-torque sensors at the joints or feet to detect ground contact and measure the load.[1][4]

With a low-ratio architecture, the transmission is so transparent that external forces directly affect the motor's electrical behavior. The robot can accurately estimate the force at its foot simply by monitoring the electrical current required to hold the motor's position. The joint feels the world through the exact same channel it uses to act.[1][2]

This concept, termed proprioceptive actuation, was pioneered by the MIT Cheetah project. By utilizing a custom motor and a remarkably low planetary reduction of just under six-to-one, the research team achieved static force resolution down to a quarter of a newton purely from motor current. The robot could bound at high speeds safely without a single dedicated force sensor.[1][2]

The proprioceptive approach embraces a philosophy of mechanical simplicity. By removing delicate load cells and complex series-elastic springs, the leg becomes a robust, monolithic tool. The compliance is handled entirely in software, allowing the robot to dynamically adjust its stiffness from a rigid strut to a soft spring in milliseconds.[2][4]

Thermal Limits and Trade-offs

While quasi-direct drive solves the impact problem, it introduces severe thermal constraints. Because the gear ratio is so low, the motor must generate the vast majority of the required joint torque electromagnetically. This demands high continuous currents, which generate significant resistive heat in the copper stator windings.[2][4]

If a robot stands perfectly still with bent knees, gravity applies a continuous static torque to the joints. The motors must draw heavy current simply to hold their position, rapidly heating up. Without the mechanical advantage of a massive gearbox, a joint can easily reach its thermal limit during sustained static loads.[4][5]

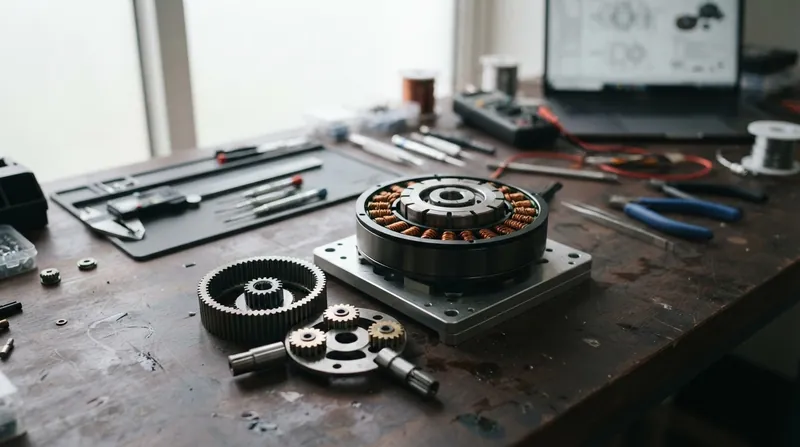

To mitigate this, these motors are designed with large air-gap diameters, maximizing the torque produced per amp of current. They are built wide and thin, exposing more surface area to the air for passive cooling. Even so, these robots are fundamentally designed to move, running more efficiently when walking dynamically than when standing still.[2][5]

The humanoid industry is now bifurcating its actuator strategies based on these physics. Upper limbs, which require high precision for manipulation and rarely suffer violent impacts, continue to rely on harmonic drives. Lower limbs, which must survive the relentless shock of the gait cycle, are increasingly transitioning to quasi-direct planetary designs.[5]

By respecting the squared scaling of reflected inertia, engineers have finally built legs that bend before they break. The abandonment of high-ratio gears in favor of proprioceptive transparency has transformed legged robots. They have evolved from fragile laboratory curiosities into machines capable of navigating the physical violence of the real world.[2][6]
