Collinear Joint Axes Collapse the Jacobian Matrix, Forcing Six-Axis Industrial Robots to Halt at Kinematic Singularities

When an automation engineer programs a six-axis industrial robot to weld a seam or apply a bead of aerospace sealant, the instruction is deceptively simple. The controller is commanded to move the tool center point from one coordinate to another in a perfectly straight line at a constant speed.

But industrial robots do not actually think in straight Cartesian lines. They operate entirely in rotational angles. To produce a straight line in three-dimensional space, the robot’s six rotational joints must constantly accelerate and decelerate in a complex, non-linear ballet calculated hundreds of times per second.

Most of the time, this mathematical translation happens flawlessly, hidden behind the polished marketing claims of absolute precision and perfect path control. The illusion breaks only when the robot reaches a specific geometric configuration that the underlying mathematics simply cannot solve.

This failure state is known as a kinematic singularity. It is not a mechanical defect, a software bug, or a physical collision with an obstacle. It is a mathematical collapse that occurs when two or more joint axes align, stripping the robot of a degree of freedom and forcing the control software to demand impossible physical feats from the hardware.[1]

The Mathematical Translator

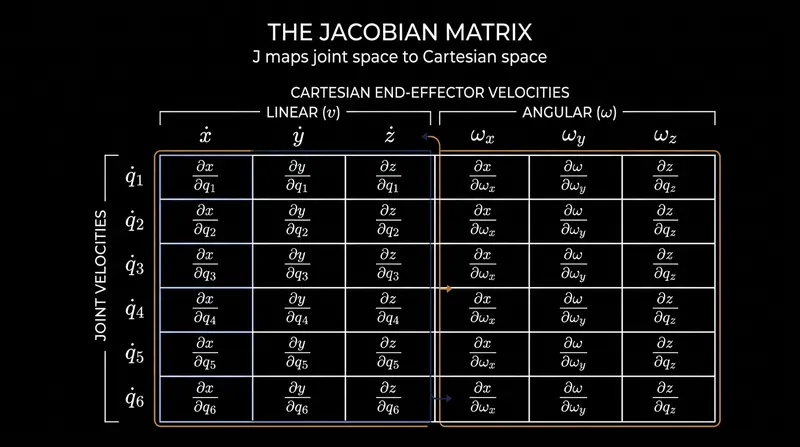

To understand why a robot suddenly halts or jerks violently in empty space, one must look at the matrix that governs its motion. The Jacobian matrix is the mathematical bridge between joint space—the angles of the six motors—and Cartesian space, which represents the coordinates of the tool.

As the robot moves, the controller uses this six-by-six matrix to map how a small change in joint velocity will affect the velocity of the end-effector. If a programmer commands a constant tool speed of 100 millimeters per second, the controller relies on the Jacobian to distribute the required rotational speeds across all six joints.

However, the controller must work backward to execute a path. It knows the desired Cartesian velocity and must calculate the required joint velocities to achieve it. To do this, it computes the inverse of the Jacobian matrix, a process that relies heavily on a mathematical property called the determinant.

As long as the determinant is a non-zero number, the inverse matrix exists, and the controller can find a unique set of joint speeds to maintain the path. The system remains stable, and the robot glides smoothly along its programmed trajectory without exceeding its physical limits.

"The mathematical definition of a kinematic singularity is independent of the choice of the body or space Jacobian," notes the technical journal Robotics Unveiled. "A singularity in a robotic arm occurs when the determinant of its Jacobian matrix becomes zero."

When Axes Collide

The mathematics break down entirely when the robot enters a singular configuration. For a standard six-axis articulated robot, the most common and problematic of these is the wrist singularity. This occurs deep within the spherical wrist mechanism that controls the orientation of the tool.[1][2]

A standard spherical wrist consists of three intersecting joints: Joint 4, Joint 5, and Joint 6. Under normal operation, Joint 5 bends the wrist, keeping the axes of Joint 4 and Joint 6 at a distinct angle to one another. This separation allows the three joints to independently control the roll, pitch, and yaw.[1]

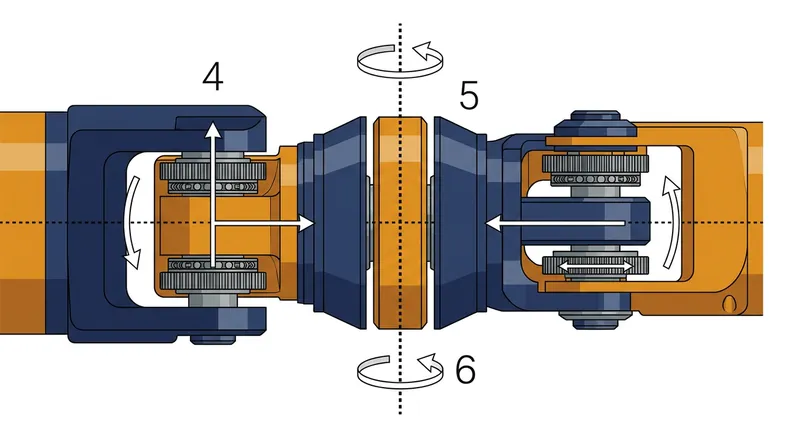

The singularity strikes when Joint 5 straightens out to exactly zero degrees. At this precise instant, the axis of rotation for Joint 4 and the axis of rotation for Joint 6 become perfectly collinear. They are now spinning along the exact same imaginary line in three-dimensional space.[1]

Because Joint 4 and Joint 6 are now redundant, the robot effectively loses one degree of freedom. The Jacobian matrix loses its full rank, and its determinant drops to exactly zero. The mathematical bridge between joint space and Cartesian space instantly collapses.

"When a robot's tool center point moves into or near a singularity, the robot will stop moving or move in an unexpected manner," explains the robotics simulation firm RoboDK. "When a six-degree-of-freedom robot enters a singularity, one or more of its joints will effectively become useless."[1]

The Infinite Velocity Problem

When the determinant of the Jacobian matrix reaches zero, calculating the inverse Jacobian requires dividing by zero. In the realm of kinematics, this means that the required joint velocity to maintain the programmed Cartesian path shoots toward infinity.[2]

If the tool is commanded to maintain a constant speed through the singularity, the math demands that Joints 4 and 6 instantly rotate 180 degrees in opposite directions. The controller dutifully generates the command, asking the physical motors to achieve infinite acceleration and infinite speed.[1][2]

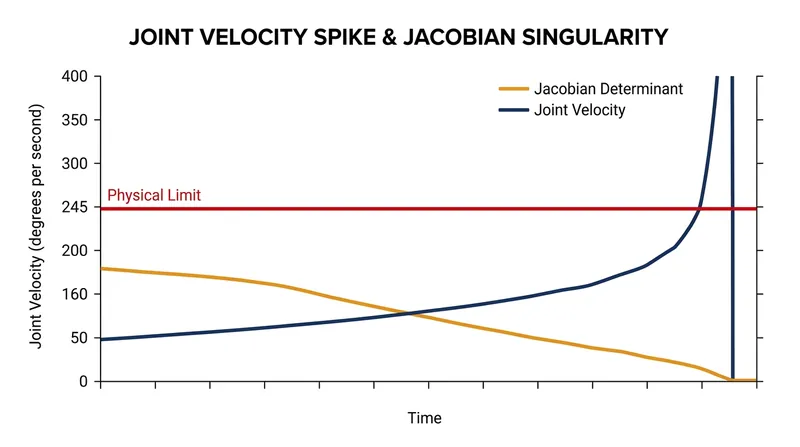

Physical hardware cannot obey infinite commands. Industrial servo motors on heavy-duty arms are typically limited to rotational speeds between 90 and 245 degrees per second. When the controller’s demand exceeds the motor’s physical limits, the system triggers a protective fault to save the drives.[2]

The robot will abruptly halt, throwing a joint velocity limit error on the teach pendant. To an observer, the robot appears to have crashed for no reason while moving through completely empty space, ruining the weld, the dispensing bead, or the paint job it was executing.[1][2]

"Tolerances matter here in a counterintuitive way — you don't avoid singularities by tightening parts, you avoid them by planning the path," notes Firgelli Automations in their kinematic analysis. "The mechanism collapses because two joint axes align and can no longer be solved independently."

Shoulder and Elbow Singularities

While the wrist singularity is the most frequently encountered trap, six-axis robots are vulnerable to two other major geometric collapses. The first is the shoulder singularity, which occurs when the center of the robot’s wrist aligns directly with the vertical axis of Joint 1.[1][2]

When the wrist center passes directly over the base motor, the controller can no longer determine which way the base should be facing. The mathematical solution becomes ambiguous, allowing for an infinite number of valid Joint 1 positions for the exact same tool location.[1][2]

The second major trap is the elbow singularity, which happens when the robot arm reaches its maximum extension. As Joint 3 opens fully, the arm locks into a straight line. At this boundary of the workspace, the robot loses the ability to move radially outward.[1]

Any command instructing the robot to push further out will result in a mathematical division by zero, as the Jacobian determinant once again vanishes. The arm is physically constrained, and the inverse kinematics fail to find a valid joint configuration to satisfy the Cartesian demand.

Because singularities are a fundamental property of six-axis geometry, they cannot be eliminated by better motors or stiffer gearboxes. They are a permanent mathematical reality that every motion control system must eventually confront.

How Controllers Cheat the Math

Instead of redesigning the physical arm, the robotics industry relies on software workarounds to cheat the math before the robot faults out. Modern motion controllers employ singularity avoidance algorithms to navigate the dangerous zones where the determinant approaches zero.[2]

The most common technique is Damped Least Squares, which introduces a mathematical damping factor into the pseudoinverse calculation as the robot approaches a singular configuration. This factor acts as a mathematical shock absorber, preventing the division by zero.[3]

Instead of allowing the joint velocity command to spike toward infinity, the damping factor artificially caps the motor speed. The controller intentionally ignores the programmer’s strict Cartesian command, prioritizing continuous joint motion over absolute tool precision.[3]

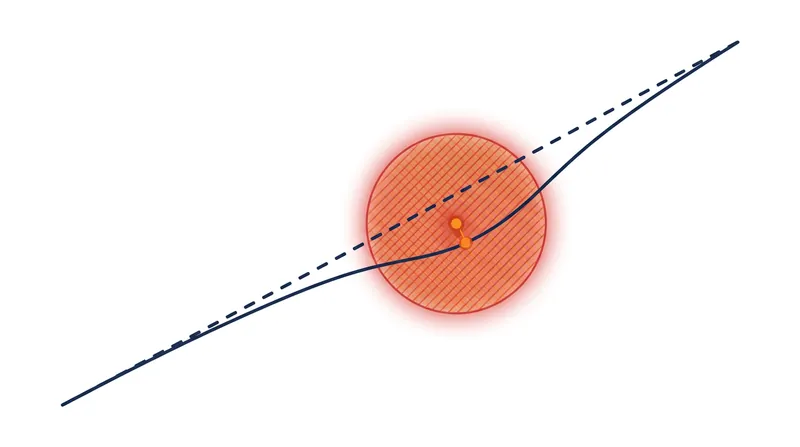

The result is a subtle deviation from the programmed path. The tool center point might drift by a few millimeters, or the tool orientation might tilt slightly as the robot pushes through the singularity zone. The marketing promise of perfect straight-line motion is quietly abandoned to keep the machine running.[2][3]

The Engineering Trade-Off

For many applications, this microscopic deviation is perfectly acceptable. A packaging robot moving cardboard boxes will not suffer if its trajectory bends slightly to avoid a mathematical fault. The continuous motion is far more valuable than absolute geometric accuracy.[1][3]

However, in high-precision tasks like aerospace welding or laser cutting, a singularity-induced path deviation is a catastrophic failure. In these environments, automation engineers cannot rely on the controller to fudge the math. They must manually design the singularity out of the workspace.[1]

Programmers achieve this by intentionally offsetting the tool angle, ensuring that Joint 5 never reaches exactly zero degrees during a critical linear move. By maintaining a safe offset of at least three to five degrees, the Jacobian determinant remains healthy, and the velocity multiplier stays within physical limits.[2]

Ultimately, the kinematic singularity serves as a hard boundary on robotic capability. It is a reminder that beneath the polished exterior of industrial automation lies a rigid mathematical framework, one that demands compromise whenever the geometry of the physical world aligns against it.[3]
