How Elliptic Gear Teeth Transmit Near-Zero Backlash in Strain Wave Drives

Marketing brochures for surgical robots and aerospace actuators frequently claim their joints rely on perfectly rigid, zero-tolerance machined gears to eliminate mechanical play. The assertion suggests that absolute precision comes from cutting steel so exactly that no gaps remain between the teeth.

The kinematic evidence contradicts this marketing claim entirely, as perfectly rigid systems cannot absorb microscopic manufacturing deviations. Standard rigid gears physically cannot achieve zero backlash without generating immense friction, overheating, and rapidly grinding themselves to metal dust under operational loads.[1]

Instead of relying on impossible rigidity, the highest-precision robotic joints use a mechanism that intentionally deforms metal to achieve stability. Strain wave drives, commonly known by the brand name Harmonic Drive, achieve near-zero backlash through continuous, flexible meshing rather than stiffness.[3]

This counterintuitive approach solves a fundamental engineering problem in motion control. By forcing a flexible steel cup to bend into an elliptical shape, the drive ensures that dozens of gear teeth engage simultaneously, distributing the load and eliminating the microscopic gaps that cause mechanical play.[2]

The anatomy of flexible gearing

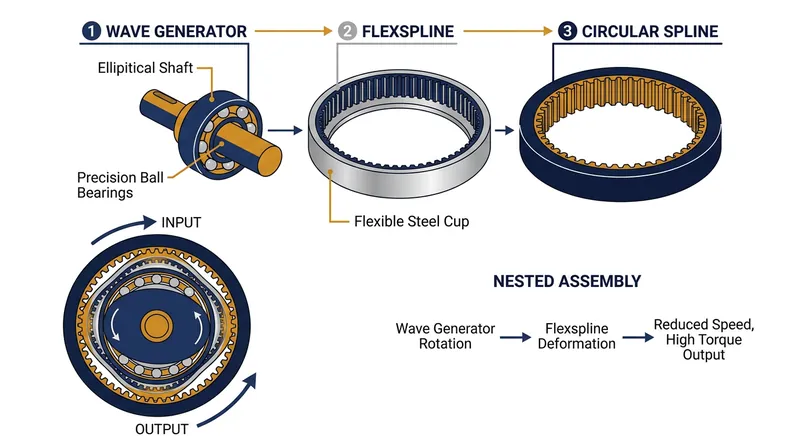

A standard strain wave drive consists of just three primary mechanical components. The outermost layer is the circular spline, a rigid steel ring with internal gear teeth machined directly into its inner circumference to act as the fixed boundary.

Inside this rigid ring sits the flexspline, a thin-walled steel cup that features external gear teeth along its open rim. The flexspline is manufactured to be slightly smaller in diameter than the circular spline, and it contains exactly two fewer teeth than the outer ring.[1]

The core of the mechanism is the wave generator, which drives the entire system. This component is an elliptical steel plug surrounded by a thin, flexible ball bearing, which is inserted directly into the center of the flexspline cup.

When the elliptical wave generator is pushed into the flexspline, it forces the circular steel cup to stretch into an oval shape. This deformation pushes the external teeth of the flexspline outward to mesh with the internal teeth of the rigid circular spline at two opposing points.[2]

The mathematics of the missing teeth

The mechanical advantage of the strain wave drive lies entirely in the deliberate mismatch in tooth counts. Because the flexspline has two fewer teeth than the circular spline, a full rotation of the wave generator does not return the gears to their original alignment.[1]

As the elliptical wave generator completes one 360-degree rotation, the engagement zones travel around the perimeter of the gears. The flexspline is forced to walk backward by exactly two teeth relative to the rigid outer ring during every single revolution.[2]

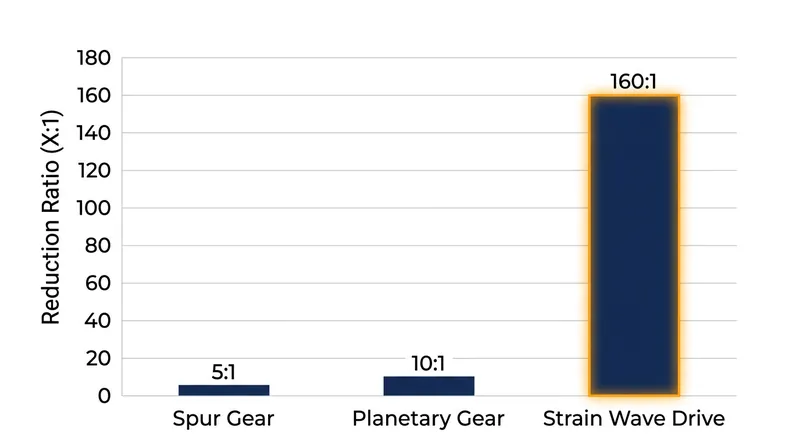

This two-tooth differential creates a massive gear reduction ratio within a remarkably compact physical space. A drive with 200 teeth on the circular spline and 198 on the flexspline achieves a 100:1 reduction ratio in a single stage, a feat that would require multiple bulky gearsets in a traditional planetary gearbox.

"The kinematic elegance of the strain wave drive is that it converts high-speed, low-torque rotation into low-speed, high-torque output without adding mechanical complexity," notes a 2026 kinematic analysis published in the journal Mechanism and Machine Theory.[2]

Continuous meshing and error averaging

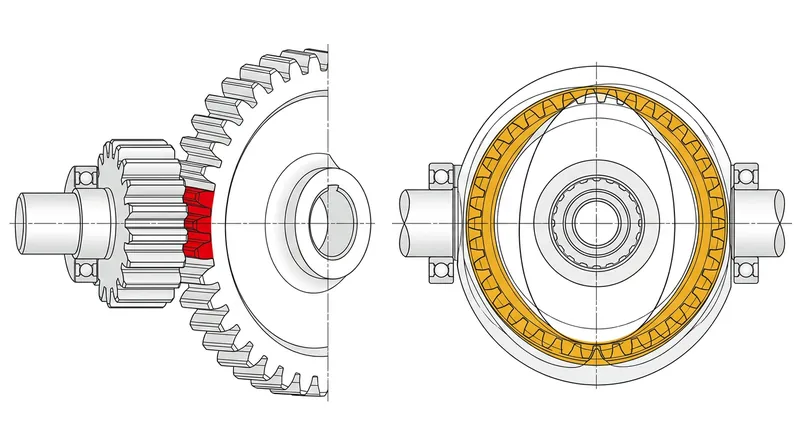

Traditional spur gears only engage one or two teeth at any given moment during their rotation. This means that 100 percent of the torque load is concentrated on a tiny surface area, requiring thick, heavy teeth to prevent shearing under stress.[1]

In contrast, the elliptical deformation of the flexspline forces up to 30 percent of its total teeth to engage with the circular spline simultaneously. In a 200-tooth drive, roughly 60 teeth are sharing the physical load at all times across the major axis.

This continuous meshing is what actually eliminates backlash in the system. Because so many teeth are locked together in the engagement zones at the major axis of the ellipse, any microscopic machining errors in individual teeth are averaged out across the entire engaged surface.[3]

The specific profile of the gear teeth is critical to making this continuous engagement work. Early strain wave drives used standard involute tooth profiles, but modern iterations utilize specialized S-shaped or elliptic tooth geometries that allow the teeth to slide in and out of engagement without scraping.[2]

Material science and fatigue limits

The fundamental trade-off of the strain wave drive is that it requires solid metal to bend continuously without breaking. The flexspline must deform into an ellipse and return to a circle thousands of times per minute during high-speed motor operation.[1]

This constant flexing subjects the steel cup to severe cyclic stress that would destroy standard metals. To survive, flexsplines are manufactured from highly specialized, fatigue-resistant steel alloys, and the wall thickness is precisely calibrated to balance flexibility with torsional stiffness.

Even with advanced metallurgy, the flexspline remains the primary mechanical failure point of the mechanism. If a strain wave drive is subjected to torque loads exceeding its rated capacity, the thin walls of the cup can buckle, or the teeth can undergo catastrophic ratcheting.[2]

Lubrication presents another significant engineering challenge for continuous operation. The continuous sliding motion of the teeth as they enter and exit the engagement zones requires specialized greases that can withstand extreme pressure without being squeezed out of the mesh.[1]

Applications in modern robotics

Despite these material constraints, strain wave drives have become the undisputed standard for precision industrial robotics. Their ability to deliver zero backlash and high torque in a lightweight package makes them irreplaceable in applications where weight and absolute accuracy are paramount.[3]

Surgical robots, such as the widely used da Vinci systems, rely exclusively on these drives to translate a surgeon's hand movements into microscopic instrument adjustments. Any mechanical play in these joints could result in catastrophic surgical errors during delicate procedures.

The aerospace industry is similarly dependent on the technology for extraterrestrial exploration. The Mars rovers Spirit, Opportunity, Curiosity, and Perseverance all utilized strain wave gearing in their robotic arms and mobility systems, prioritizing the mechanism's compact size and high reduction ratios.[1]

"When you are launching mass into orbit, every gram matters. The ability to achieve a 160:1 reduction in a gearbox the size of a tuna can is what makes complex space robotics possible," states a 2025 NASA technical memorandum on actuator design.[1]

The limits of the technology

While marketing materials often present strain wave drives as a flawless solution, the technology has distinct operational boundaries. The drives exhibit a phenomenon known as kinematic error, a slight periodic fluctuation in output speed caused by the elliptical rotation of the wave generator.[2]

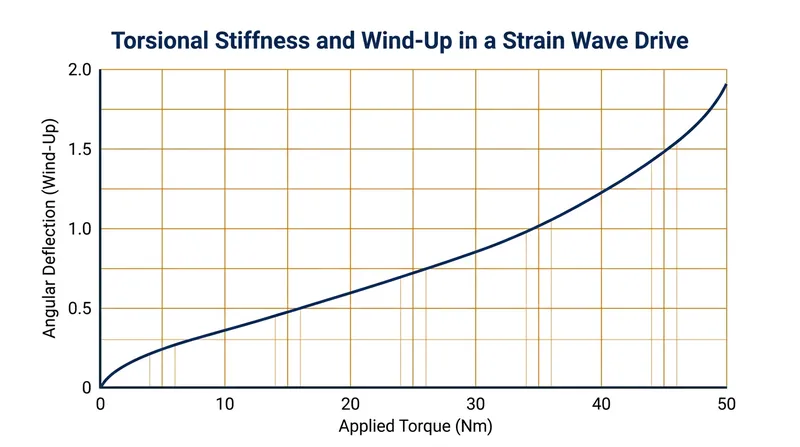

Furthermore, the drives are not perfectly stiff under heavy dynamic loads. Because the flexspline is inherently flexible, the gearbox acts slightly like a torsional spring when accelerating, a characteristic known as wind-up that control algorithms must actively compensate for.[3]

As industrial robots move toward higher speeds and heavier payloads, manufacturers are increasingly forced to evaluate trade-offs. Engineers must choose between the zero-backlash precision of strain wave drives and the superior rigidity of cycloidal gearboxes for base joints.

The future of precision actuation likely involves hybrid approaches to mitigate these flaws. Engineers are currently experimenting with composite flexsplines and active magnetic bearings to reduce wear and increase the torsional stiffness of the drives without sacrificing their kinematic elegance.[2]
